Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

13 part groups · 3 illustrations

Illustrations

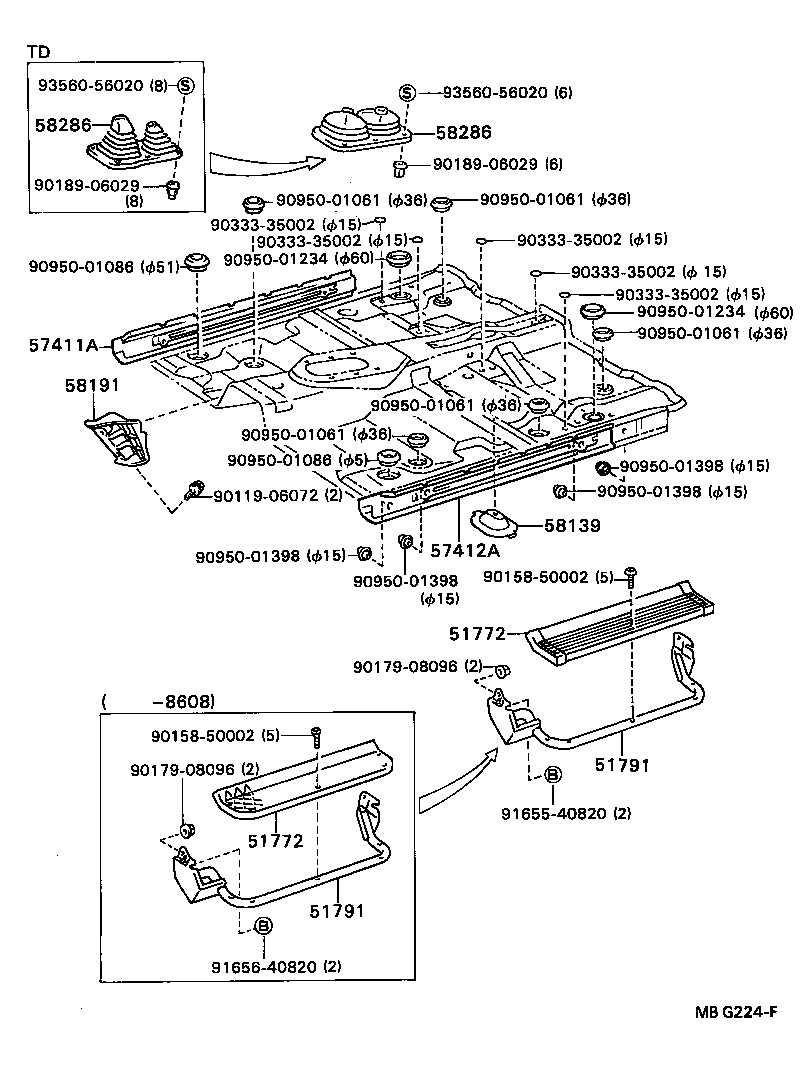

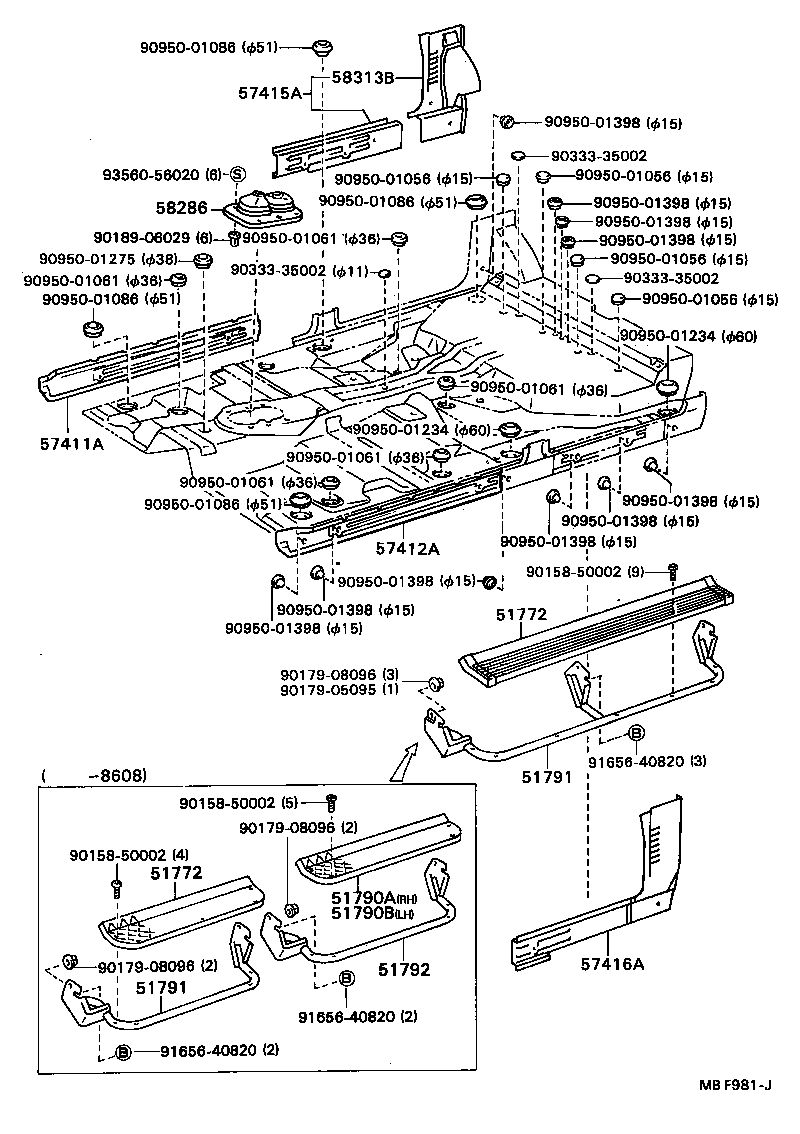

Figure MBF980E MBF980E 1983-11 → — Figure MBF981J MBF981J 1983-12 → — Figure MBG224F MBG224F 1984-05 → —

Part groups

PNCDescription
51772 Plate, Step
51790A Plate Sub-assy, Rear Step, RH
51790B Plate Sub-assy, Rear Step, LH
51791 Stay, Step
51792 Stay, Step Plate, NO.2
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57415A Rail Sub-assy, Floor Side, Rear RH
57416A Rail Sub-assy, Floor Side, Rear LH
58139 Cover, Front Floor Side, Rear
58191 Footrest, Front Floor
58286 Boot, Shift & Select Lever, NO.1
58313B Panel, Rear Floor Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
