Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

16 part groups · 4 illustrations

Illustrations

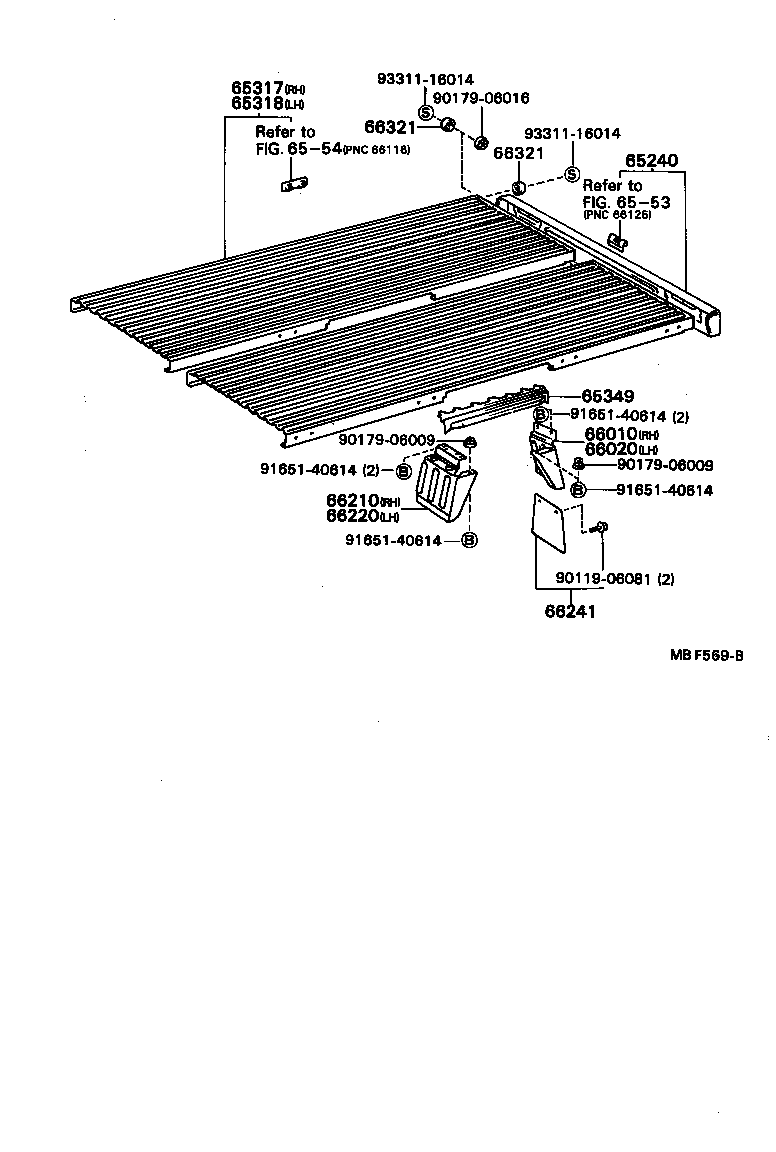

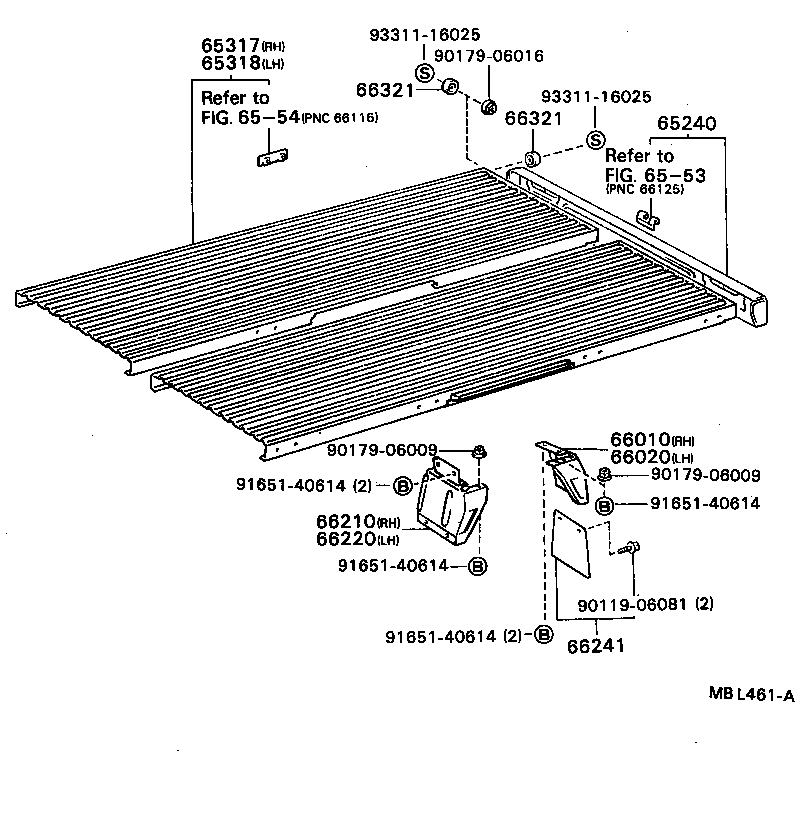

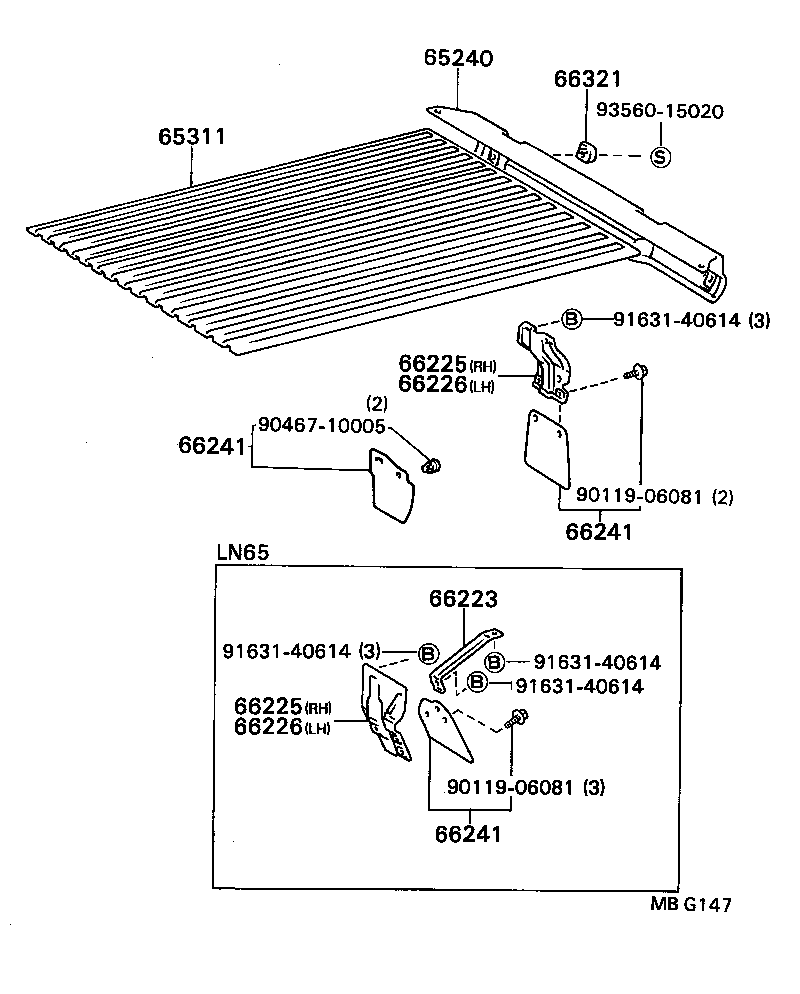

Figure MBF568B MBF568B 1983-11 → — Figure MBF569B MBF569B 1983-11 → — Figure MBL461A MBL461A 1987-01 → — Figure MBG147 MBG147 1983-12 → —

Part groups

PNCDescription
61687 Bracket, Mudguard, Rear RH
61688 Bracket, Mudguard, Rear LH
65240 Crossmember, Rear Body Floor, Tail
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65349 Fender, Floor Side
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
