Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 2 illustrations

Illustrations

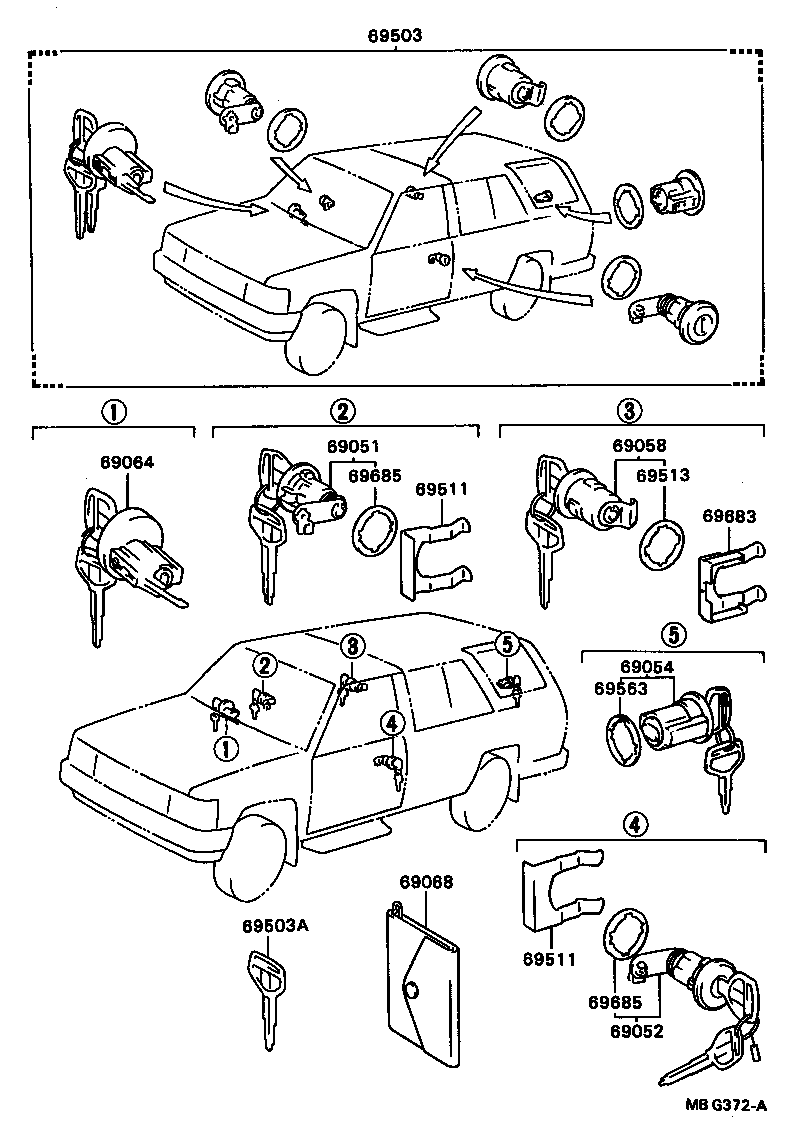

Figure MBG003 MBG003 1983-11 → — Figure MBG372A MBG372A 1984-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69513 Pad, Fuel Filler Lid Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
