Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

10 part groups · 2 illustrations

Illustrations

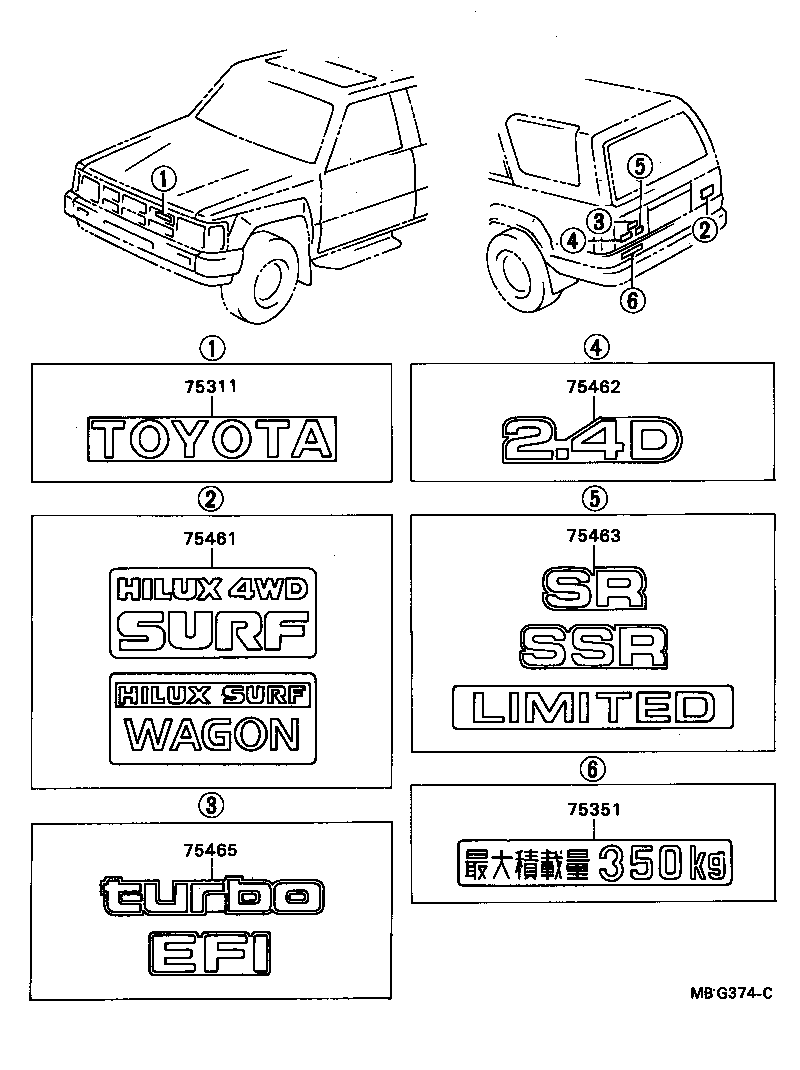

Figure MBG010C MBG010C 1983-11 → — Figure MBG374C MBG374C 1984-05 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75367 Plate, Front Fender Name, NO.3 (DISPLACEMENT)
75379A Pad, Quarter Panel Emblem
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
