Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

25 part groups · 3 illustrations

Illustrations

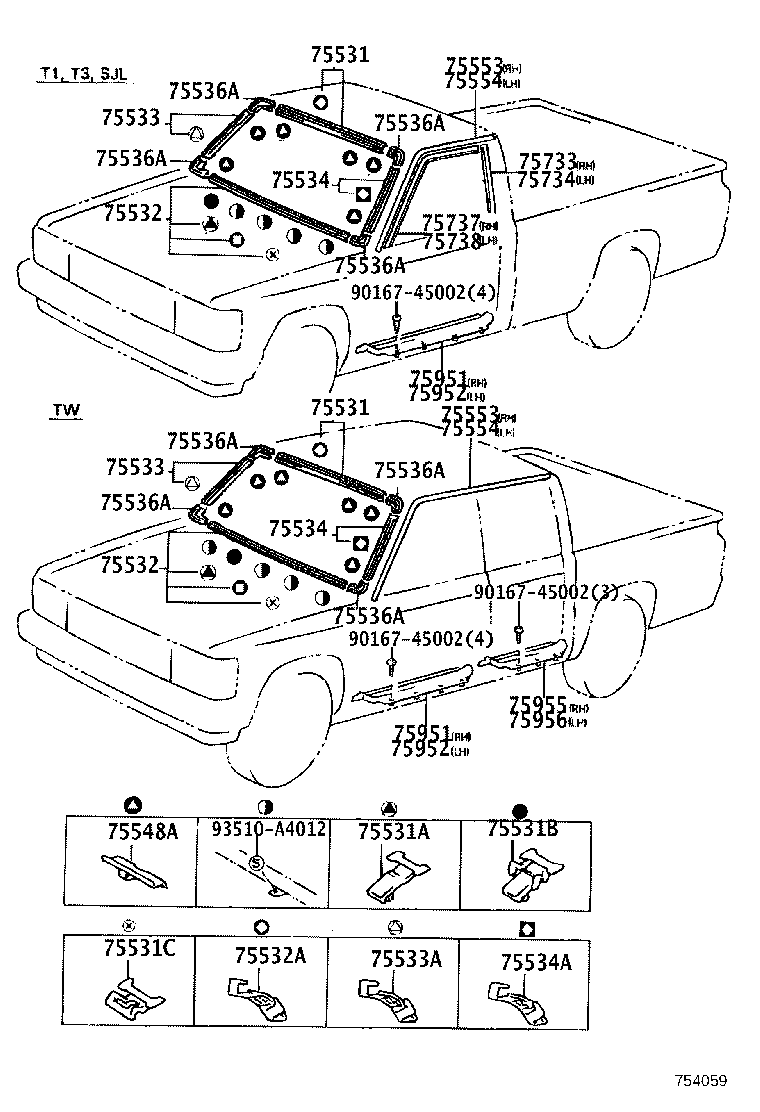

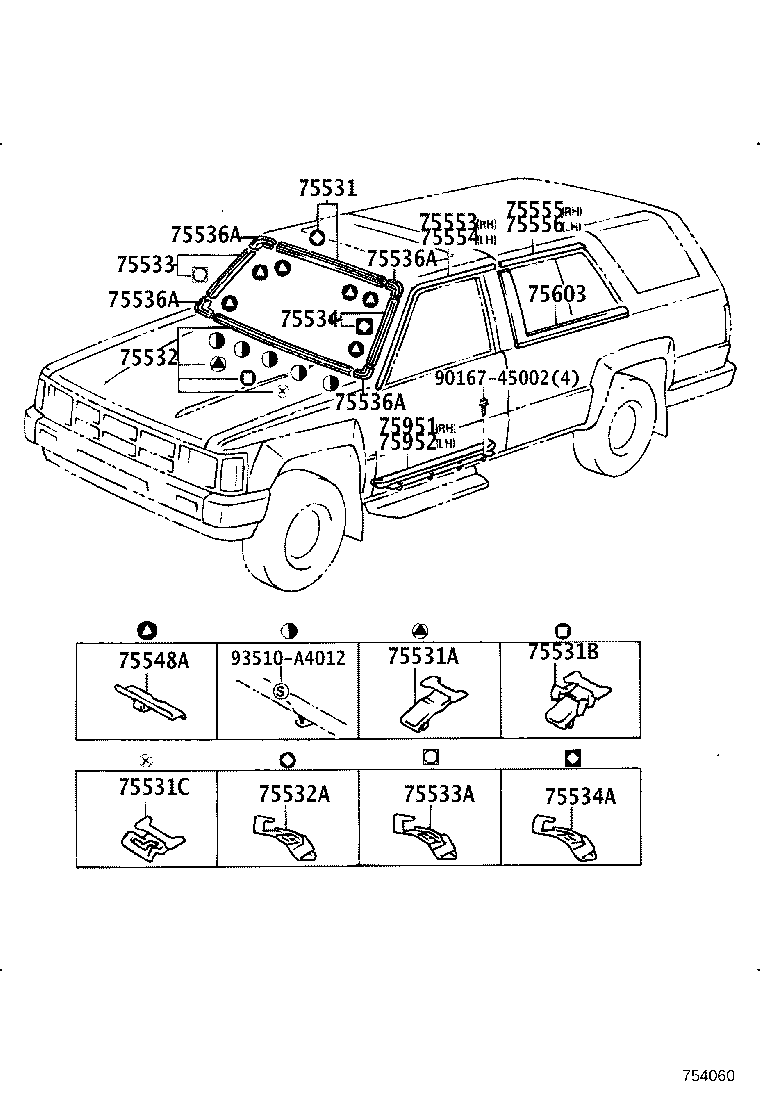

Figure MBG011A MBG011A 1983-11 → 1986-08 Figure 754059 754059 1986-08 → — Figure 754060 754060 1984-05 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75531B Clip, Windshield Moulding Set, NO.2
75531C Clip, Windshield Moulding Set, NO.3
75532 Moulding, Windshield, Lower
75532A Clip, Windshield Moulding Set
75533 Moulding, Windshield, Outside RH
75533A Clip, Windshield Side Moulding, RH
75534 Moulding, Windshield, Outside LH
75534A Clip, Windshield Side Moulding, LH
75536A Cover, Windshield Outside Moulding Joint
75548A Fastener, Windshield Outside Moulding, NO.1
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75603 Moulding Sub-assy, Quarter Slide Window Outside
75733 Moulding, Front Door Window Frame, Rear RH
75734 Moulding, Front Door Window Frame, Rear LH
75737 Moulding, Front Door Window Frame, Front RH
75738 Moulding, Front Door Window Frame, Front LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
