Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 9 illustrations

Illustrations

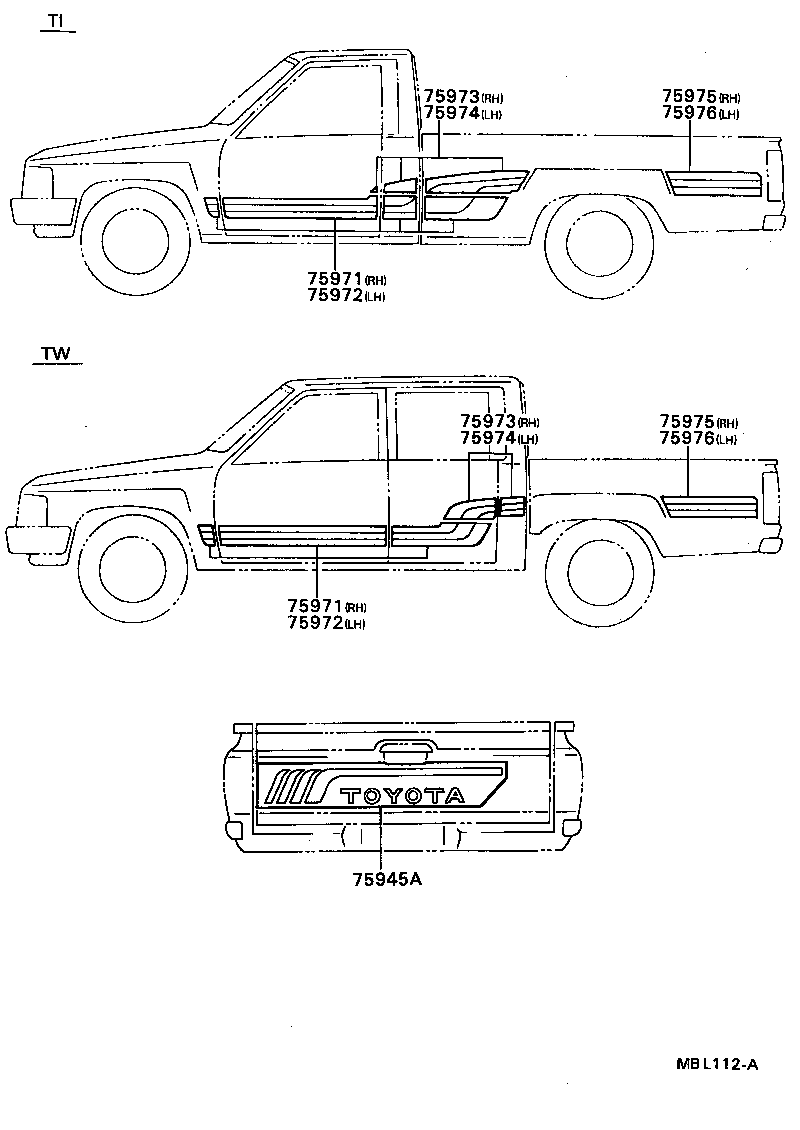

Figure MBG012B MBG012B 1983-11 → 1985-08 Figure MBG012B MBG012B 1985-08 → 1986-08 Figure MBL111 MBL111 1986-08 → — Figure MBG013 MBG013 1983-11 → 1986-08 Figure MBL112A MBL112A 1986-08 → — Figure MBG252A MBG252A 1984-05 → 1986-08 Figure MBL113 MBL113 1986-08 → — Figure MBS340 MBS340 1988-04 → 1989-03 Figure MBS341 MBS341 1988-04 → 1989-03

Part groups

PNCDescription
75945A Stripe, Tail Gate
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
75979 Stripe, Fuel Filler Opening Lid
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
