Toyota Hilux
1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan
Discontinued model
Data version 1989-06

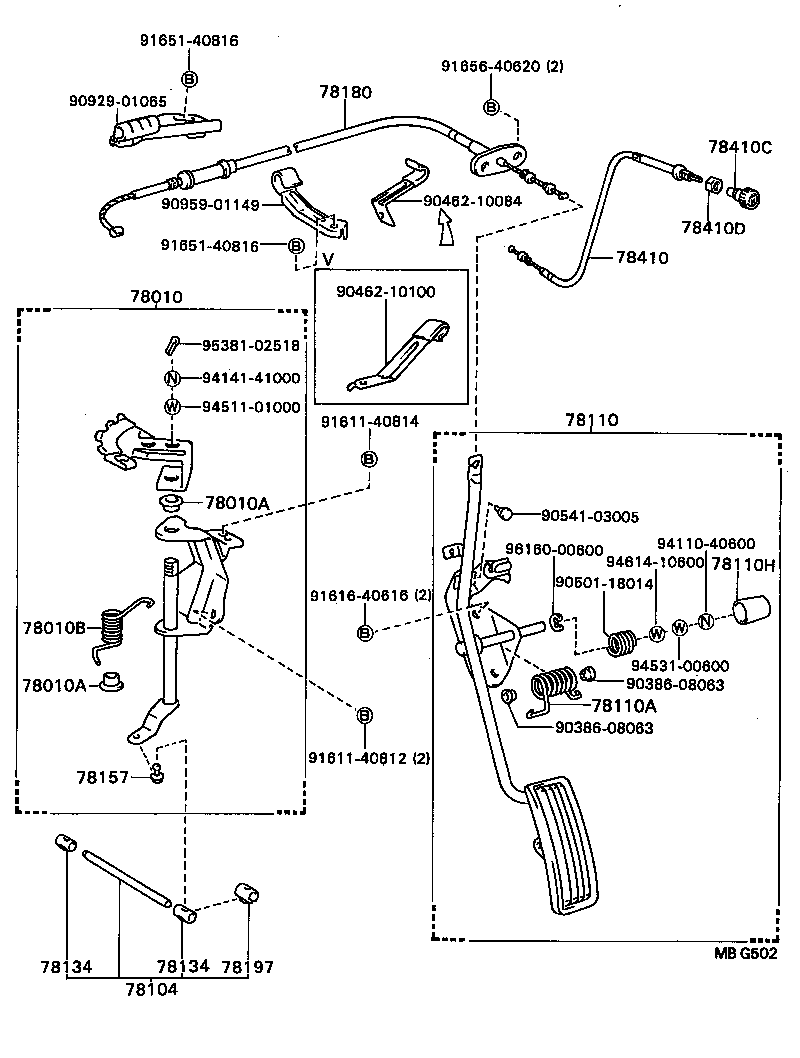

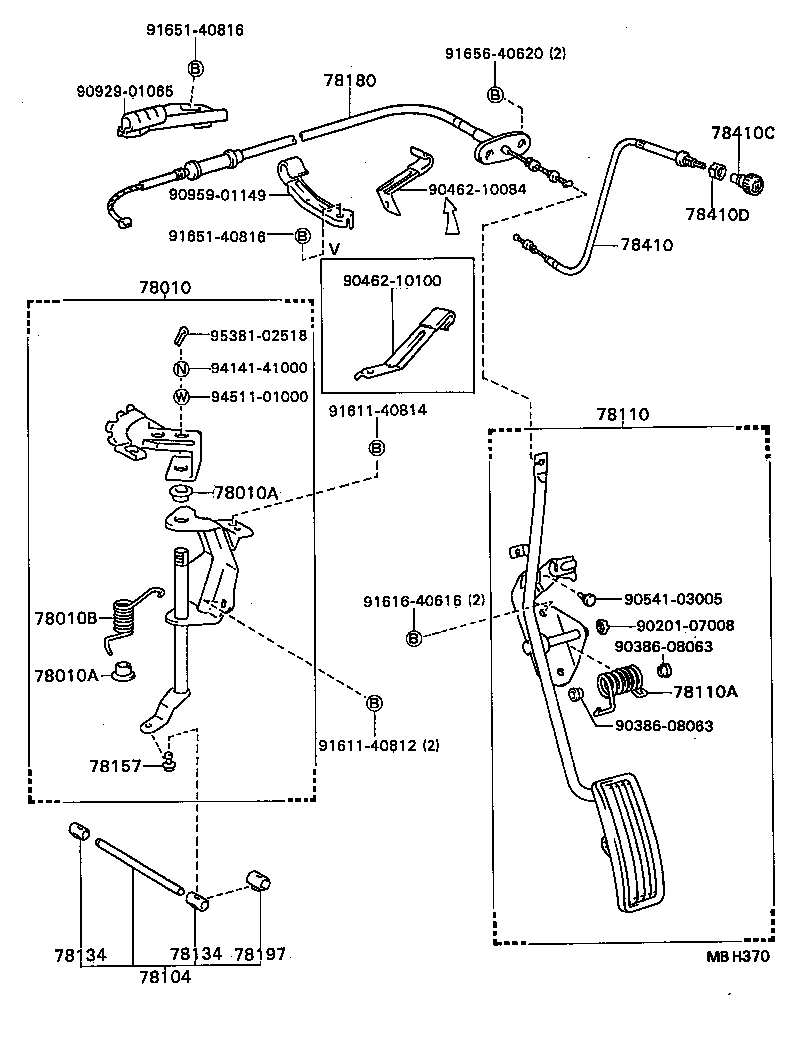

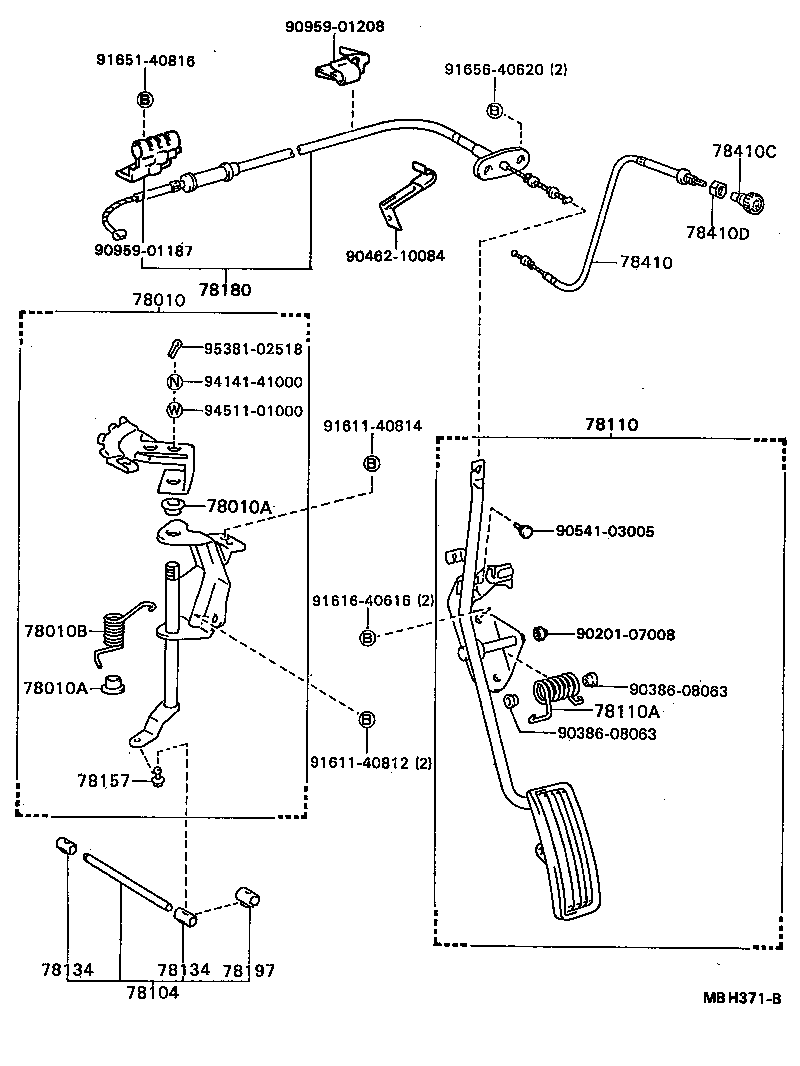

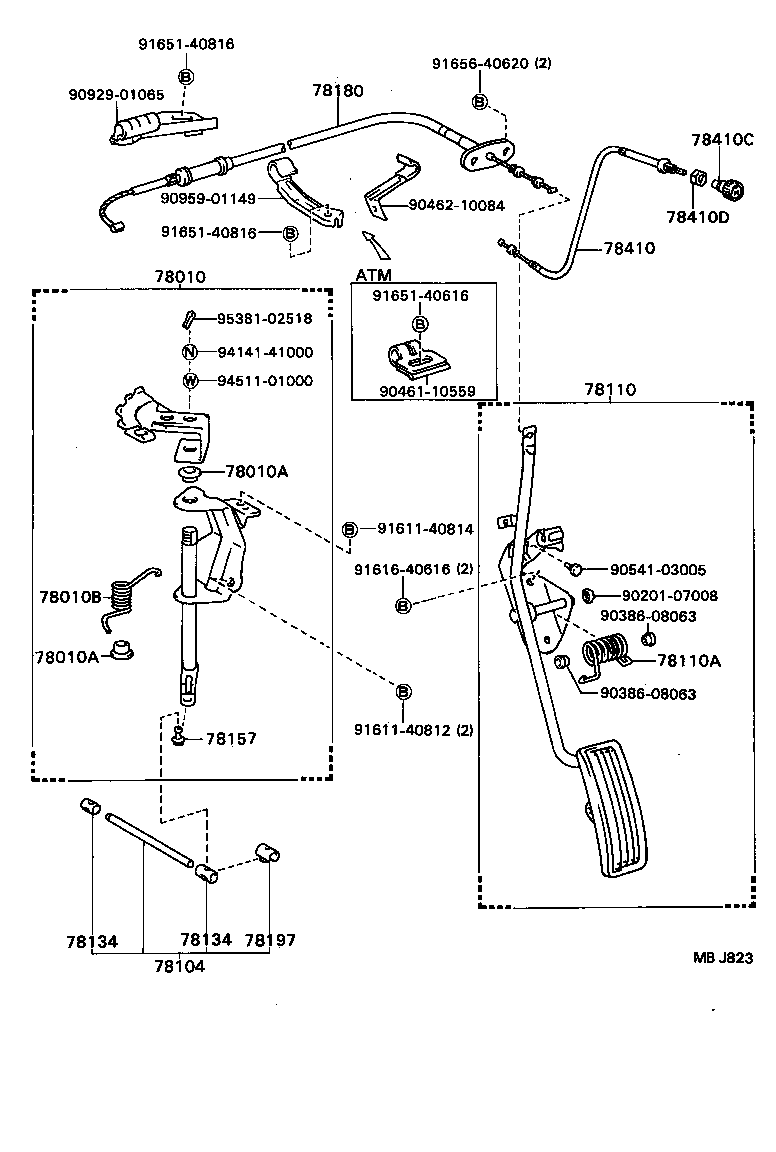

Accelerator Link
17 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78010A | Bush (FOR ACCELERATOR LINK) |
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110H | Cover (FOR ACCELERATOR PEDAL ROD) |
| 78130 | Bellcrank Assy, Accelerator |
| 78130B | Bush, Accelerator Bellcrank |
| 78134 | End, Accelerator Connecting Rod |
| 78157 | Ball, Accelerator Joint |
| 78180 | Wire Assy, Accelerator |
| 78184B | Bracket, Accelerator Control Cable |
| 78197 | Clip, Accelerator Joint Ball |
| 78410 | Cable Assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
| 78410D | Nut, Throttle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
