Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

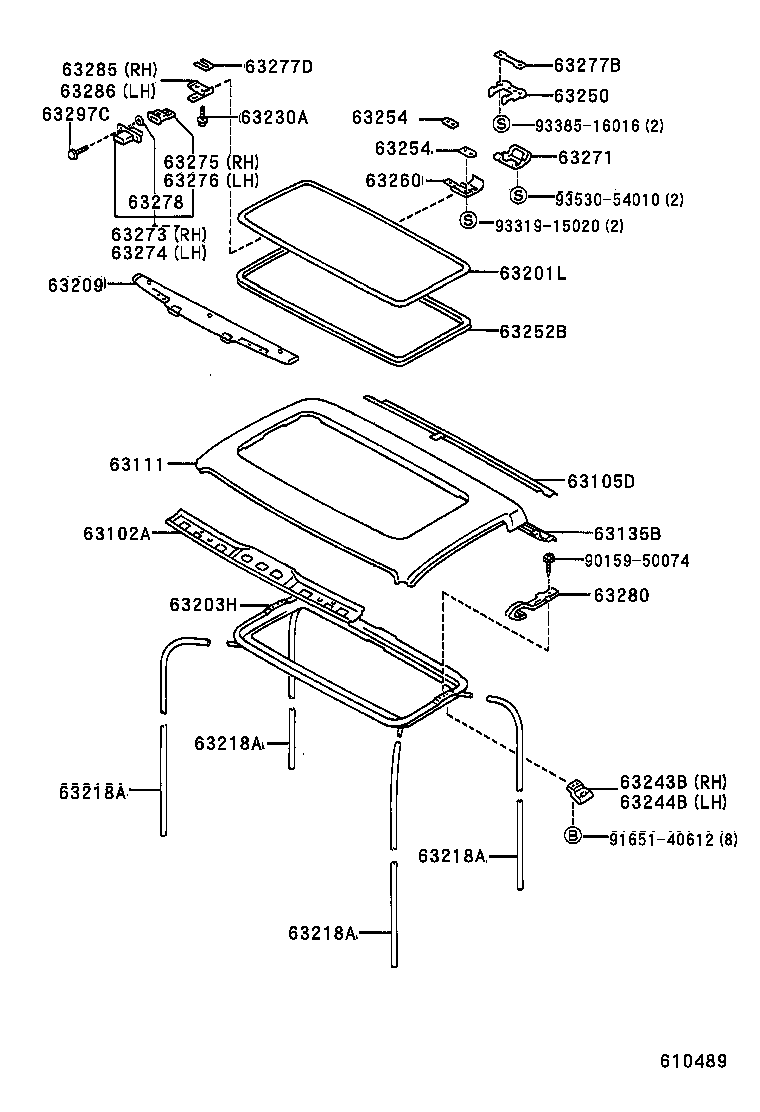

Exploded illustration 610489 63277B — SPACER, REMOVABLE ROOF LOCK BASE (1 parts) 63277D — SPACER, REMOVABLE ROOF HINGE (1 parts) 63285 — HINGE, REMOVABLE ROOF, RH (1 parts) 63286 — HINGE, REMOVABLE ROOF, LH (1 parts) 63250 — BASE ASSY, REMOVABLE ROOF LOCK (2 parts) 63297C — BOLT, REMOVABLE ROOF HINGE CASE (1 parts) 63230A — BOLT ASSY, REMOVABLE ROOF (1 parts) 63254 — HOLDER, REMOVABLE ROOF GLASS, INNER REAR (2 parts) 9338516016 — not listed in this catalogue 63254 — HOLDER, REMOVABLE ROOF GLASS, INNER REAR (2 parts) 63271 — GARNISH, REMOVABLE ROOF LOCK (3 parts) 63275 — HOLDER, REMOVABLE ROOF HINGE, RH (2 parts) 63276 — HOLDER, REMOVABLE ROOF HINGE, LH (2 parts) 63260 — HANDLE ASSY, REMOVABLE ROOF LOCK (13 parts) 9353054010 — not listed in this catalogue 63278 — SEAL, REMOVABLE ROOF HINGE CASE (1 parts) 9331915020 — not listed in this catalogue 63273 — CASE, REMOVABLE ROOF HINGE, RH (3 parts) 63274 — CASE, REMOVABLE ROOF HINGE, LH (3 parts) 63201L — GLASS SUB-ASSY, REMOVABLE ROOF (2 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (2 parts) 63252B — WEATHERSTRIP, REMOVABLE ROOF, REAR (1 parts) 63111 — PANEL, ROOF (18 parts) 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (5 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (4 parts) 63135B — PANEL, BACK WINDOW, UPPER INNER (2 parts) 9015950074 — not listed in this catalogue 63280 — CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH (1 parts) 63203H — HOUSING SUB-ASSY, REMOVABLE ROOF (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (7 parts) 63243B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (7 parts) 63244B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH (2 parts) 9165140612 — not listed in this catalogue 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (7 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (7 parts)
610489 · 31 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-89106 note Panel Sub-assy, Windshield Header
1988-09 → 1994-08 ended
LN100,YN100 ¥3,030
63102-89107 Panel Sub-assy, Windshield Header
1988-09 → —
LN100,106,8#,YN100,8# RCB ¥3,050
63102-89108 Panel Sub-assy, Windshield Header
1988-09 → —
LN106,107,108,109,112,85,86,YN105,107,85,86 TW1 ¥3,050
63102-89109 Panel Sub-assy, Windshield Header
1989-04 → 1995-11 ended
KZN130,LN13#,VZN130,YN130 ¥2,780
63105D — Frame Sub-assy, Back Window, Upper
63105-35020 Frame Sub-assy, Back Window, Upper
1993-08 → —
LN100,106,8#,YN100,8# RCB ¥4,310
63105-35040 note Frame Sub-assy, Back Window, Upper
1993-08 → 1994-08 ended
LN100,YN100 ¥5,100
63105-89106 Frame Sub-assy, Back Window, Upper
1988-09 → 1993-08 ended
LN100,106,8#,YN100,8# RCB ¥4,290
63105-89108 note Frame Sub-assy, Back Window, Upper
1988-09 → 1993-08 ended
LN100,YN100 ¥5,100
63105-89110 Frame Sub-assy, Back Window, Upper
1988-09 → —
LN106,107,108,109,112,85,86,YN105,107,85,86 TW1 ¥4,630
63111 — Panel, Roof
63111-35010 note Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN13#,VZN130 4D ¥65,700
63111-35020 note Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN13#,VZN130 4D ¥65,700
63111-35030 note Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 2D ¥65,700
63111-35040 note Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN130,VZN130 2D ¥65,700
63111-35050 note Panel, Roof
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥50,800
63111-89118 Panel, Roof
1988-09 → —
LN100,106,8#,YN100,8# RCB ¥26,000
63111-89119 note Panel, Roof
1988-09 → 1994-08 ended
LN100,YN100 ¥26,000
63111-89122 Panel, Roof
1988-09 → —
LN106,107,108,109,112,85,86,YN105,107,85,86 TW1 ¥50,900
63111-89123 Panel, Roof
1989-04 → 1991-08 ended
LN131 ¥65,700
63111-89124 note Panel, Roof
1989-04 → 1991-08 ended
LN131 ¥65,700
63111-89125 note Panel, Roof
1989-04 → 1991-08 ended
LN131 ¥65,700
63111-89125 Panel, Roof
1989-04 → 1991-08 ended
LN130,VZN130,YN130 4D ¥65,700
63111-89125 Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN13#,VZN130 4D ¥65,700
63111-89126 note Panel, Roof
1991-08 → 1995-11 ended
KZN130,LN13#,VZN130 4D ¥65,700
63111-89126 note Panel, Roof
1989-04 → 1991-08 ended
LN131 ¥65,700
63111-89126 note Panel, Roof
1989-04 → 1991-08 ended
LN130,VZN130,YN130 4D ¥65,700
63111-89129 note Panel, Roof
1989-04 → 1995-11 ended
KZN130,LN130,VZN130,YN130 2D ¥65,700
63111-89130 Panel, Roof
1989-04 → 1995-11 ended
KZN130,LN130,VZN130,YN130 2D ¥65,700
63135B — Panel, Back Window, Upper Inner
63135-35020 Panel, Back Window, Upper Inner
1993-08 → —
LN100,106,8#,YN100,8# RCB ¥3,880
63135-89102 Panel, Back Window, Upper Inner
1991-08 → 1993-08 ended
LN100,106,8#,YN100,8# RCB ¥3,870
63201L — Glass Sub-assy, Removable Roof
63201-35010 Glass Sub-assy, Removable Roof
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥103,000
63201-89105 Glass Sub-assy, Removable Roof
1988-09 → 1994-08 ended
LN100,YN100 —
63203H — Housing Sub-assy, Removable Roof
63203-89107 Housing Sub-assy, Removable Roof
1988-09 → 1994-08 ended
LN100,YN100 ¥16,500
63203-89108 Housing Sub-assy, Removable Roof
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥16,500
63209 — Panel Sub-assy, Roof Wind Deflector
63209-89102 Panel Sub-assy, Roof Wind Deflector
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥14,600
63209-89103 Panel Sub-assy, Roof Wind Deflector
1989-04 → 1995-11 ended
KZN130,LN13#,VZN130,YN130 ¥25,700
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-16070 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1992-08 → 1995-11 ended
KZN130,LN13#,VZN130 ¥1,430
63249-35010 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥1,400
63249-35040 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1994-04 → 1995-11 ended
KZN130,VZN130 ¥860
63249-89101 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥1,650
63249-89103 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1988-09 → 1994-08 ended
LN100,YN100 ¥1,550
63249-89104 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-04 → 1992-08 ended
LN13#,VZN130,YN130 ¥1,400
63249-89105 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-04 → 1994-04 ended
KZN130,LN13#,VZN130,YN130 ¥860
63230A — Bolt Assy, Removable Roof
63230-89101 Bolt Assy, Removable Roof
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥130
63243B — Bracket, Removable Roof Housing Side Mounting, RH
63243-35010 Bracket, Removable Roof Housing Side Mounting, RH
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥740
63243-89104 Bracket, Removable Roof Housing Side Mounting, RH
1988-09 → 1994-08 ended
LN100,YN100 ¥680
63244B — Bracket, Removable Roof Housing Side Mounting, LH
63243-89104 Bracket, Removable Roof Housing Side Mounting, LH
1988-09 → 1994-08 ended
LN100,YN100 ¥680
63244-35010 Bracket, Removable Roof Housing Side Mounting, LH
1991-08 → —
LN107,108,109,112,YN107 (SSR,SSRX) (DSL,EFI,TDE) ¥740
63250 — Base Assy, Removable Roof Lock
63250-12010 Base Assy, Removable Roof Lock
1988-09 → 1989-10 ended
LN100,YN100 ¥6,600
63250-17011 Base Assy, Removable Roof Lock
1989-10 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥6,500
63252B — Weatherstrip, Removable Roof, Rear
63252-89103 Weatherstrip, Removable Roof, Rear
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥4,480
63254 — Holder, Removable Roof Glass, Inner Rear
63254-89103 note Holder, Removable Roof Glass, Inner Rear
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥320
63254-89104 note Holder, Removable Roof Glass, Inner Rear
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥1,210
63260 — Handle Assy, Removable Roof Lock
63260-17010-13 note Handle Assy, Removable Roof Lock
1989-10 → 1990-10 ended
LN100,YN100 ¥10,300
63260-17010-14 note Handle Assy, Removable Roof Lock
1989-10 → 1990-10 ended
LN100,YN100 ¥10,300
63260-35010-03 note Handle Assy, Removable Roof Lock
1992-04 → 1997-03 ended
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥10,200
63260-35010-03 note Handle Assy, Removable Roof Lock
1990-10 → 1991-04 ended
LN100,YN100 ¥10,200
63260-35010-04 note Handle Assy, Removable Roof Lock
1990-10 → 1991-04 ended
YN100 ¥10,200
63260-35010-J0 note Handle Assy, Removable Roof Lock
1992-04 → 1994-08 ended
LN107 SSR;LN100,YN100 ¥10,200
63260-35011-J0 note Handle Assy, Removable Roof Lock
1991-08 → 1992-04 ended
LN107 SSR;LN100,YN100 ¥10,200
63260-35011-S7 note Handle Assy, Removable Roof Lock
1991-04 → 1991-08 ended
YN100 ¥10,200
63260-35011-S7 note Handle Assy, Removable Roof Lock
1991-08 → 1992-04 ended
LN107 SSR;LN100,YN100 ¥10,200
63260-35011-W1 note Handle Assy, Removable Roof Lock
1991-04 → 1991-08 ended
YN100 ¥10,200
63260-35012-S7 note Handle Assy, Removable Roof Lock
1997-03 → —
LN107,108,109,112,YN107 SSR,SSRX ¥10,200
63260-89104-03 note Handle Assy, Removable Roof Lock
1988-09 → 1989-10 ended
LN100,YN100 ¥10,800
63260-89104-04 note Handle Assy, Removable Roof Lock
1988-09 → 1989-10 ended
LN100,YN100 ¥10,800
63271 — Garnish, Removable Roof Lock
63271-89102-03 note Garnish, Removable Roof Lock
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥940
63271-89102-04 note Garnish, Removable Roof Lock
1988-09 → 1991-08 ended
LN100,YN100 ¥940
63271-89102-J0 note Garnish, Removable Roof Lock
1991-08 → 1994-08 ended
LN107 SSR;LN100,YN100 ¥940
63273 — Case, Removable Roof Hinge, RH
63273-12010 Case, Removable Roof Hinge, RH
1988-09 → 1989-10 ended
LN100,YN100 ¥1,840
63273-17010 Case, Removable Roof Hinge, RH
1989-10 → 1991-08 ended
LN100,YN100 ¥1,830
63273-17040 Case, Removable Roof Hinge, RH
1991-08 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥2,570
63274 — Case, Removable Roof Hinge, LH
63274-12010 Case, Removable Roof Hinge, LH
1988-09 → 1989-10 ended
LN100,YN100 ¥1,840
63274-17010 Case, Removable Roof Hinge, LH
1989-10 → 1991-08 ended
LN100,YN100 ¥1,830
63274-17040 Case, Removable Roof Hinge, LH
1991-08 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥2,570
63275 — Holder, Removable Roof Hinge, RH
63275-12010 Holder, Removable Roof Hinge, RH
1988-09 → 1989-10 ended
LN100,YN100 ¥390
63275-17010 Holder, Removable Roof Hinge, RH
1989-10 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥380
63276 — Holder, Removable Roof Hinge, LH
63276-12010 Holder, Removable Roof Hinge, LH
1988-09 → 1989-10 ended
LN100,YN100 ¥390
63276-17010 Holder, Removable Roof Hinge, LH
1989-10 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥380
63277B — Spacer, Removable Roof Lock Base
63277-89101 Spacer, Removable Roof Lock Base
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥710
63277D — Spacer, Removable Roof Hinge
63277-89102 Spacer, Removable Roof Hinge
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥190
63278 — Seal, Removable Roof Hinge Case
63278-12010 Seal, Removable Roof Hinge Case
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥280
63280 — Catch Assy, Removable Roof Auxiliary, LH
63280-89101 Catch Assy, Removable Roof Auxiliary, LH
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥1,210
63285 — Hinge, Removable Roof, RH
63285-89102 Hinge, Removable Roof, RH
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥1,650
63286 — Hinge, Removable Roof, LH
63286-89102 Hinge, Removable Roof, LH
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥1,650
63297C — Bolt, Removable Roof Hinge Case
63297-12010 Bolt, Removable Roof Hinge Case
1988-09 → —
LN100,108,109,112,YN100;LN107,YN107 SSR (DSL,EFI) ¥910
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
