Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

14 part groups · 5 illustrations

Illustrations

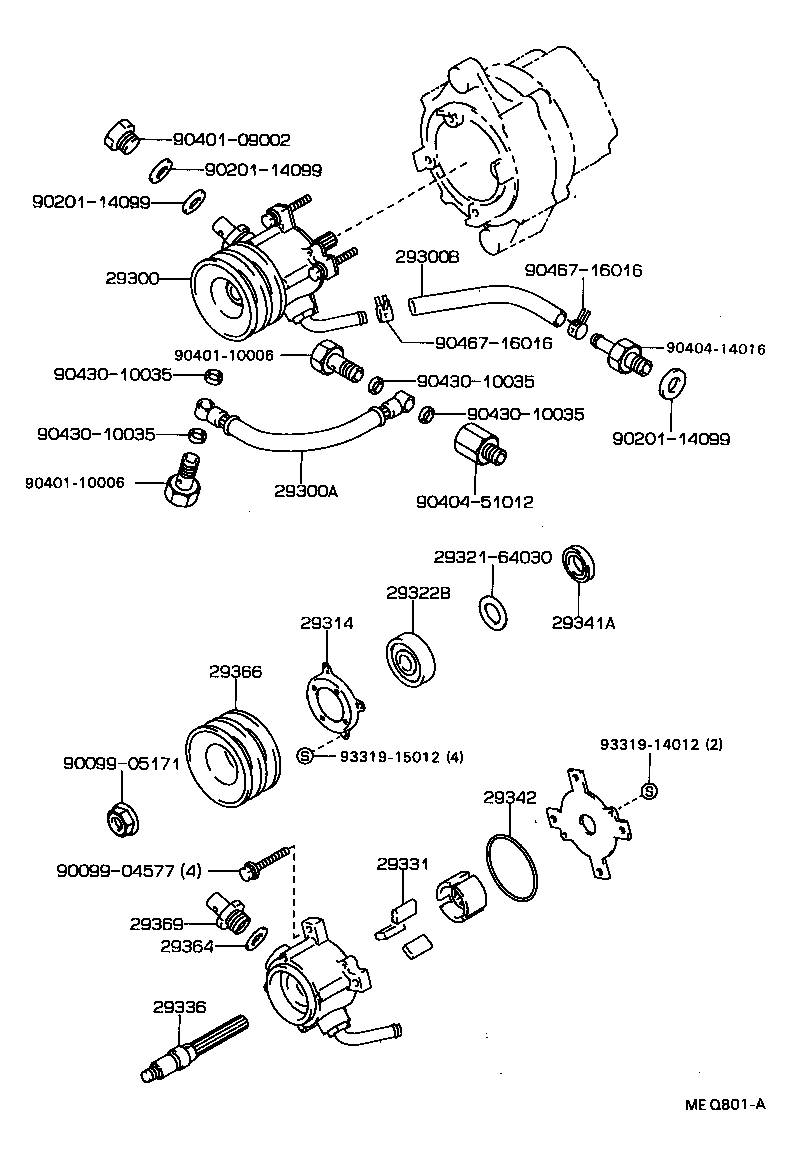

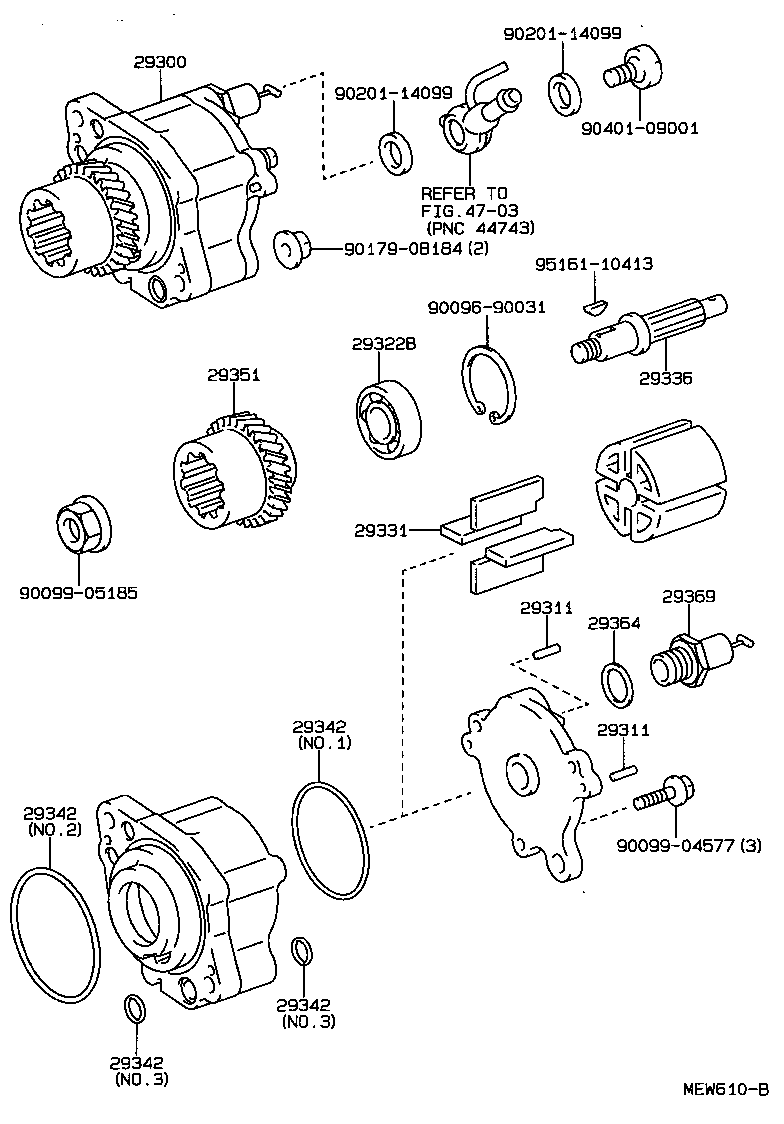

Figure NE5377C NE5377C 1988-09 → 1990-08 Figure NE5377C NE5377C 1990-08 → — Figure MEQ801A MEQ801A 1990-08 → 1993-08 Figure MEQ801A MEQ801A 1995-08 → — Figure MEW610B MEW610B 1993-08 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29311 Pin, Vacuum Pump Dowel, NO.1
29314 Ring, Stop
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29341A Seal, Oil
29342 Packing, Vacuum Pump
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366 Pulley, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
