Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

32 part groups · 6 illustrations

Illustrations

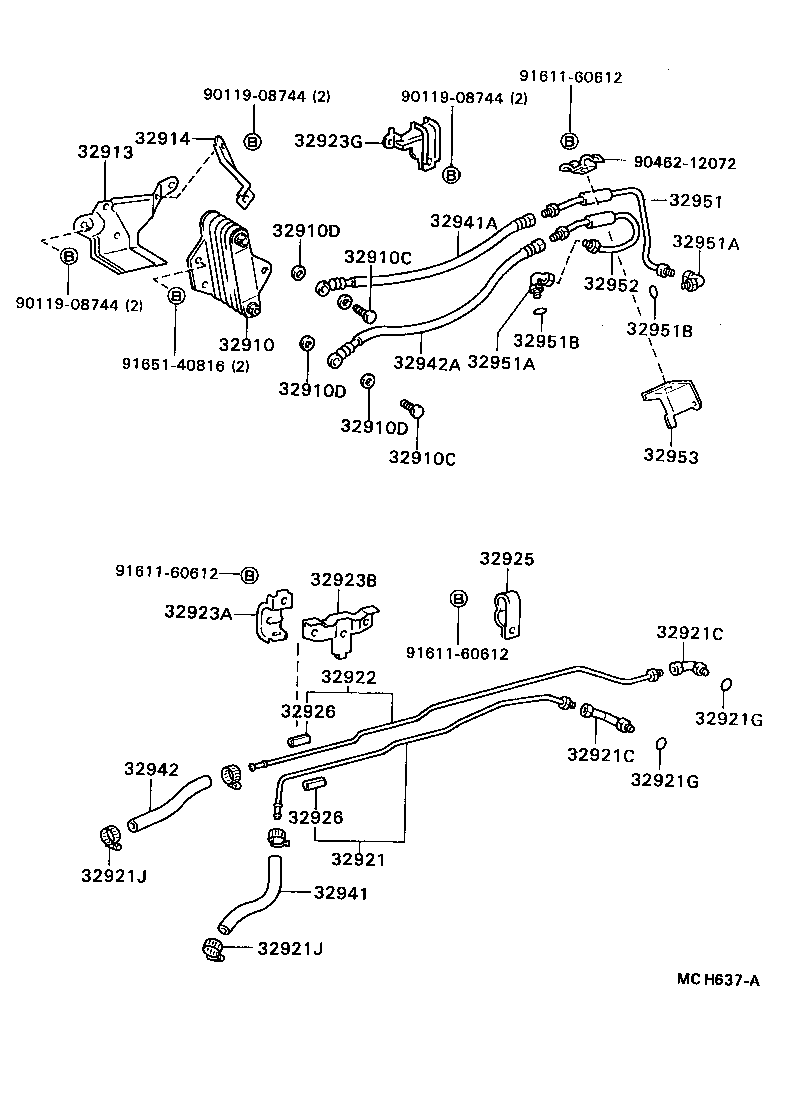

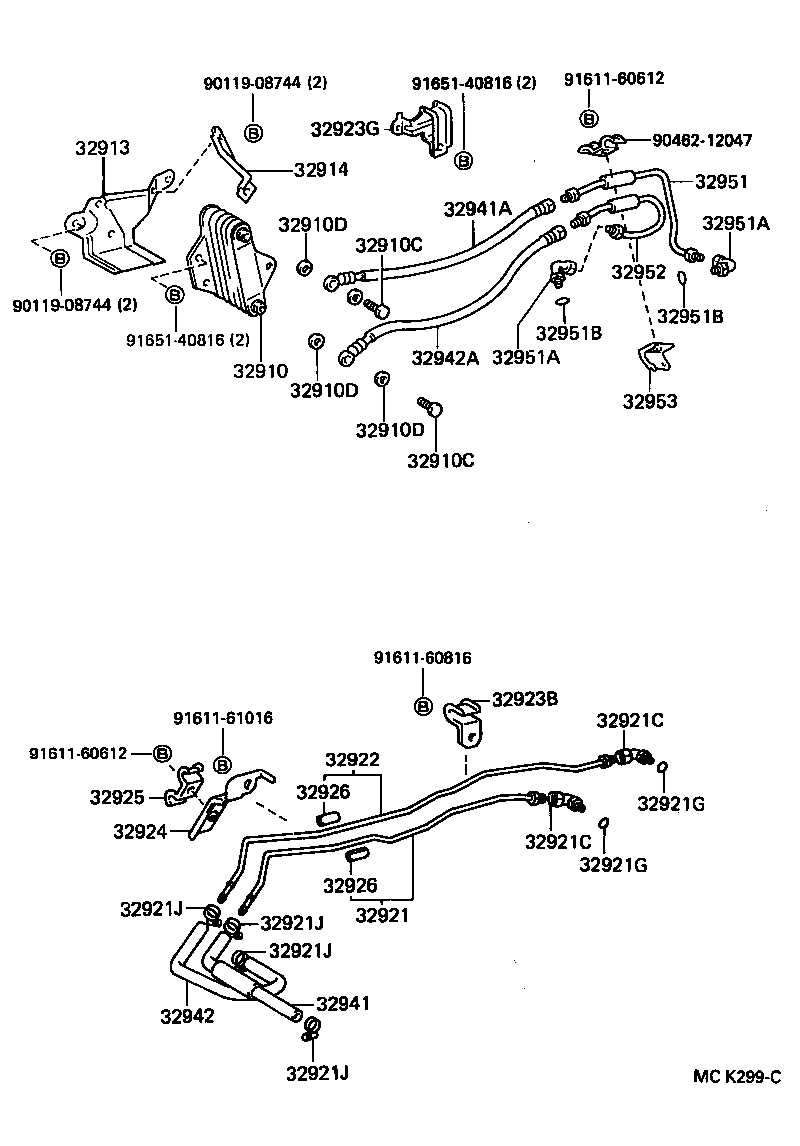

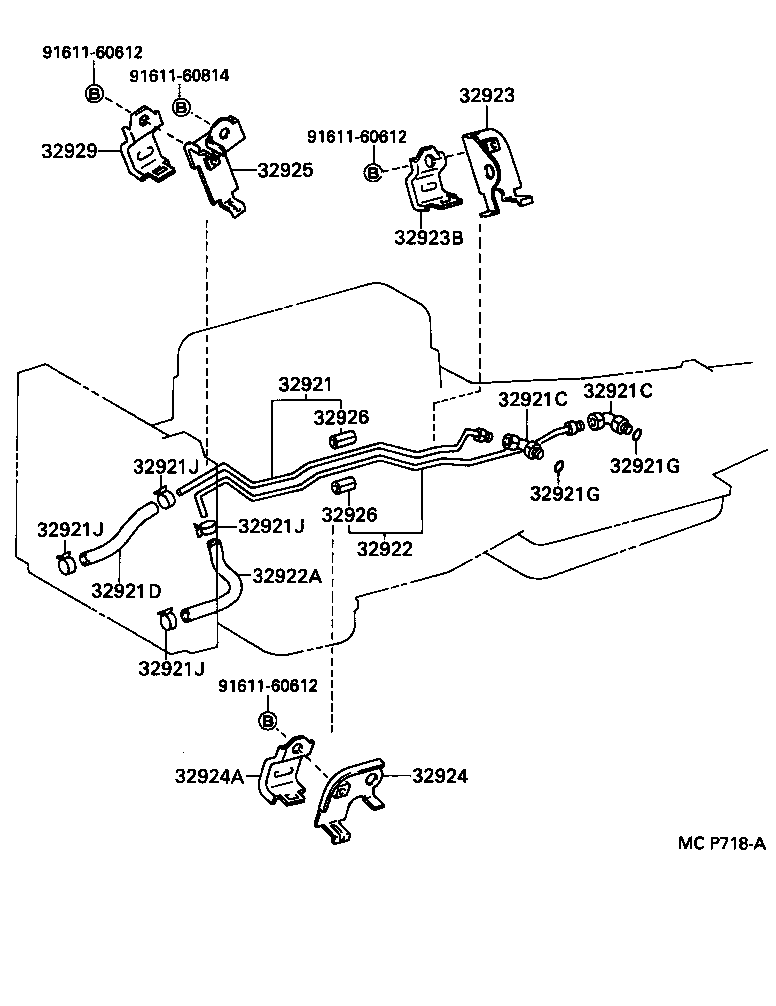

Figure MCT555 MCT555 1988-09 → — Figure MCK298B MCK298B 1989-08 → — Figure MCP718A MCP718A 1993-08 → — Figure MCK299C MCK299C 1989-08 → — Figure MCH637A MCH637A 1989-04 → 1990-08 Figure MCR917A MCR917A 1994-08 → —

Part groups

PNCDescription
32910 Cooler Assy, Oil
32910C Bolt, Union(FOR OIL COOLER)
32910D Gasket(FOR OIL COOLER)
32913 Bracket, Oil Cooler
32914 Stay, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923D Clamp, Automatic Transmission Oil Cooler Tube, NO.5
32923G Clamp, Automatic Transmission Oil Cooler Tube, NO.8
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32951 Tube, Transfer Oil Cooler Inlet
32951A Elbow(FOR TRANSFER OIL COOLER TUBE)
32951B Ring, O(FOR TRANSFER OIL COOLER TUBE)
32952 Tube, Transfer Oil Cooler Outlet
32953 Clamp, Transfer Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
