Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 4 illustrations

Illustrations

Figure MCH088E

MCH088E 1988-09 → —

410463 1988-09 → —

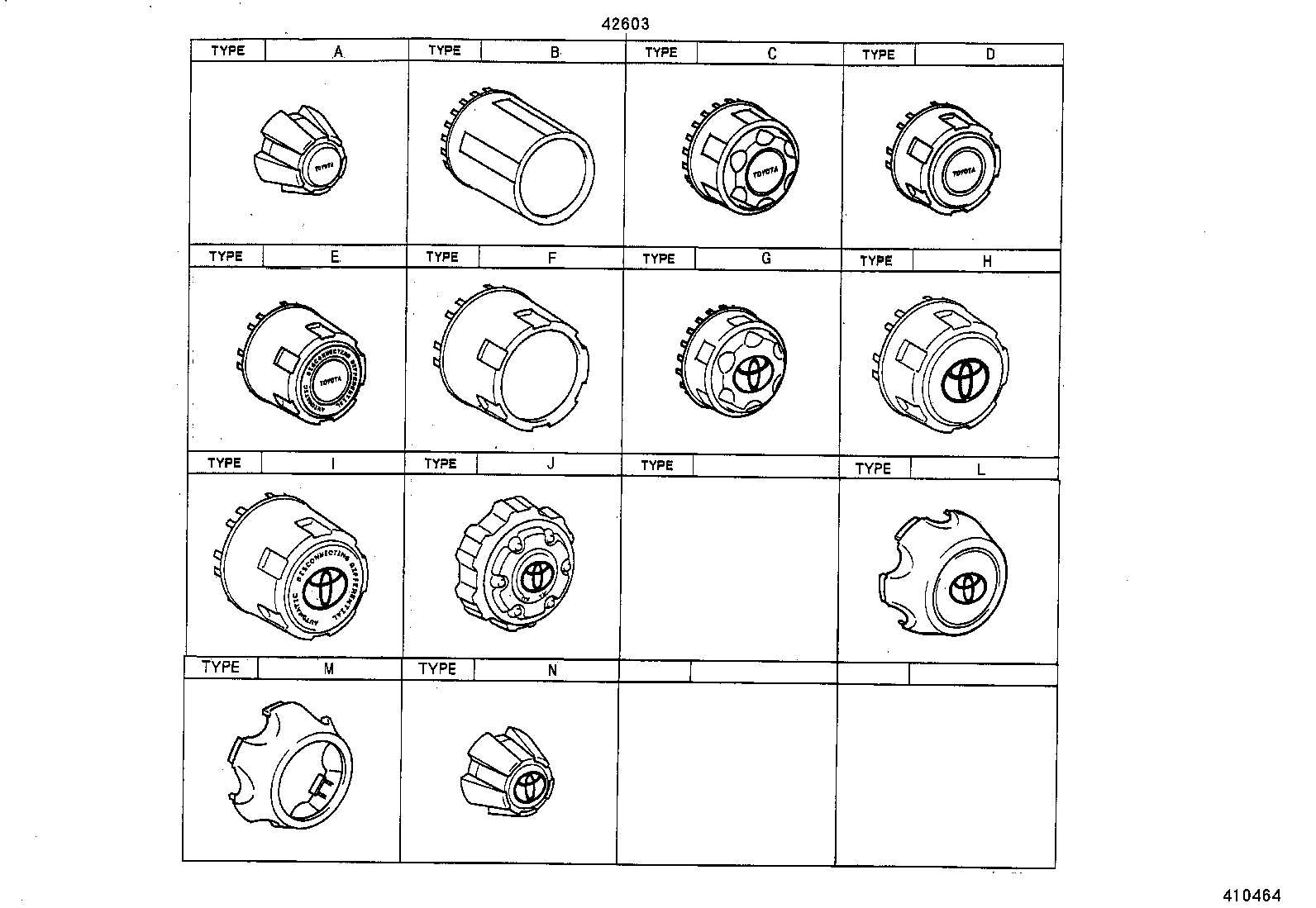

Figure 410464A

410464A 1988-09 → —

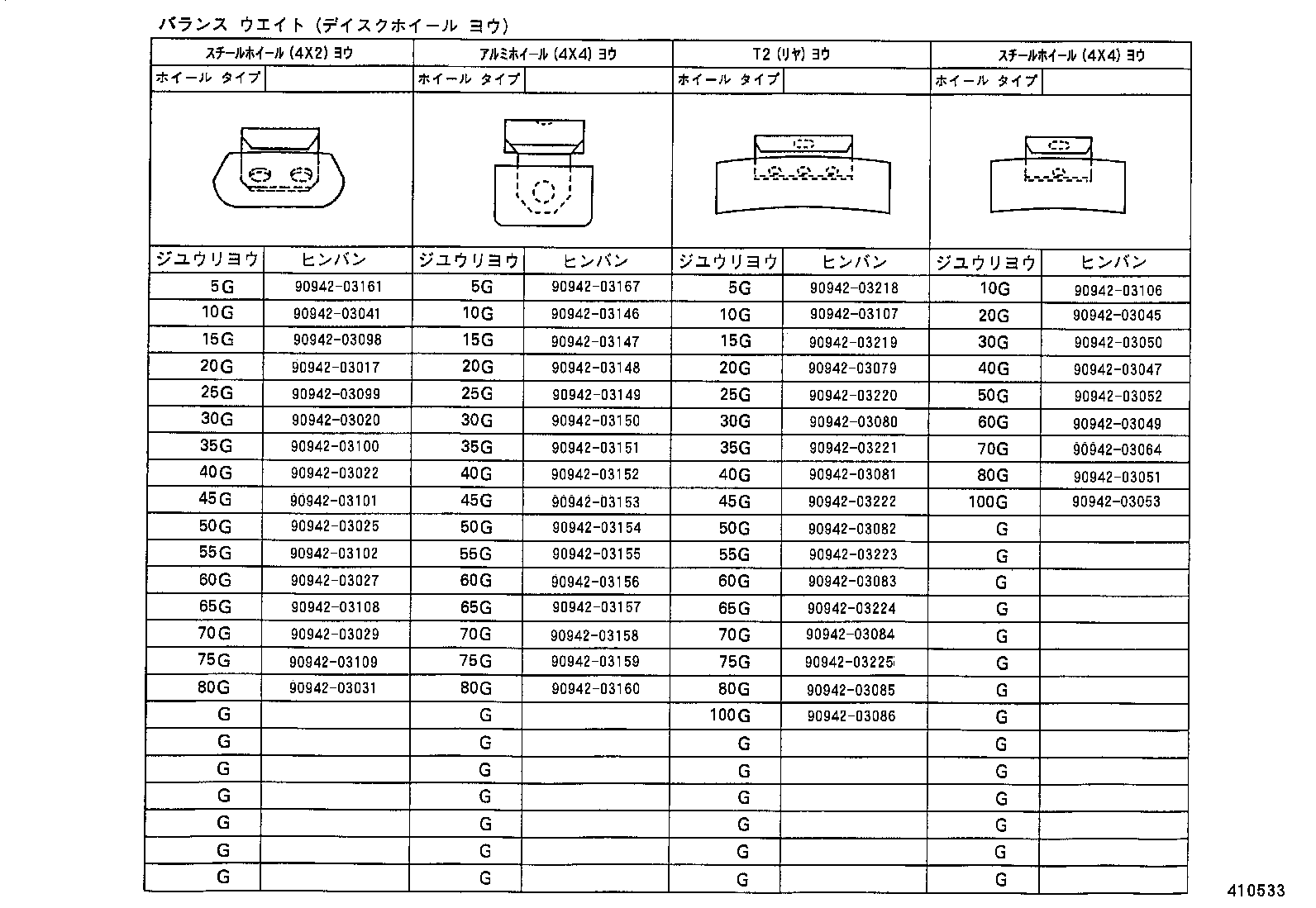

410533 1988-09 → —

Part groups

PNC	Description
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42601F	Wheel, Disc (FOR FRONT)
42601R	Wheel, Disc (FOR REAR)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42613A	Ring, Disc Wheel Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
