Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04

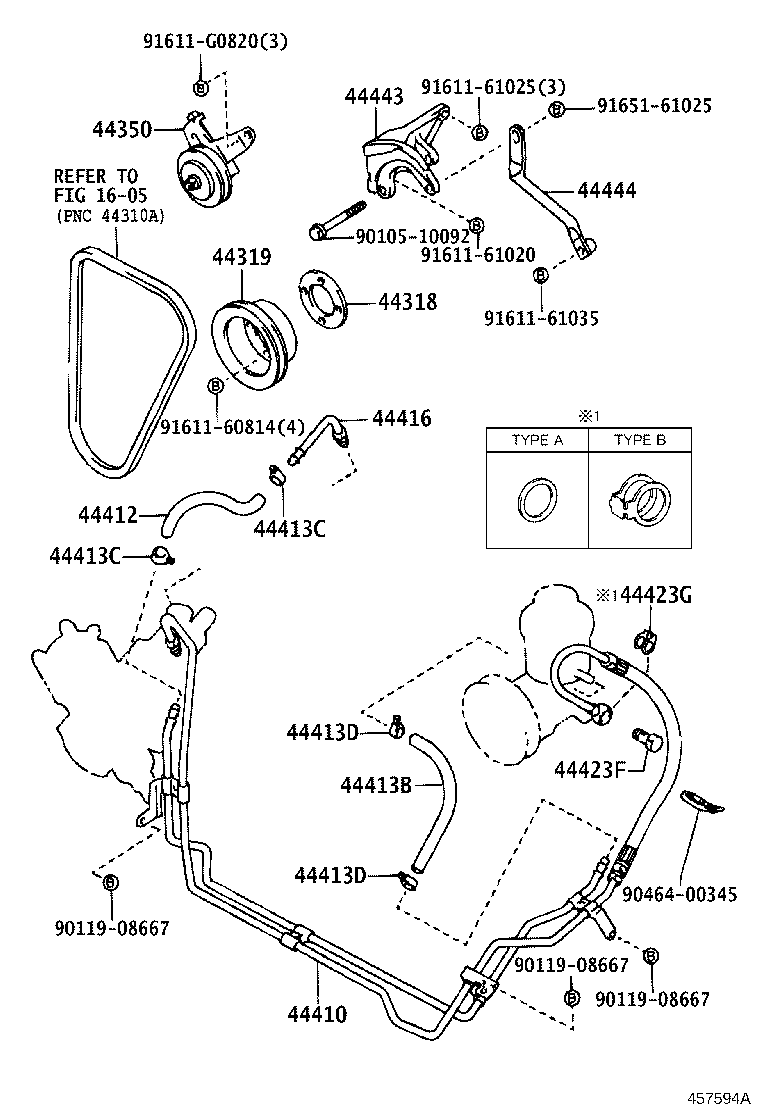

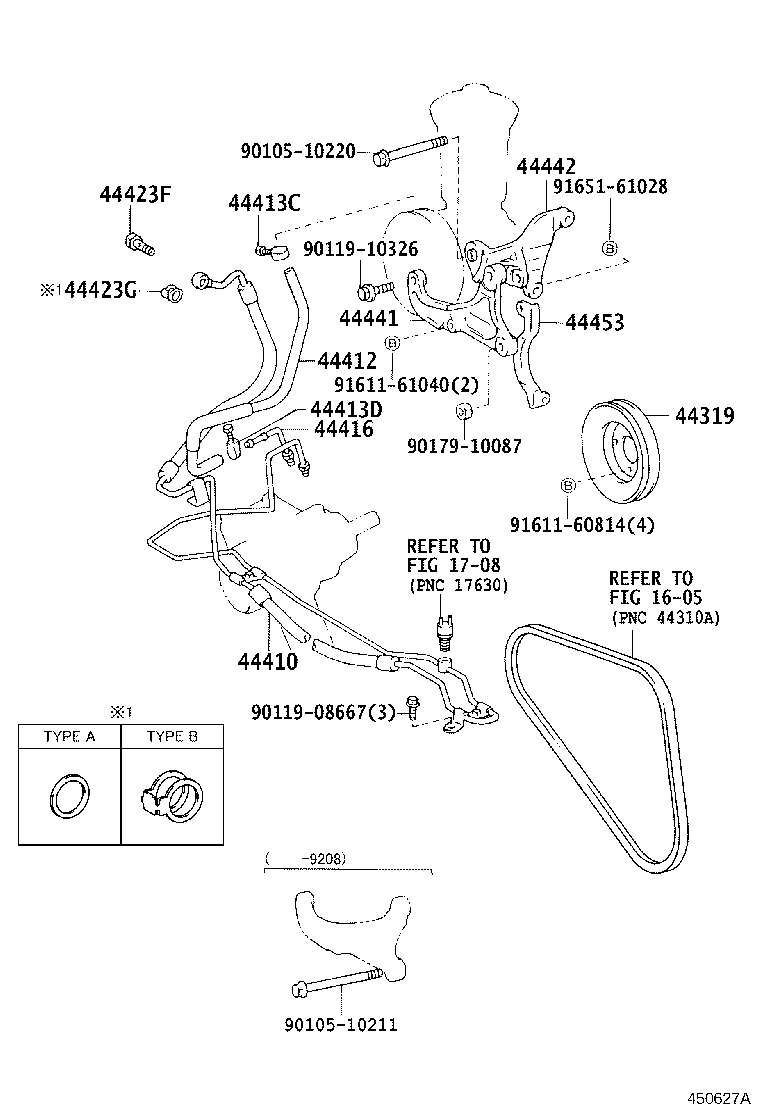

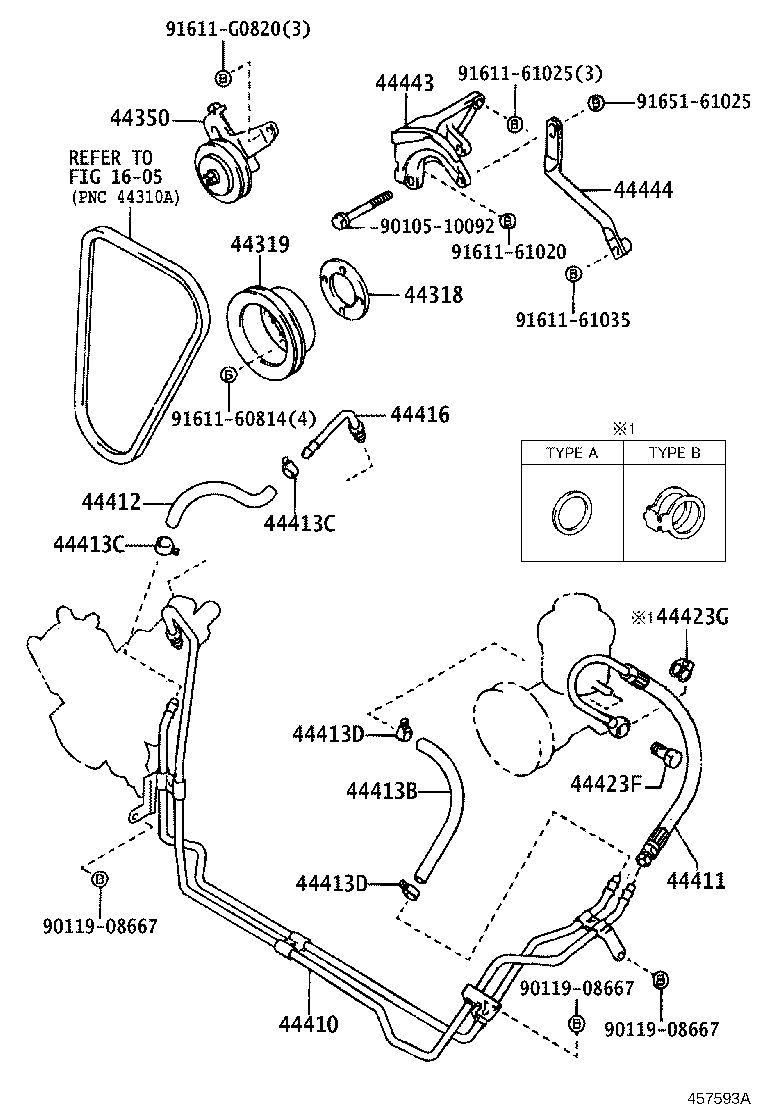

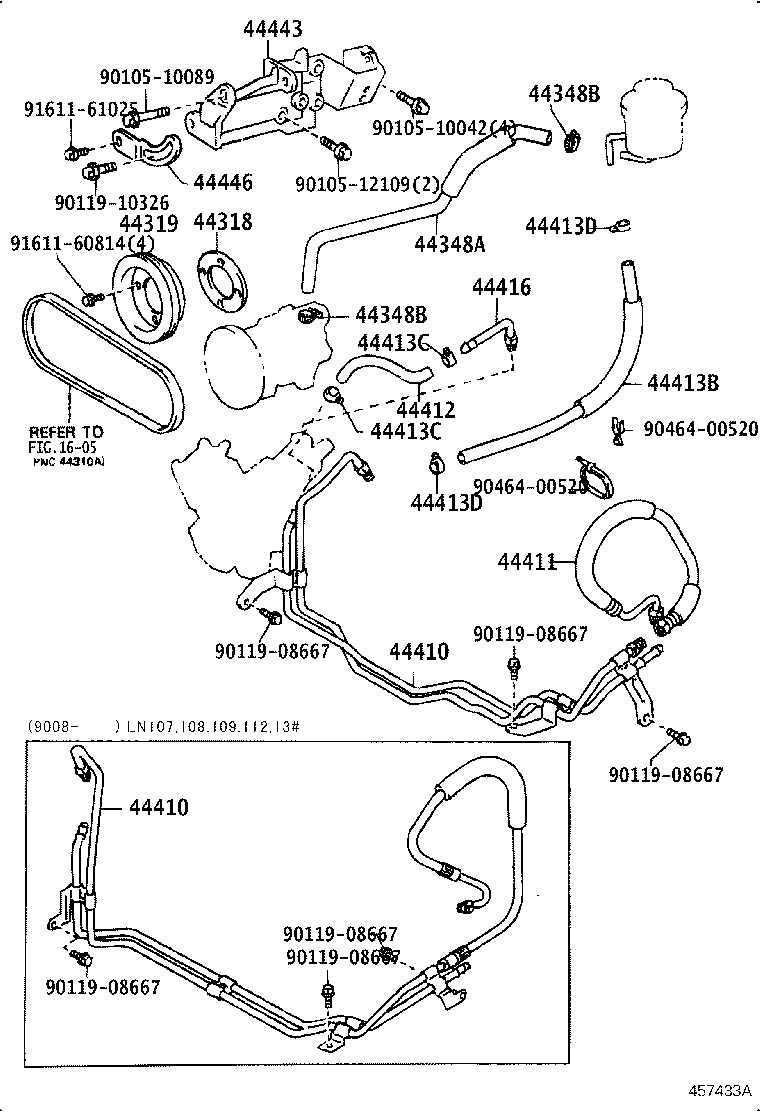

Power Steering Tube
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44410 | Tube Assy, Pressure Feed |
| 44411 | Hose, Pressure Feed |
| 44412 | Hose, Return |
| 44413B | Hose(FOR RESERVOIR TANK INLET) |
| 44413C | Clamp(FOR RETURN TUBE OUTLET HOSE) |
| 44413D | Clamp(FOR RESERVOIR TANK INLET HOSE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44428 | Hose, Return, NO.2 |
| 44441 | Bracket, Pump, Front |
| 44442 | Bracket, Pump, Rear |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
| 44453 | Stay, Pump, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
