Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

19 part groups · 4 illustrations

Illustrations

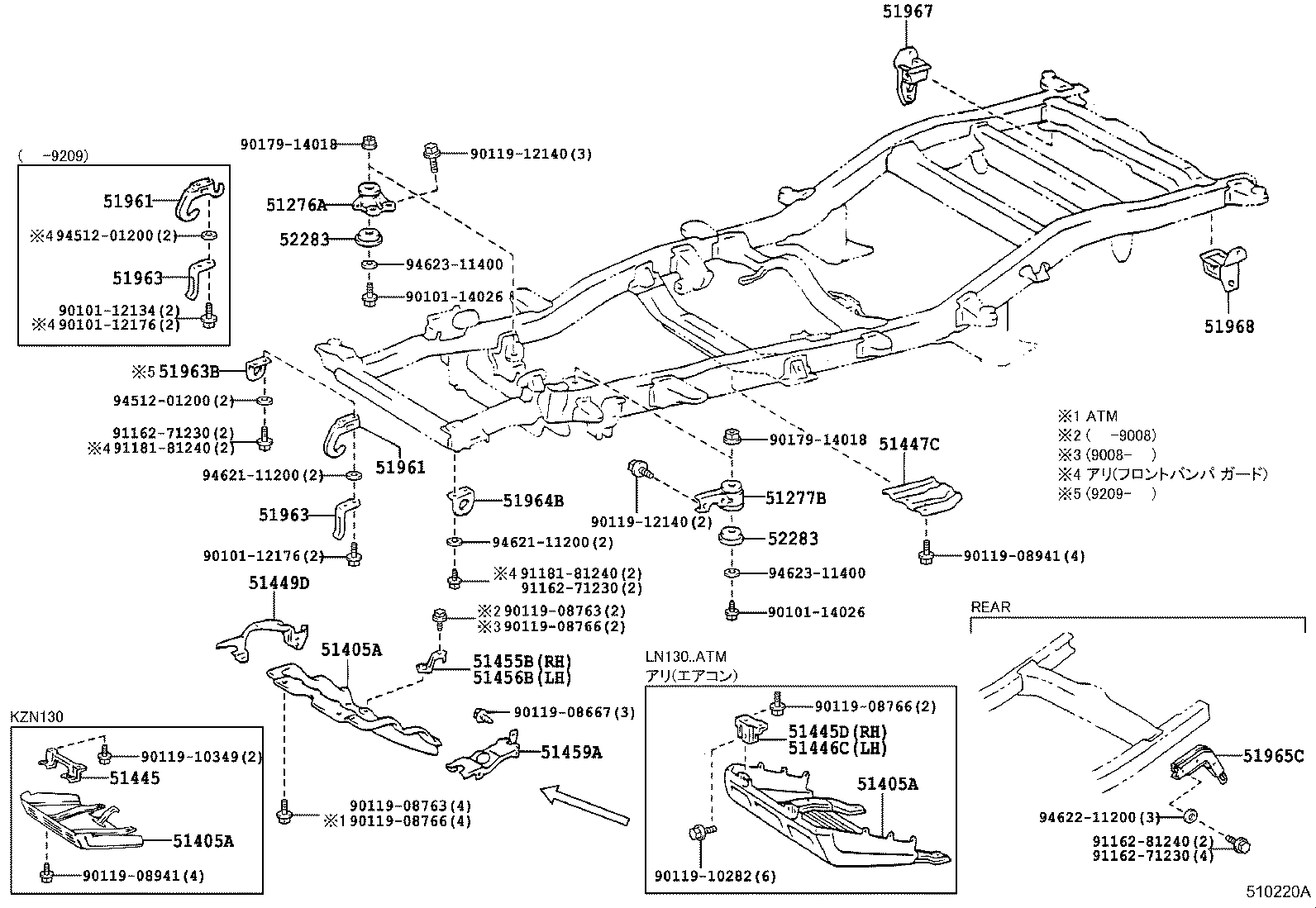

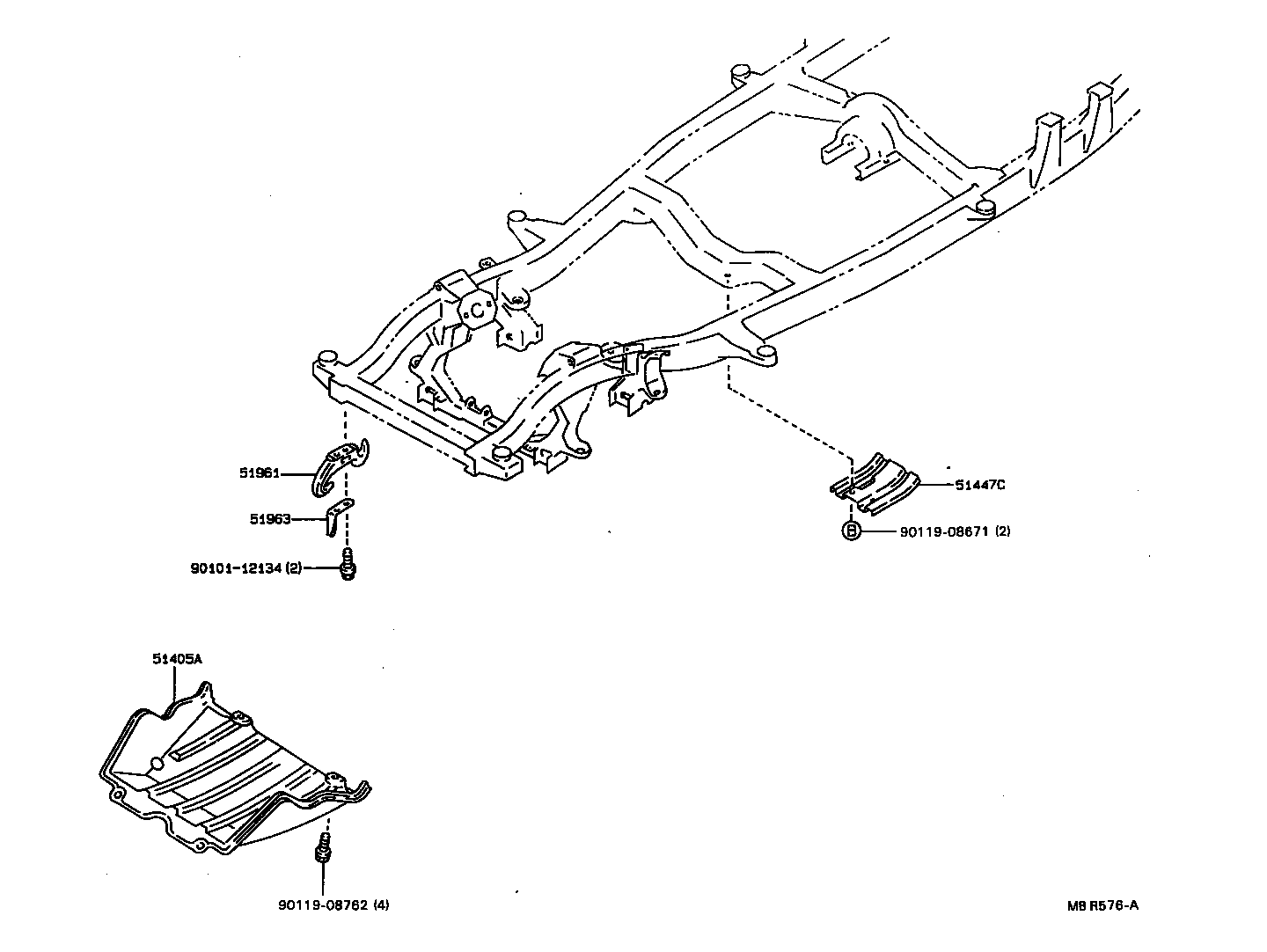

Figure MBP308B MBP308B 1988-09 → — Figure MBR576A MBR576A 1988-09 → — Figure 510220A 510220A 1989-04 → — Figure 510220A 510220A 1990-08 → —

Part groups

PNCDescription
51276A Bracket, Differential Support
51277B Bracket Assy, Differential Support, LH
51405A Cover Sub-assy, Engine Under, NO.1
51445 Bracket, Engine Under Cover
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51447C Protector, Transfer Case
51449D Bracket, Engine Under Cover Air Guide, RH
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51459A Bracket Engine Under Cover Air Guide, LH
51961 Hook, NO.1
51963 Stopper, Hook Wire
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
51965C Hook, Rear
51967 Hook, Transport, Rear
51968 Spacer, Hook
52283 Stopper, Differential Support Member, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
