Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 10 illustrations

Illustrations

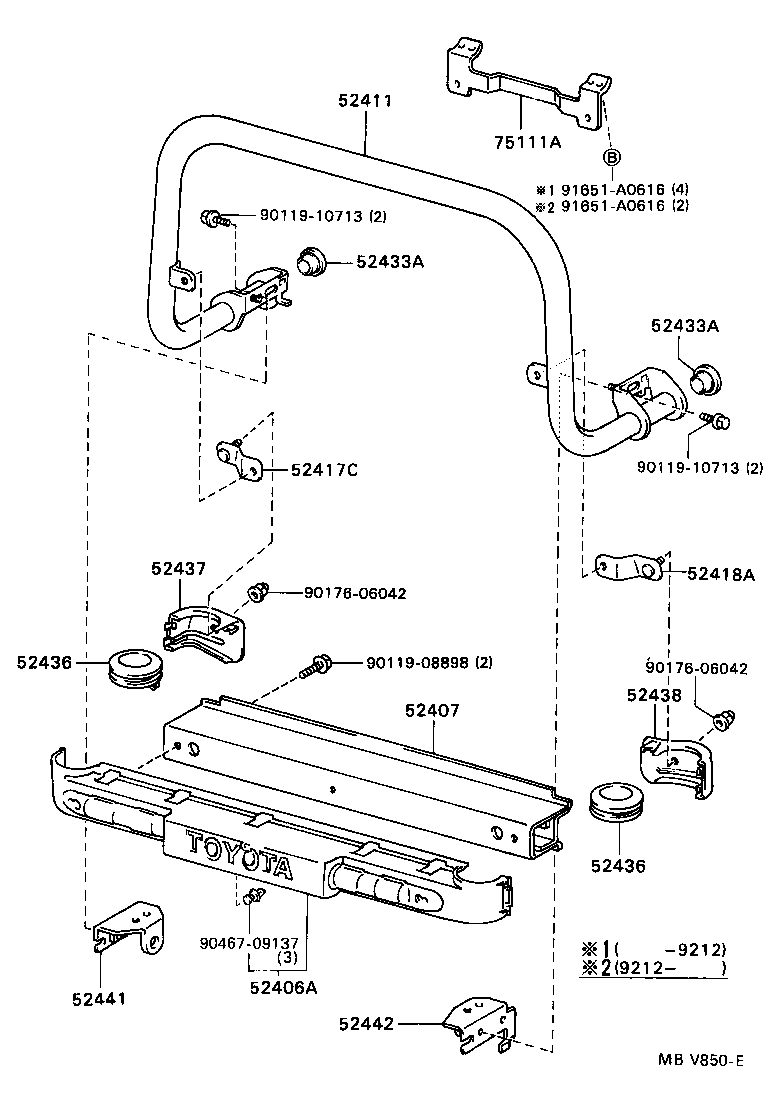

Figure 524985 524985 1988-09 → — Figure 524985 524985 1991-08 → — Figure MBP315D MBP315D 1988-09 → 1991-08 Figure MBP315D MBP315D 1989-04 → 1991-08 Figure MBP315D MBP315D 1990-08 → 1991-08 Figure 520237 520237 1991-08 → — Figure MBR472B MBR472B 1988-09 → 1991-08 Figure MBR472B MBR472B 1988-09 → — Figure MBV850E MBV850E 1991-08 → — Figure MBX933B MBX933B 1993-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52129A Arm, Front Bumper, Upper NO.2 RH
52139A Arm, Front Bumper, Upper NO.2 LH
52145B Bracket, Front Bumper Side Mounting
52211H Cushion(FOR FRONT BUMPER ARM)
52406A Garnish Sub-assy, Front Bumper Guard
52407 Guard Sub-assy, Front Bumper, NO.2
52411 Guard, Front Bumper
52417C Insert, Front Bumper Guard, Lower RH
52418A Insert, Front Bumper Guard, Lower LH
52433A Plug, Front Bumper Cover Hole
52435 Garnish, Front Bumper Guard
52436 Protector, Front Bumper Guard
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52441 Base, Front Bumper Guard, NO.1 RH
52442 Base, Front Bumper Guard, NO.1 LH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
