Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

16 part groups · 4 illustrations

Illustrations

Figure MBR584

MBR584 1988-09 → —

Figure MBR585

MBR585 1988-09 → —

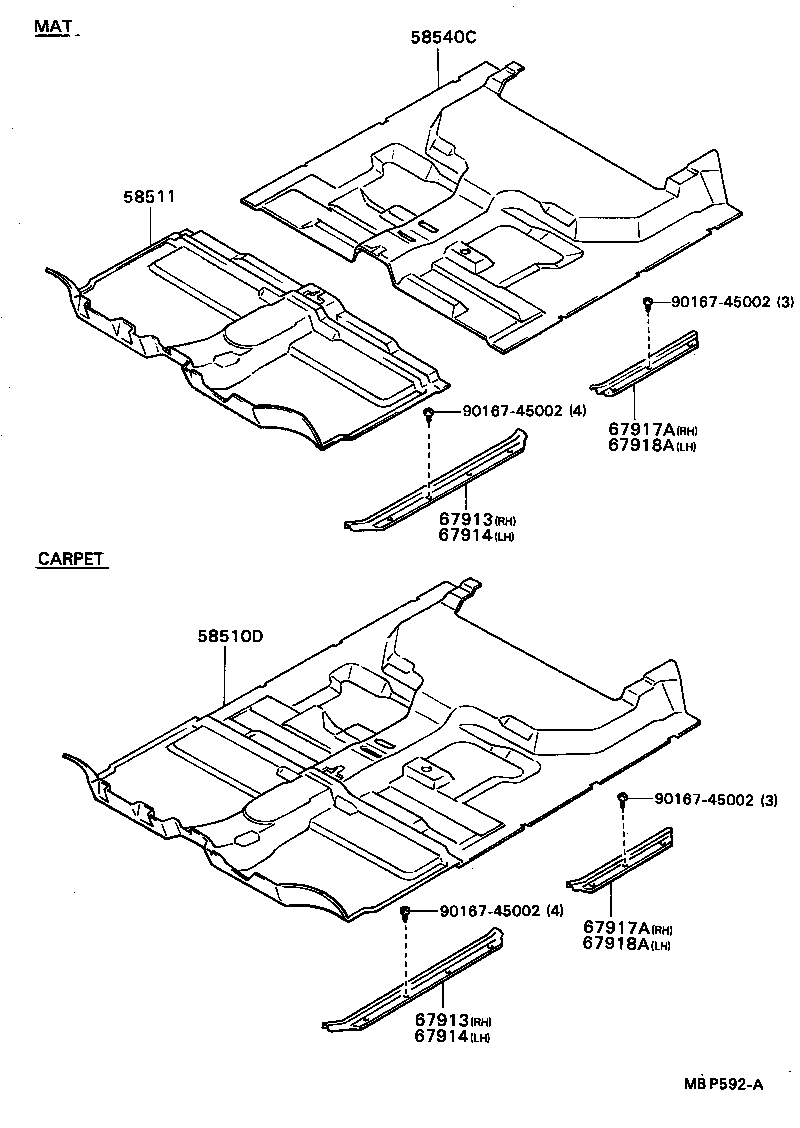

Figure MBP592A

MBP592A 1988-09 → —

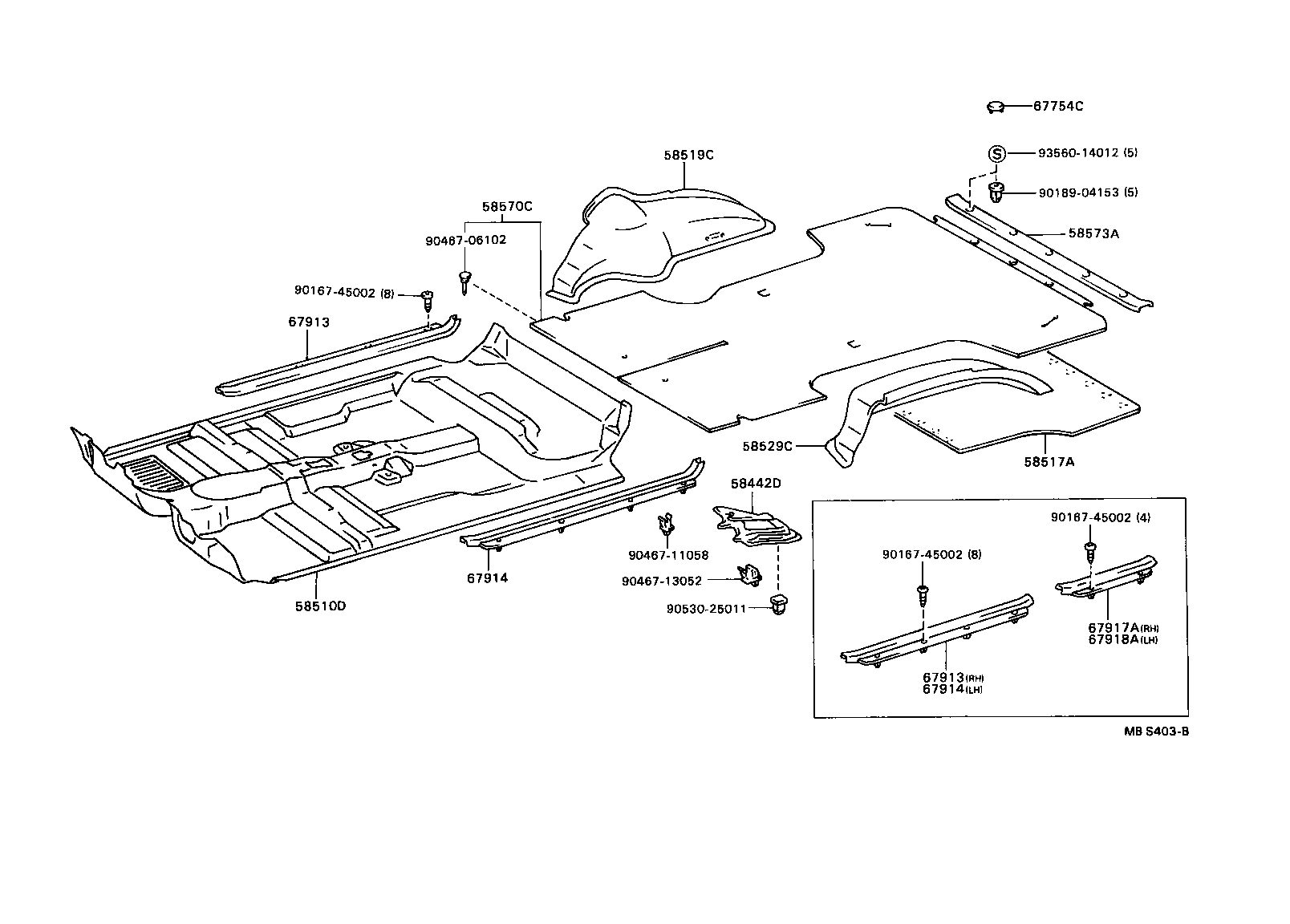

Figure MBS403B

MBS403B 1989-04 → —

Part groups

PNC	Description
58442D	Cover, Jack
58510D	Carpet Assy, Floor, Front
58511	Mat, Floor, Front
58517A	Mat, Rear Floor, NO.2
58519C	Carpet, Rear Wheel House, RH
58529C	Carpet, Rear Wheel House, LH
58540C	Mat Assy, Floor, Rear
58540E	Mat Assy, Floor, Rear RH
58550B	Mat Assy, Floor, Rear LH
58570C	Carpet Assy, Rear Floor
58573A	Plate, Rear Floor Mat Support
67754C	Cover, Rear Floor Plate Hole
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
