Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04

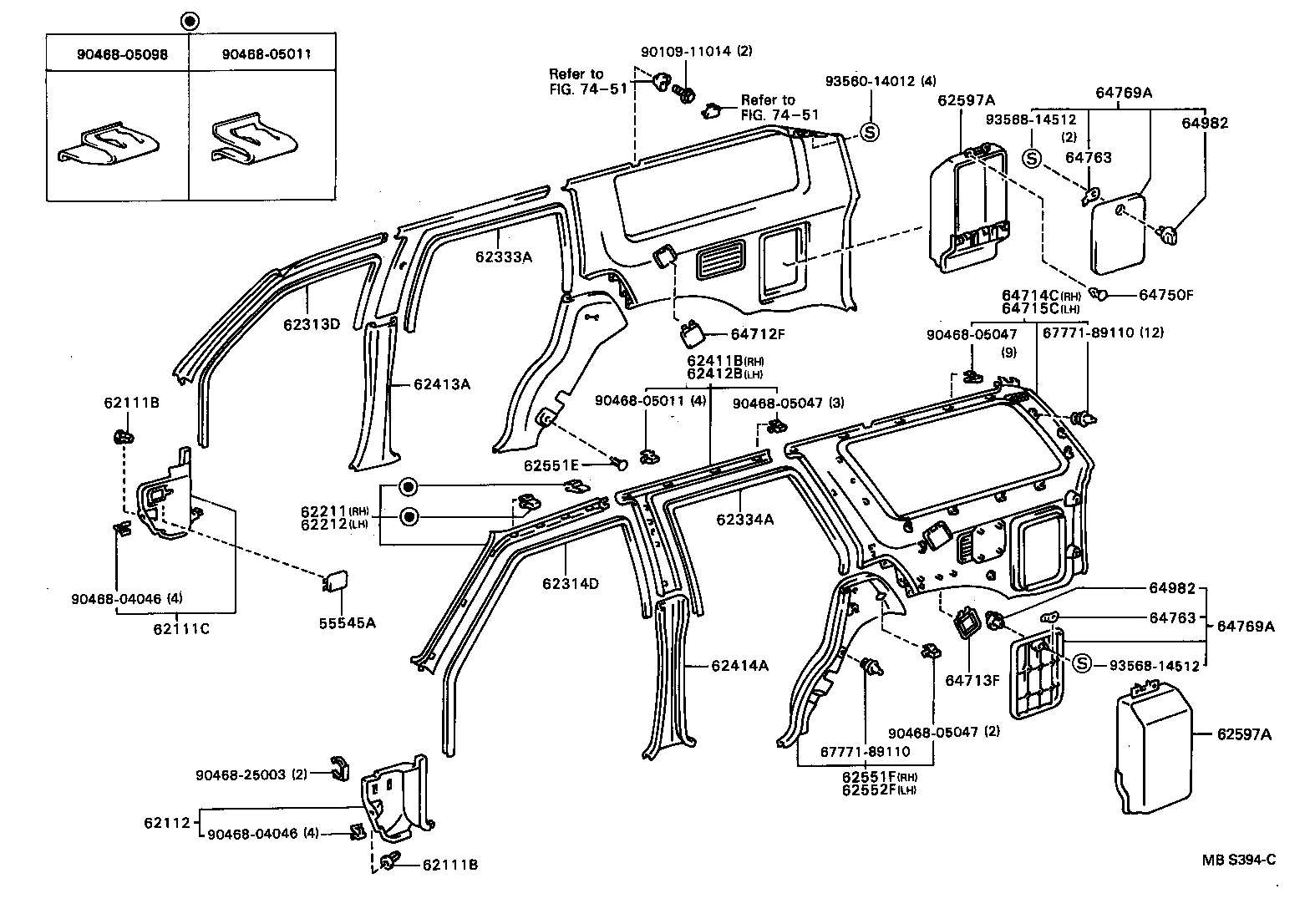

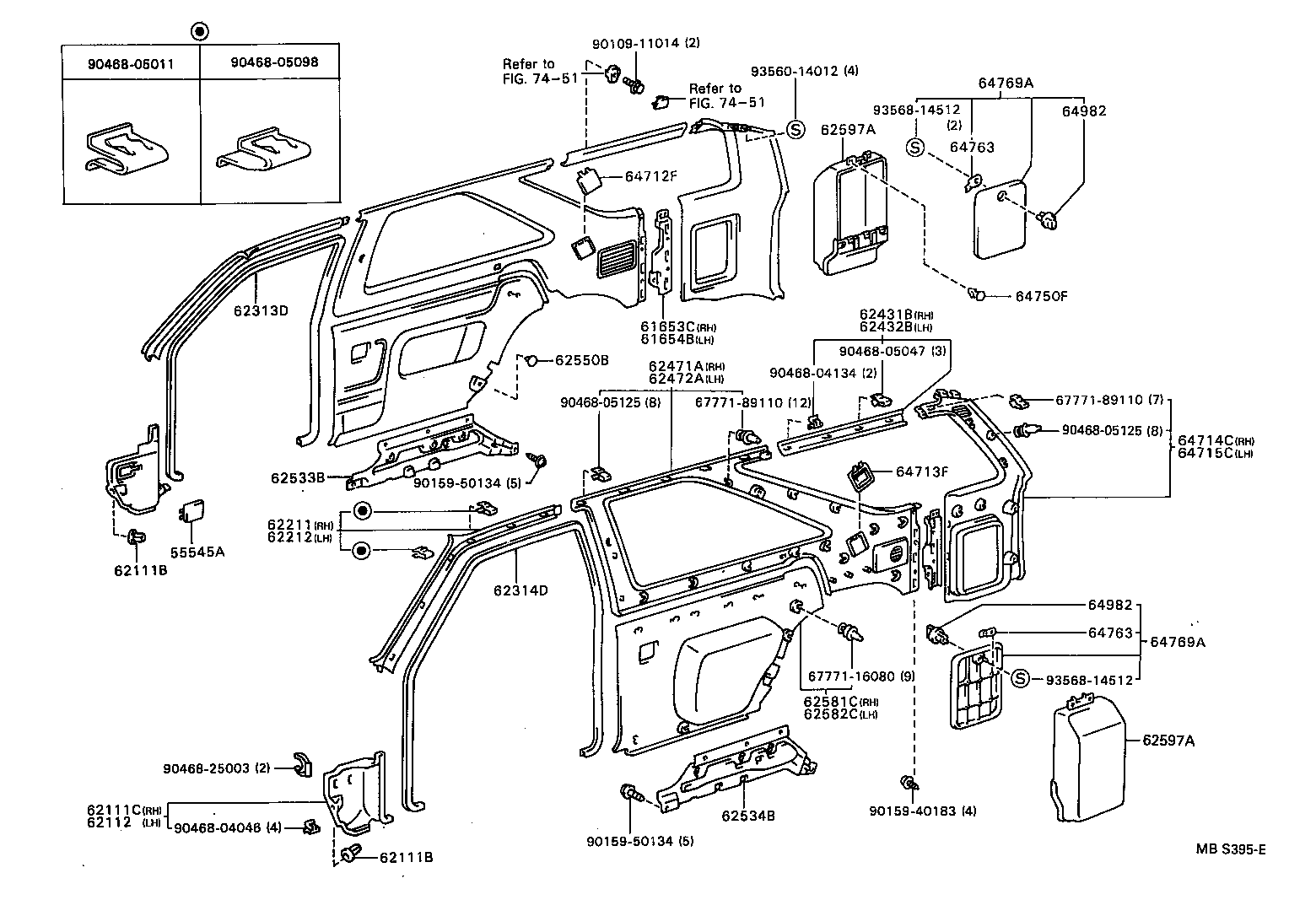

Inside Trim Board

42 part groups · 4 illustrations

PNC	Description
55545A	Cover, Fuse Box Opening
61653C	Bracket, Deck Side Trim, RH
61654B	Bracket, Deck Side Trim, LH
62111B	Clip(FOR COWL SIDE TRIM)
62111C	Board, Cowl Side Trim, RH
62112	Board, Cowl Side Trim, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62411B	Garnish, Center Pillar, Upper RH
62412B	Garnish, Center Pillar, Upper LH
62413A	Garnish, Center Pillar, Lower RH
62414A	Garnish, Center Pillar, Lower LH
62431B	Garnish, Roof Side Rail, NO.1 RH
62432B	Garnish, Roof Side Rail, NO.1 LH
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62511	Board, Quarter Inside Trim, RH
62511B	Clip (FOR QUARTER INSIDE TRIM BOARD)
62512	Board, Quarter Inside Trim, LH
62533B	Bracket, Quarter Trim, RH
62534B	Bracket, Quarter Trim, LH
62550B	Clip(FOR REAR WINDOW SIDE GARNISH)
62551E	Clip(FOR REAR SEAT SIDE GARNISH)
62551F	Garnish, Rear Seat Side, RH
62552F	Garnish, Rear Seat Side, LH
62581C	Garnish, Rear Window Side, RH
62582C	Garnish, Rear Window Side, LH
62597A	Box, Side Trim
64261C	Garnish, Back Panel, Upper
64271C	Trim, Back Panel
64712F	Cover, Deck Side Trim, Front RH
64713F	Cover, Deck Side Trim, Front LH
64714C	Cover, Deck Side Trim, RH
64715C	Cover, Deck Side Trim, LH
64750F	Clip(FOR DECK SIDE TRIM PANEL)
64763	Stopper, Tool Cover
64769A	Cover Assy, Side Trim Tool Bag
64982	Knob, Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
