Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04

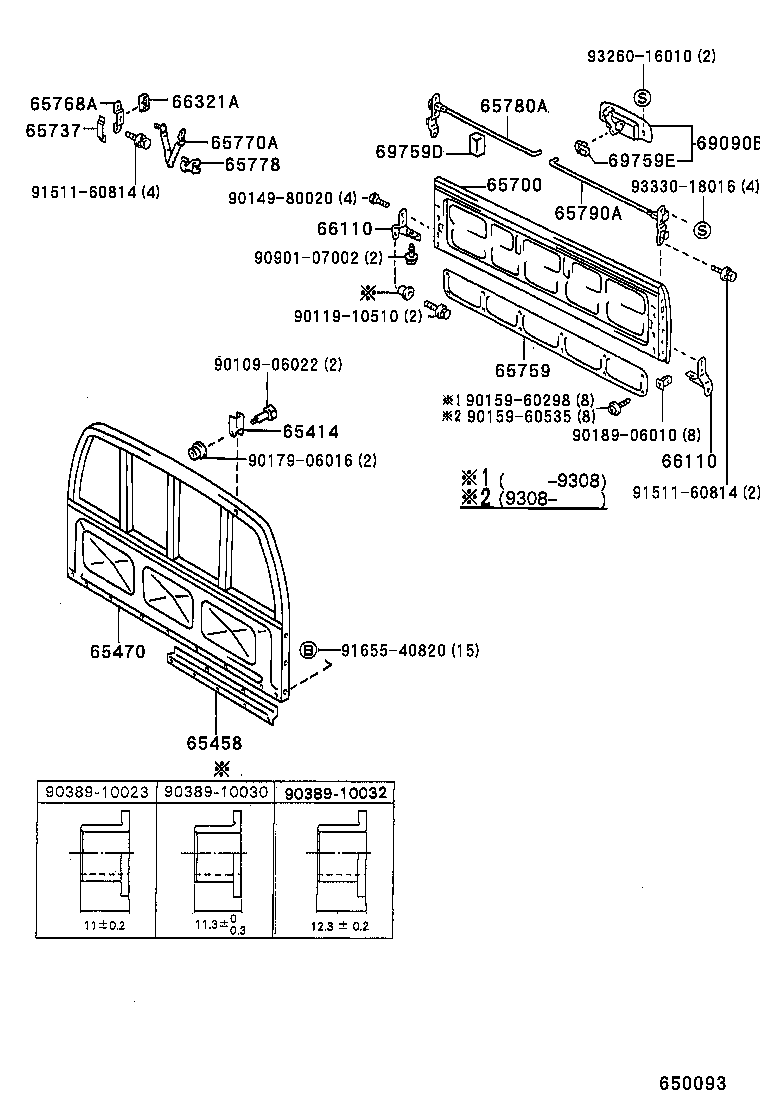

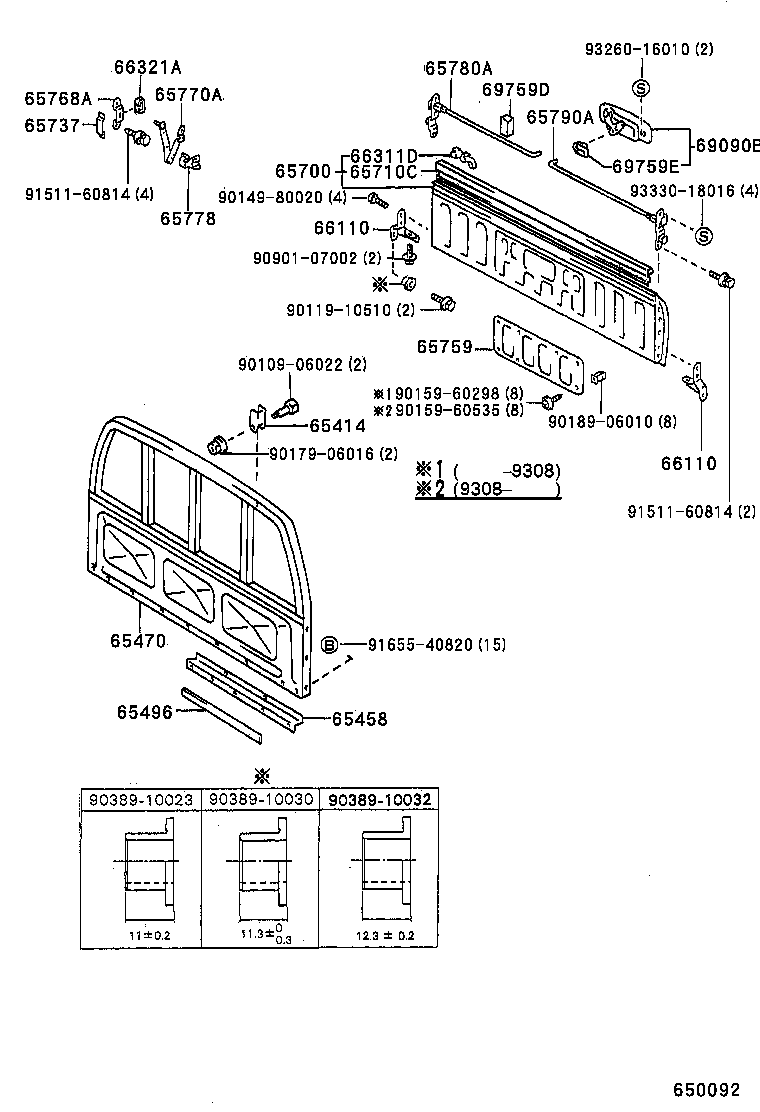

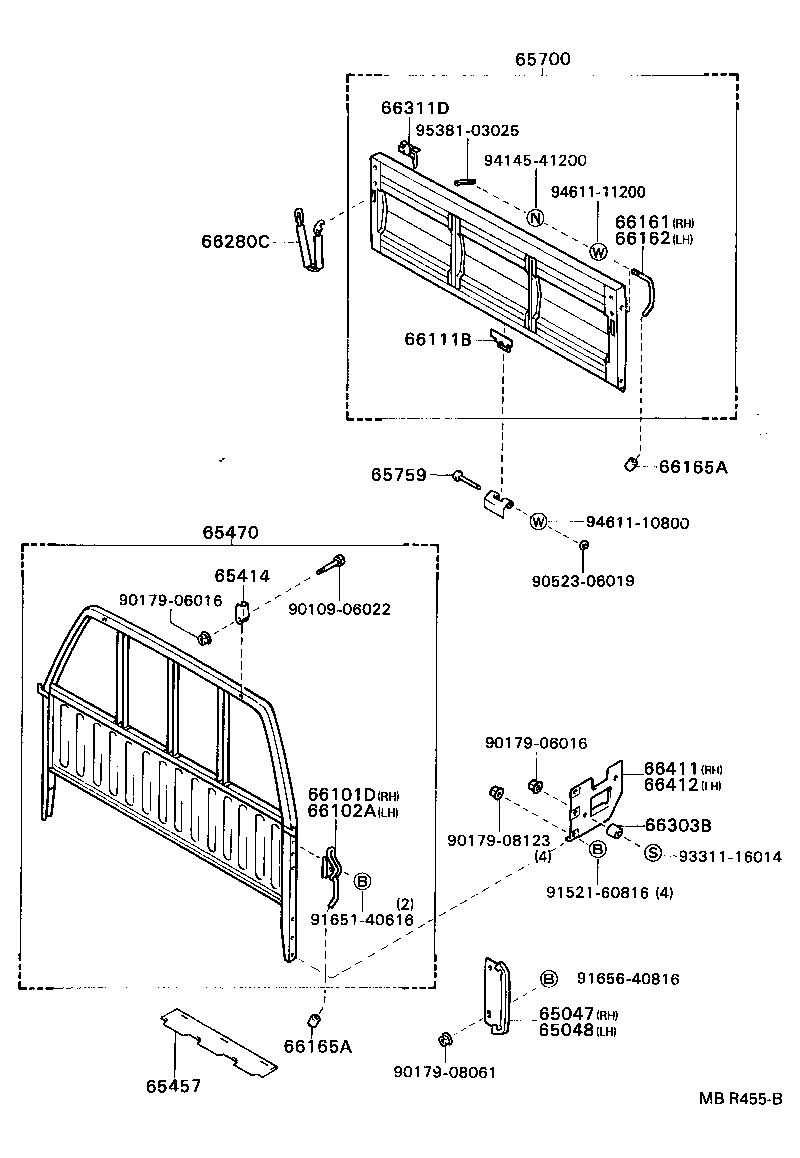

Rear Body Guard Frame & Tail Gate
48 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 65047 | Protector Sub-assy, Guard Frame, RH |
| 65048 | Protector Sub-assy, Guard Frame, LH |
| 65207 | Bracket Sub-assy, Guard Frame, RH |
| 65208 | Bracket Sub-assy, Guard Frame, LH |
| 65403C | Frame Sub-assy, Rear Body Guard, RH |
| 65404A | Frame Sub-assy, Rear Body Guard, LH |
| 65414 | Stopper, Guard Frame |
| 65426 | Plate, Rear Body Guard |
| 65457 | Plate, Baffle Dust Rear Body |
| 65458 | Plate, Baffle Duct Rear Body, LH |
| 65465 | Plate, Guard Frame, Lower NO.1 RH |
| 65466 | Plate, Guard Frame, Lower NO.1 LH |
| 65467 | Plate, Guard Frame, Lower NO.2 RH |
| 65468 | Plate, Guard Frame, Lower NO.2 LH |
| 65470 | Board Assy, Header |
| 65472 | Cover, Guard Frame, Upper |
| 65493A | Seal, Rear Body Guard Frame, NO.1 |
| 65494A | Seal, Rear Body Guard Frame, NO.2 |
| 65496 | Seal, Rear Body Guard Frame, NO.4 |
| 65700 | Gate Assy, Rear Body Tail |
| 65710C | Rail Assy, Tail Gate Top |
| 65737 | Stop, Tail Gate |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65778 | Stopper, Tail Gate Stay |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 65865A | Pin, Cover Top Guide |
| 66101D | Latch Sub-assy, Gate |
| 66102A | Latch Sub-assy, Gate |
| 66110 | Hinge Assy, Tail Gate |
| 66111B | Hinge, Tail Gate Male |
| 66161 | Handle, Side Gate Latch, RH |
| 66162 | Handle, Side Gate Latch, LH |
| 66165A | Cap, Gate Latch Handle |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66280C | Chain Assy, Tail Gate |
| 66283A | Hook, Tail Gate Chain, RH |
| 66284A | Hook, Tail Gate Chain, LH |
| 66303B | Cushion Sub-assy, Rubber |
| 66311D | Hook, Rope |
| 66321A | Bumper, Gate Rubber |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
| 69090B | Handle Assy, Tail Gate |
| 69759D | Silencer, Tail Gate Lock Link |
| 69759E | Snap, Tail Gate Lock Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
