Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04

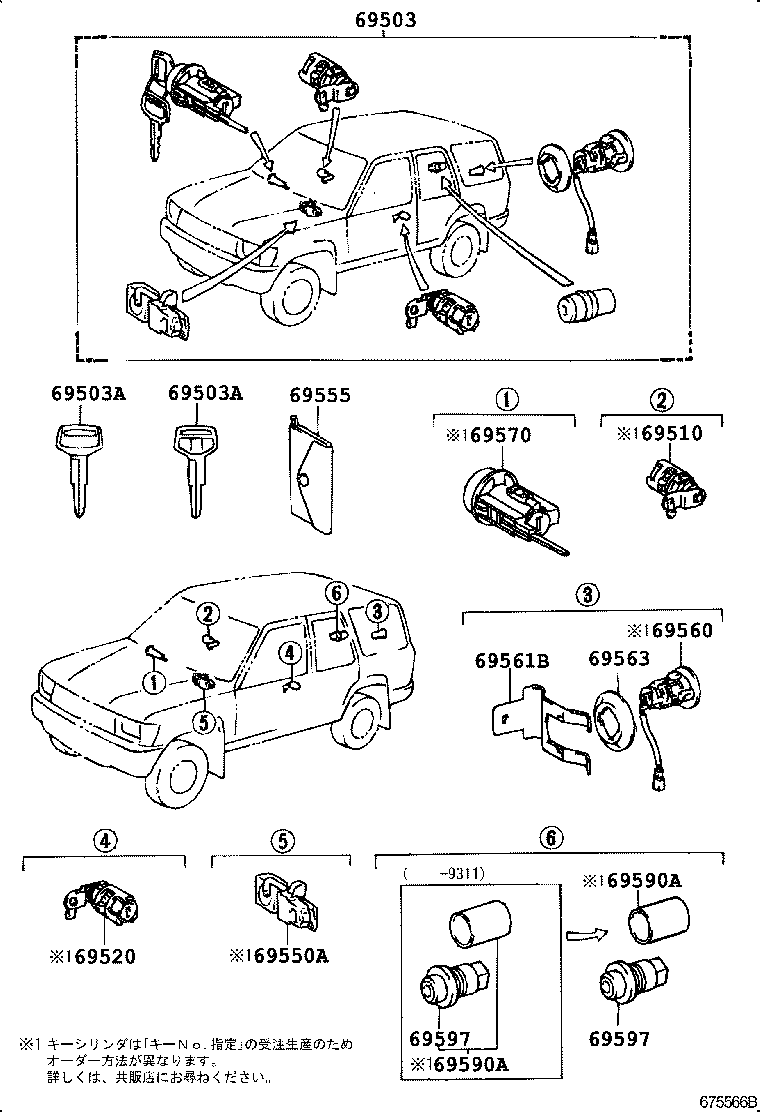

Lock Cylinder Set
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69513 | Pad, Fuel Filler Lid Lock Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69561B | Retainer, Back Door Lock Cylinder |
| 69563 | Pad, Back Door Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69580 | Cylinder Assy, Fuel Filler Opening Lid |
| 69581 | Retainer, Fuel Filler Lid Cylinder |
| 69590A | Cylinder Assy, Spare Wheel Lock |
| 69597 | Nut, Spare Wheel Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
