Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

133 part groups · 12 illustrations

Illustrations

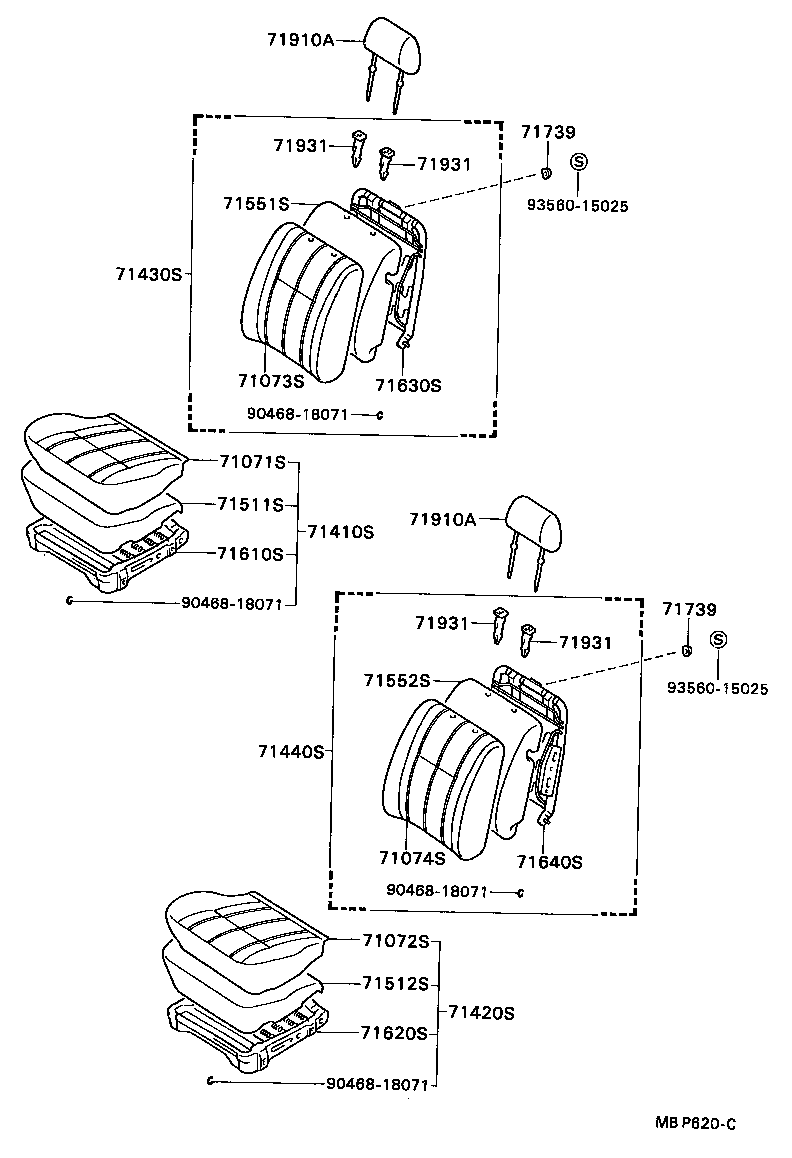

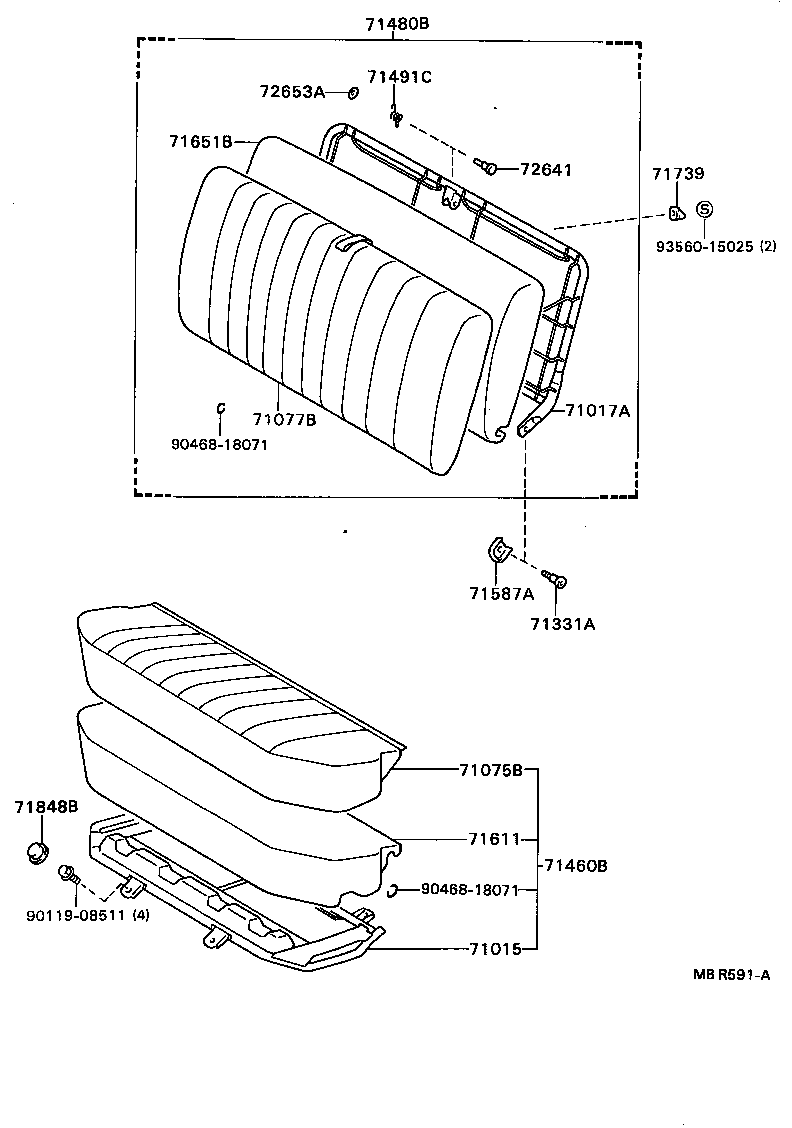

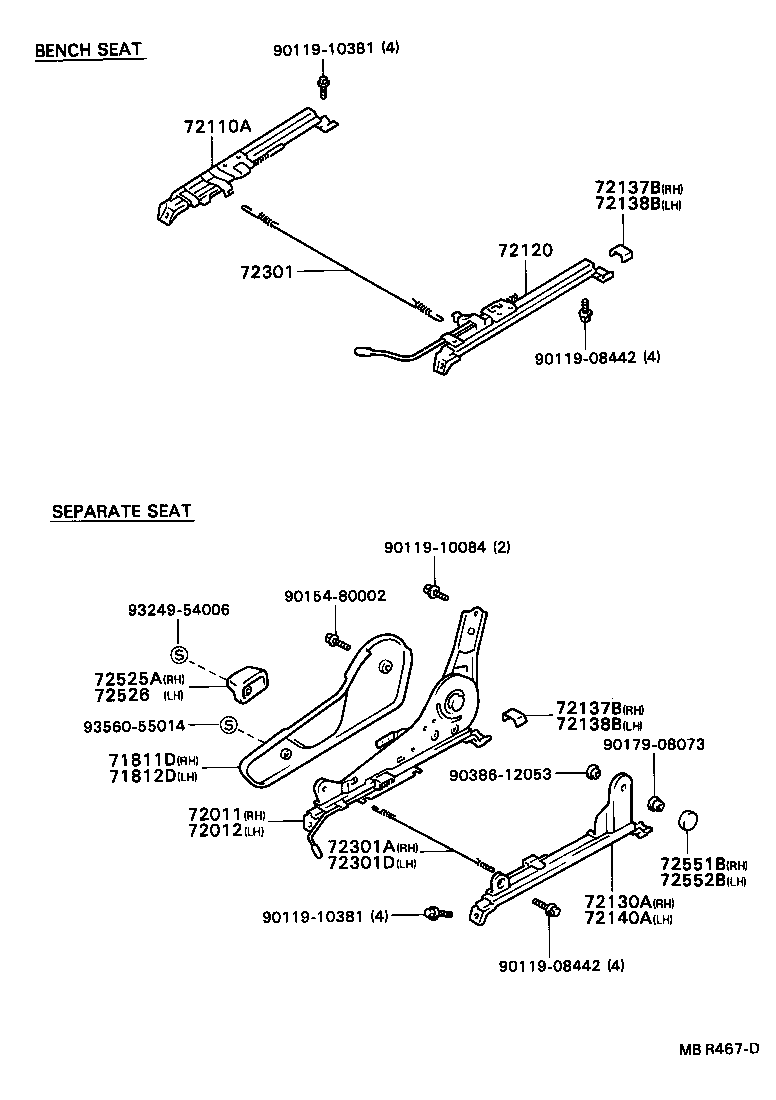

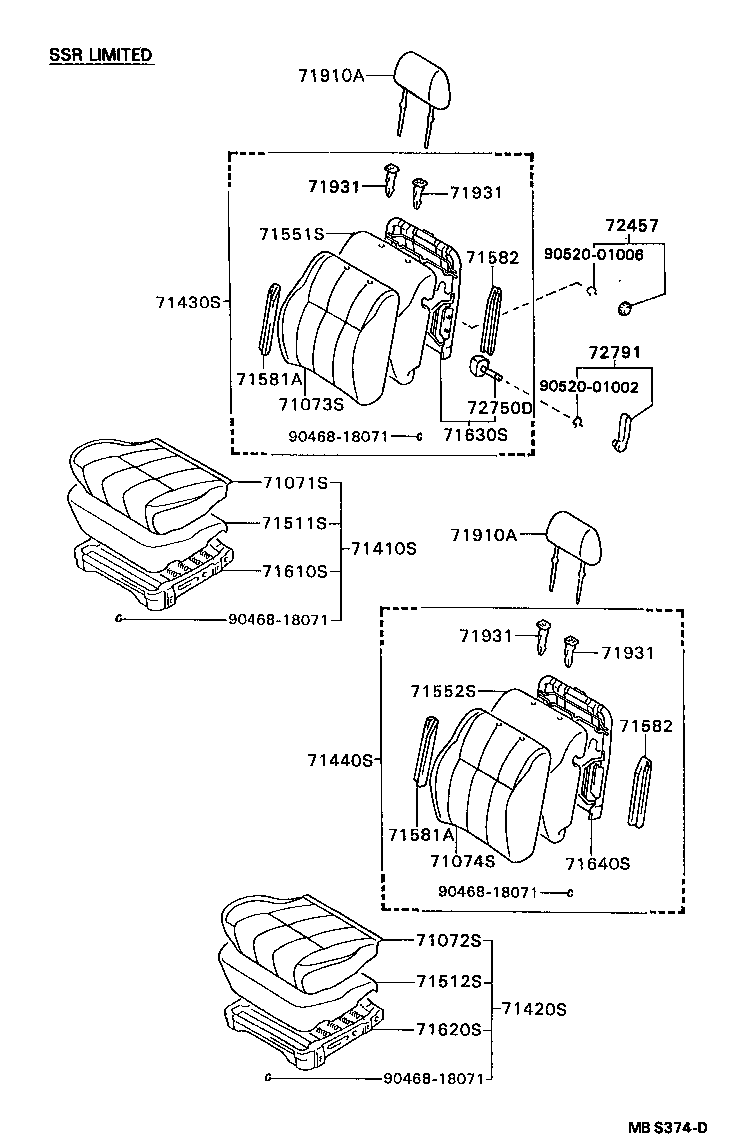

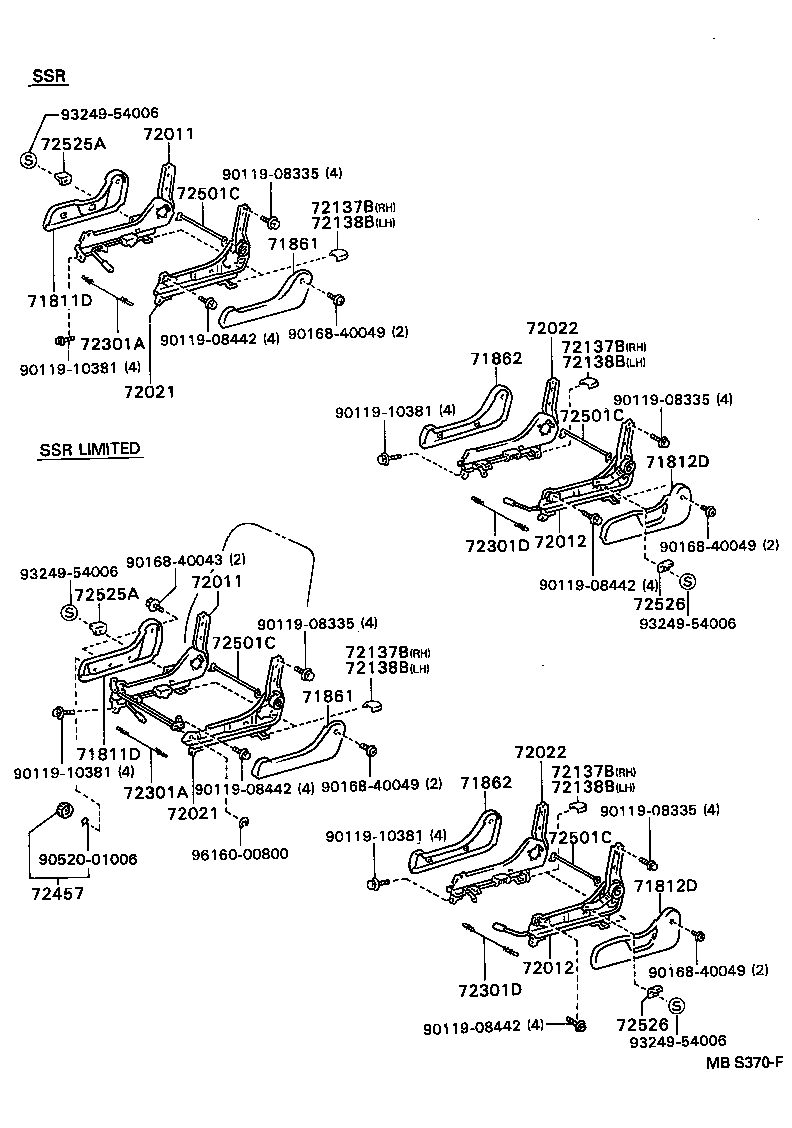

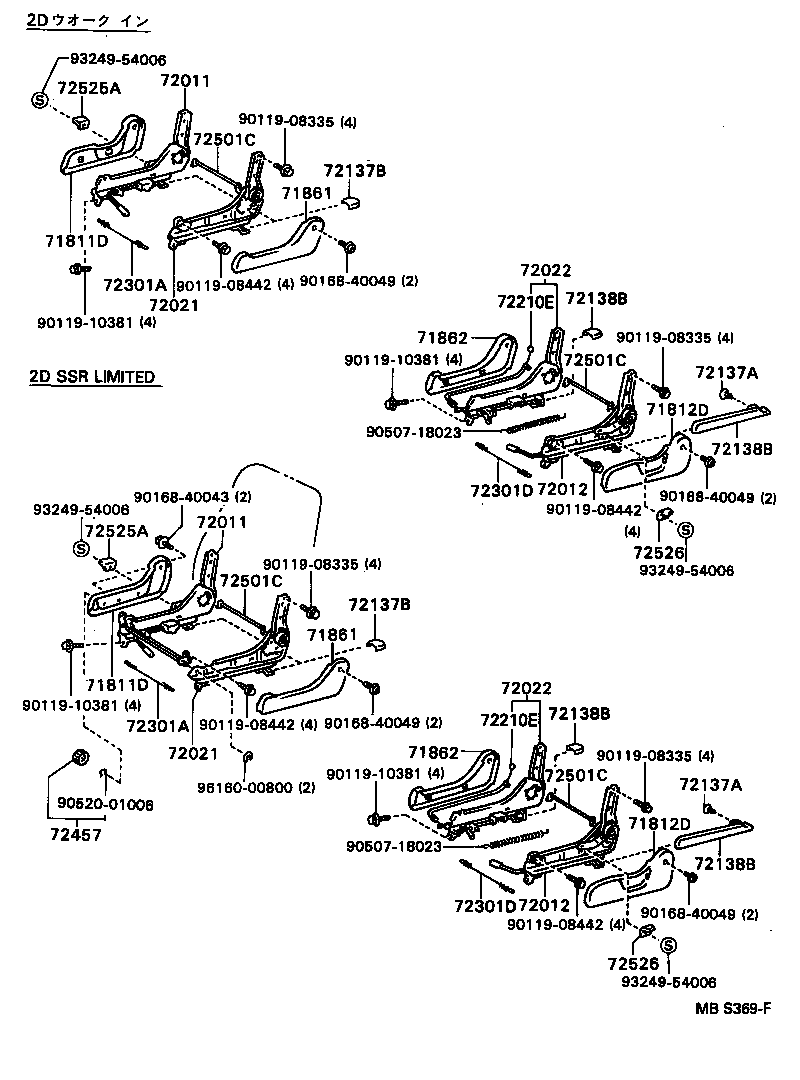

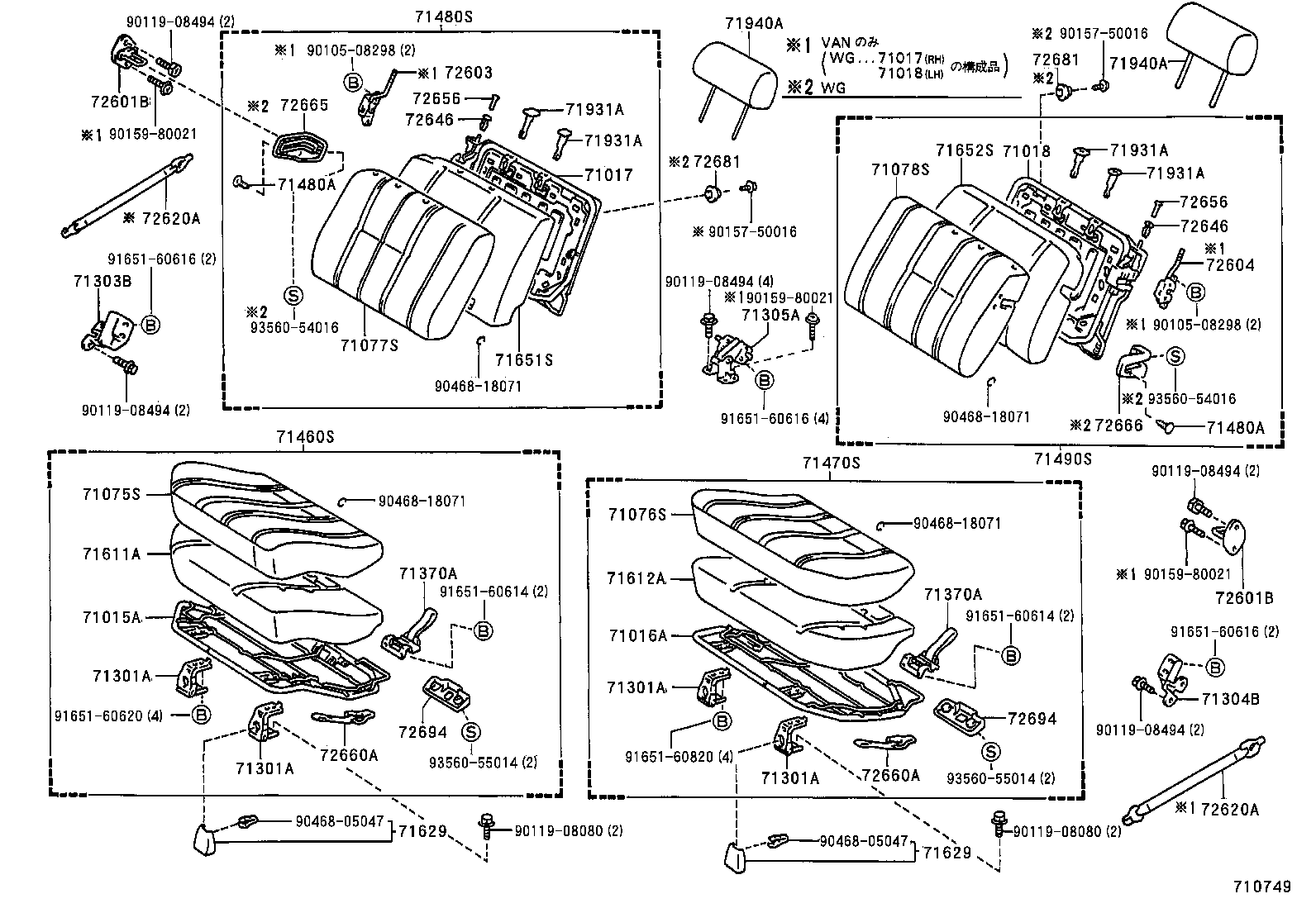

Figure MBR468B MBR468B 1988-09 → — Figure MBP620C MBP620C 1988-09 → — Figure MBS374D MBS374D 1989-04 → — Figure MBS374D MBS374D 1990-08 → — Figure MN1358 MN1358 1991-08 → — Figure MBR467D MBR467D 1988-09 → — Figure MBS369F MBS369F 1989-04 → — Figure MBS370F MBS370F 1989-04 → — Figure MBS370F MBS370F 1991-08 → — Figure MN1359 MN1359 1991-08 → — Figure MBR591A MBR591A 1988-09 → — Figure 710749 710749 1989-04 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301A Hinge Sub-assy, Rear Seat Cushion
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71311 Pin, Front Seat Hinge
71331A Pin, Rear Seat Hinge
71370A Holder Assy, Rear Seat Cushion
71379A Stopper, Front Seat Vertical Handle
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480A Clip (FOR REAR SEATBACK)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71491C Spring, Rear Seat Set
71511B Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551B Pad, Front Seatback(FOR BENCH TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B Pad, Front Seatback, Upper
71567 Pad, Front Seatback Safety
71571 Pad, Front Seatback Silencer, A
71581A Pad, Front Seatback Corner, A
71582 Pad, Front Seatback Corner, B
71587 Protector, Front Seatback Edge
71587A Protector, Rear Seatback Edge
71598 Plate, Seat Cover
71610B Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71630B Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71739 Cushion, Seat Support
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71848B Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71897 Hook, Seat Cover Side
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72131 Bracket, Front Outer Seat Track Upper Rail, RH
72131A Bracket, Front Inner Seat Track Upper Rail, RH
72132 Bracket, Front Outer Seat Track Upper Rail, LH
72132A Bracket, Front Inner Seat Track Upper Rail, LH
72137A Clip (FOR SEAT TRACK COVER)
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72210E Cable Assy, Seat Track Control(FOR WALK IN)
72257 Striker, Front Seat Lock
72301 Wire Sub-assy, Seat Track Equalizing
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72457 Knob, Vertical Seat Adjuster
72501C Pipe Sub-assy, Reclining Connecting
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72568 Plate, Reclining Bolt Lock
72591A Lever, Reclining Remote Control
72593 Knob, Reclining Remote Control Lever
72597 Bezel, Reclining Remote Control
72601B Striker Sub-assy, Rear Seatback Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72620A Protector Assy, Rear Seatback
72641 Pin, Rear Seatback Lock
72646 Grommet, Rear Seatback Stop Button
72653A Snap, Rear Seatback Lock Rod
72656 Button, Rear Seatback Stop Release
72660A Support Assy, Rear Seat Cushion
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72681 Hook, Rear Seatback Lock, Lower
72694 Cover, Rear Seat Cushion Lock
72750D Adjuster Assy, Lumbar Support, RH
72791 Lever, Lumbar Support
72795 Pad, Lumbar Support
