Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04
Seat Belt
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73139B | Cover, Seat Belt Anchor |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223 | Cover, Seat Belt Retractor |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |

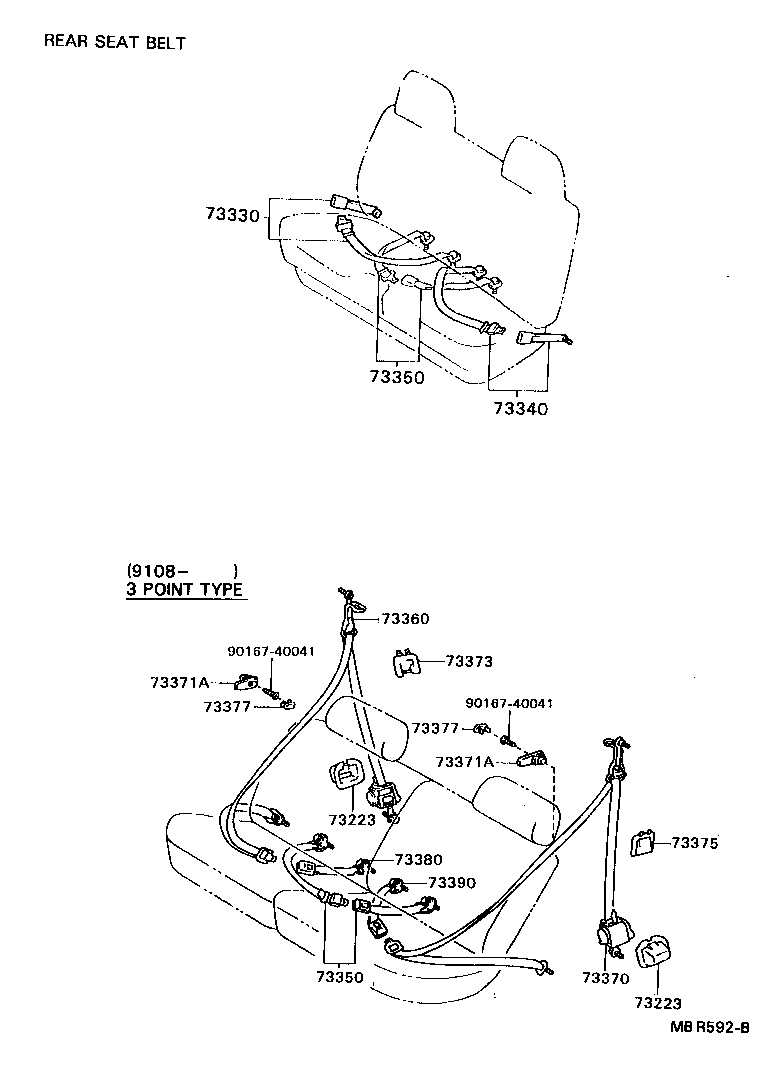

| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73377 | Plug, Rear Seat Shoulder Belt Hanger |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
