Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04

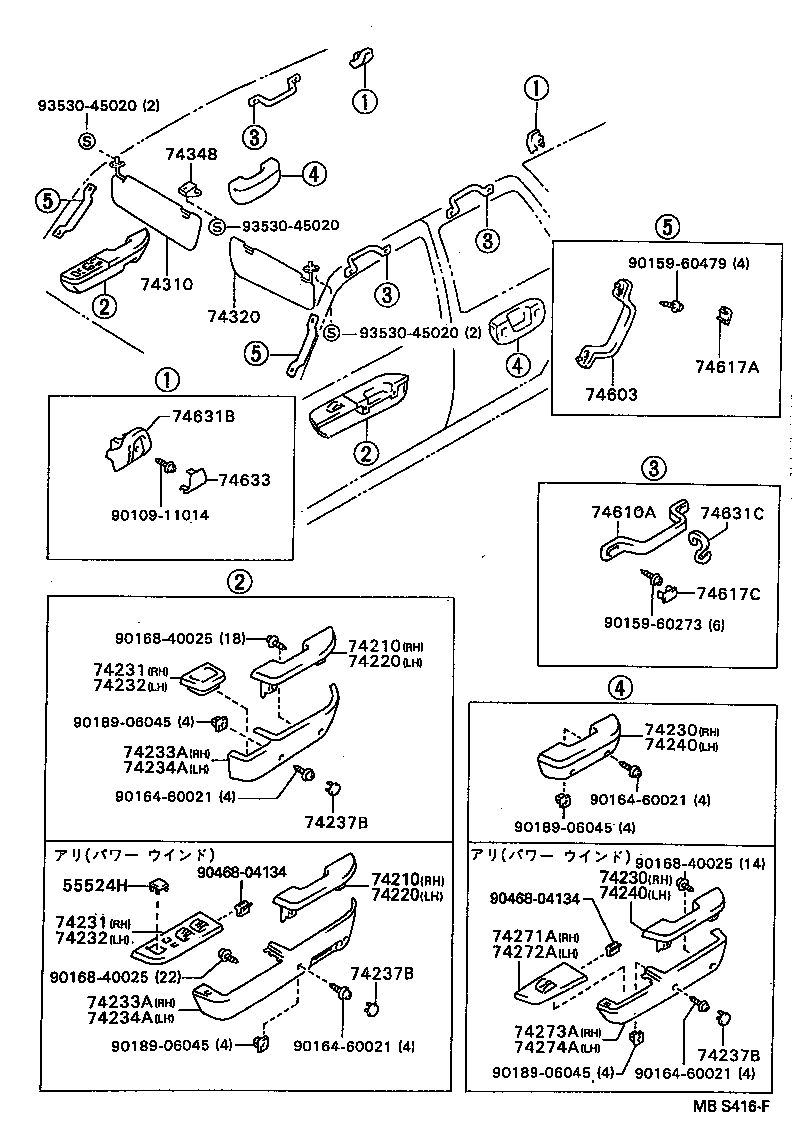

Armrest & Visor
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55524H | Cover, Switch Base Hole |
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233A | Panel, Front Door Armrest Base, Lower RH |
| 74234A | Panel, Front Door Armrest Base, Lower LH |
| 74237B | Cap, Door Armrest Base |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74273A | Panel, Rear Door Armrest Base, Lower RH |
| 74274A | Panel, Rear Door Armrest Base, Lower LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74631B | Hook, Coat |
| 74631C | Hook, Coat |
| 74633 | Cap, Coat Hook |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
