Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04
Emblem & Name Plate

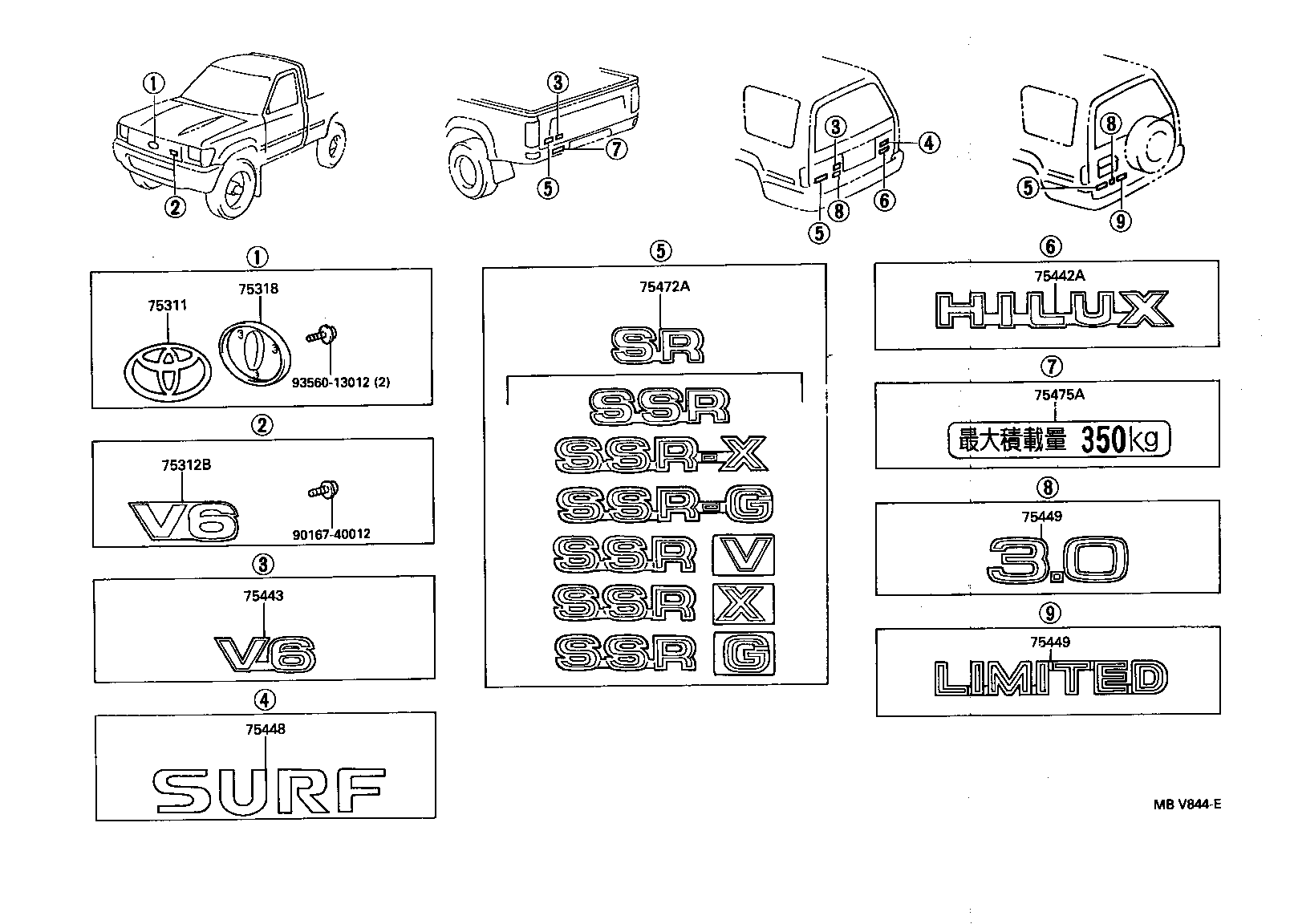

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75312B | Emblem, Radiator Grille, NO.2 |
| 75318 | Retainer, Radiator Grille Emblem |
| 75442A | Plate, Back Door Name, NO.2 |
| 75443 | Plate, Back Door Name, NO.3 |
| 75444A | Plate, Back Door Name, NO.4 |
| 75448 | Plate, Back Door Name, NO.8 |
| 75449 | Plate, Back Door Name, NO.9 |
| 75471 | Plate, Rear Body Name, NO.1(MODEL MARK) |
| 75471B | Plate, Rear Body Name, NO.1 |
| 75472 | Plate, Rear Window Name |
| 75472A | Plate, Rear Body Name, NO.2 |
| 75473B | Plate, Rear Body Name, NO.3 |
| 75475A | Plate, Rear Body Name, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
