Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04

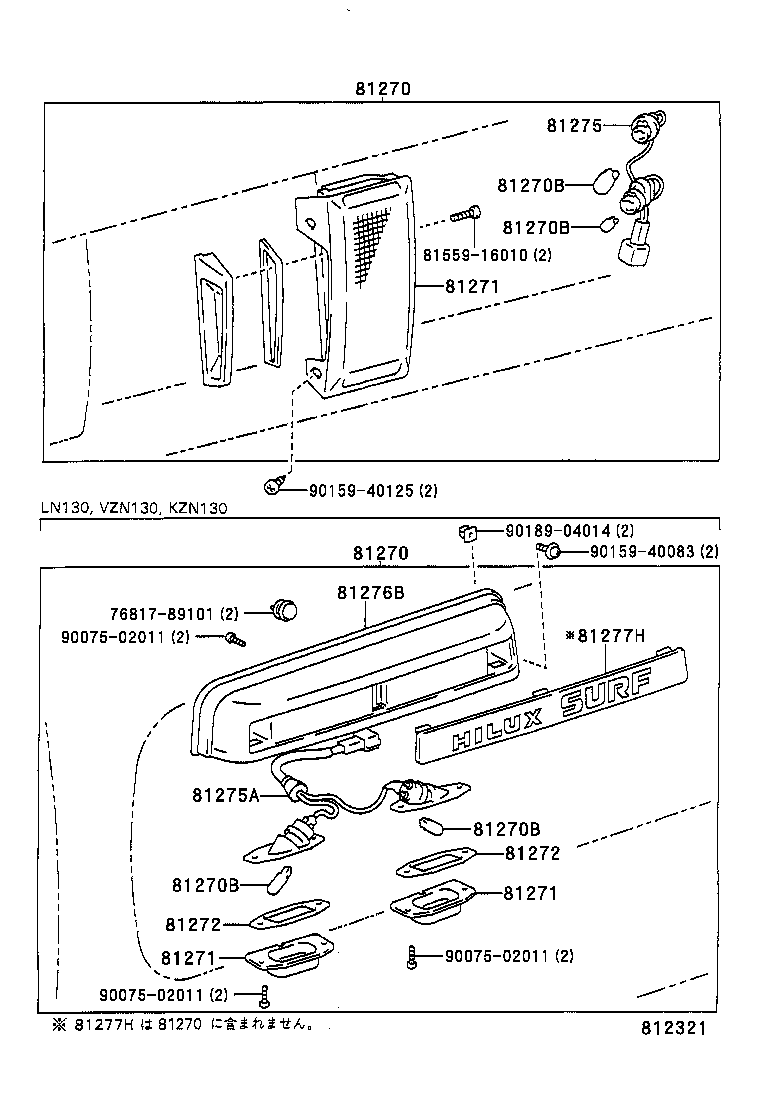

Rear License Plate Lamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81275 | Socket And Wire, License Plate Lamp |
| 81275A | Cord, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
| 81277H | Cap, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
