Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04
Switch & Relay & Computer

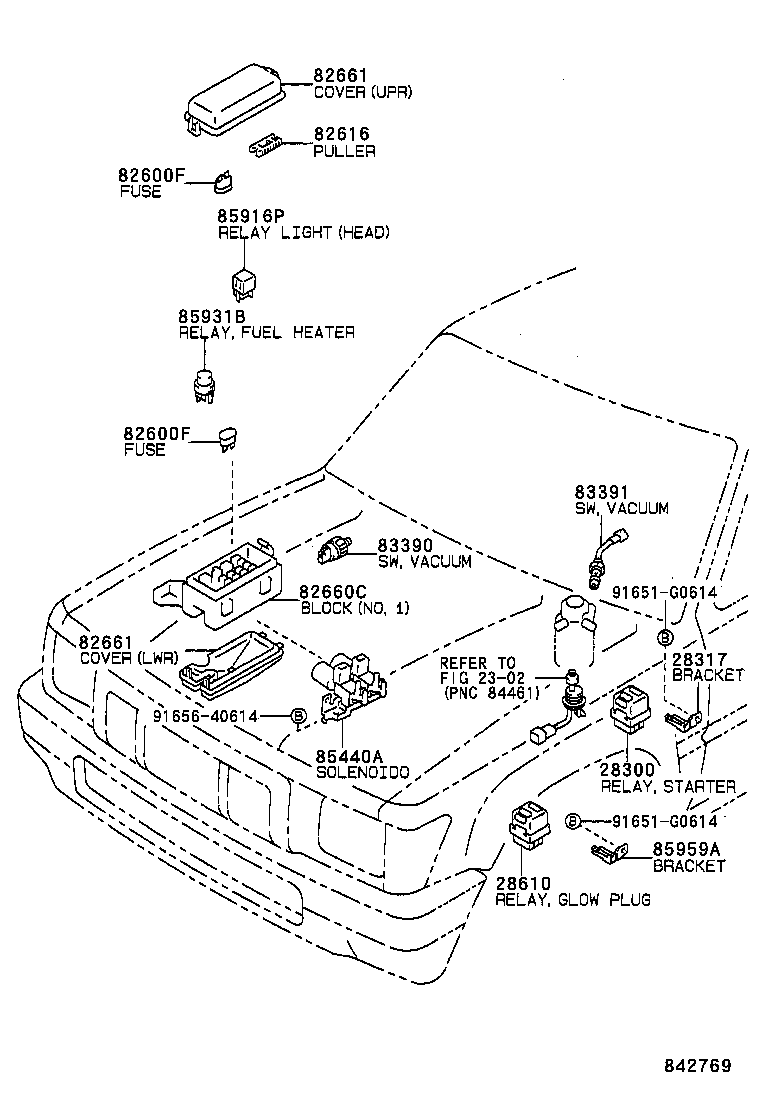

121 part groups · 13 illustrations

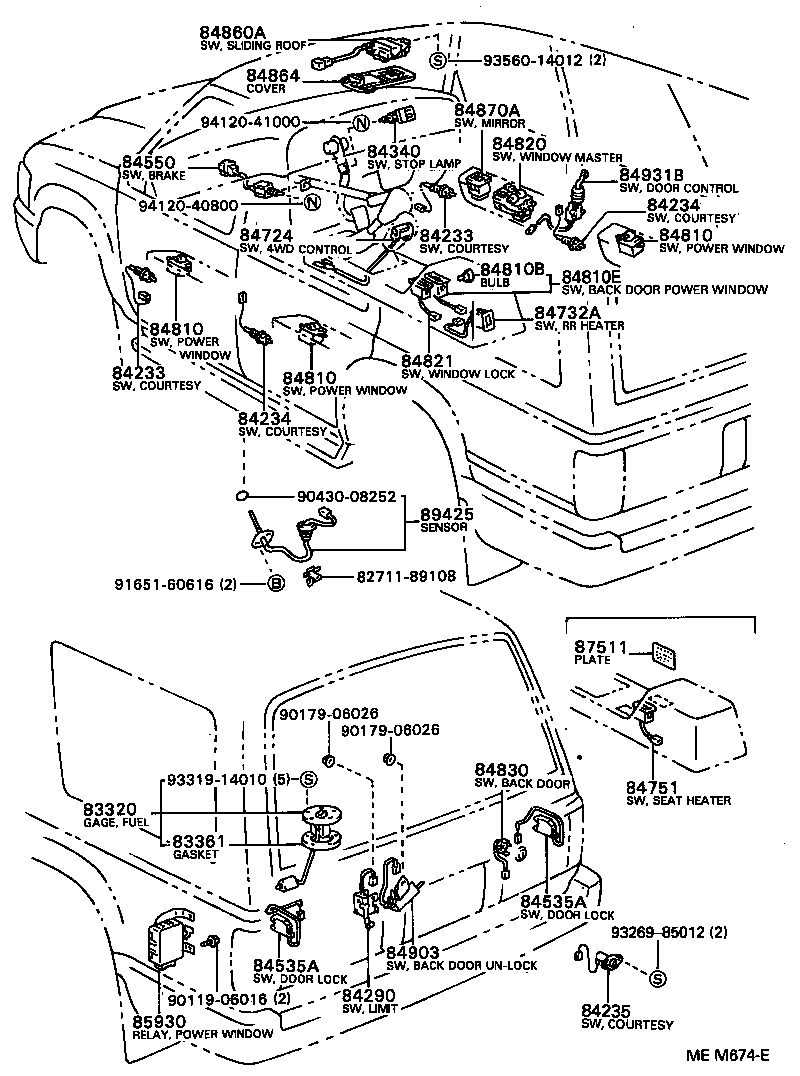

Illustrations
Part groups

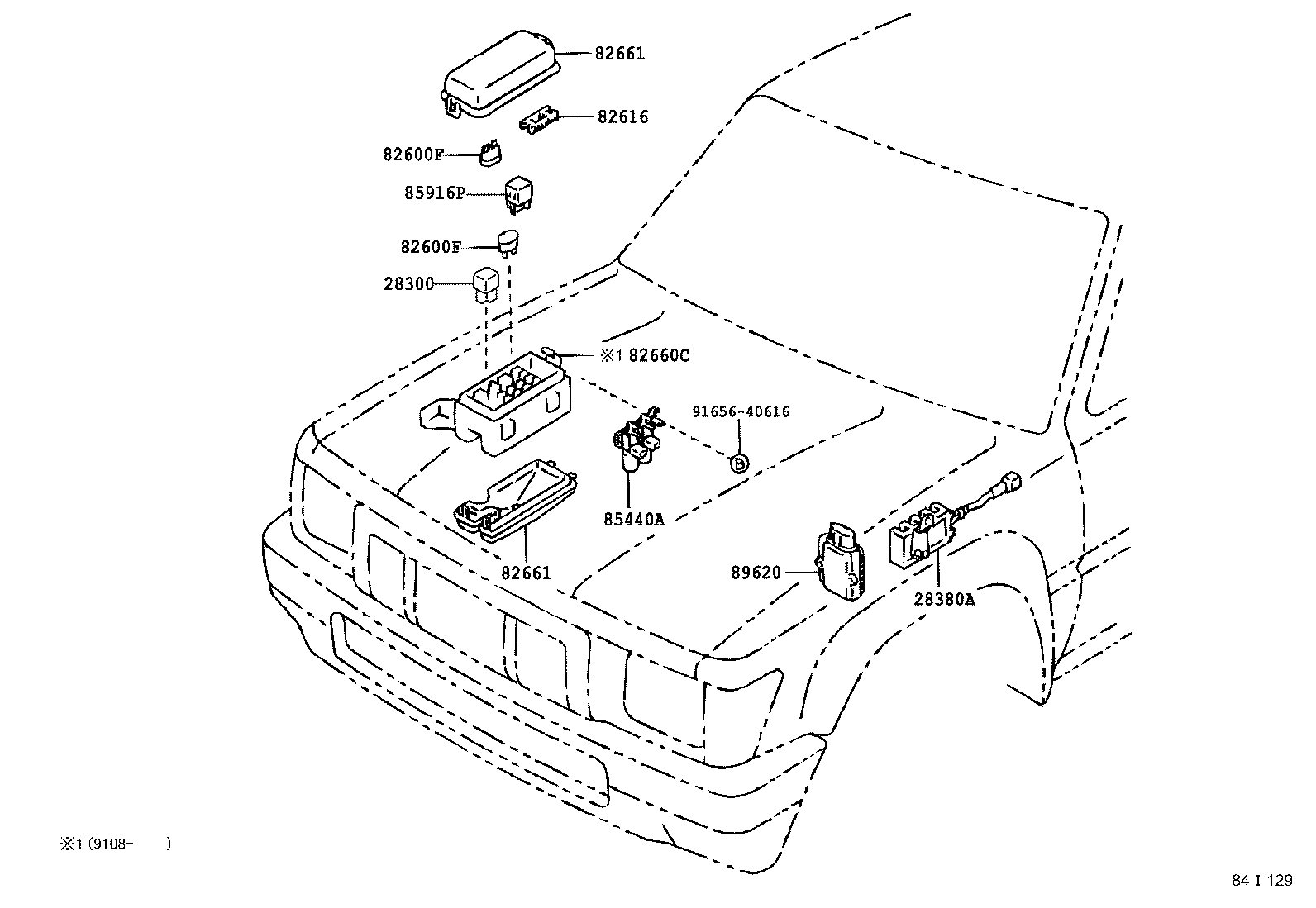

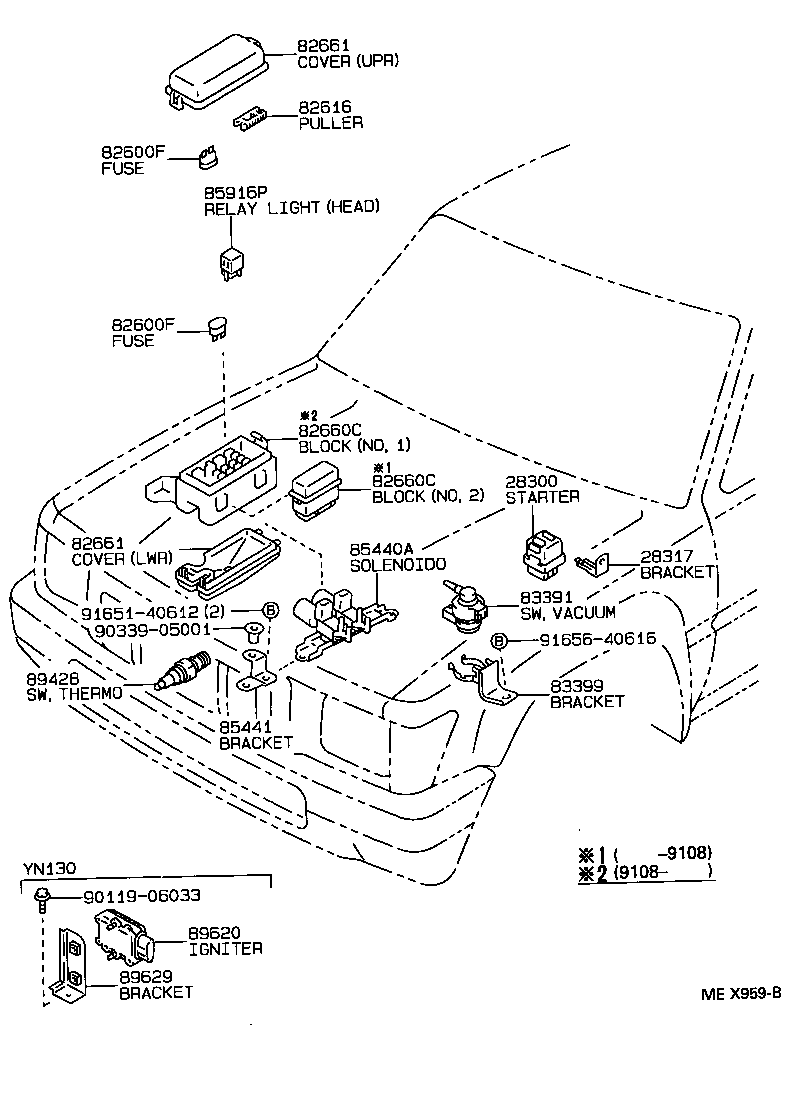

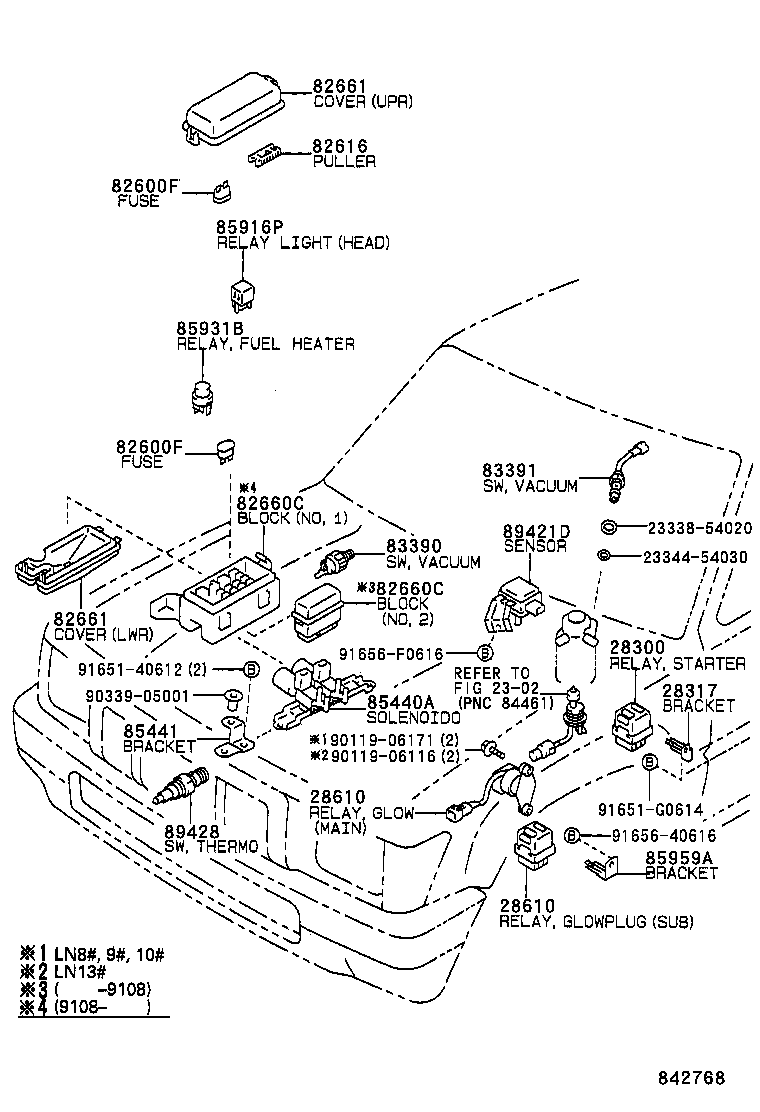

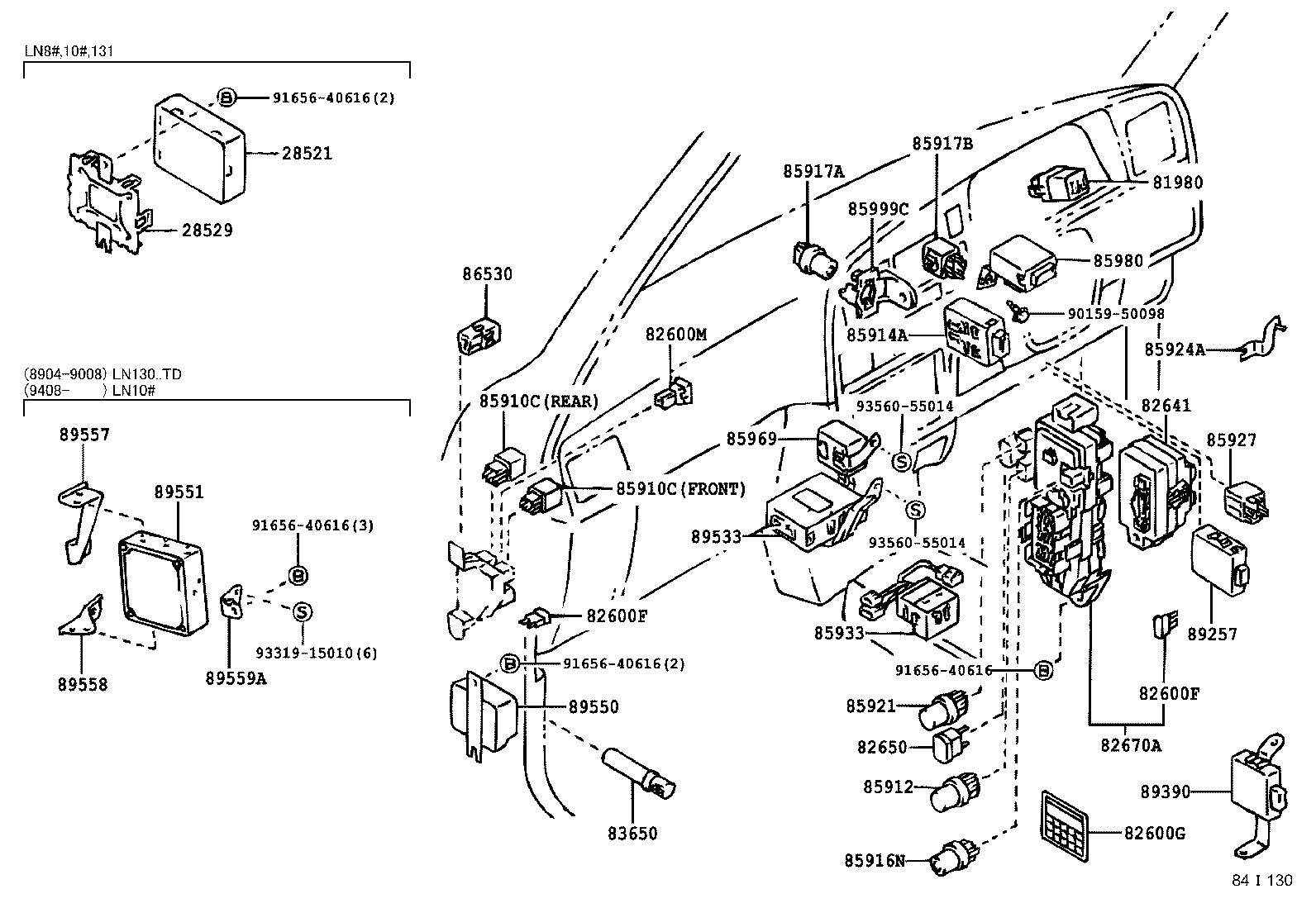

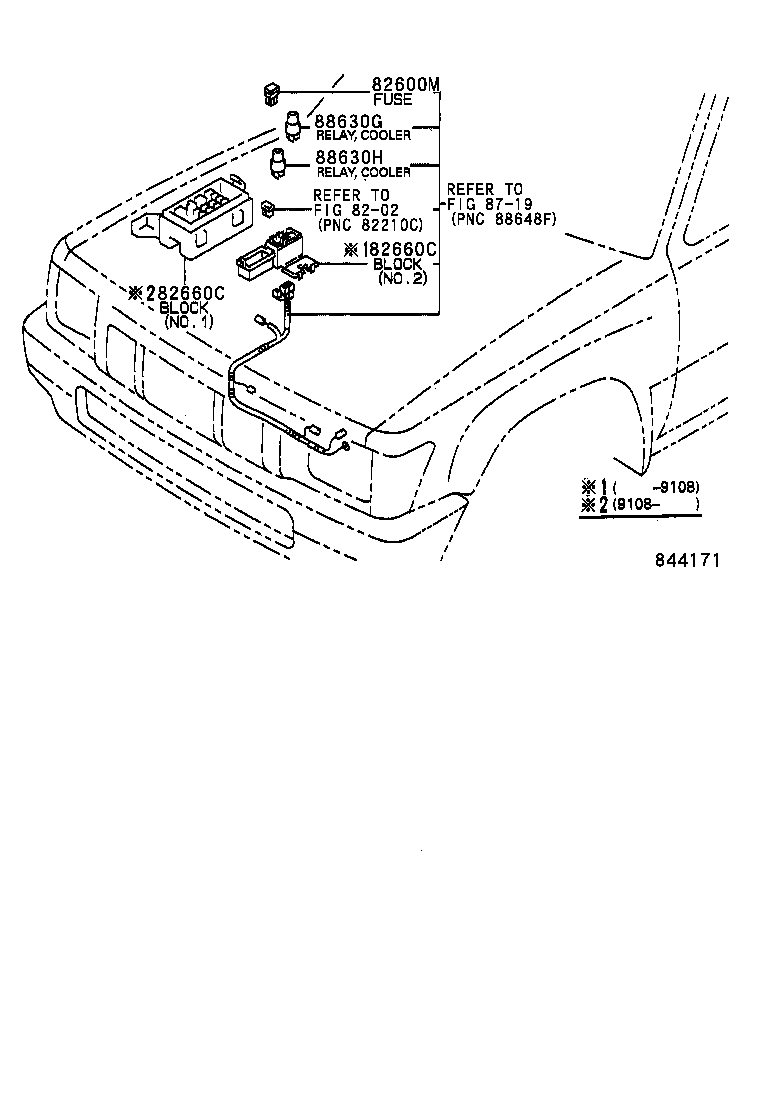

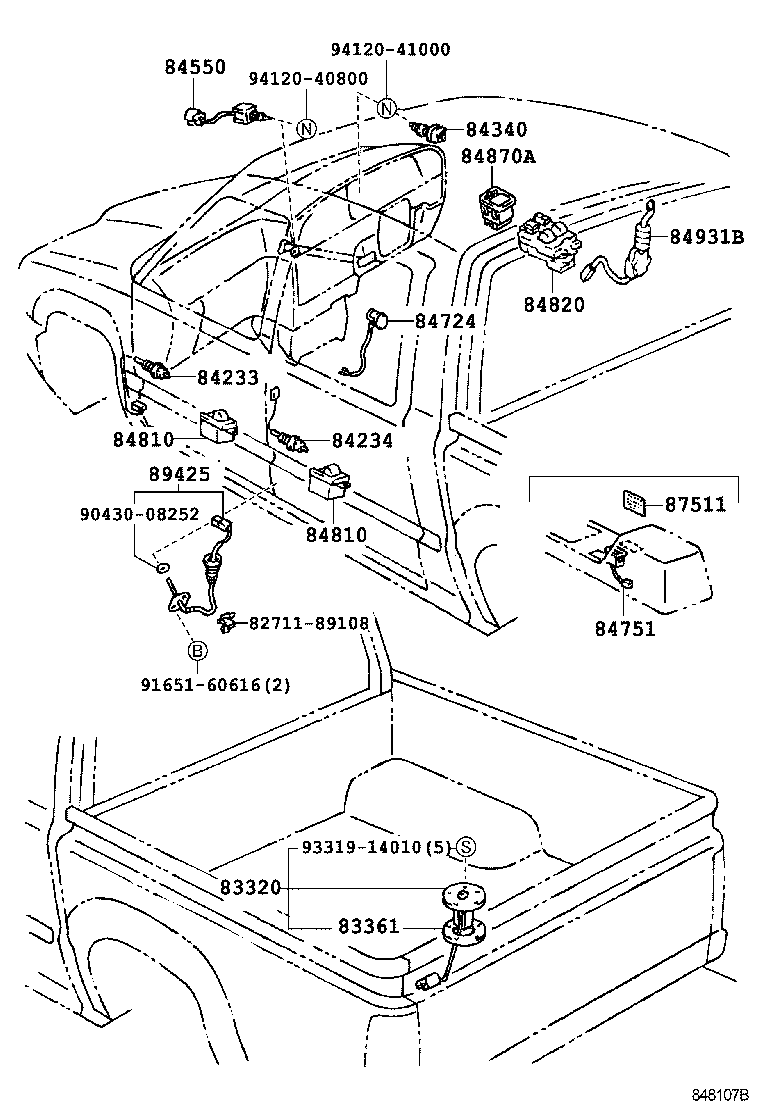

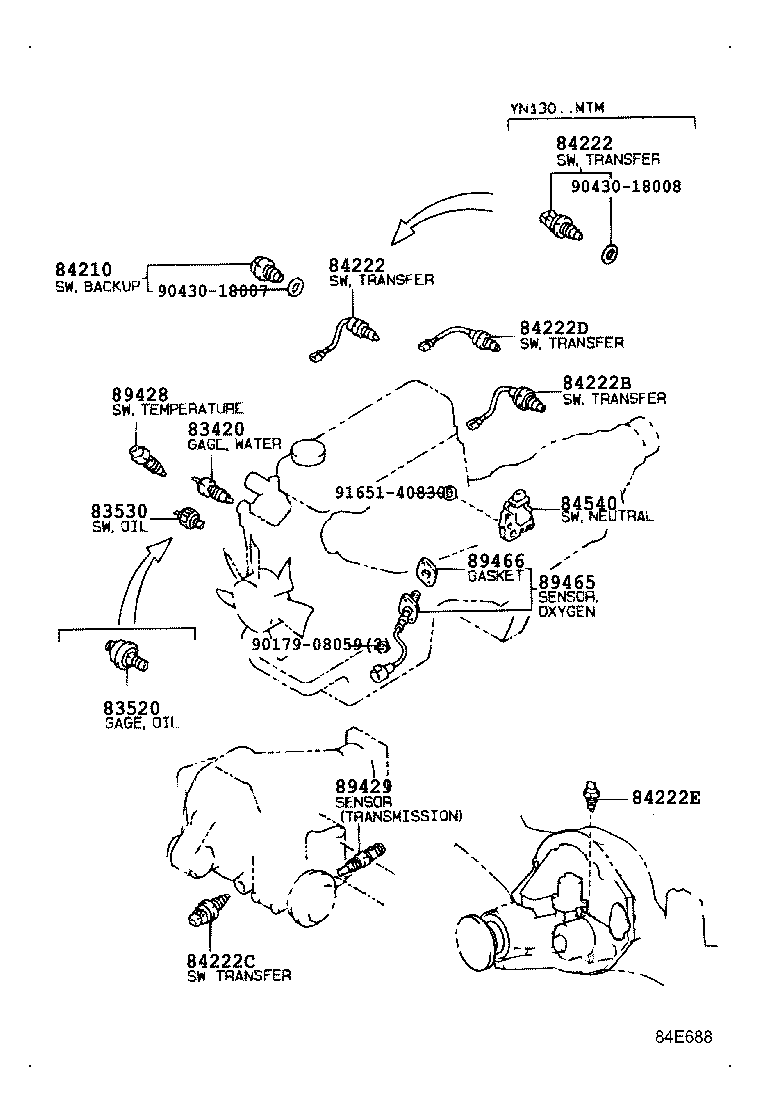

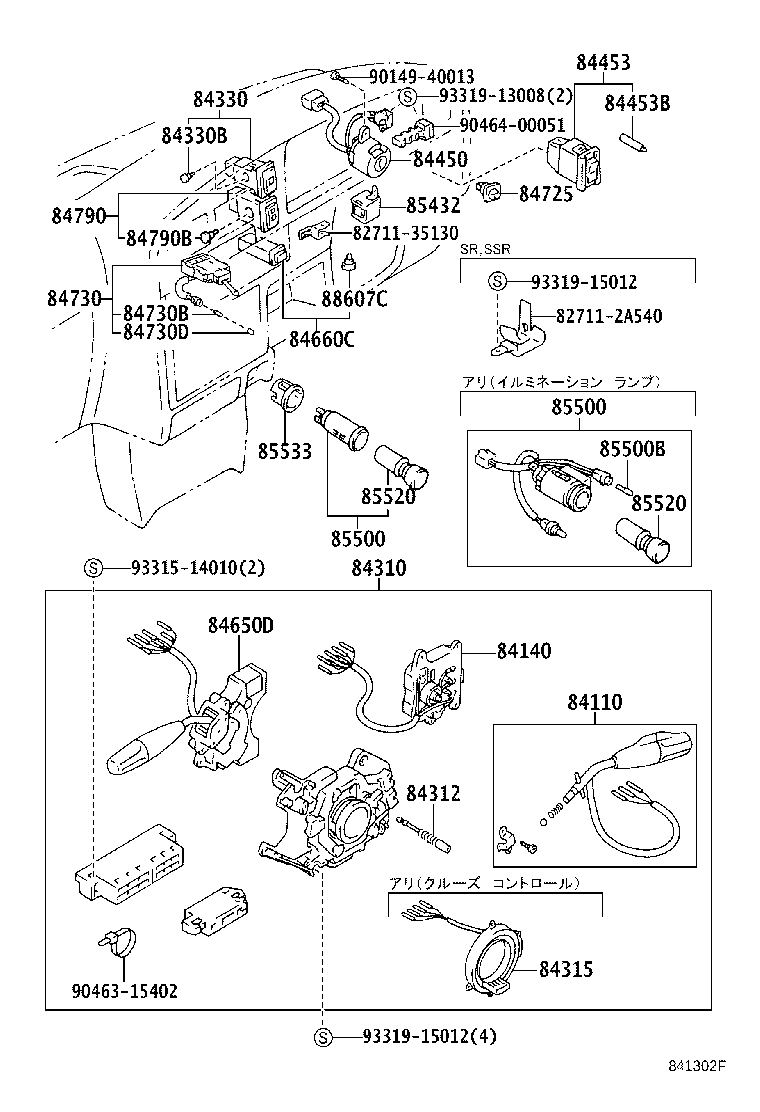

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28317 | Bracket, Starter Relay |
| 28380A | Resister, Fuel Pump |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28621 | Resistor, Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83430 | Switch Assy, Water Level Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84222E | Switch, Differential Lock Indicator |
| 84225A | Switch, Shift Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84290 | Switch Assy, Limit |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84315 | Slipring, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453B | Lamp, Idle UP Switch |
| 84535A | Switch, Door Lock |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84660C | Switch, Cooler |
| 84724 | Switch, 4 Wheel Drive Control |
| 84725 | Switch, Center Differential Lock |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84732A | Switch, Rear Heater Blower |
| 84751 | Switch, Seat Heater |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810B | Bulb (FOR POWER WINDOW REGULATOR SWITCH) |
| 84810E | Switch Assy, Back Door Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84821 | Switch, Power Window Lock |
| 84830 | Switch Assy, Tail Gate Control |
| 84860A | Switch Assy, Sliding Roof |
| 84864 | Cover, Slide Roof Motor Switch |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84931B | Switch, Door Control |
| 85432 | Solenoid, Key Interlock |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85441 | Bracket, Four Wheel Drive Control Solenoid |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85914A | Relay, Motor Antenna Control |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85917A | Relay, Four Wheel Drive Indicator |
| 85917B | Relay, Automatic Disconnecting Differential |
| 85921 | Relay, Sliding Roof Control |
| 85924A | Bracket,Cooling Fan |
| 85927 | Relay, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85931B | Relay, Fuel Heater |
| 85933 | Computer, Shift Lock Control |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 85980 | Relay Assy, Door Control |
| 85999C | Bracket, Relay, NO.3 |
| 86530 | Relay Assy, Horn |
| 87511 | Plate, Seat Heater Caution |
| 88607C | Lamp Sub-assy, Indicator |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89257 | Computer, Cooling Fan |
| 89390 | Relay, Brake Warning |
| 89421D | Sensor, Turbo Pressure |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 89550 | Computer Assy, Emission Control |
| 89551 | Computer, Emission Control |
| 89557 | Bracket, Emission Control Computer, NO.1 |
| 89558 | Bracket, Emission Control Computer, NO.2 |
| 89559A | Bracket, Emission Control Computer |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
