Toyota Hilux
1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan
Discontinued model
Data version 1998-04
Cruise Control (AUTO DRIVE)

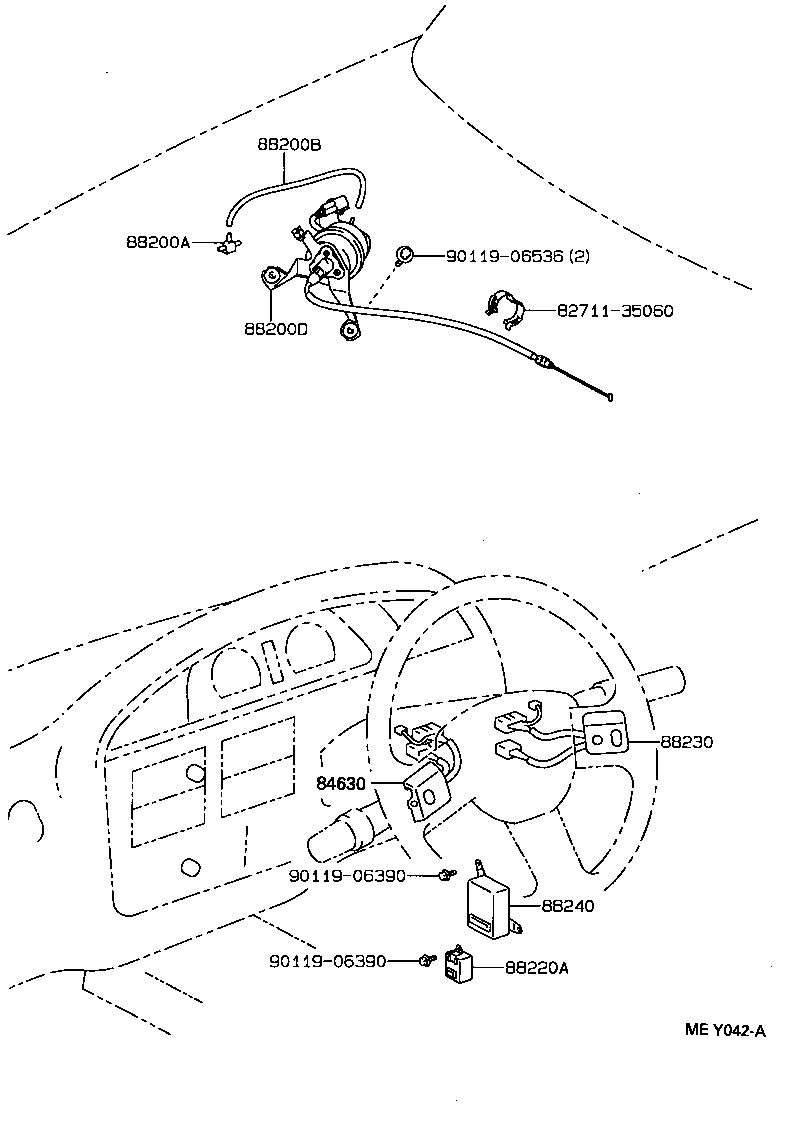

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 88200A | Union OR Way, Cruise Control Vacuum |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88220A | Relay Assy, Speed Control Main |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88252 | Cushion, Vacuum Pump |
| 88280C | Switch Assy, Clutch |
| 88288 | Switch, Vacuum Speed Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
