Toyota Hilux

1988-09 → 1997-08 · chassis KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130 · catalogue 671150 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

39 part groups · 14 illustrations

Illustrations

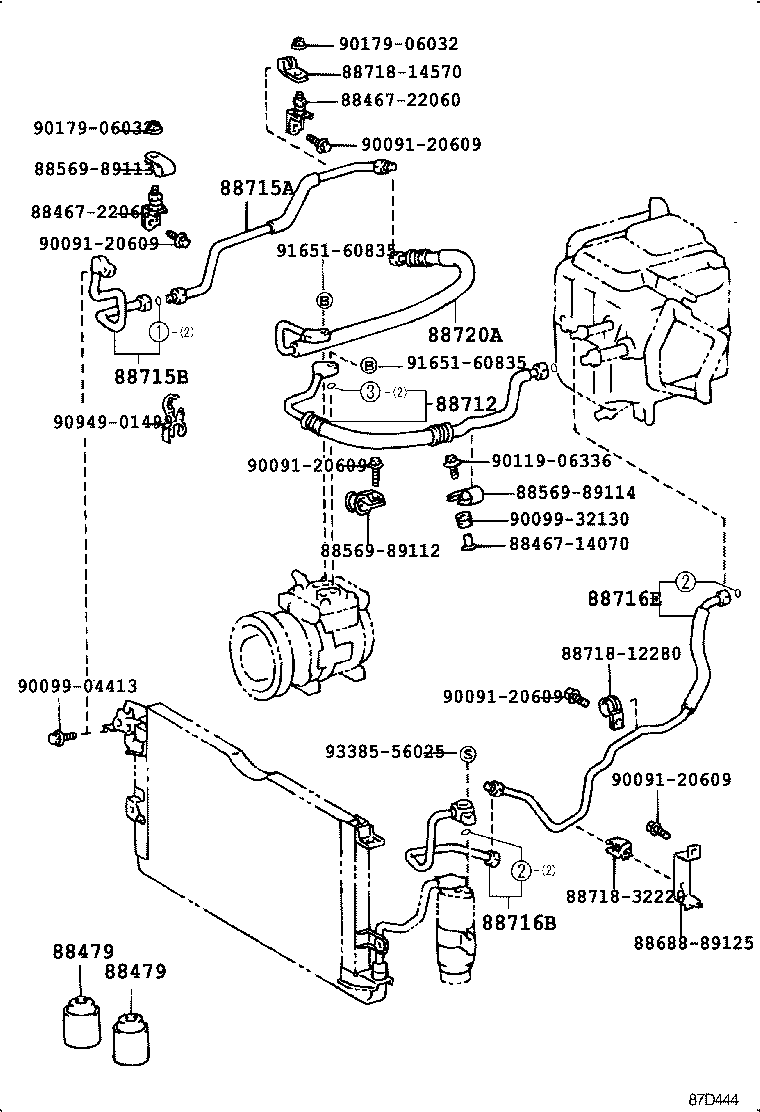

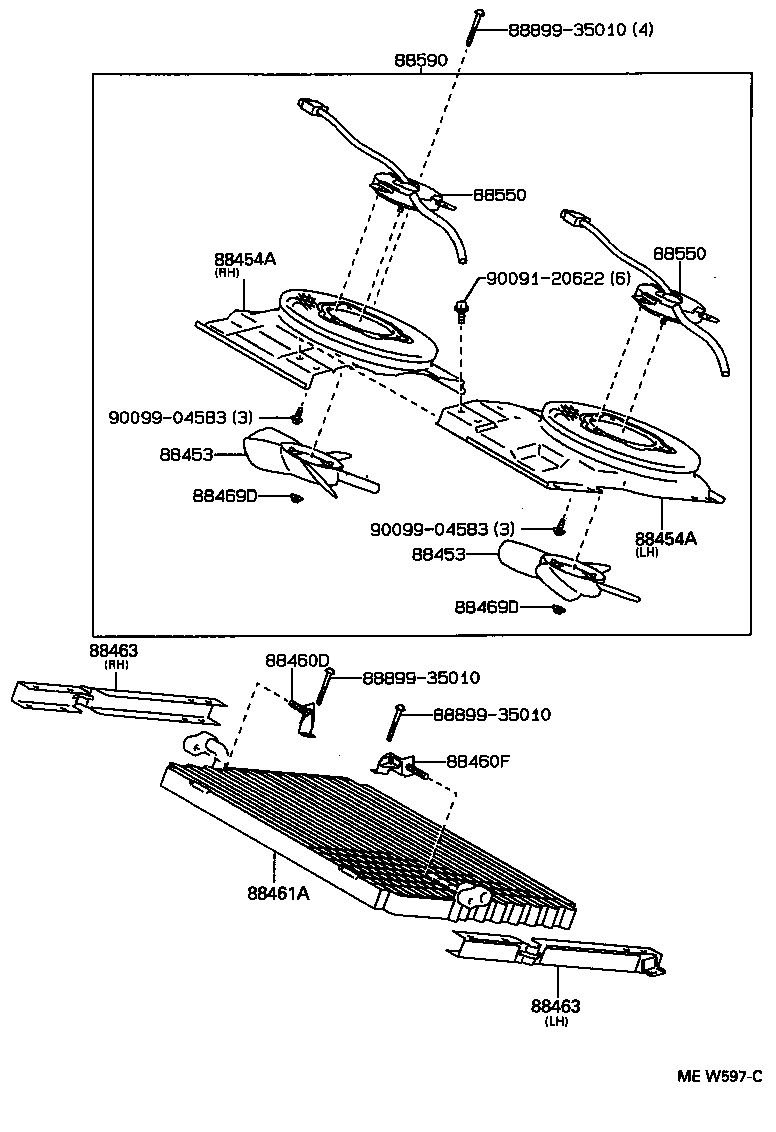

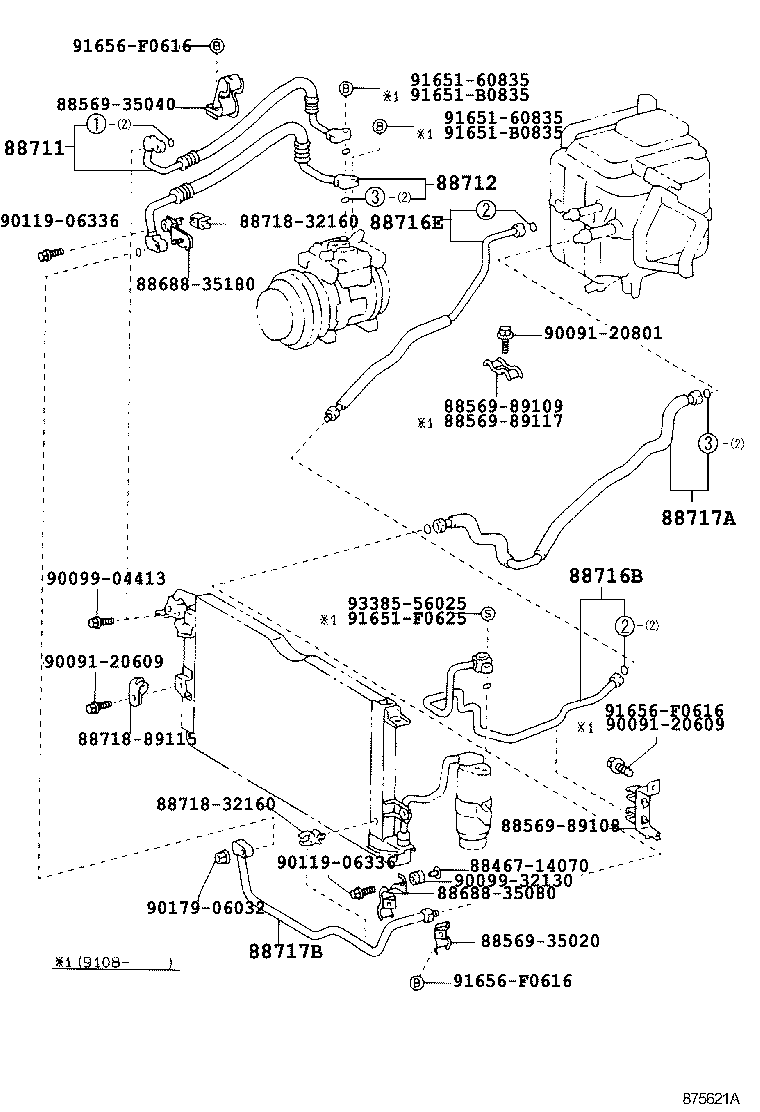

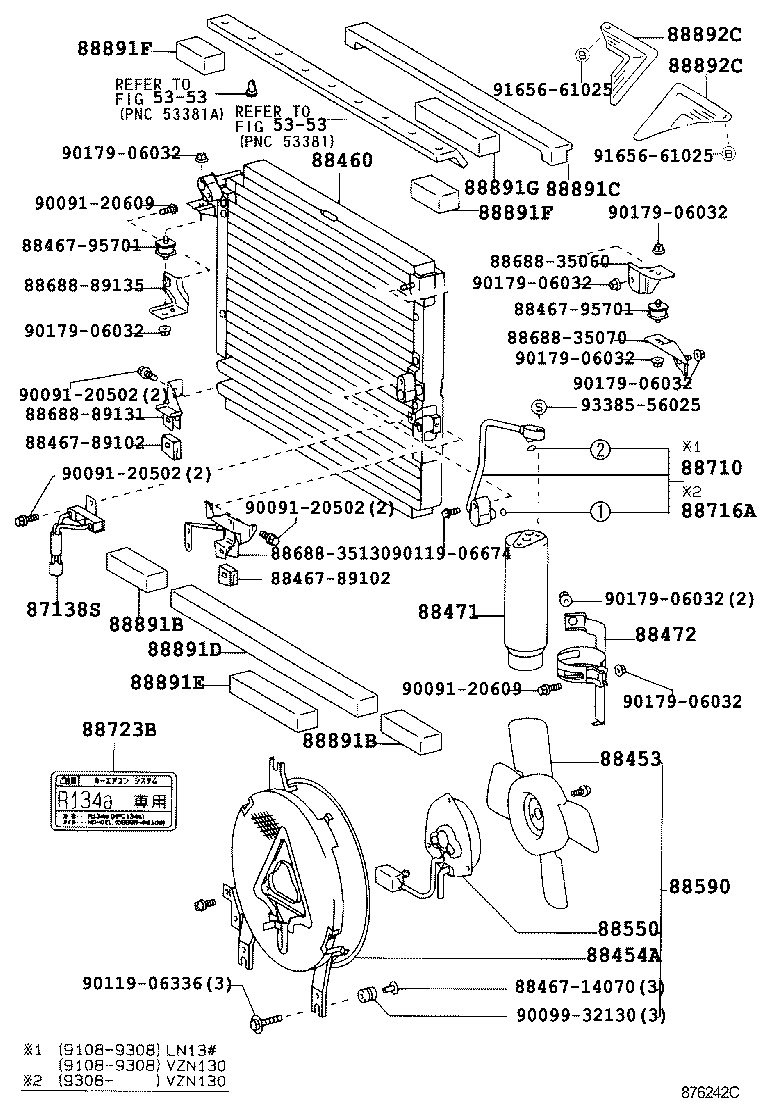

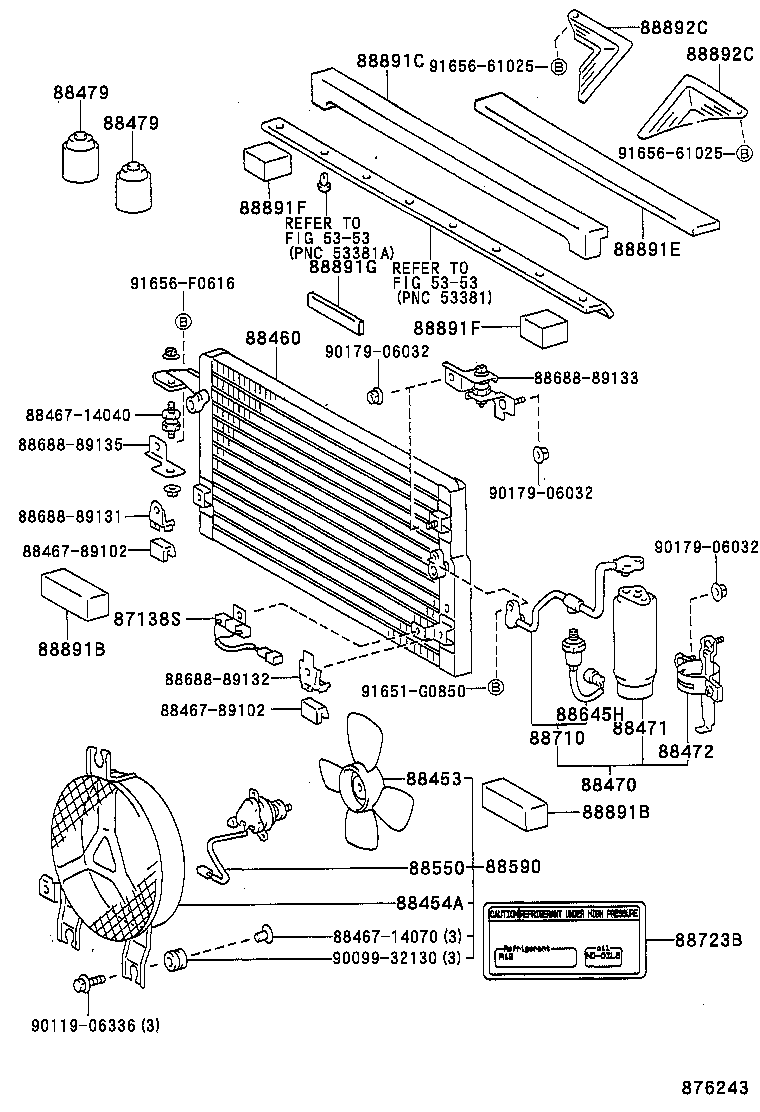

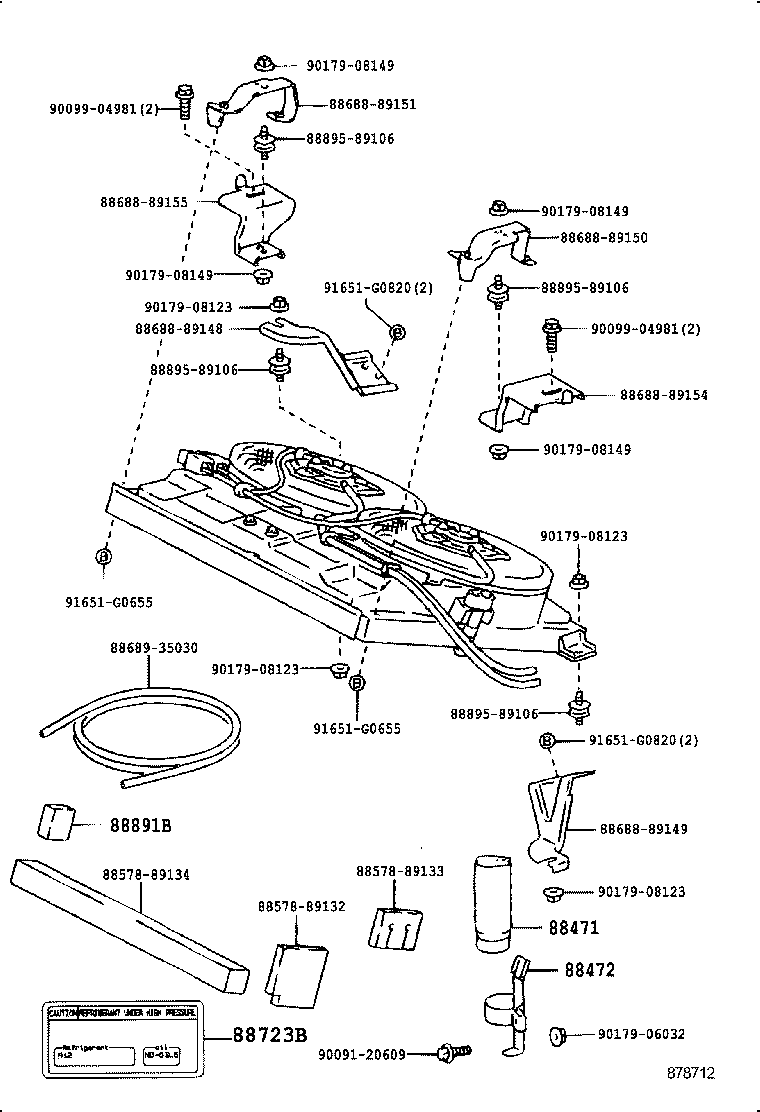

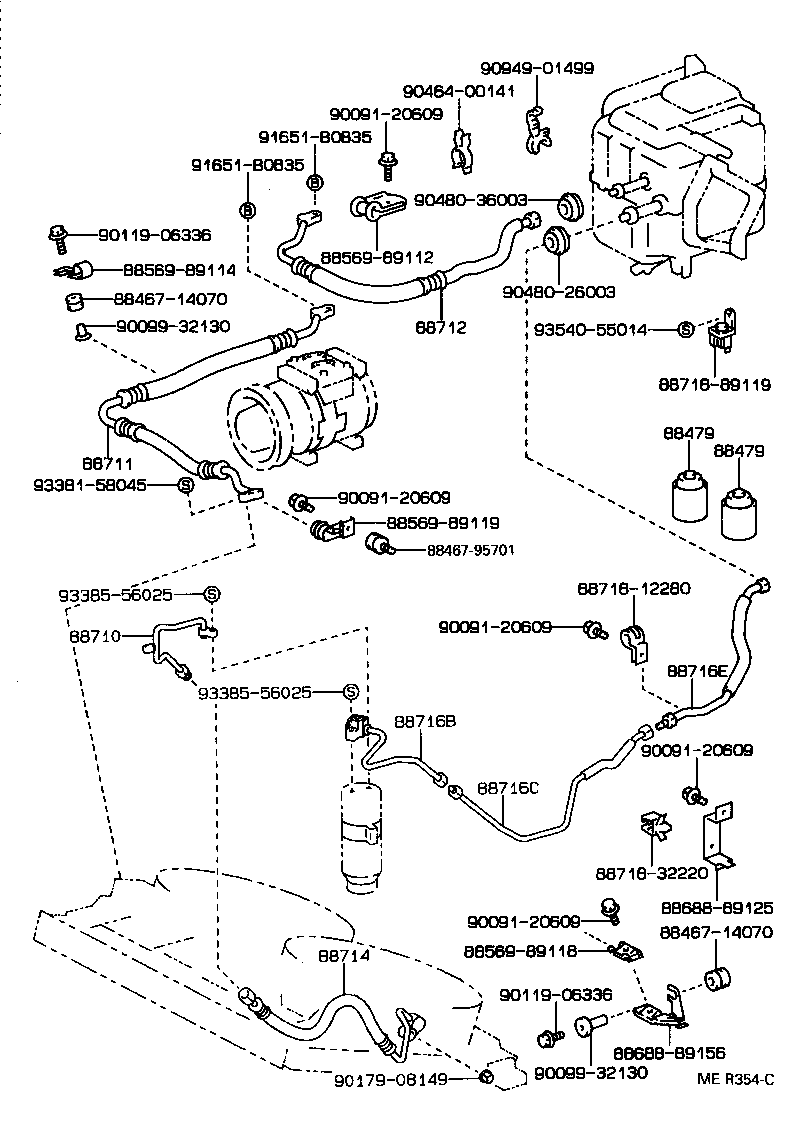

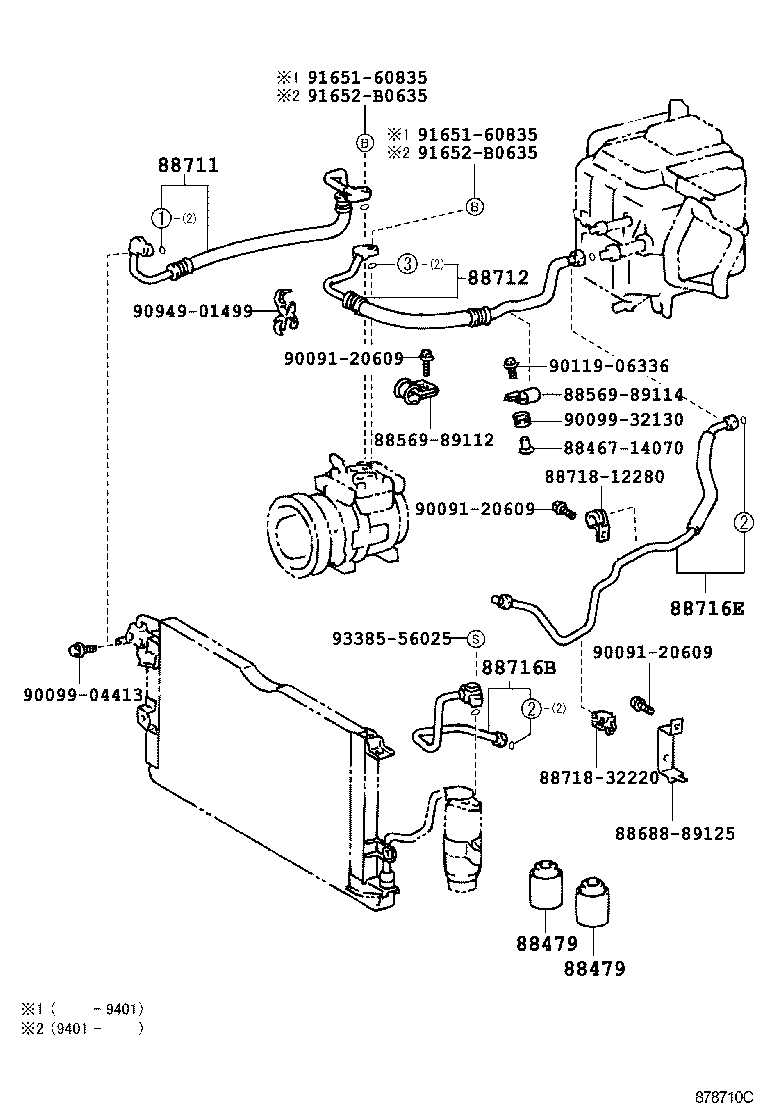

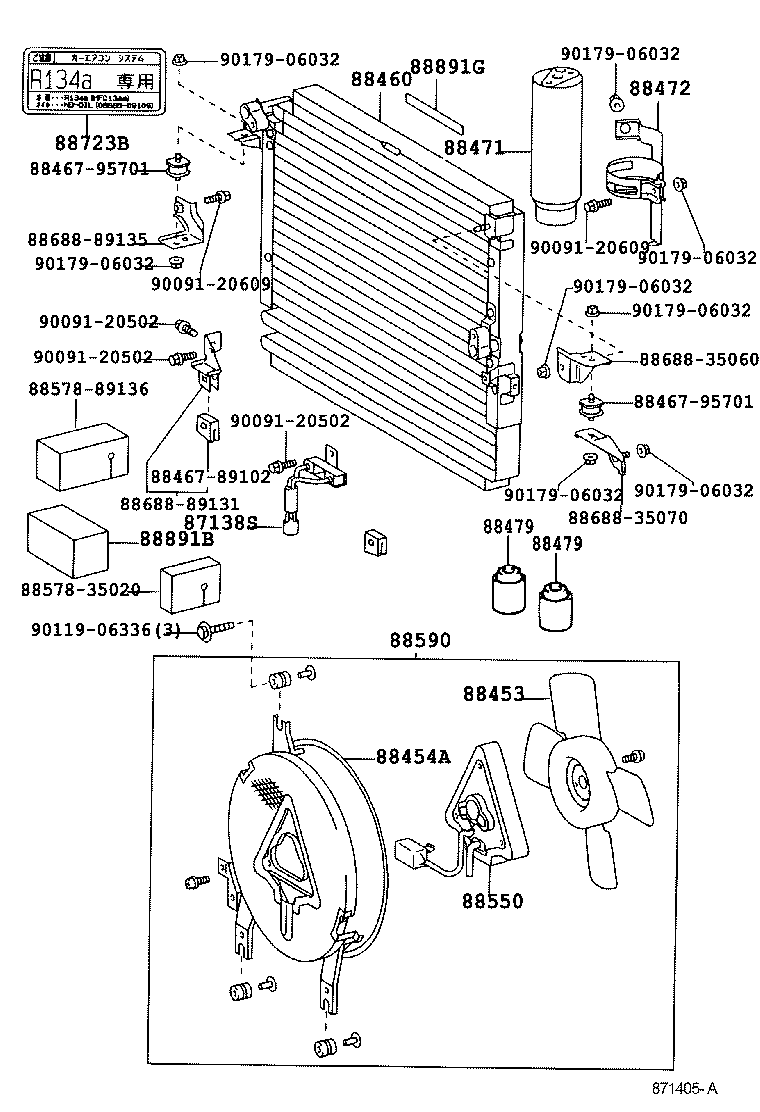

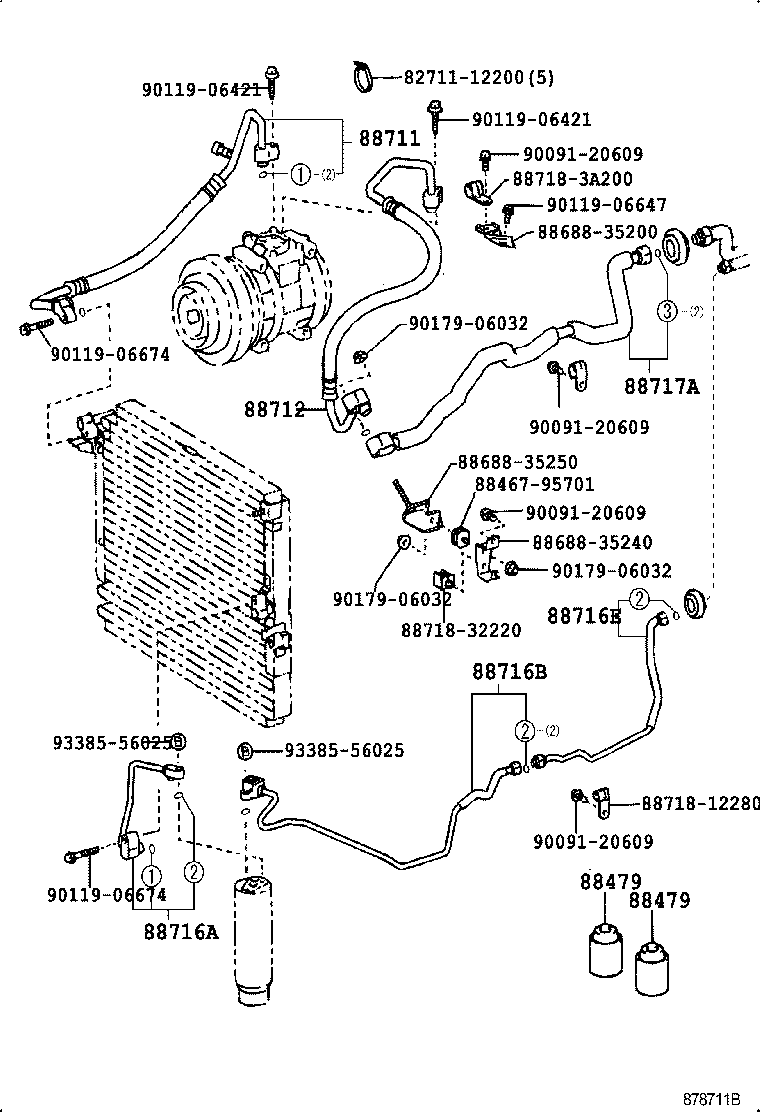

Figure 876246B 876246B 1988-09 → — Figure 876243 876243 1989-04 → 1990-08 Figure 876243 876243 1990-08 → 1991-08 Figure 876243 876243 1990-08 → 1993-08 Figure 876242C 876242C 1991-08 → 1995-11 Figure 878712 878712 1990-08 → 1993-08 Figure MEW597C MEW597C 1990-08 → 1993-08 Figure 871405A 871405A 1993-08 → 1995-11 Figure 878710C 878710C 1988-09 → — Figure 87D444 87D444 1988-09 → — Figure 875621A 875621A 1988-09 → — Figure MER354C MER354C 1989-04 → 1993-08 Figure 878711B 878711B 1993-08 → 1995-11 Figure 87D446A 87D446A 1988-09 → —

Part groups

PNCDescription
87138S Resistor, Blower
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88720A Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
88891G Packing G (FOR COOLER)
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
