Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07
Vacuum Piping
28 part groups · 10 illustrations

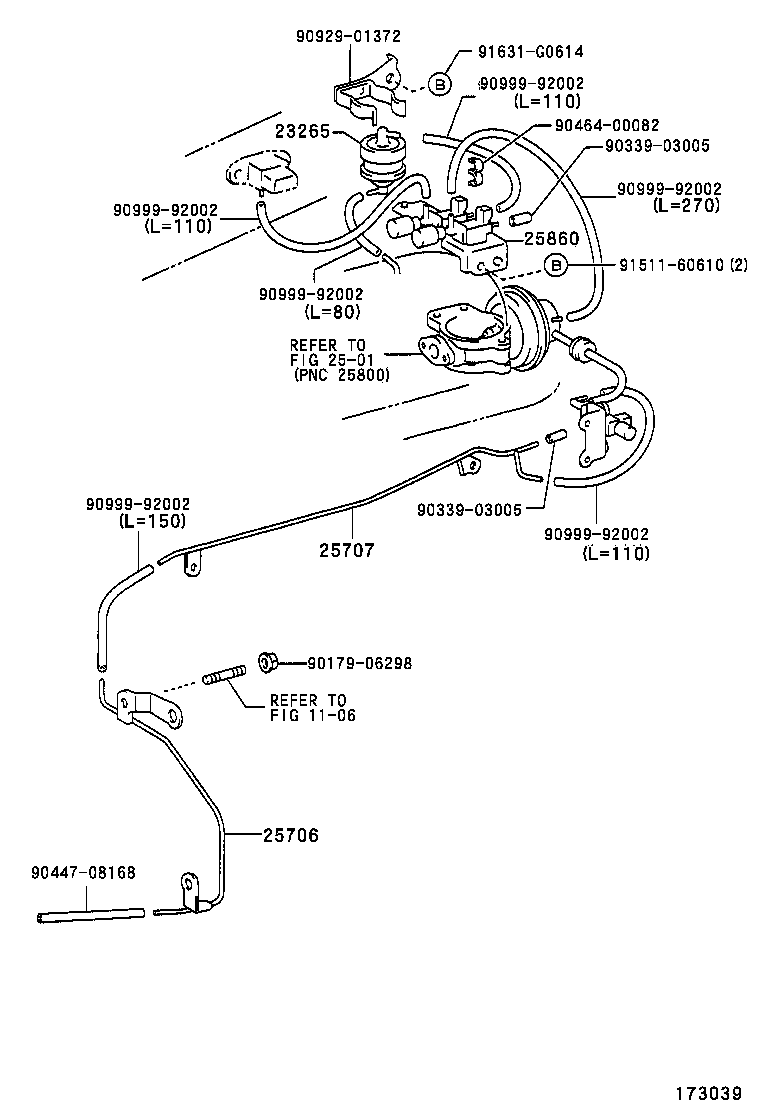

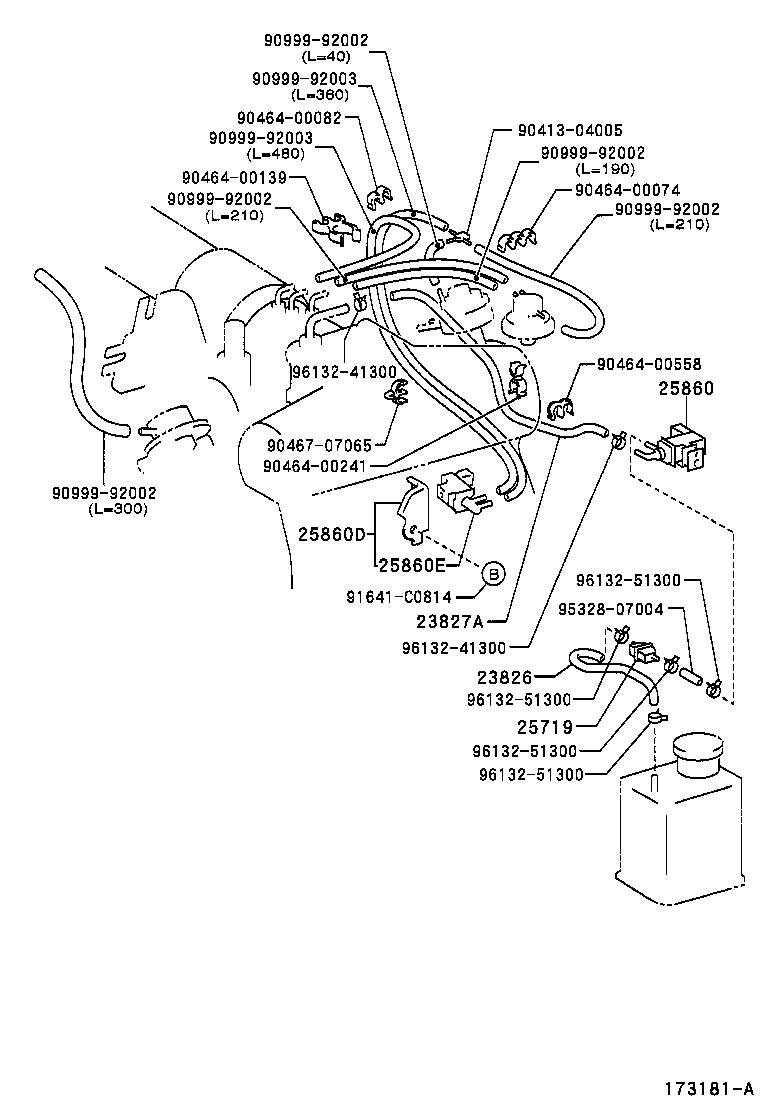

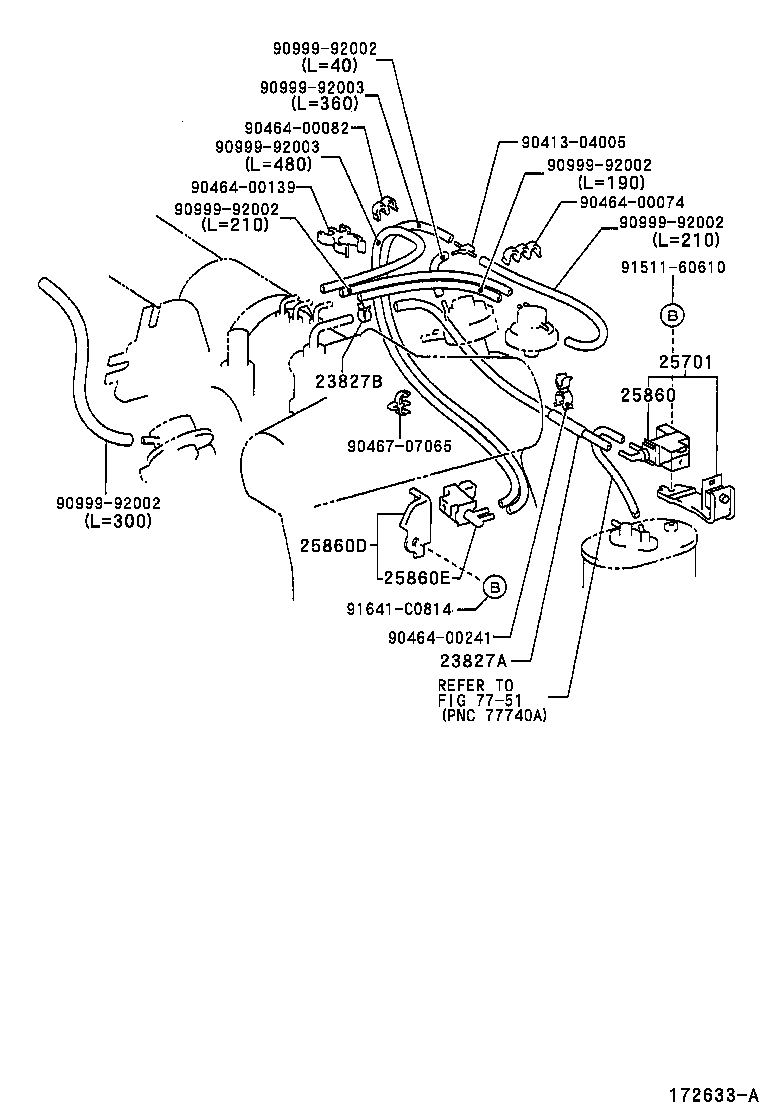

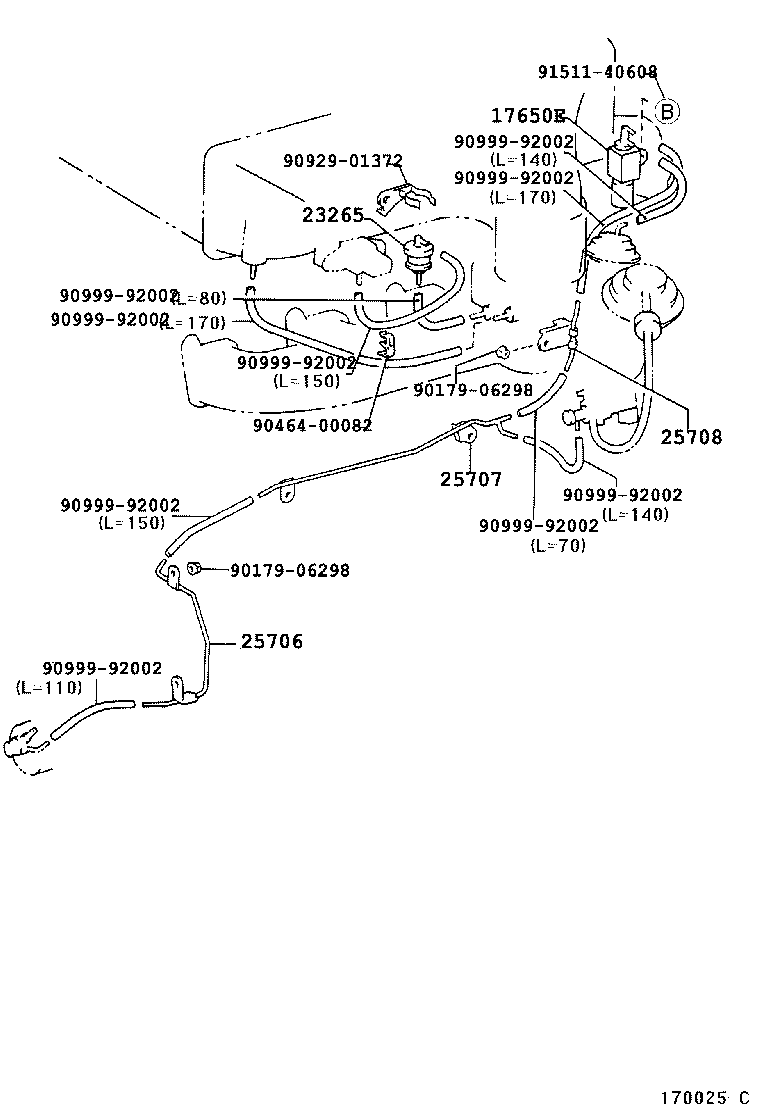

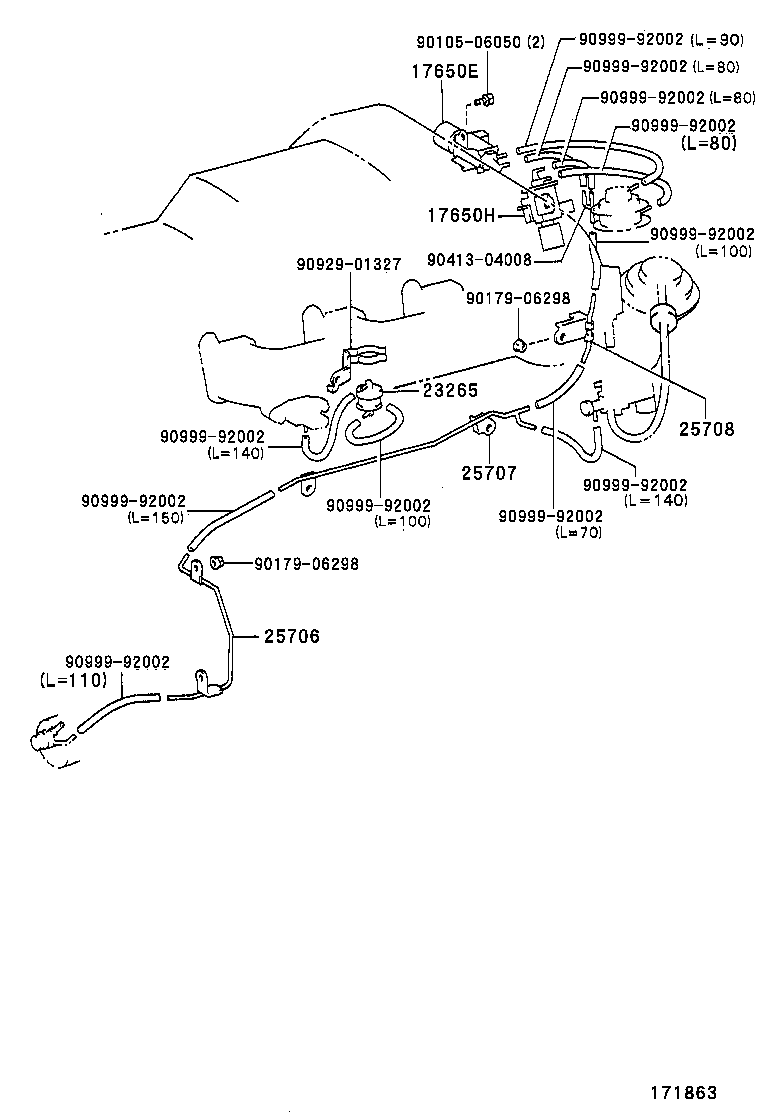

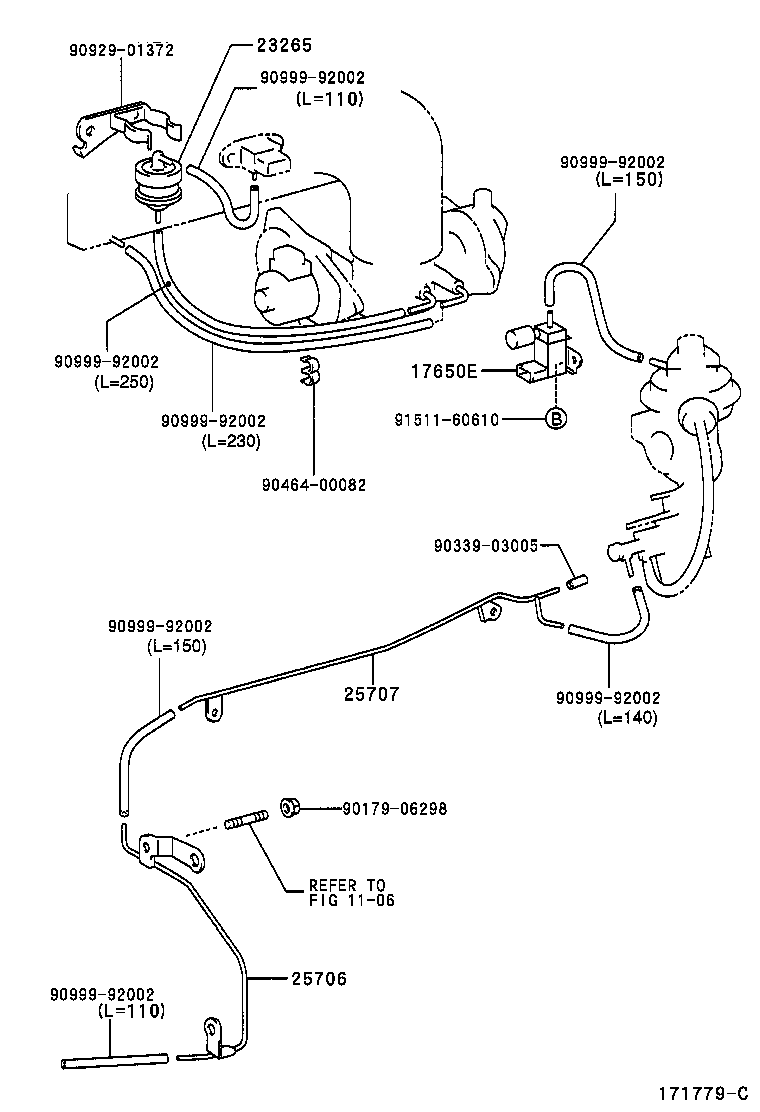

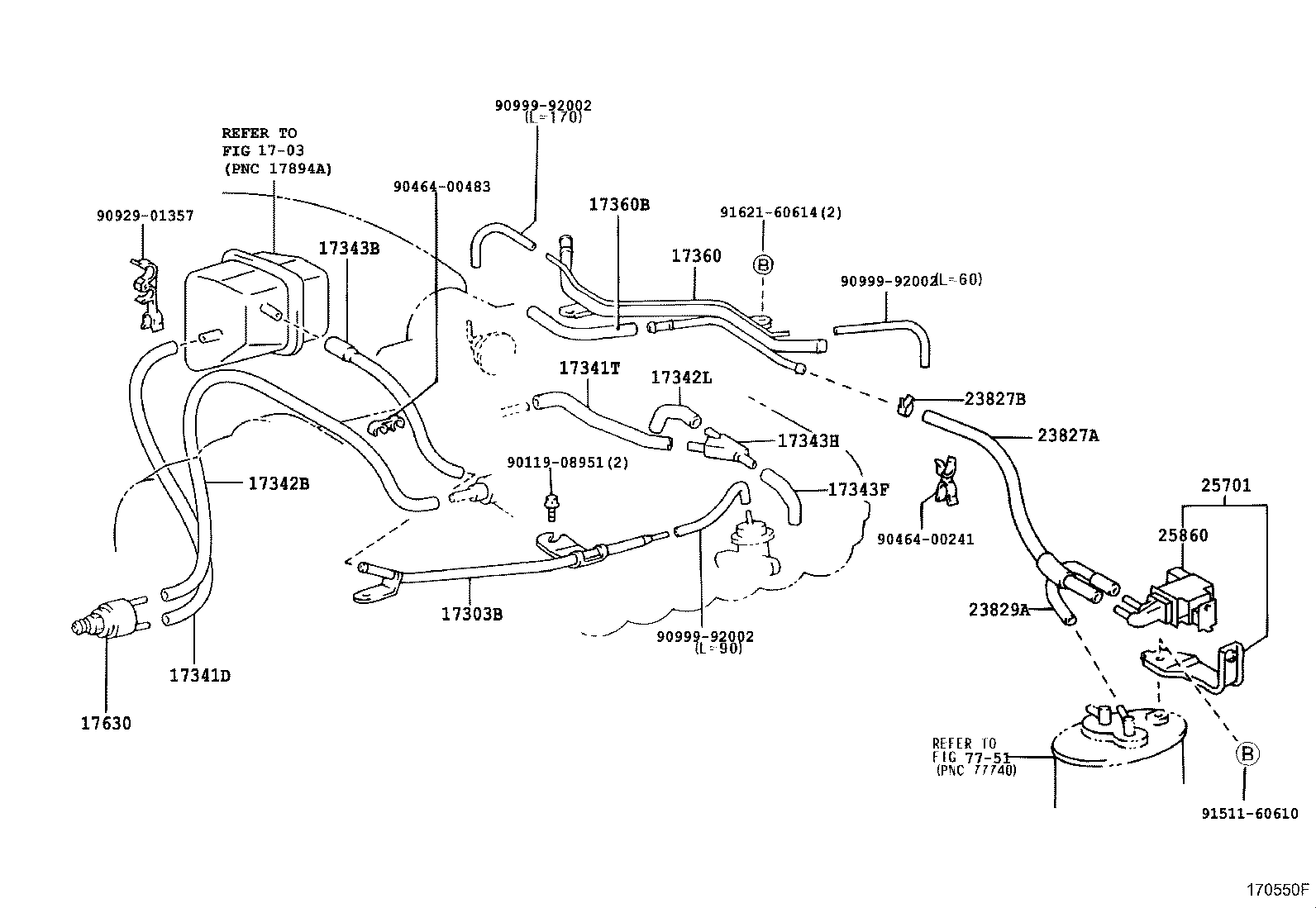

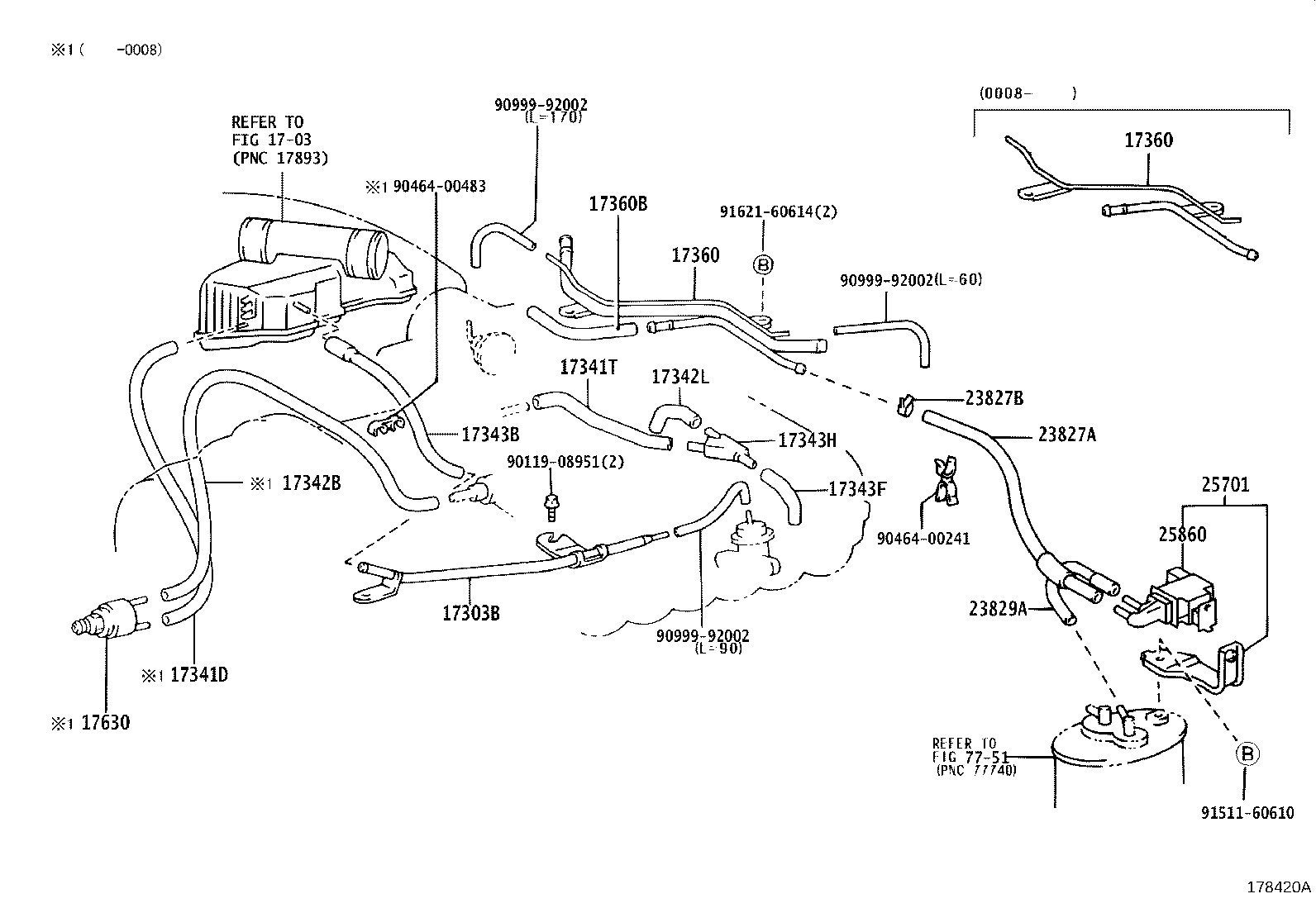

Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341T | Hose, Air, NO.1 |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342L | Hose, Air, NO.2 |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343F | Hose, Air, NO.3 |
| 17343H | Way, 3(FOR AIR HOSE) |
| 17345D | Hose, Air, NO.5 |
| 17346B | Hose, Air, NO.6 |
| 17360 | Tube Assy, Air |
| 17360B | Hose(FOR AIR PIPE) |
| 17630 | Valve Assy, Air Control |
| 17650E | Valve, Vacuum Switching |
| 17650H | Valve, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 25701 | Valve Set, Emission Control |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25708 | Pipe Sub-assy, Vacuum Transmitting, NO.3 |
| 25719 | Tank, Vacuum Surge |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25860E | Valve, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
