Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07

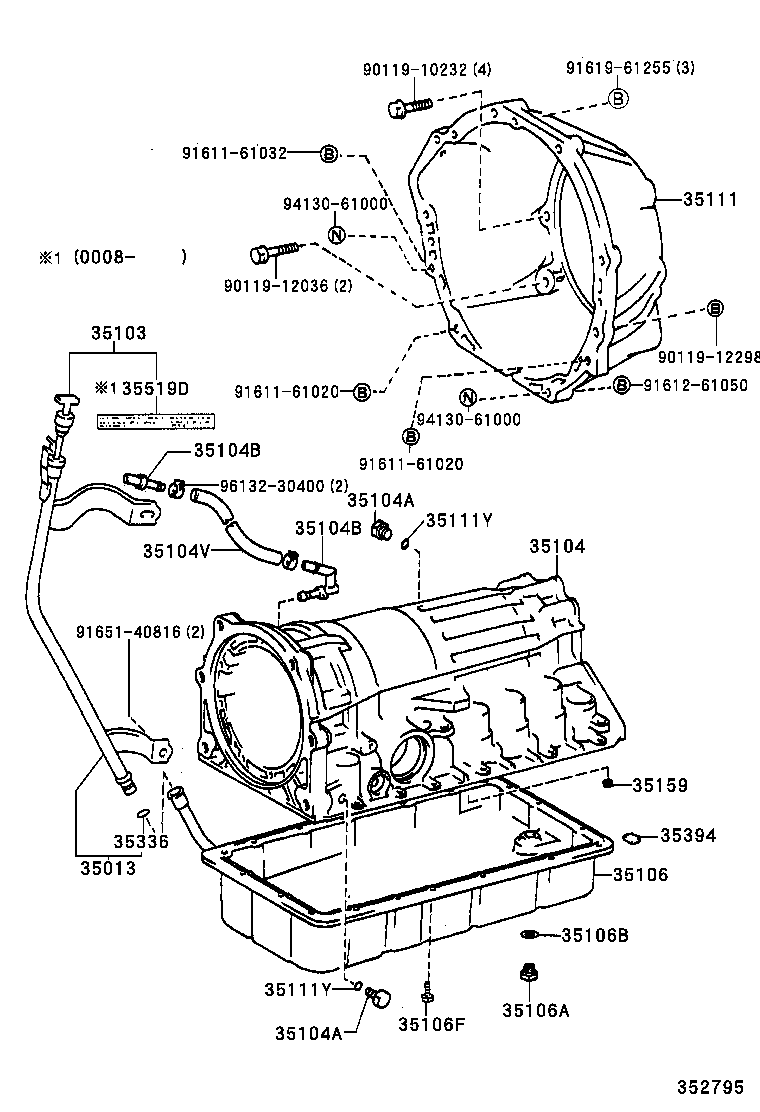

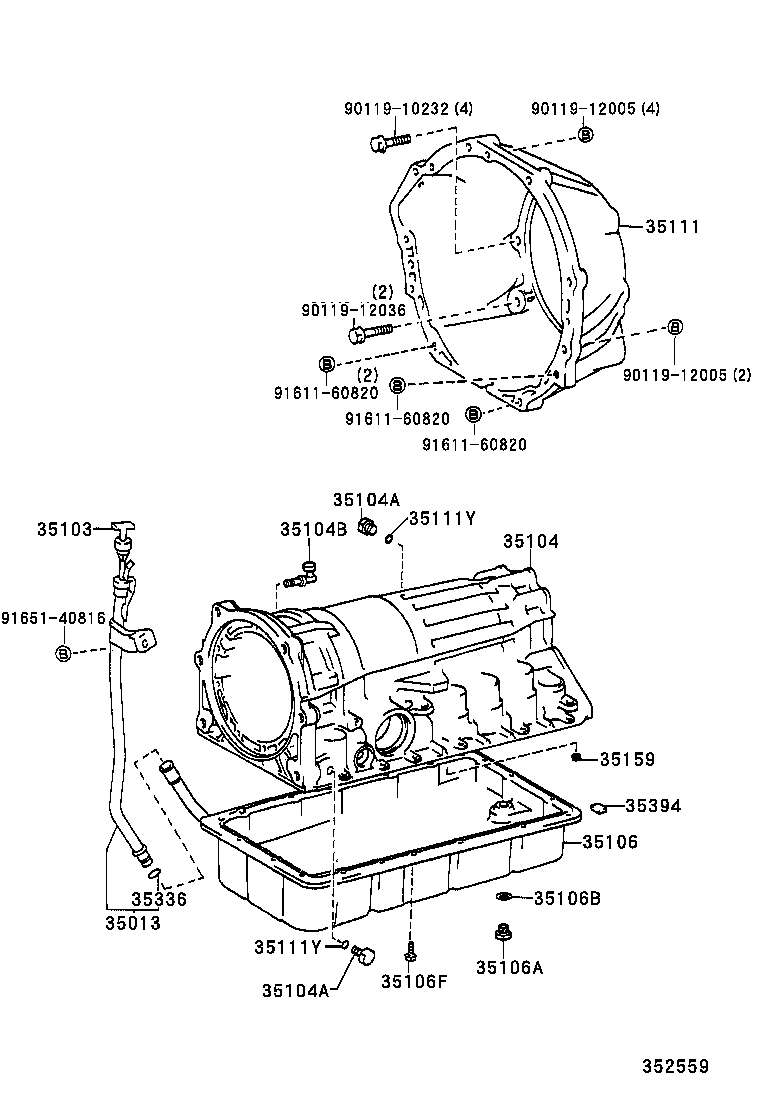

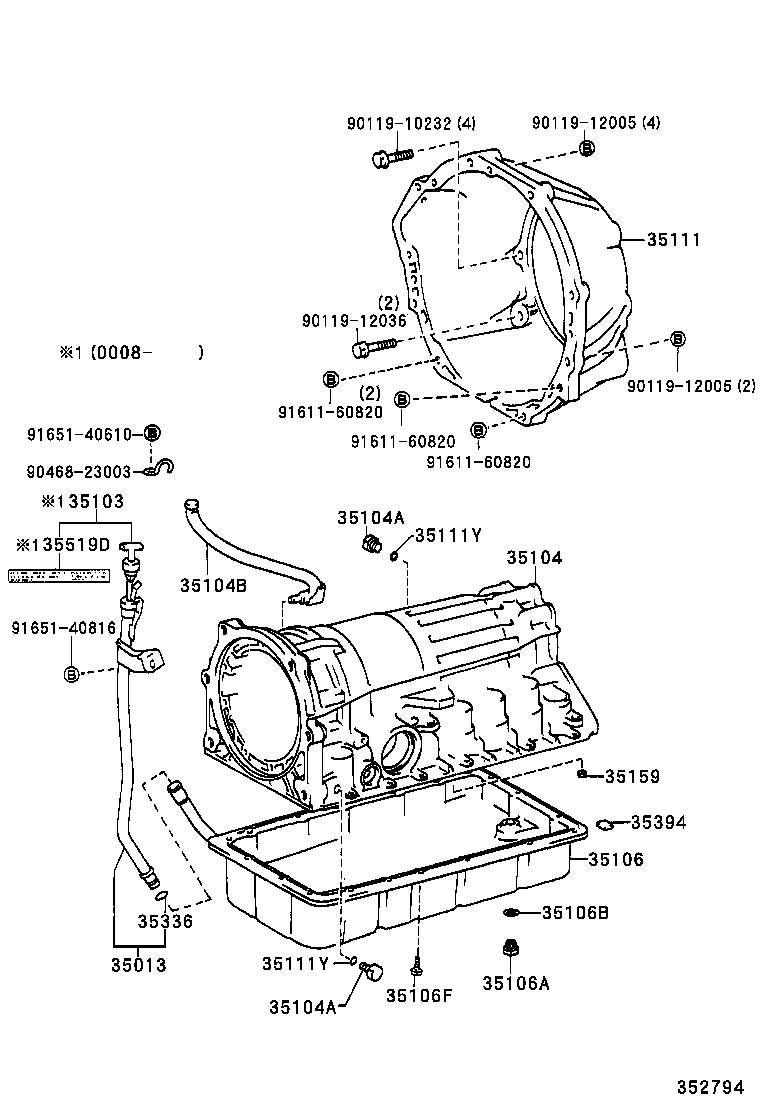

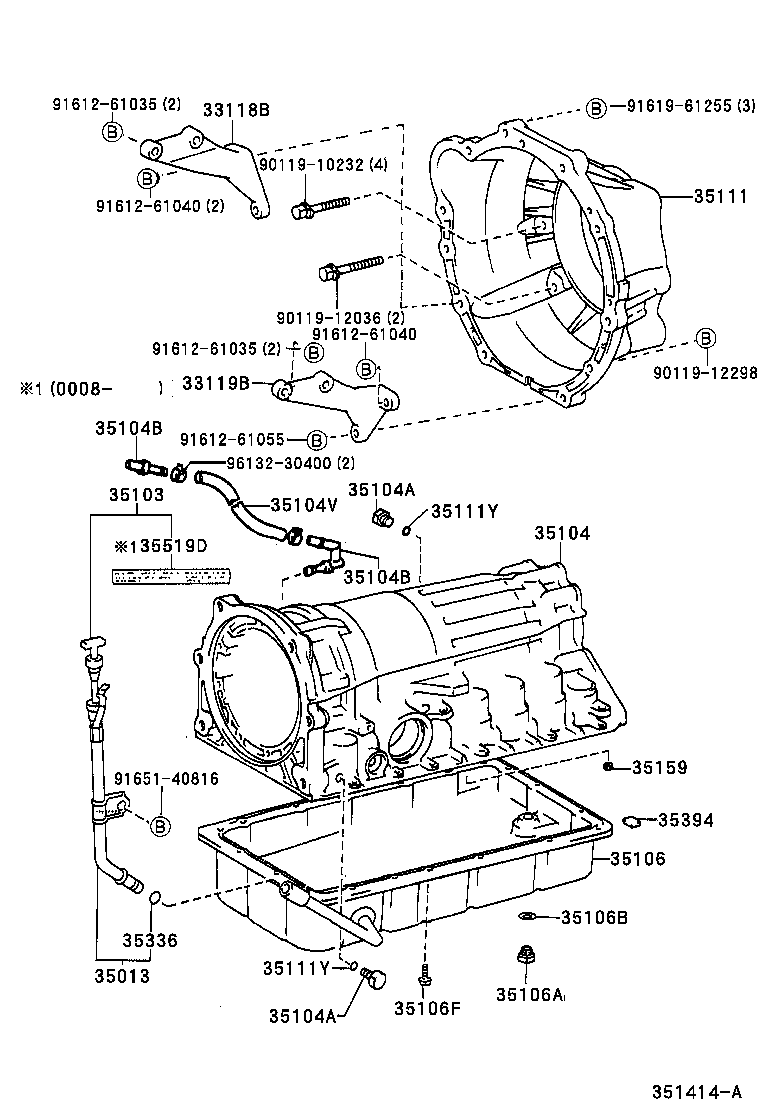

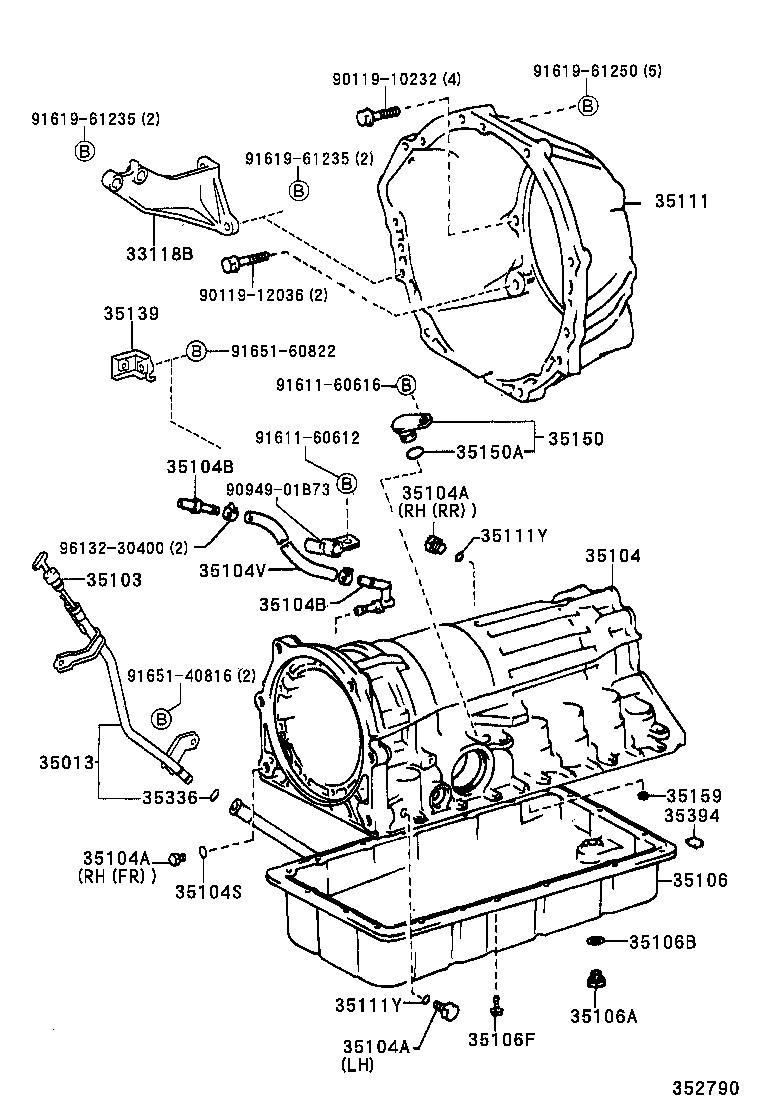

Transmission Case & Oil Pan (ATM)
22 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33118B | Plate, Stiffener, RH(ATM) |
| 33119B | Plate, Stiffener, LH(ATM) |
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106F | Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35111 | Housing, Automatic Transmission |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35139 | Bracket, Oil Filler Tube |
| 35150 | Plug Assy, Transmission Case |
| 35150A | Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) |
| 35159 | Gasket, Brake Drum |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35519D | Label, Automatic Transmission Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
