Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07

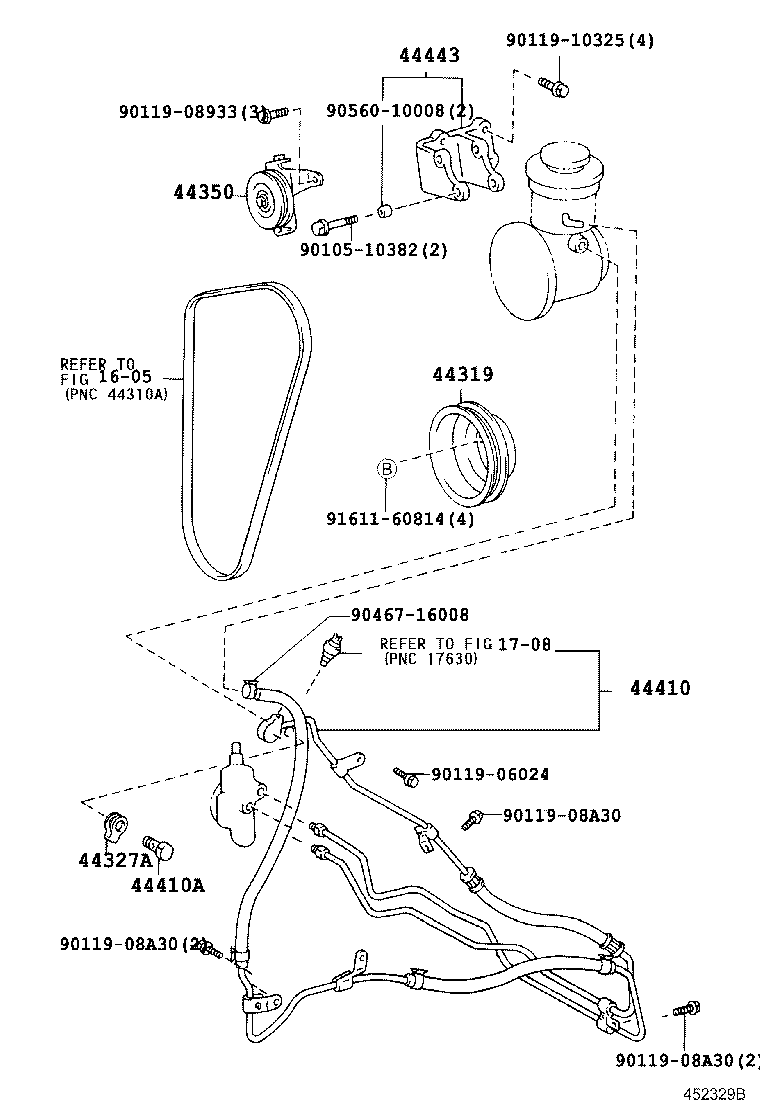

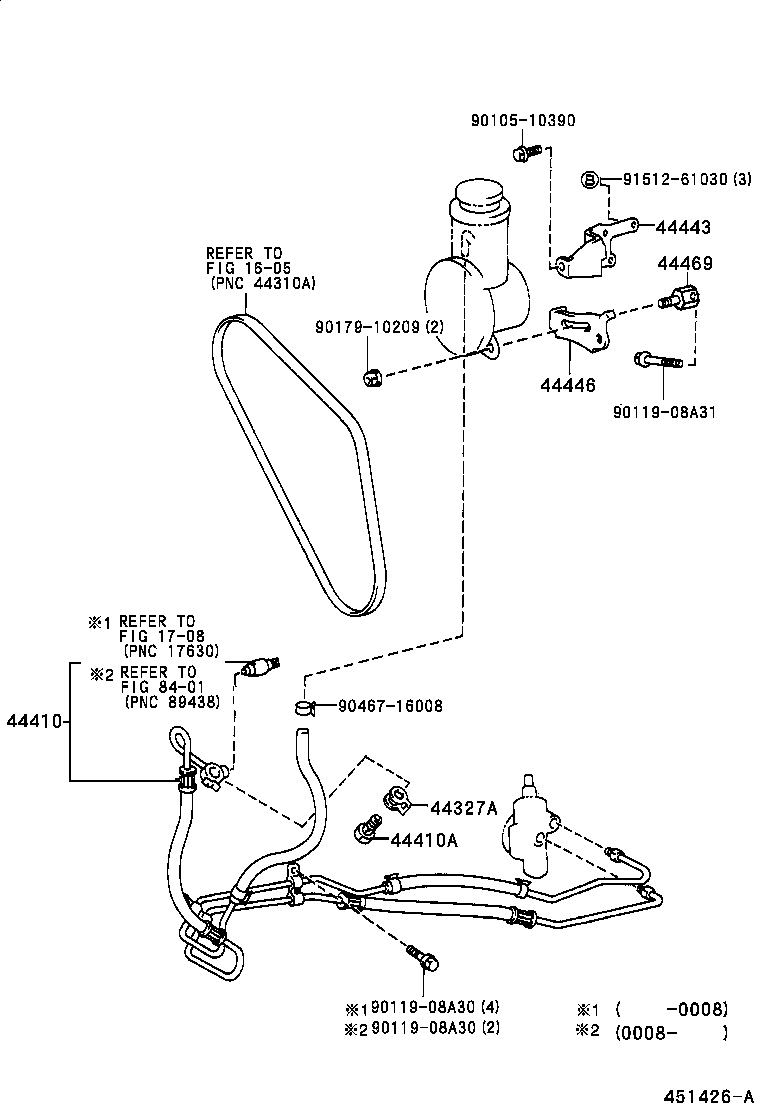

Power Steering Tube
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44319 | Pulley, Vane Pump Drive |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44423F | Bolt, Union |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
| 44469 | Slider, Power Steering Belt Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
