Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 3 illustrations

Illustrations

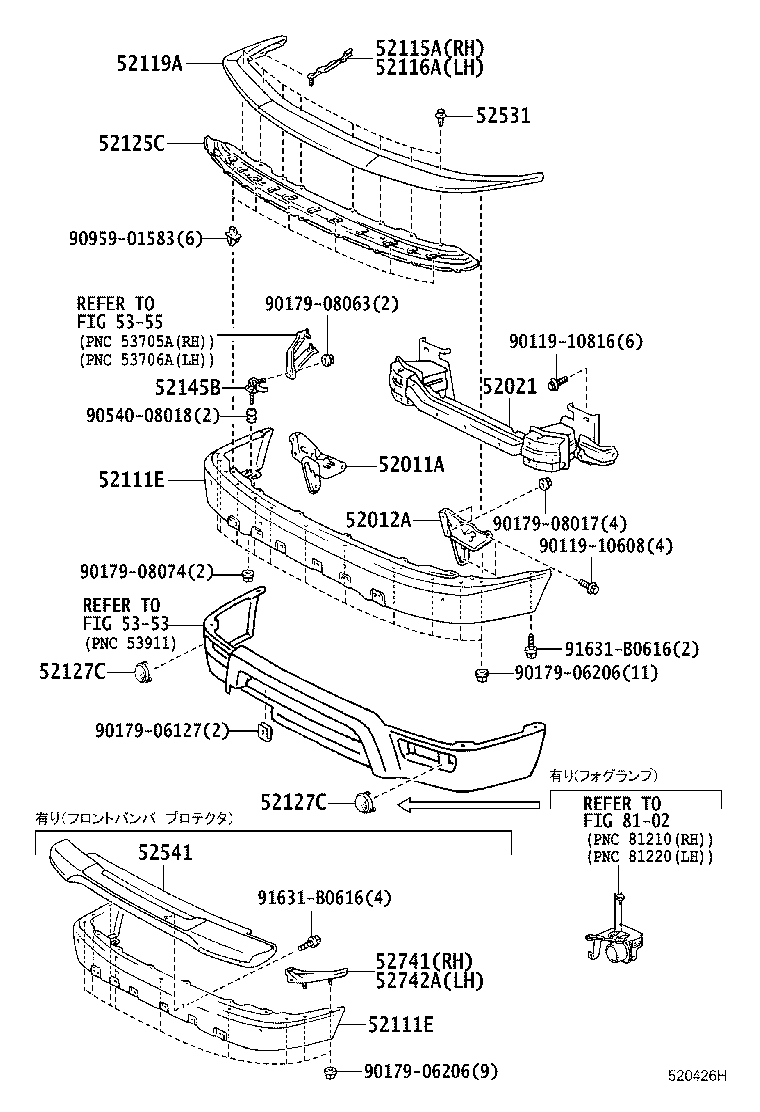

Figure MBZ990A MBZ990A 1995-11 → 1998-07 Figure 520120 520120 1995-11 → 1998-07 Figure 520426H 520426H 1998-07 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52111E Bar, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125C Extension, Front Bumper Reinforcement
52127C Cover, Front Bumper Hole
52145B Bracket, Front Bumper Side Mounting
52403A Pad Sub-assy, Front Bumper Guard
52411 Guard, Front Bumper
52441 Base, Front Bumper Guard, NO.1 RH
52442 Base, Front Bumper Guard, NO.1 LH
52492 Bolt, Bumper Pad, NO.2
52492A Bolt, Bumper Pad, NO.3
52531 Retainer, Bumper Filler
52541 Protector, Front Bumper
52741 Garnish, Front Bumper Bar, NO.1
52742A Garnish, Front Bumper Bar, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
