Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

50 part groups · 5 illustrations

Illustrations

530220B 1995-11 → 1998-07

534216A 1995-11 → 1998-07

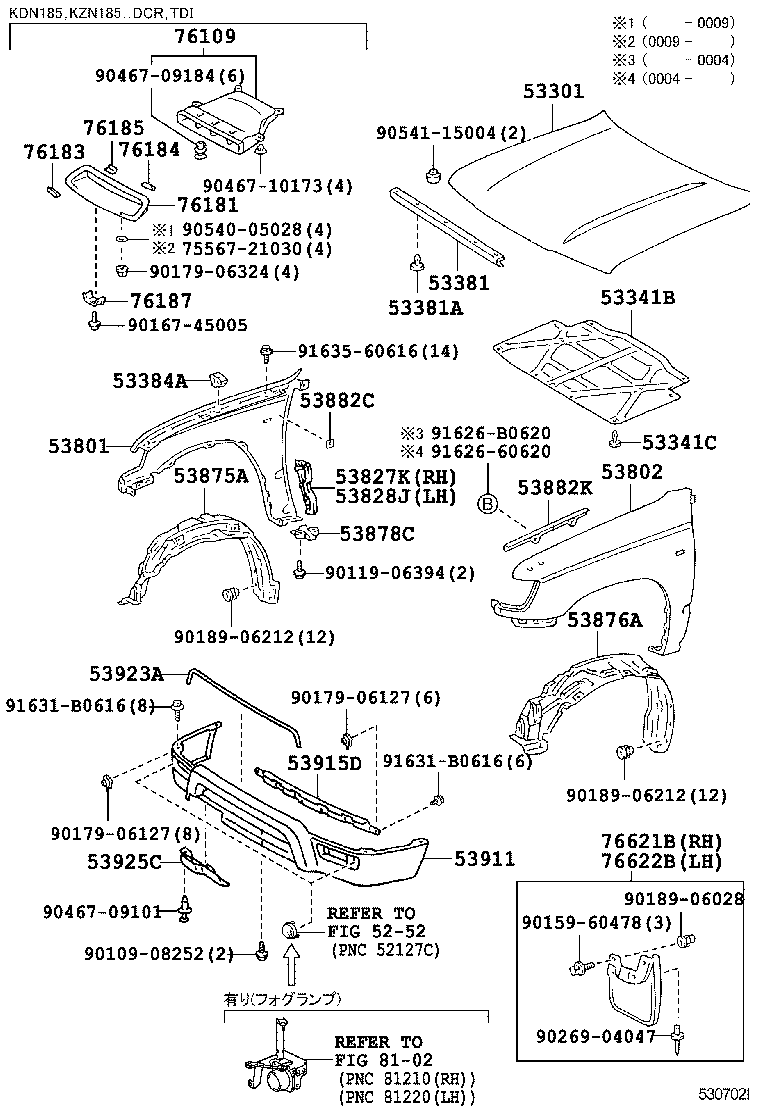

530702I 1998-07 → —

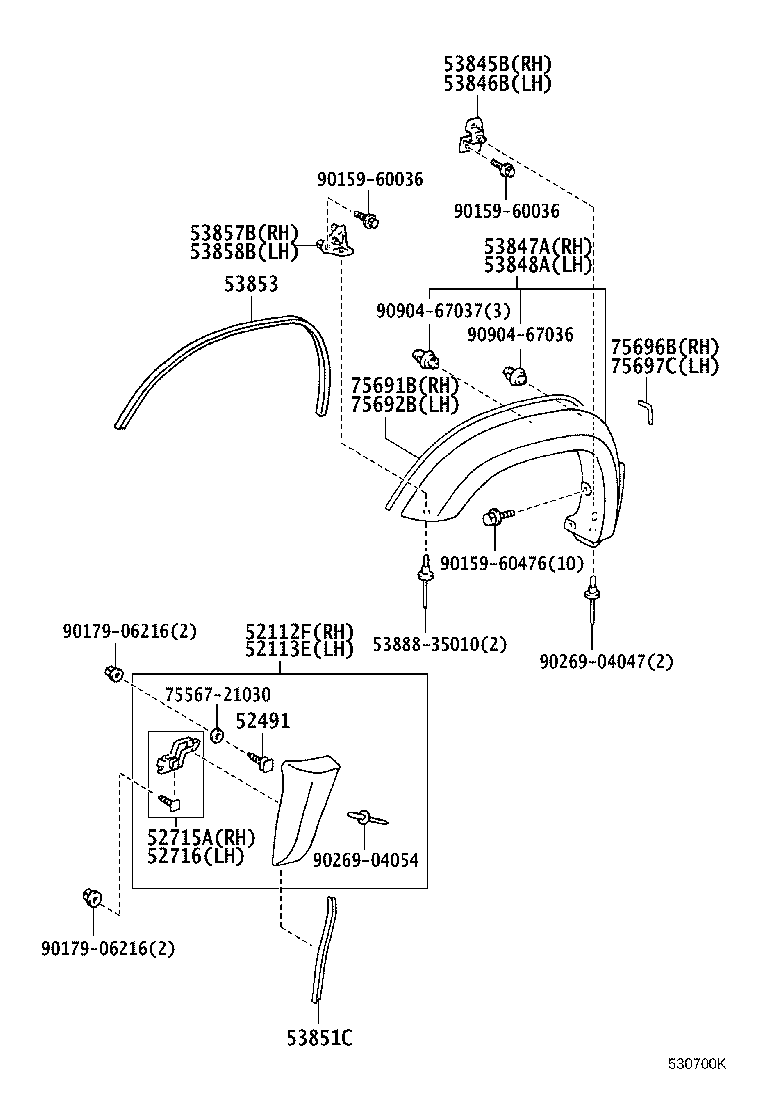

530700K 1998-07 → —

530701E 1998-07 → —

Part groups

PNC	Description
52112F	Extension, Front Bumper, RH
52113E	Extension, Front Bumper, LH
52491	Bolt, Bumper Pad
52715A	Retainer, Front Bumper Moulding, NO.1 RH
52716	Retainer, Front Bumper Moulding, NO.1 LH
53301	Hood Sub-assy
53341B	Insulator, Hood
53341C	Clip(FOR HOOD INSULATOR)
53381	Seal, Hood TO Radiator Support
53381A	Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A	Bumper, Fender TO Hood
53801	Fender Sub-assy, Front RH
53802	Fender Sub-assy, Front LH
53827K	Protector, Front Fender Side Panel, RH
53828J	Protector, Front Fender Side Panel, LH
53845B	Extension, Front Wheel Opening, NO.1 RH
53846B	Extension, Front Wheel Opening, NO.1 LH
53847A	Extension, Front Wheel Opening OR Arch Moulding, RH
53848A	Extension, Front Wheel Opening OR Arch Moulding, LH
53851C	Pad, Front Wheel Opening Extension, NO.1
53853	Pad, Front Wheel Opening Extension, NO.3
53857B	Retainer, Front Wheel Opening Extension, RH
53858B	Retainer, Front Wheel Opening Extension, LH
53875A	Liner, Front Fender, RH
53876A	Liner, Front Fender, LH
53878C	Spacer, Front Fender
53882C	Seal, Front Fender Main
53882K	Seal, Front Fender
53911	Panel, Front Valance
53915D	Support, Front Valance Panel
53923A	Protector, Front Valance Panel
53925C	Plate, Front Valance Panel, RH
75691B	Pad, Front Fender Outside Moulding, RH
75692B	Pad, Front Fender Outside Moulding, LH
75696B	Pad, Body Outside Moulding, RH
75697C	Pad, Body Outside Moulding, LH
76109	Guide Sub-assy, Hood Air Intake
76181	Bulge, Hood
76183	Protector, Hood Bulge, NO.1
76184	Protector, Hood Bulge, NO.2
76185	Protector, Hood Bulge, NO.3
76187	Retainer, Hood Air Intake Guide, NO.1
76603	Mudguard Sub-assy, Front Fender, RH
76604	Mudguard Sub-assy, Front Fender, LH
76621B	Mudguard, Front Body, RH
76622B	Mudguard, Front Body, LH
76641B	Bracket, Front Fender Panel Mudguard, RH
76642	Bracket, Front Fender Panel Mudguard, LH
76859A	Protector, Front Spoiler Side, NO.2 RH
76869A	Protector, Front Spoiler Side, NO.2 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
