Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07

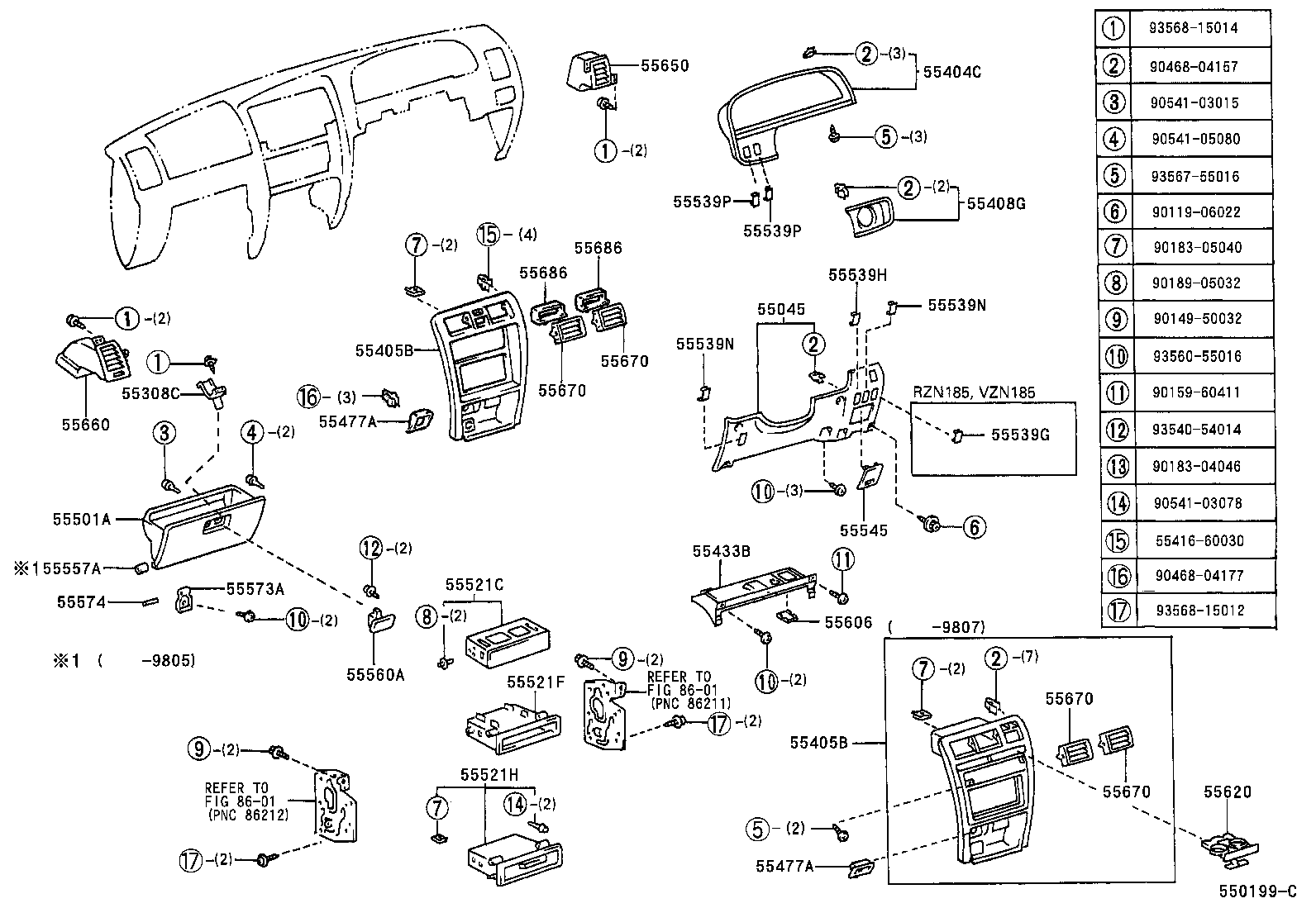

Instrument Panel & Glove Compartment

37 part groups · 2 illustrations

PNC	Description
50540	DO0R Assy, Airbag Passenger
55045	Panel Sub-assy, Instrument Panel Finish, Lower
55301	Panel Sub-assy, Instrument
55303A	Stay Sub-assy, Instrument Panel
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55331	Reinforcement, Instrument Panel
55349A	Cushion, Instrument Panel
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55408G	Bezel Sub-assy, Starter Switch
55433B	Panel, Instrument Panel Finish, Lower NO.2
55477A	Bezel, Cigarette Lighter Hole
55501A	Door Sub-assy, Glove Compartment
55521C	Cover, Stereo Opening
55521F	Cover, Stereo Opening, NO.2
55521H	Cover Assy, Stereo Opening
55538D	Cover, Sunshine Sensor Hole
55539G	Cover, Spare Switch Hole
55539H	Cover, Spare Switch Hole
55539N	Cover, Spare Switch Hole
55539P	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55557A	Cushion, Glove Compartment Door Check
55560A	Lock Assy, Glove Compartment Door
55573A	Hinge, Glove Compartment Door
55574	Shaft, Glove Compartment Door Hinge
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55620	Holder Assy, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55686	Retainer, Register Blade
55950	Nozzle Assy, Defroster
61181	Bracket, Instrument Panel Side
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
