Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

114 part groups · 6 illustrations

Illustrations

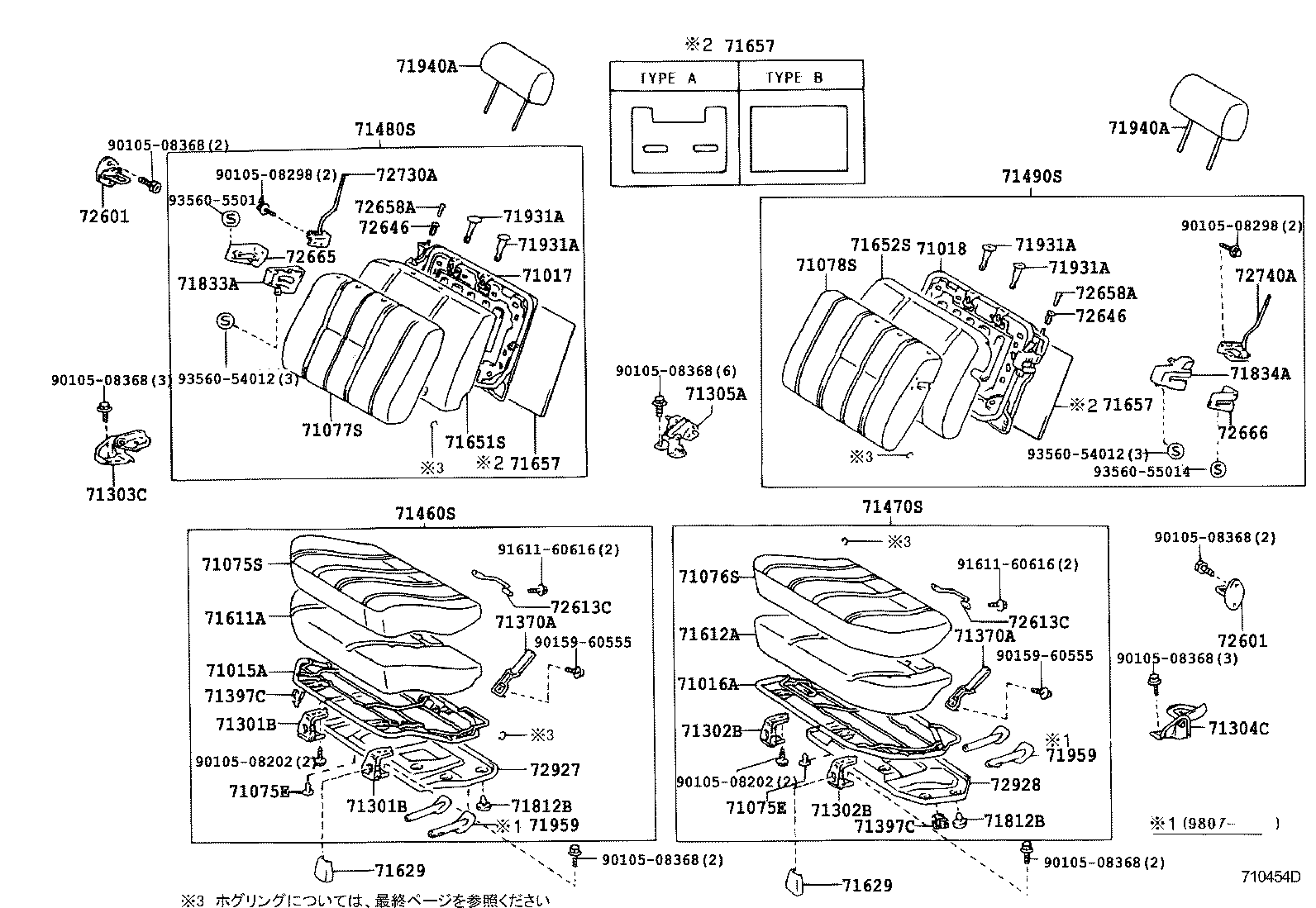

710450E 1995-11 → —

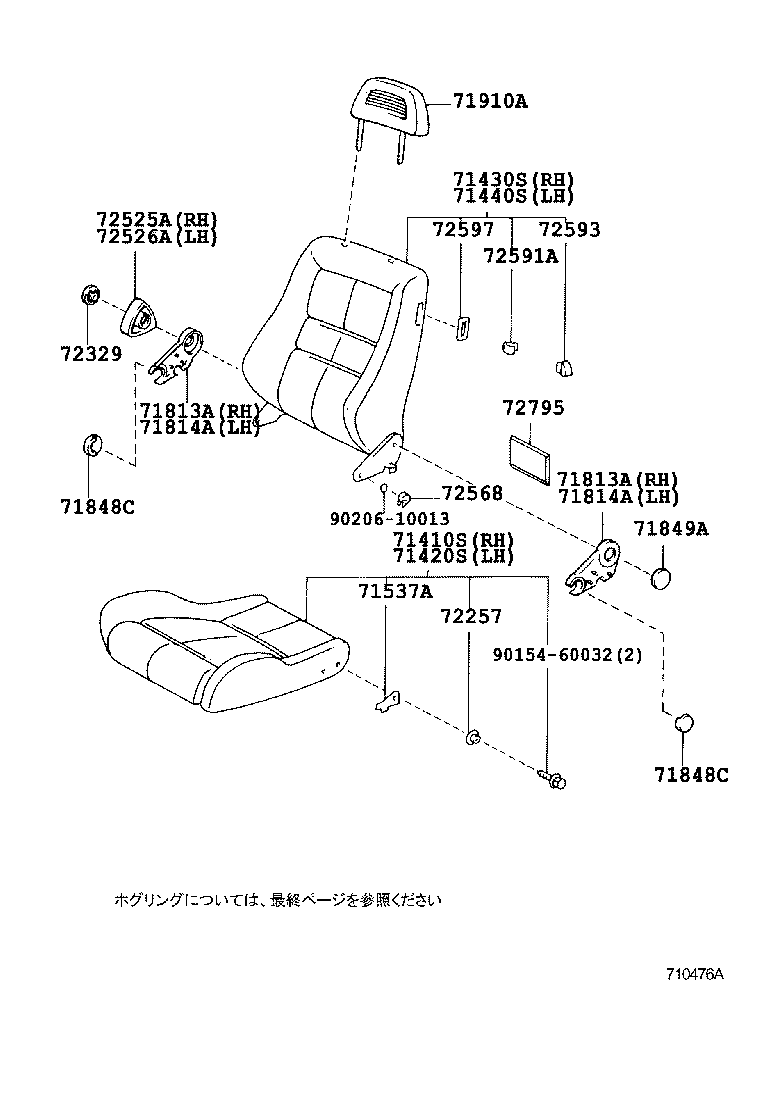

710476A 1995-11 → 2000-08

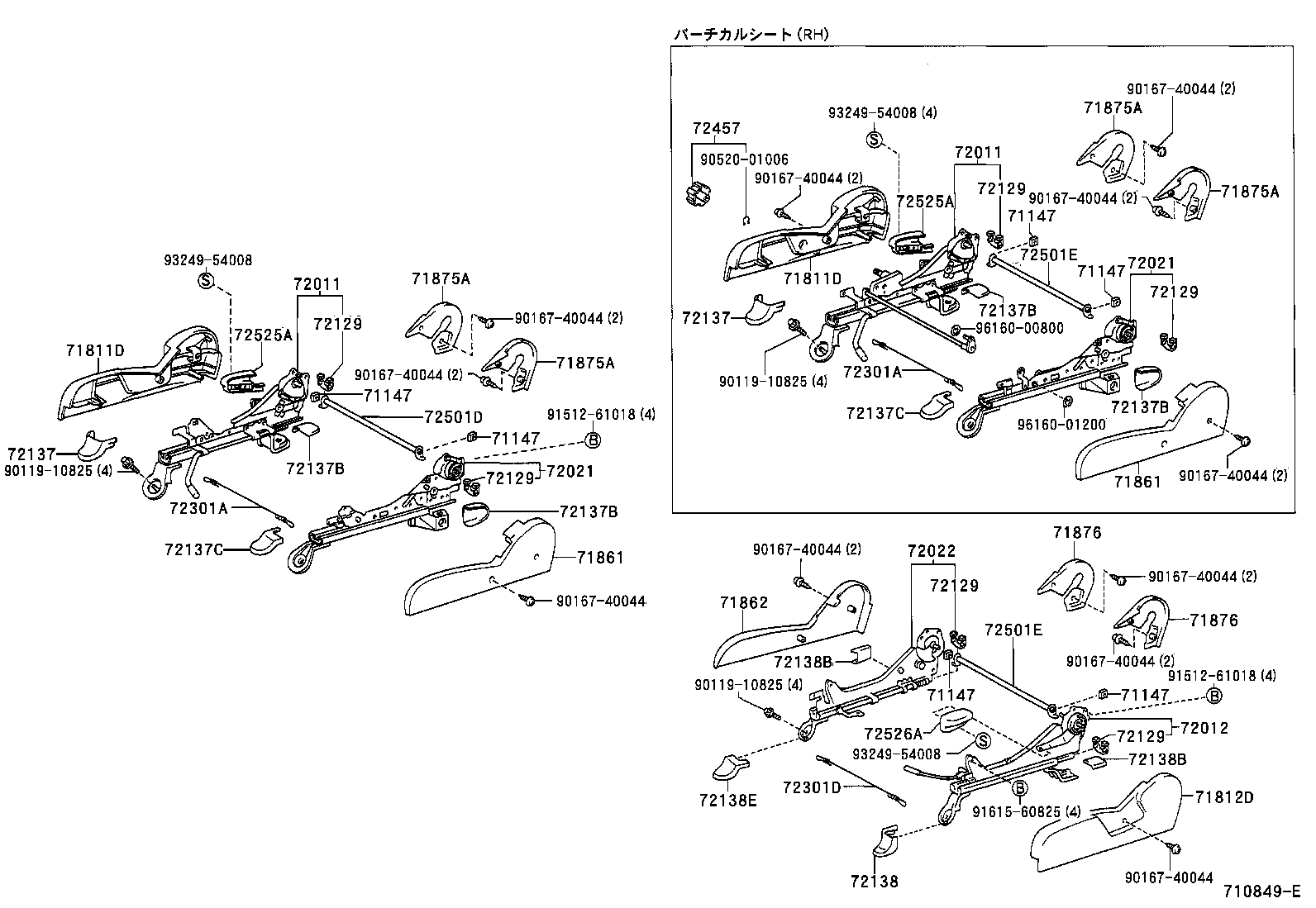

710849E 1995-11 → —

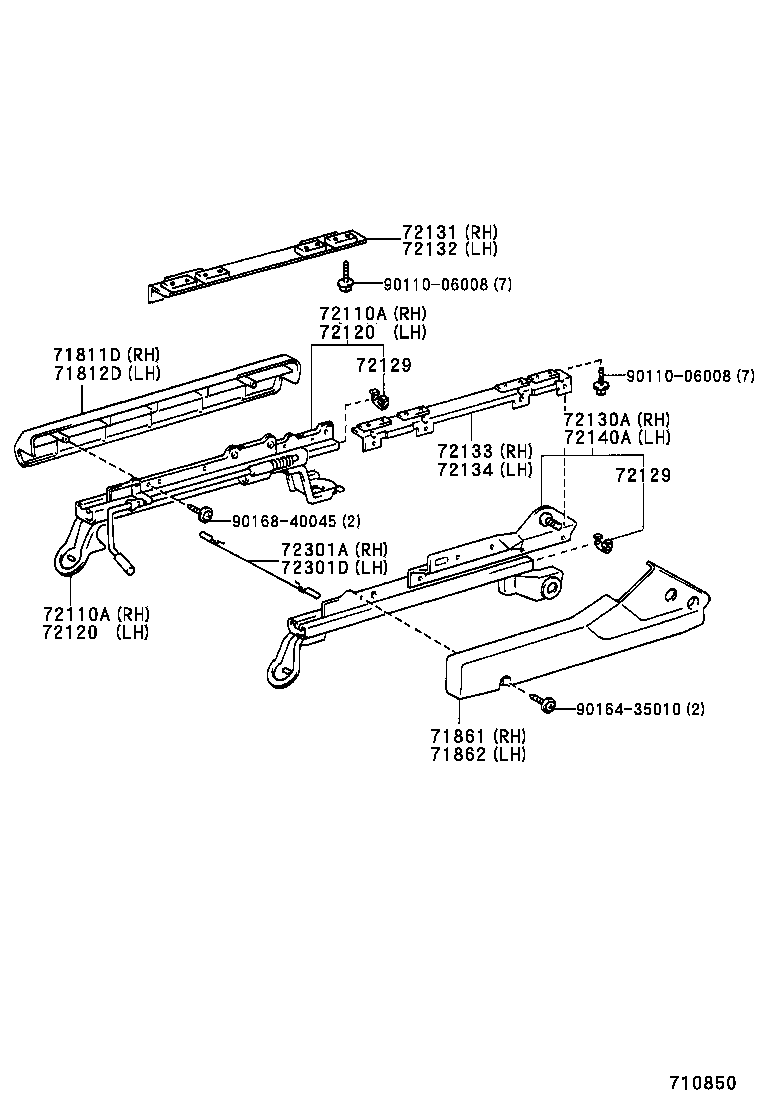

710850 1995-11 → 2000-08

710454D 1995-11 → —

718165A 1995-11 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147	Silencer, Seat Spring
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71302B	Hinge Sub-assy, Rear NO.1 Seat, LH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71370A	Holder Assy, Rear Seat Cushion
71397C	Stopper, Rear Seat
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517	Cloth, Front Seat Cushion Under
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B	Pad, Front Seatback, Upper
71587	Protector, Front Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71657	Cloth, Rear Seatback Under
71811D	Shield, Front Seat Cushion, RH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71812D	Shield, Front Seat Cushion, LH
71813A	Shield, Front Seatback, RH
71814A	Shield, Front Seatback, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71848C	Cap, Seat Adjuster Cover, RH
71849A	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71875A	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71959	Holder, Rear Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72129	Protector, Seat Track Lower Rail, NO.1
72130A	Track Assy, Front Seat, Inner RH
72131	Bracket, Front Outer Seat Track Upper Rail, RH
72132	Bracket, Front Outer Seat Track Upper Rail, LH
72133	Bracket, Front Inner Seat Track Upper Rail, RH
72134	Bracket, Front Inner Seat Track Upper Rail, LH
72137	Cover, Seat Track, Outer RH
72137B	Cover, Seat Track, RH
72137C	Cover, Seat Track Inner, RH
72138	Cover, Seat Track, Outer LH
72138B	Cover, Seat Track, LH
72138E	Cover, Seat Track, Inner LH
72140A	Track Assy, Front Seat,Inner LH
72257	Striker, Front Seat Lock
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72329	Cover, Seat Adjuster Bolt
72457	Knob, Vertical Seat Adjuster
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72568	Plate, Reclining Bolt Lock
72591A	Lever, Reclining Remote Control
72593	Knob, Reclining Remote Control Lever
72597	Bezel, Reclining Remote Control
72601	Striker Sub-assy, Rear Seat Lock
72613C	Striker, Rear Seat Lock
72646	Grommet, Rear Seatback Stop Button
72658A	Knob, Rear Seatback Locking
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72750D	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support
72795	Pad, Lumbar Support
72797	Spacer, Lumbar Support
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
