Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07

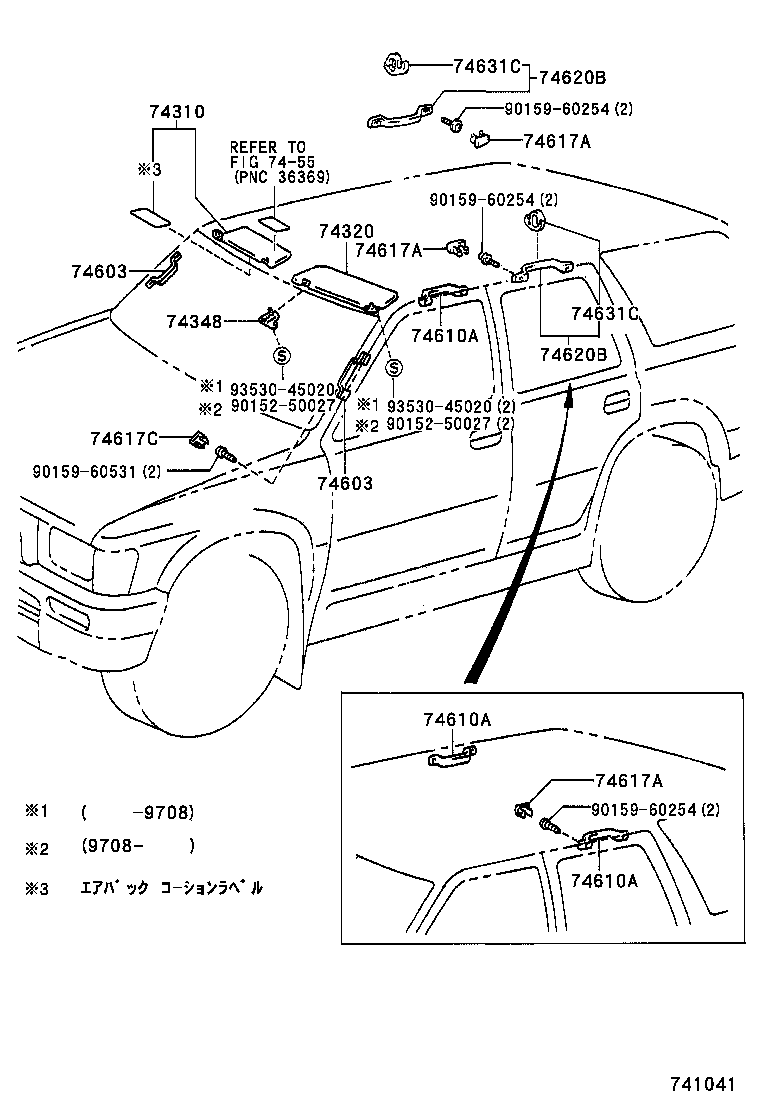

Armrest & Visor
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55524H | Cover, Switch Base Hole |
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74631C | Hook, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
