Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

50 part groups · 5 illustrations

Illustrations

NB1344 1995-11 → —

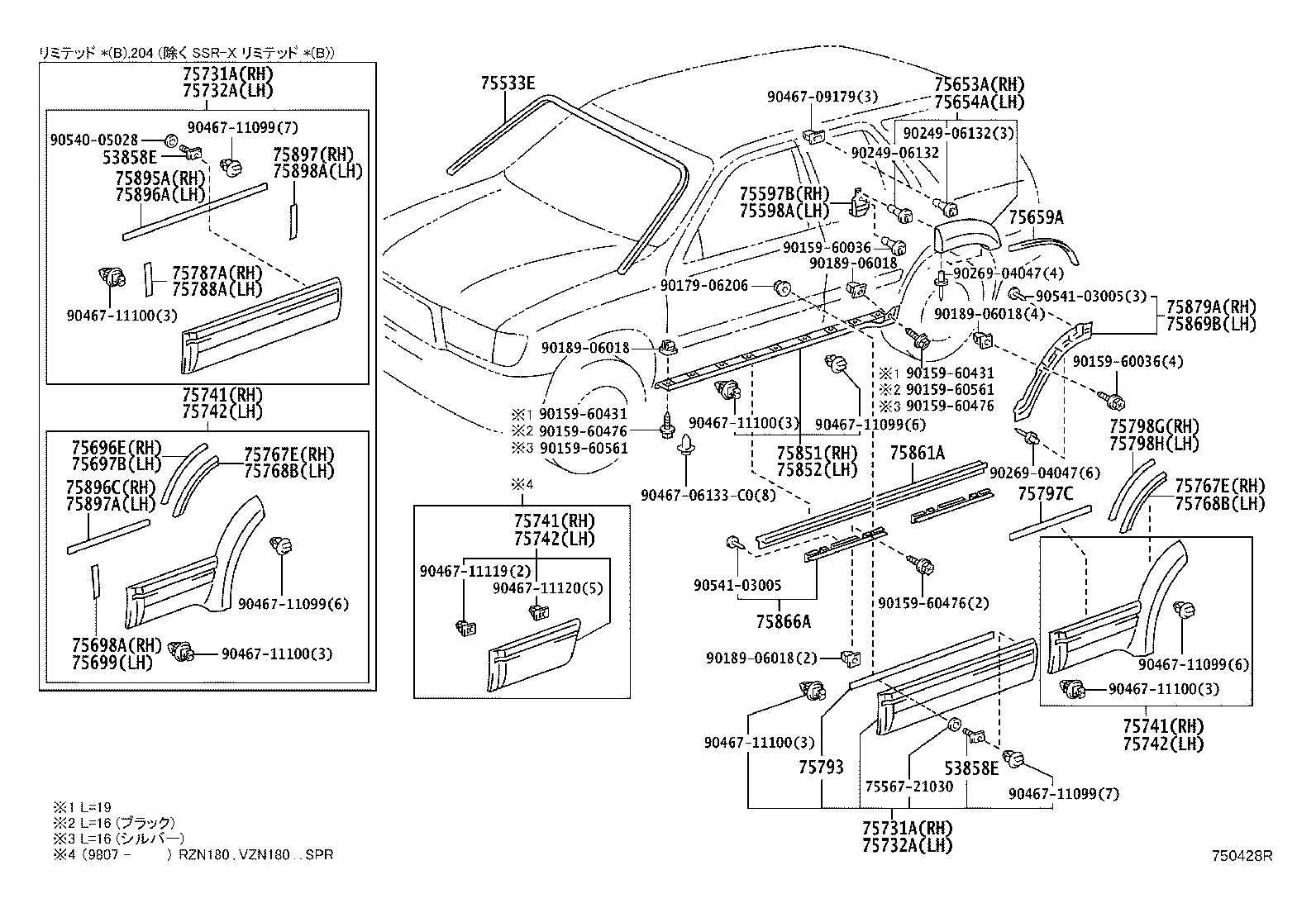

750428R 1995-11 → 2000-08

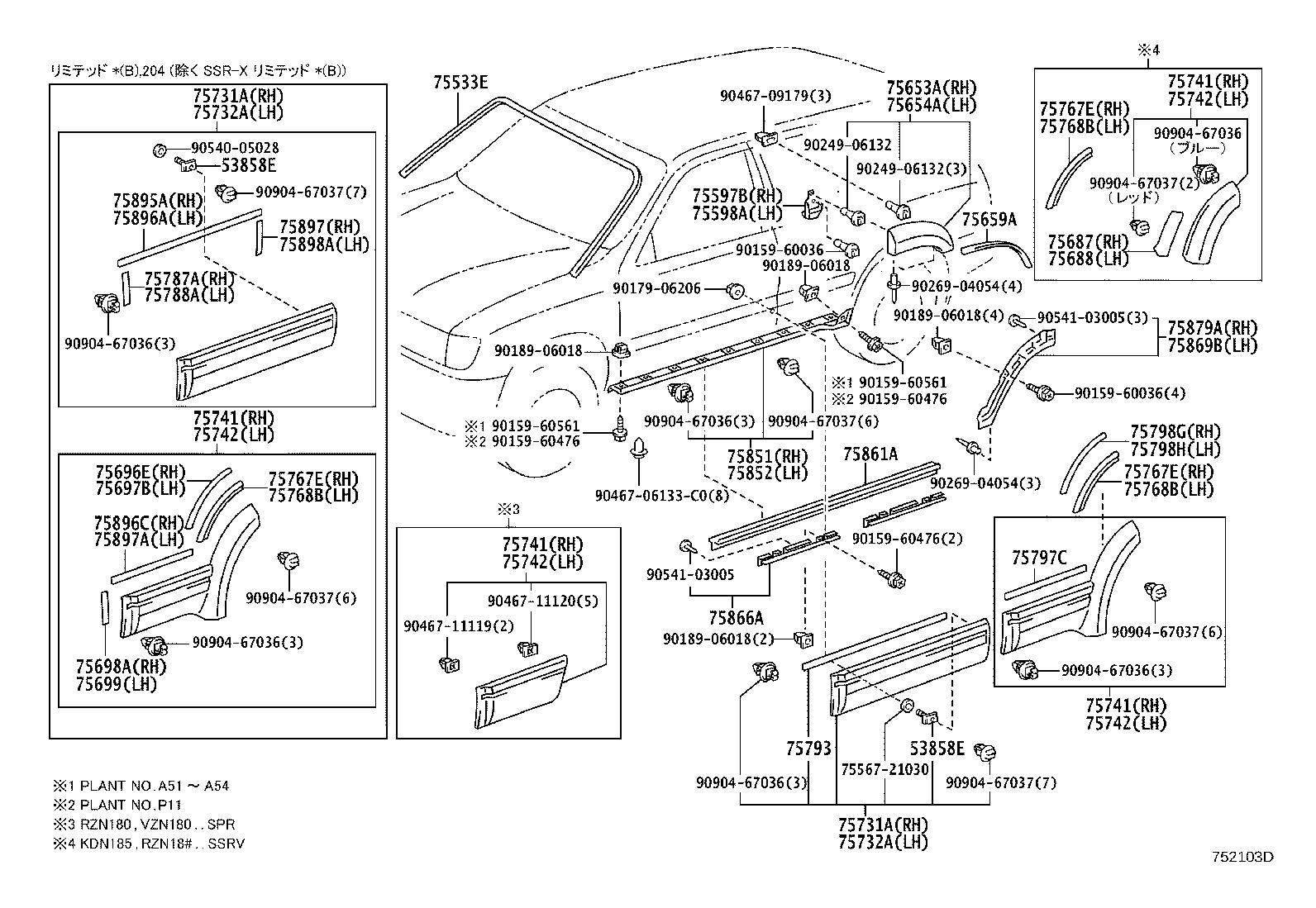

752103D 2000-08 → —

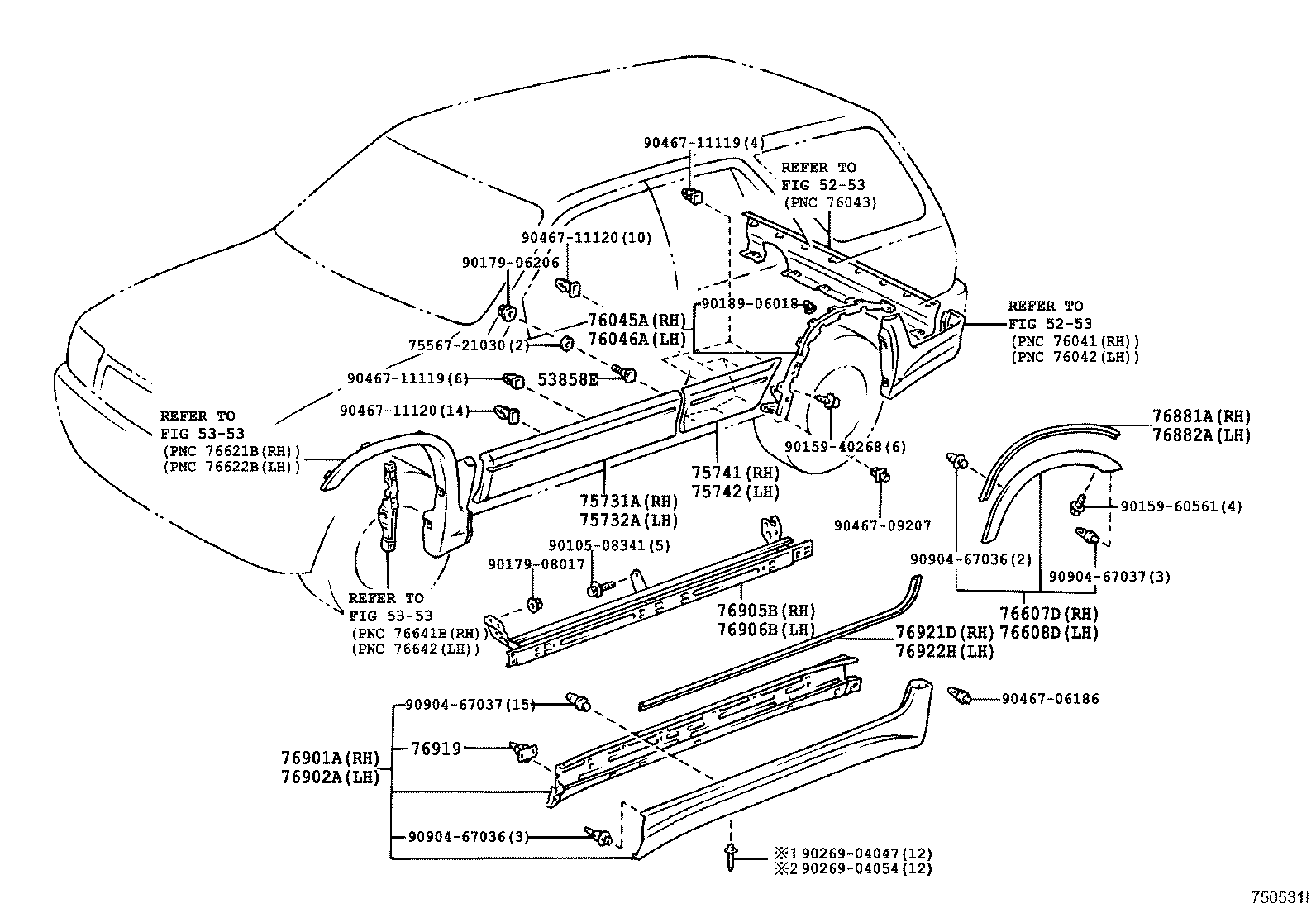

750531I 1998-07 → —

750531I 1999-01 → —

Part groups

PNC	Description
53858E	Bolt, Wheel Opening Set
75533E	Moulding, Windshield, Outside
75597B	Retainer, Quarter Garnish, Front RH
75598A	Retainer, Quarter Garnish, Front LH
75653A	Moulding, Quarter, Outside Rear RH
75654A	Moulding, Quarter, Outside Rear LH
75659A	Pad, Quarter Panel Moulding, NO.1
75687	Protector, Quarter Moulding, Lower Rear RH
75688	Protector, Quarter Moulding, Lower Rear LH
75696E	Tape, Body Outside Moulding Pad, RH
75697B	Tape, Body Outside Moulding Pad, LH
75698A	Pad, Body Outside Moulding, NO.3
75699	Pad, Body Outside Moulding, NO.4
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75767E	Pad, Rear Door Moulding, RH
75768B	Pad, Rear Door Moulding, LH
75787A	Pad, Front Door Outside Moulding, RH
75788A	Pad, Front Door Outside Moulding, LH
75793	Pad, Front Door Outside Moulding, Upper
75797C	Pad, Rear Door Outside Moulding, Upper
75798G	Tape, Rear Door Moulding Pad, RH
75798H	Tape, Rear Door Moulding Pad, LH
75851	Moulding, Rocker Panel, RH
75852	Moulding, Rocker Panel, LH
75861A	Protector, Rocker Panel Moulding, NO.1
75866A	Retainer, Rocker Panel Moulding
75869B	Retainer, Quarter Opening, LH
75879A	Retainer, Quarter Opening, RH
75895A	Tape, Moulding, NO.1
75896A	Tape, Moulding, NO.2
75896C	Tape, Moulding, NO.2
75897	Tape, Moulding, NO.3
75897A	Tape, Moulding, NO.2
75898A	Tape, Moulding, NO.4
76045A	Retainer Sub-assy, Quater Panel Mudguard, RH
76046A	Retainer Sub-assy, Quater Panel Mudguard, LH
76607D	Mudguard Sub-assy, Quarter Panel, RH
76608D	Mudguard Sub-assy, Quarter Panel, LH
76881A	Protector, Rear Spoiler Side, NO.1 RH
76882A	Protector, Rear Spoiler Side, NO.1 LH
76901A	Mudguard Sub-assy, Side, RH
76902A	Mudguard Sub-assy, Side, LH
76905B	Retainer Sub-assy, Side Mudguard, Lower RH
76906B	Retainer Sub-assy, Side Mudguard, Lower LH
76919	Pad, Side Mudguard
76921D	Protector, Side Mudguard, NO.1
76922H	Protector, Side Mudguard, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
