Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 14 illustrations

Illustrations

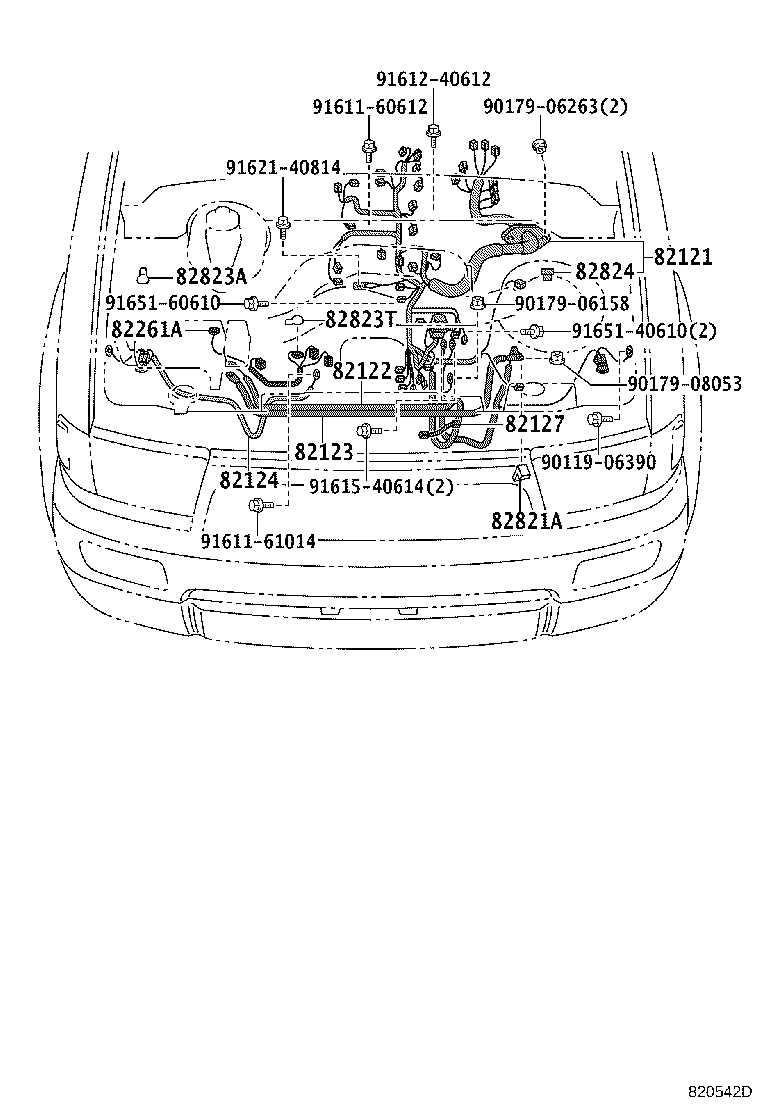

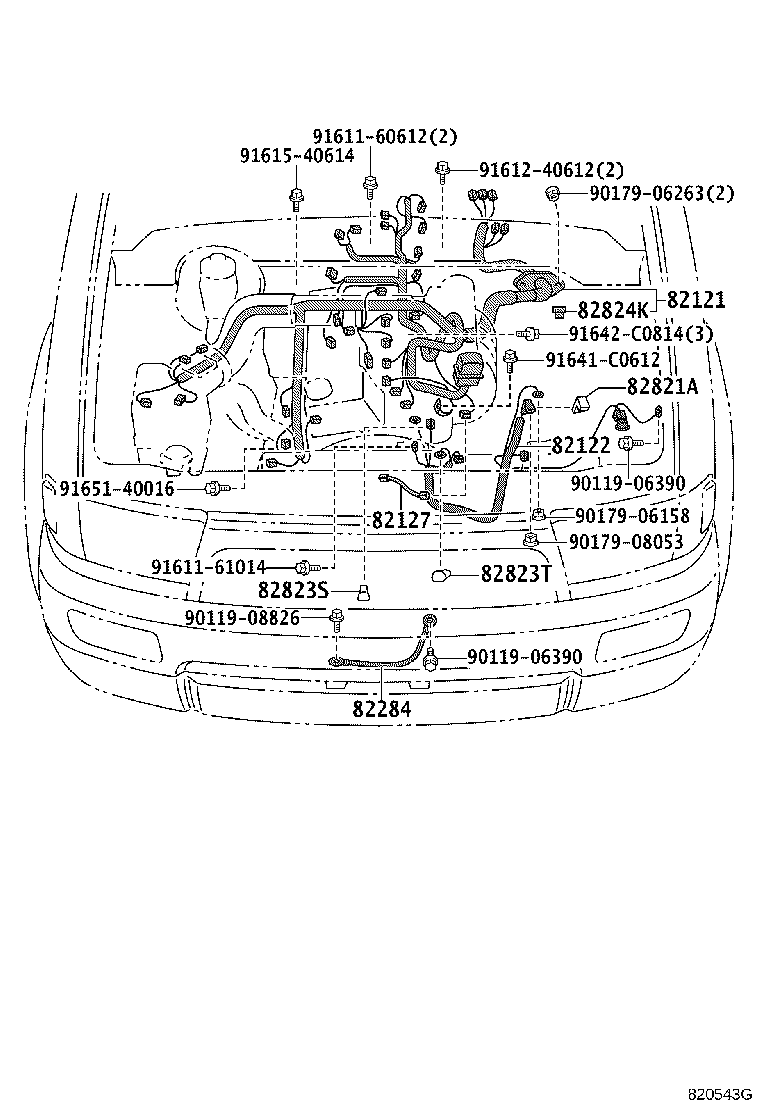

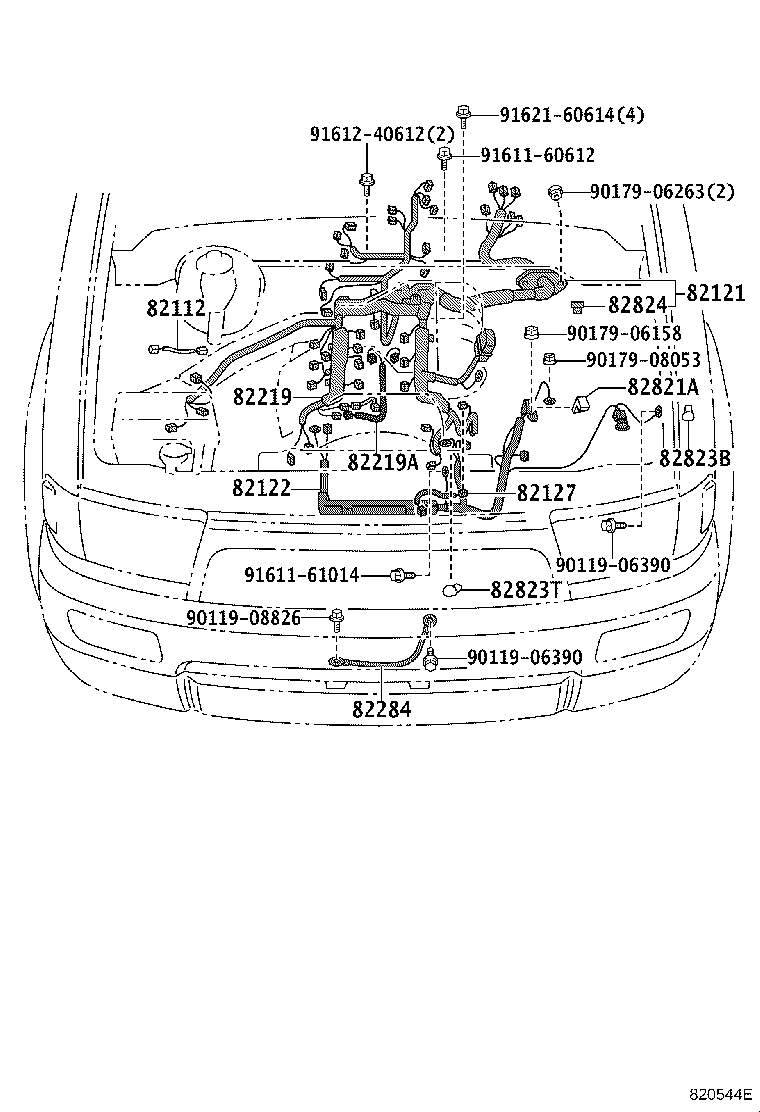

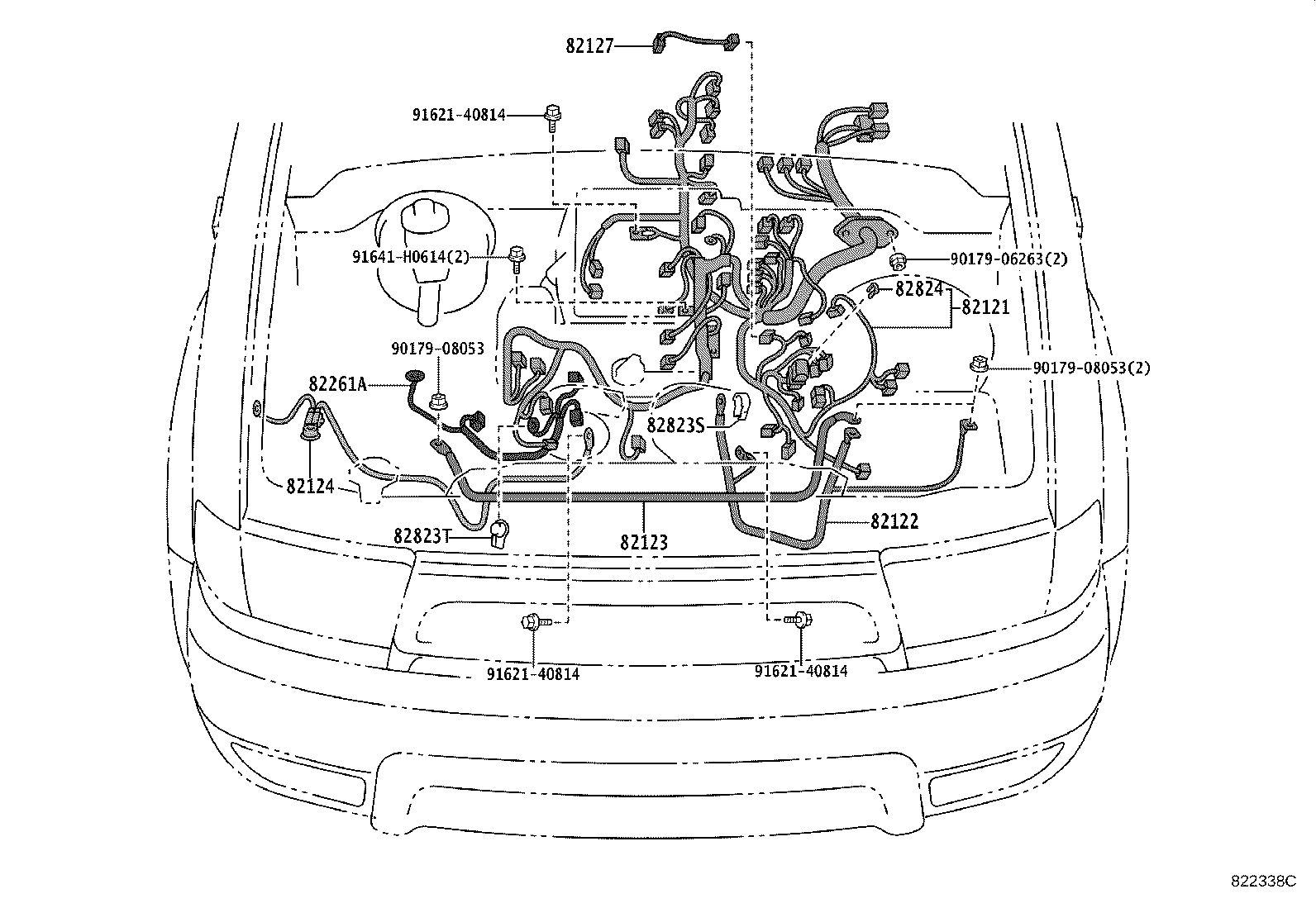

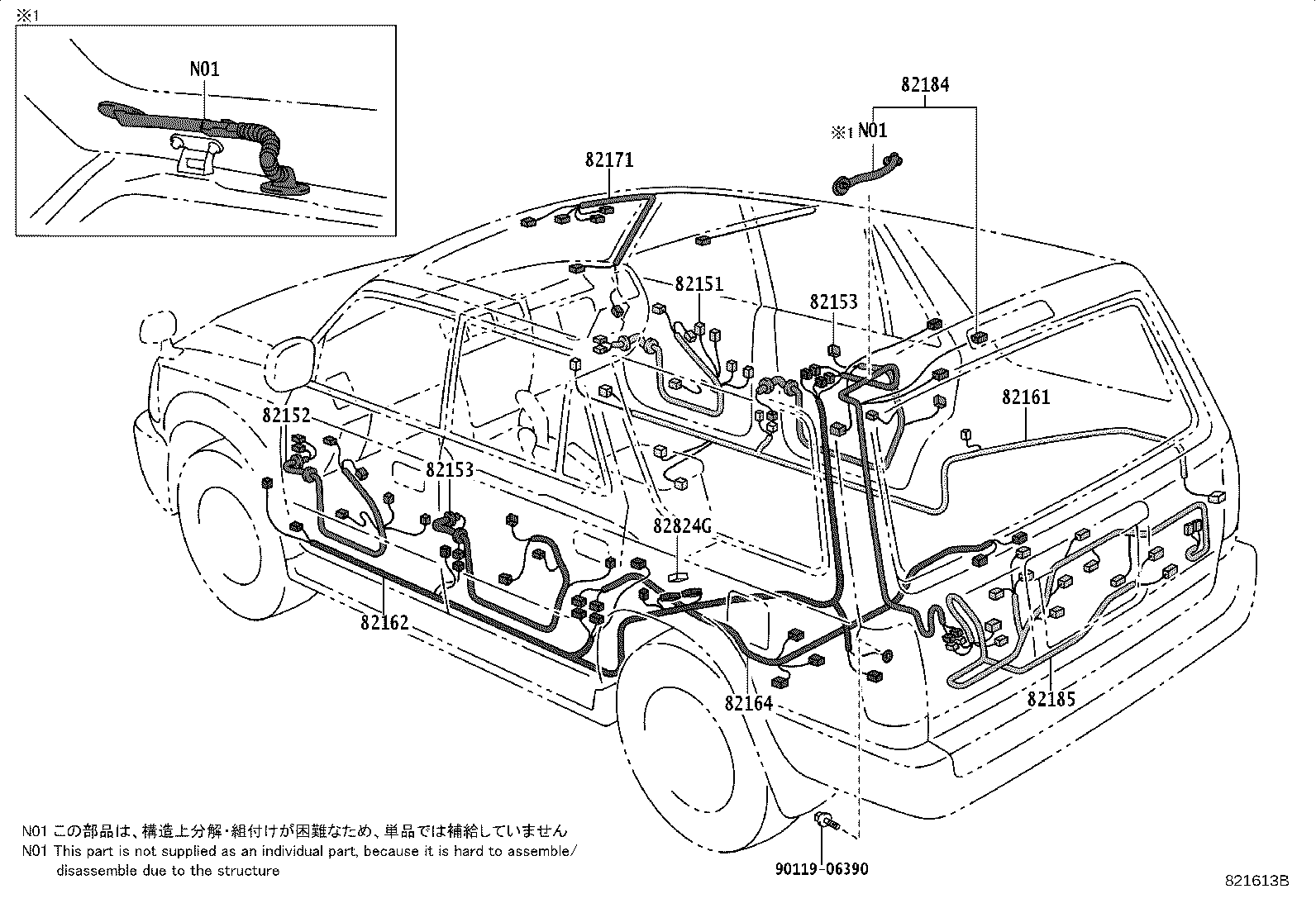

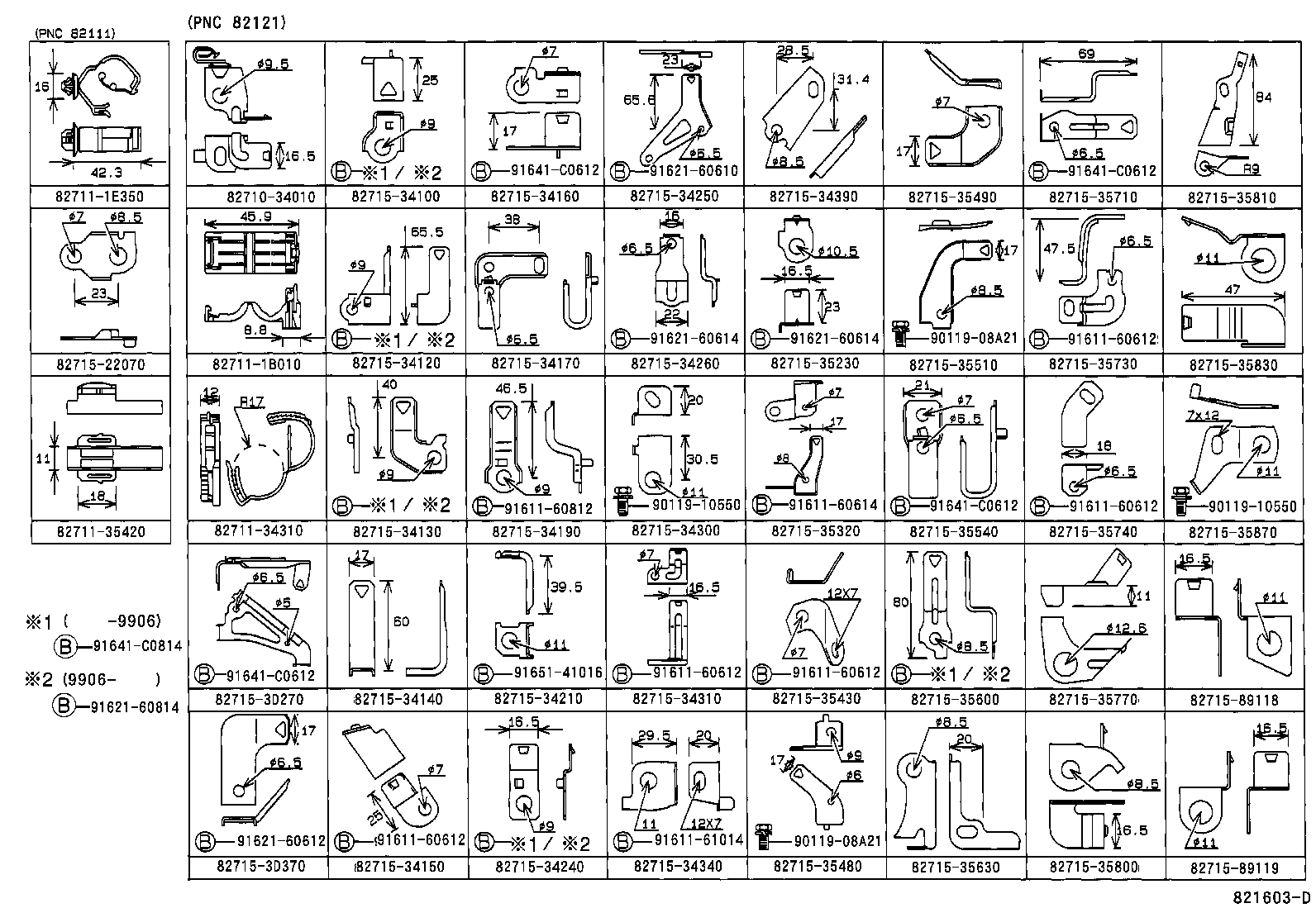

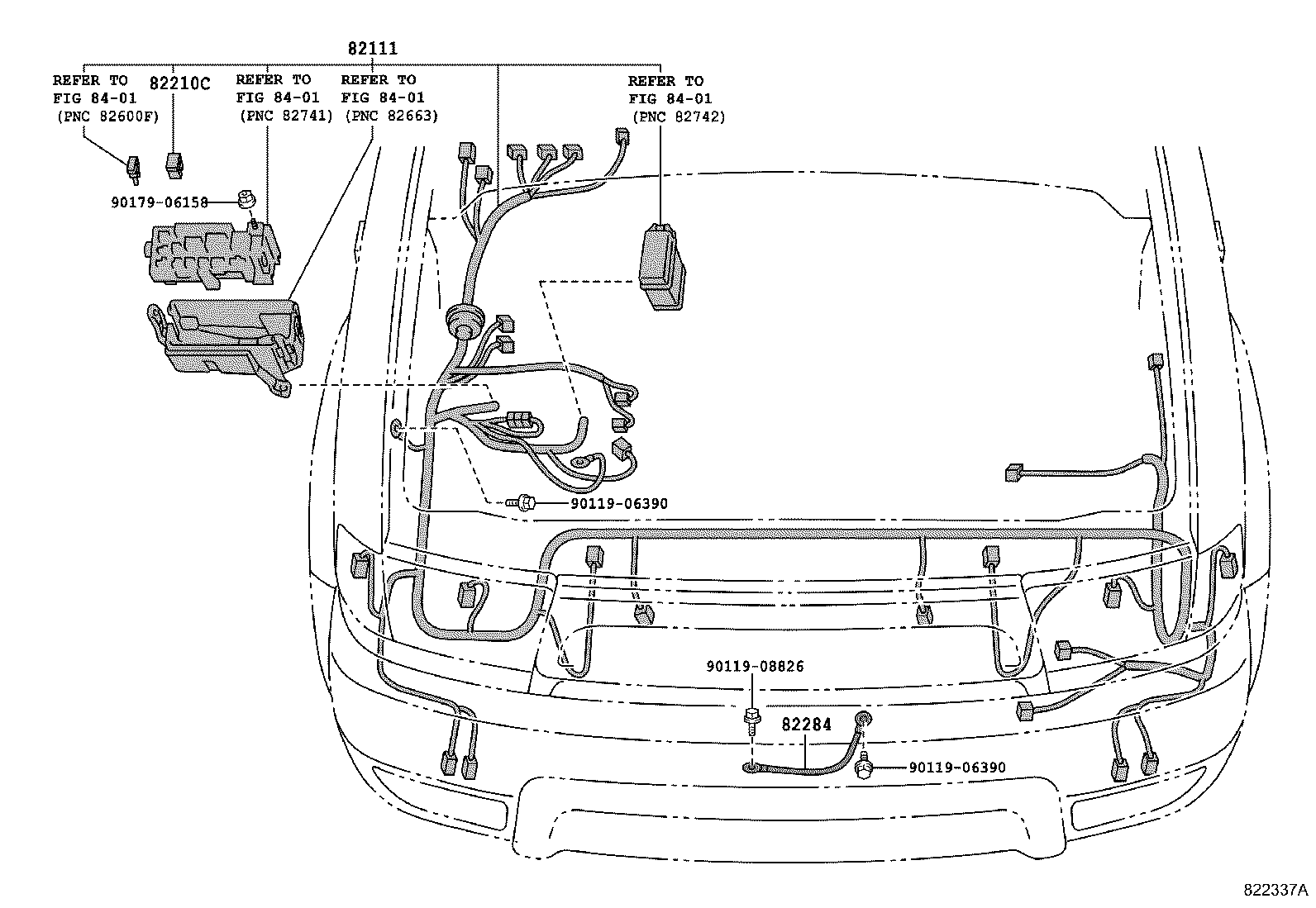

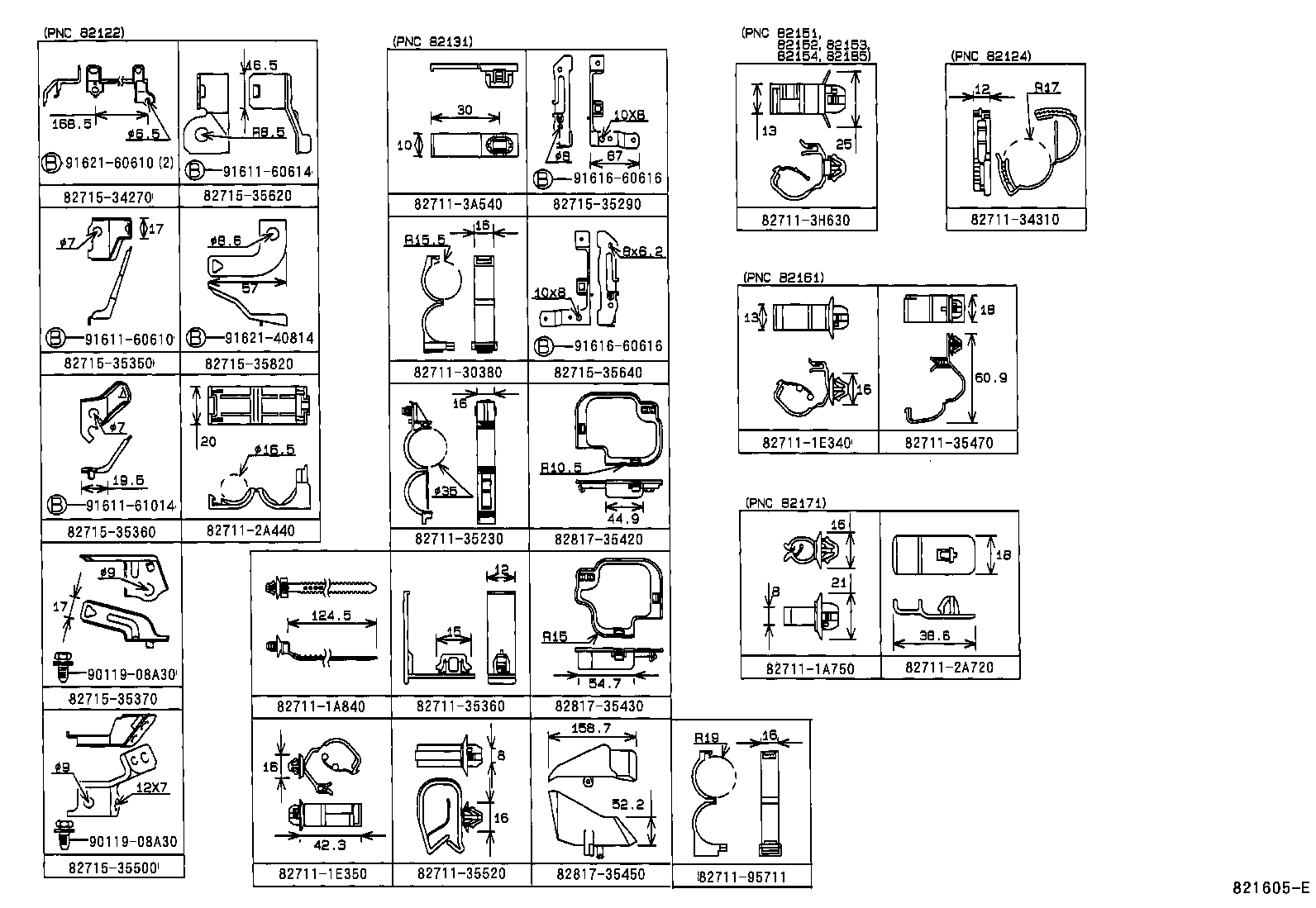

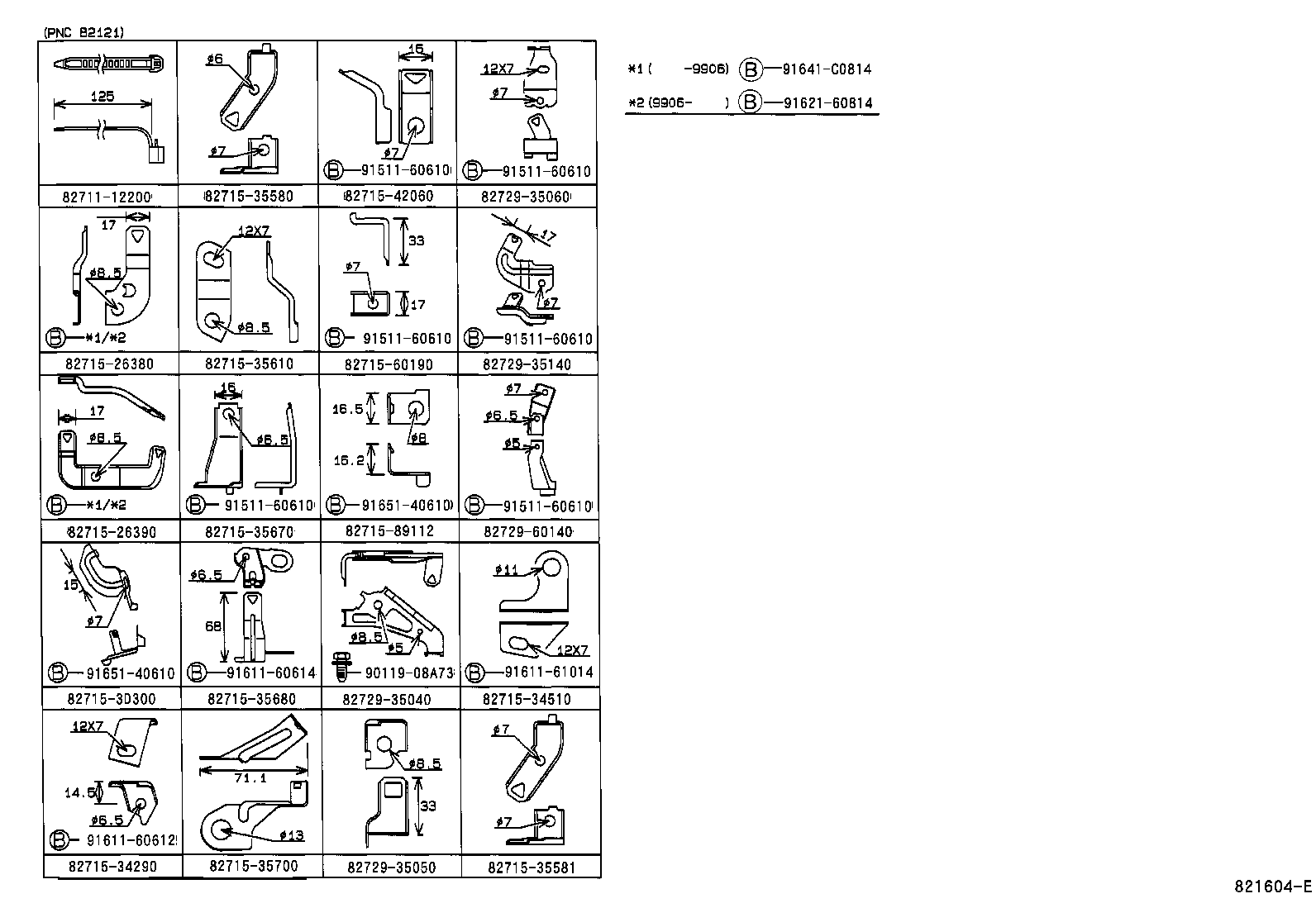

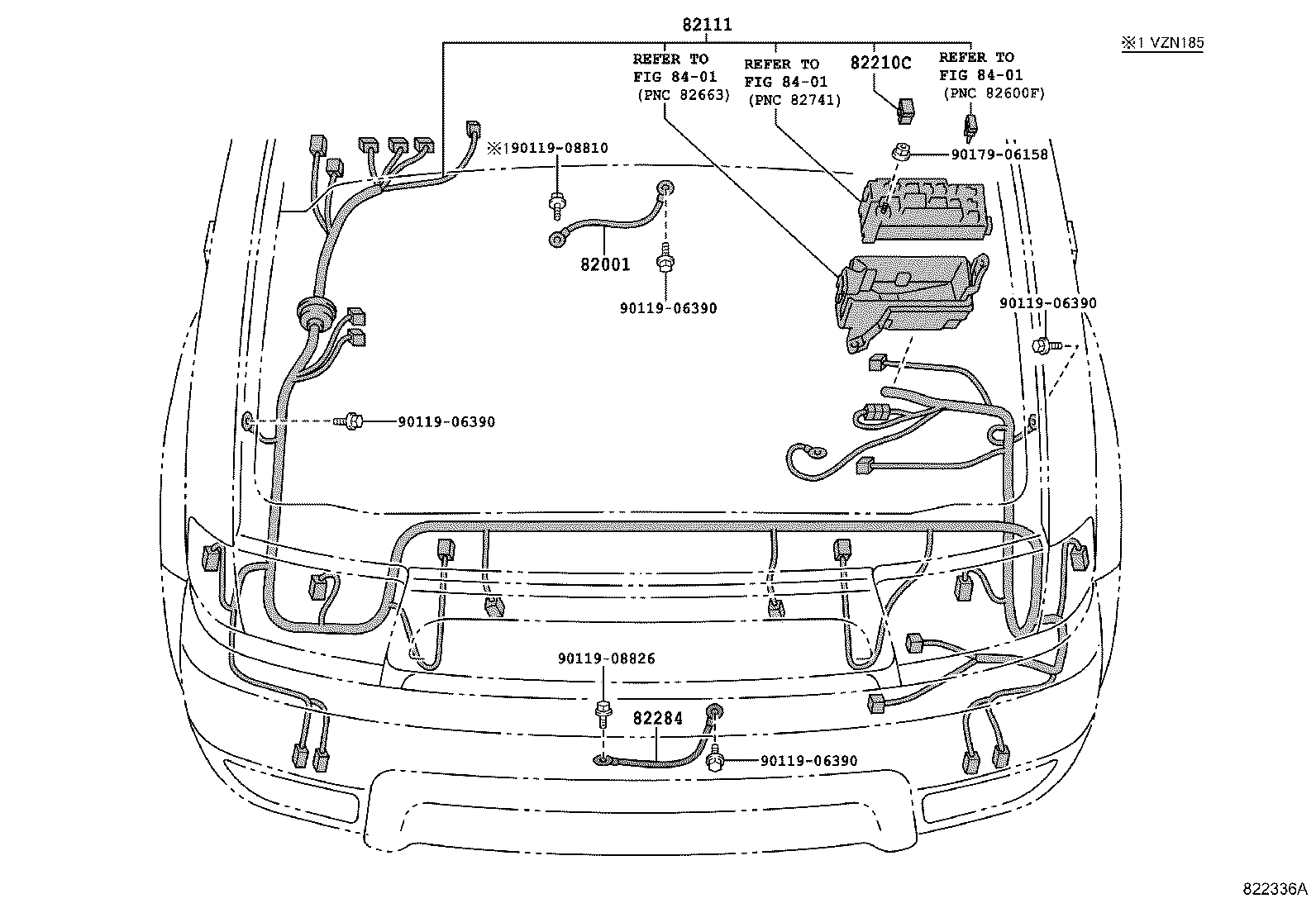

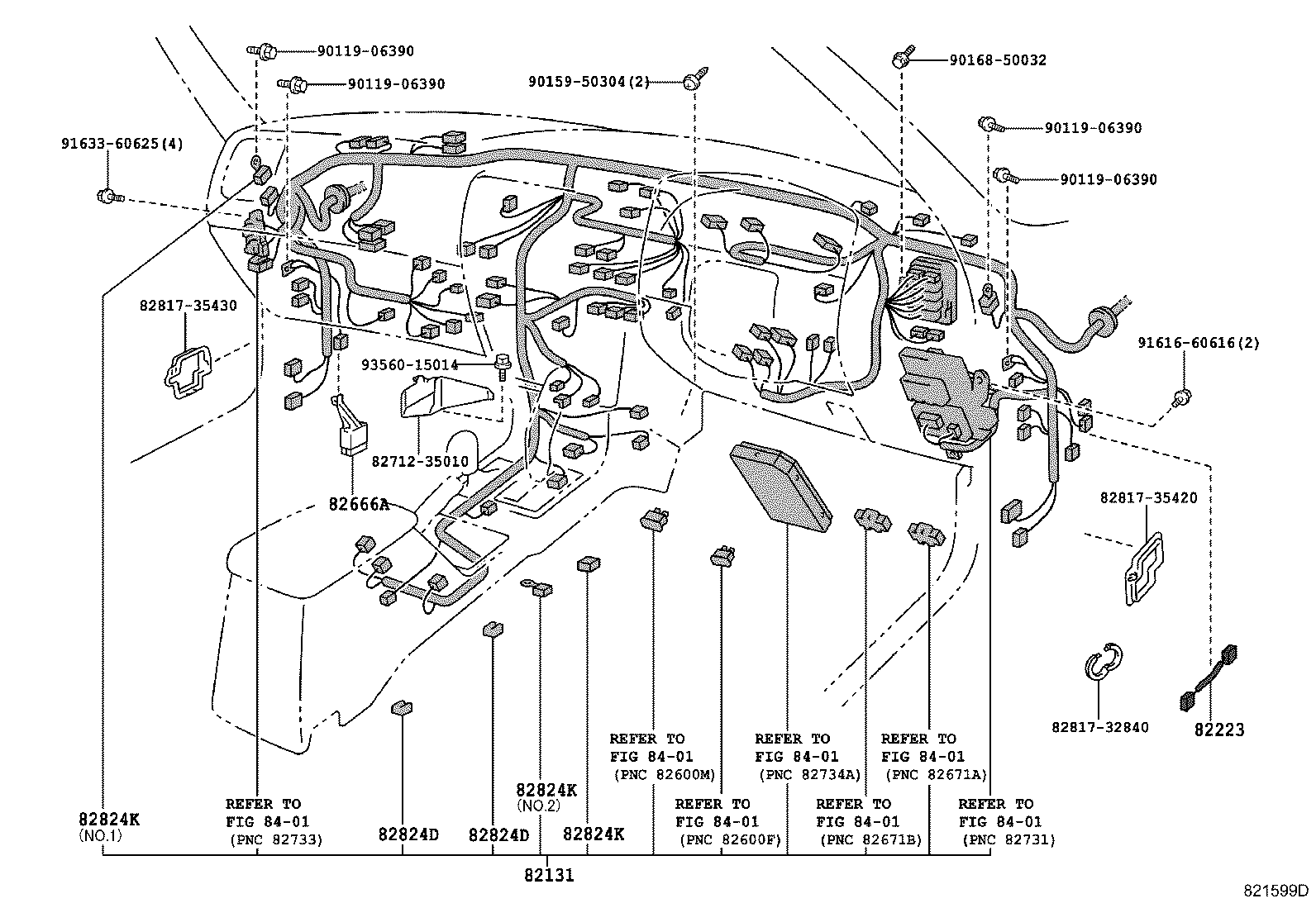

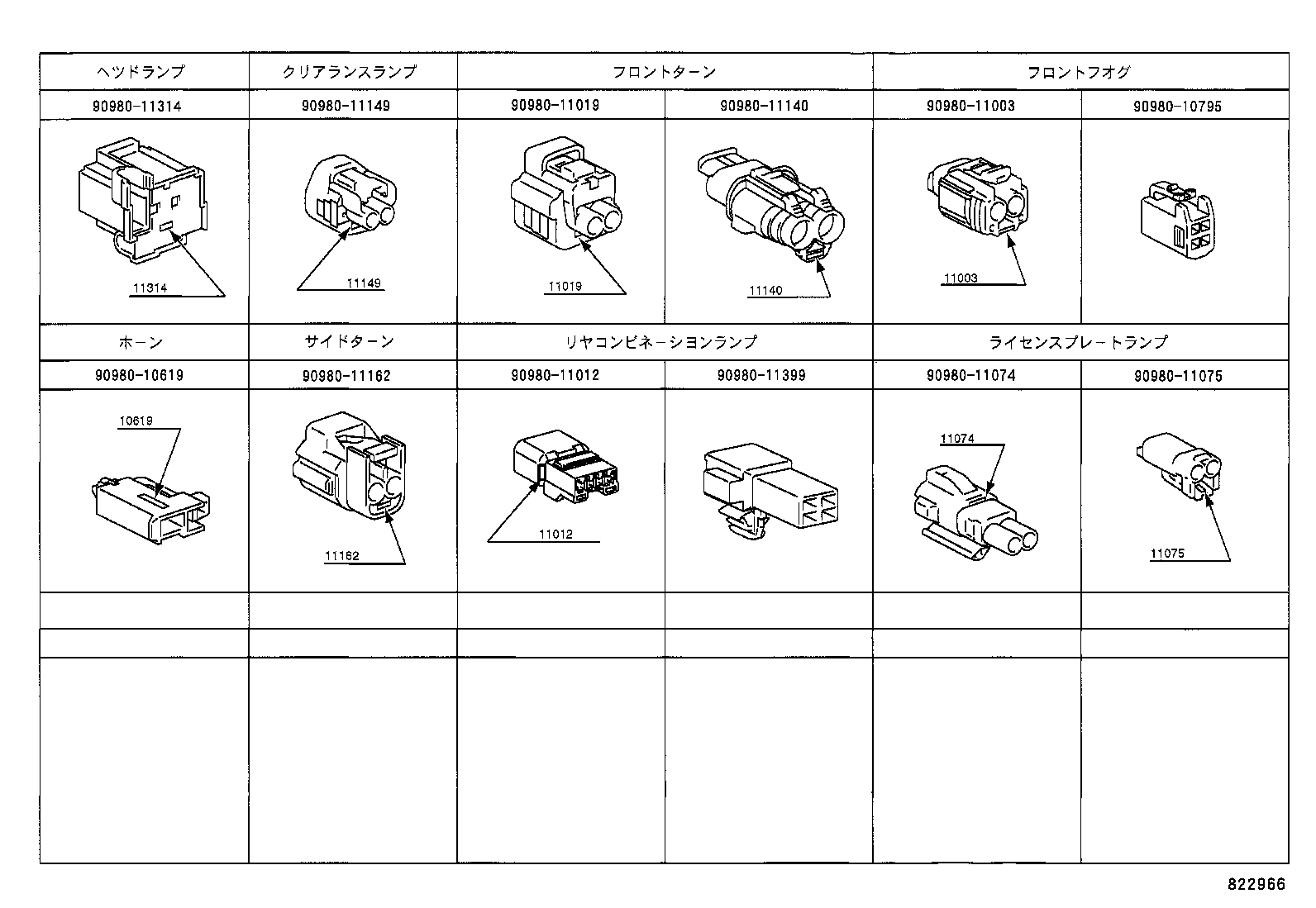

Figure 820541C 820541C 1995-11 → 2000-08 Figure 822336A 822336A 2000-08 → — Figure 822337A 822337A 2000-08 → — Figure 820542D 820542D 1995-11 → 2000-08 Figure 820543G 820543G 1995-11 → — Figure 820544E 820544E 1995-11 → — Figure 822338C 822338C 2000-08 → — Figure 821599D 821599D 1995-11 → — Figure 821613B 821613B 1995-11 → — Figure 821603D 821603D 1995-11 → — Figure 821604E 821604E 1995-11 → — Figure 821605E 821605E 1995-11 → — Figure 821610 821610 1995-11 → — Figure 822966 822966 1995-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82223 Wire, Switch
82261A Wire, Alternator
82284 Wire, Earth
82345 Diode
82666A Holder, Connector NO.2
82821A Cover, Connector
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824G Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
