Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07

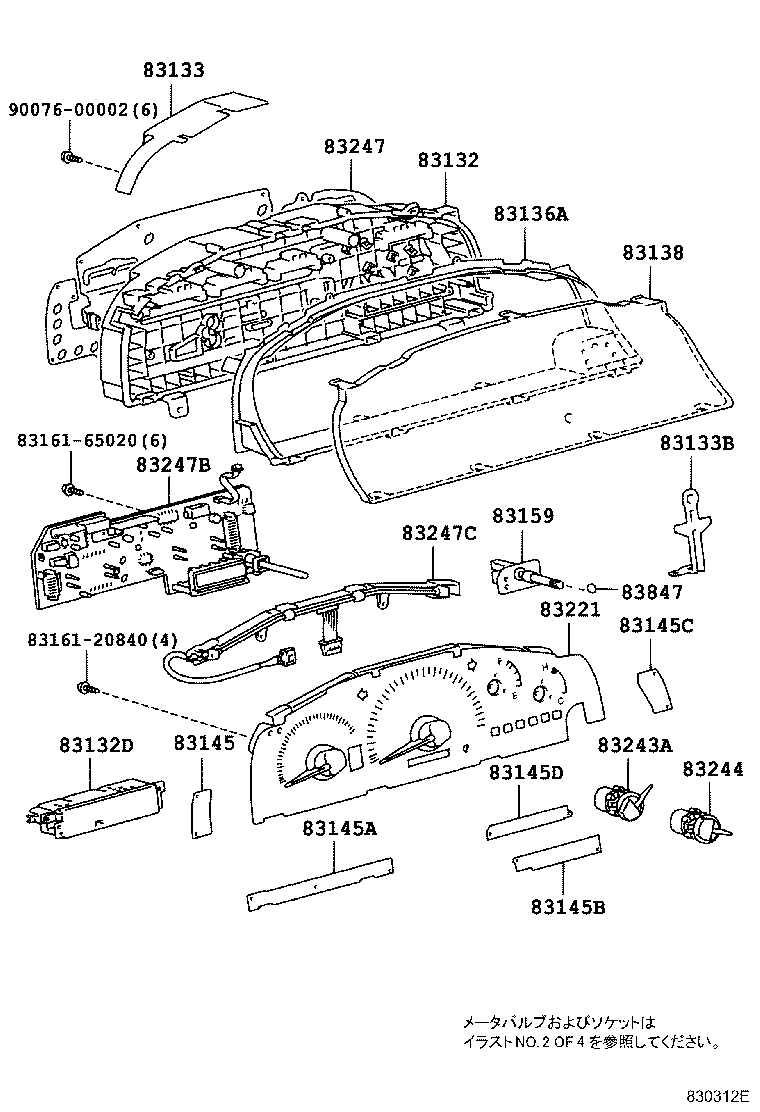

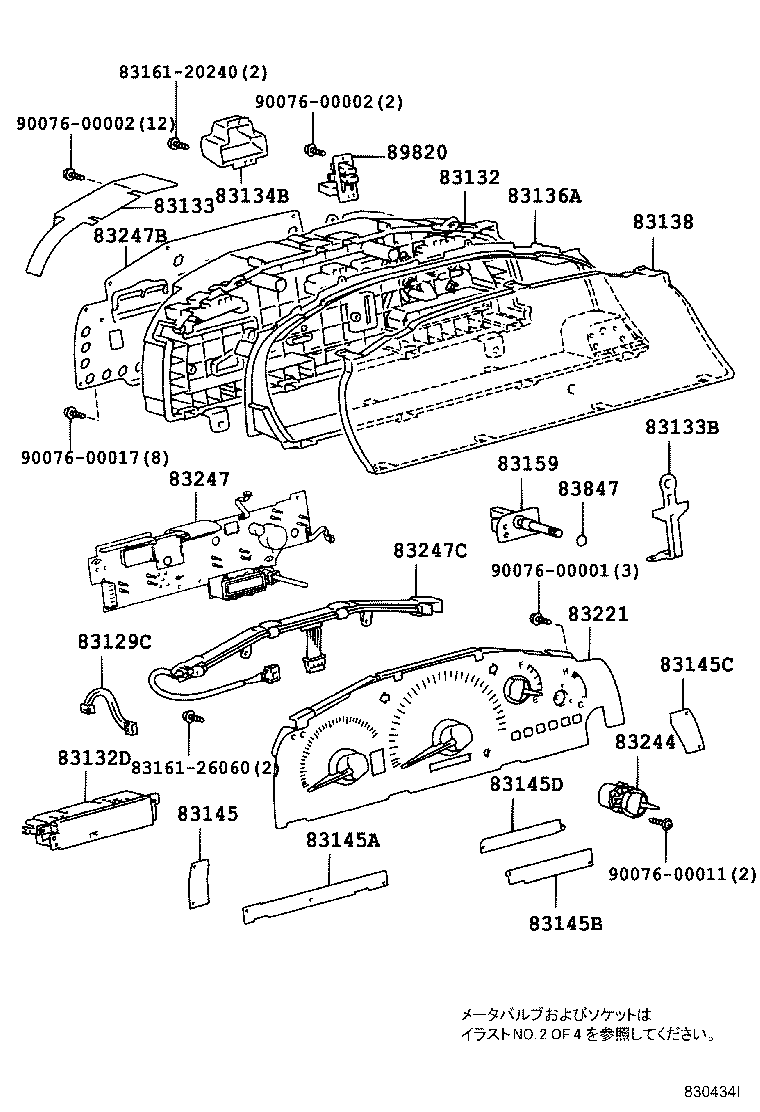

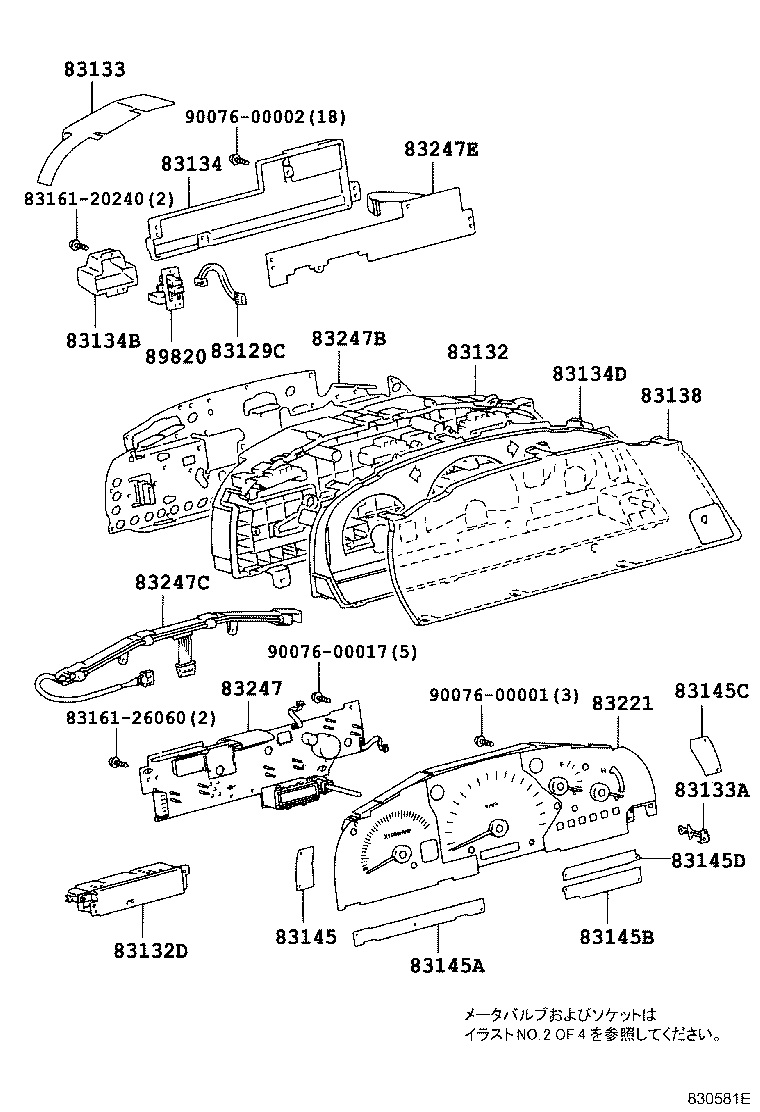

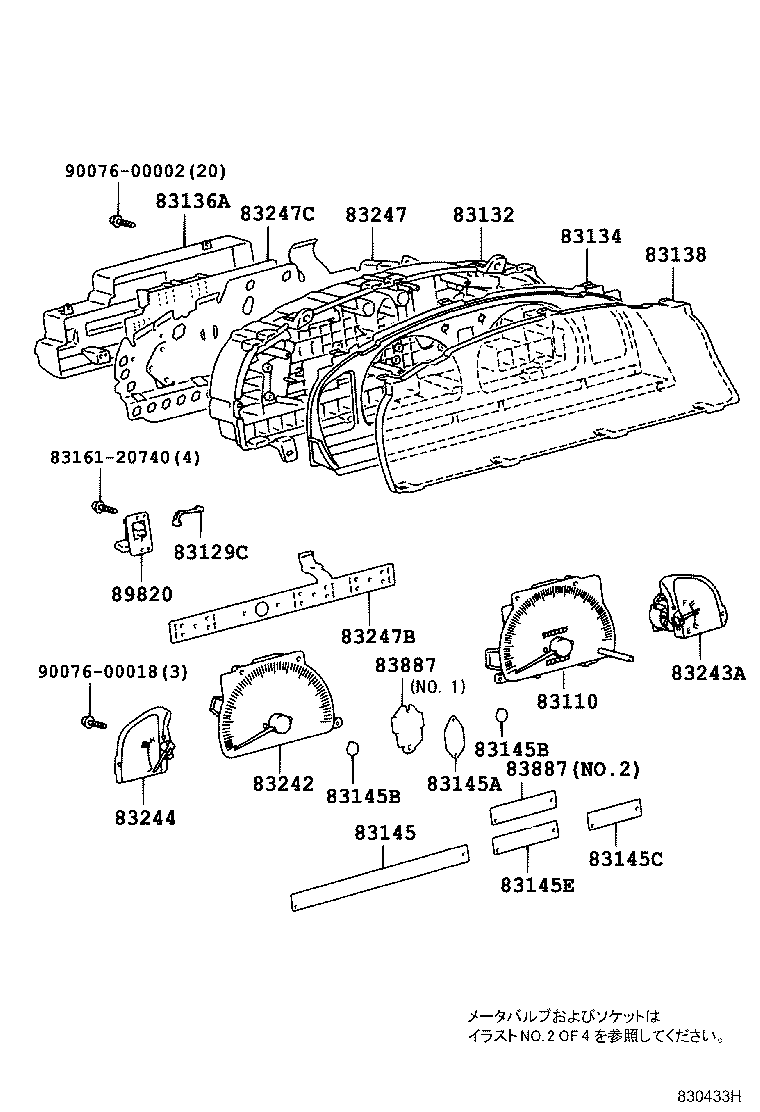

Meter
38 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

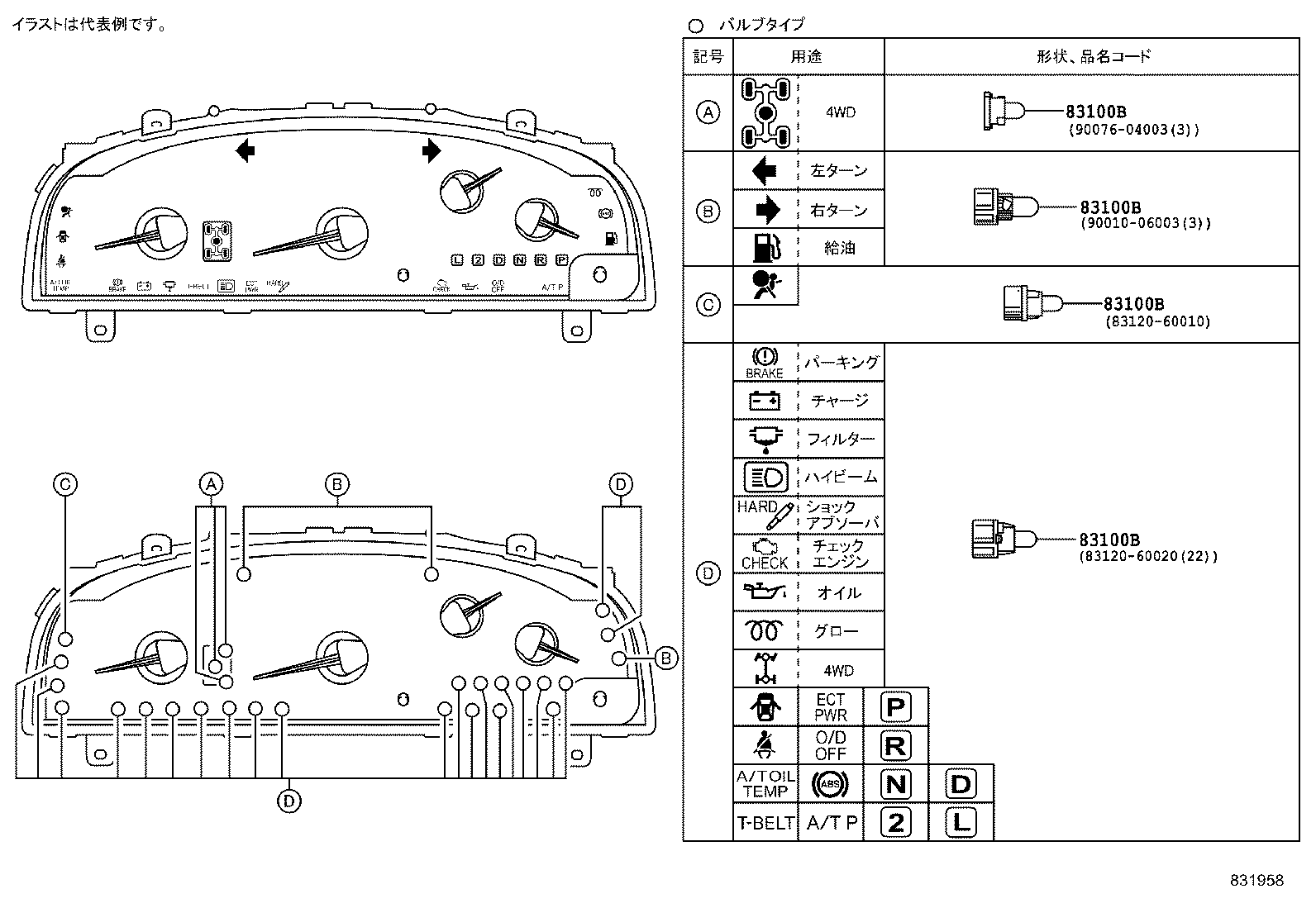

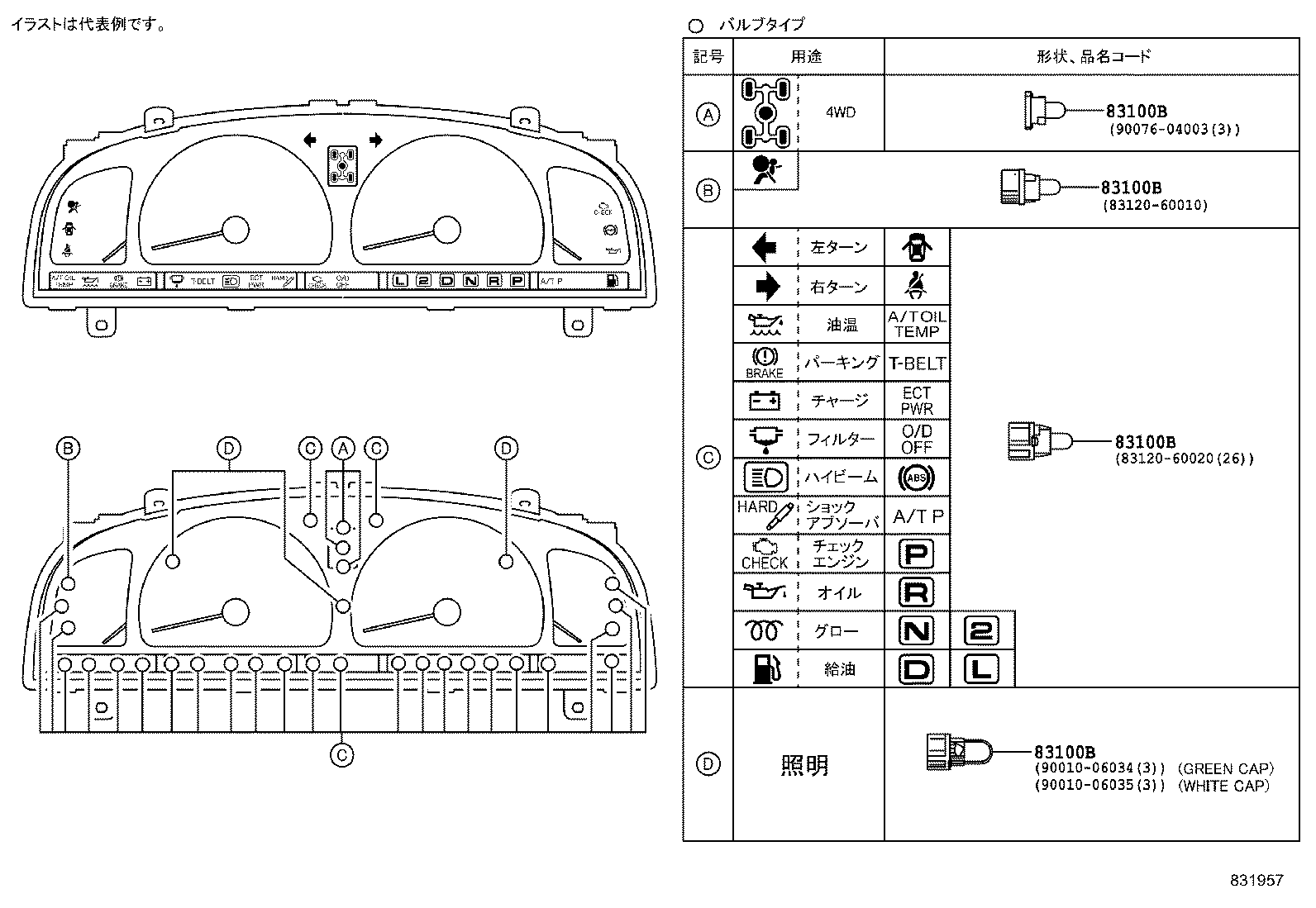

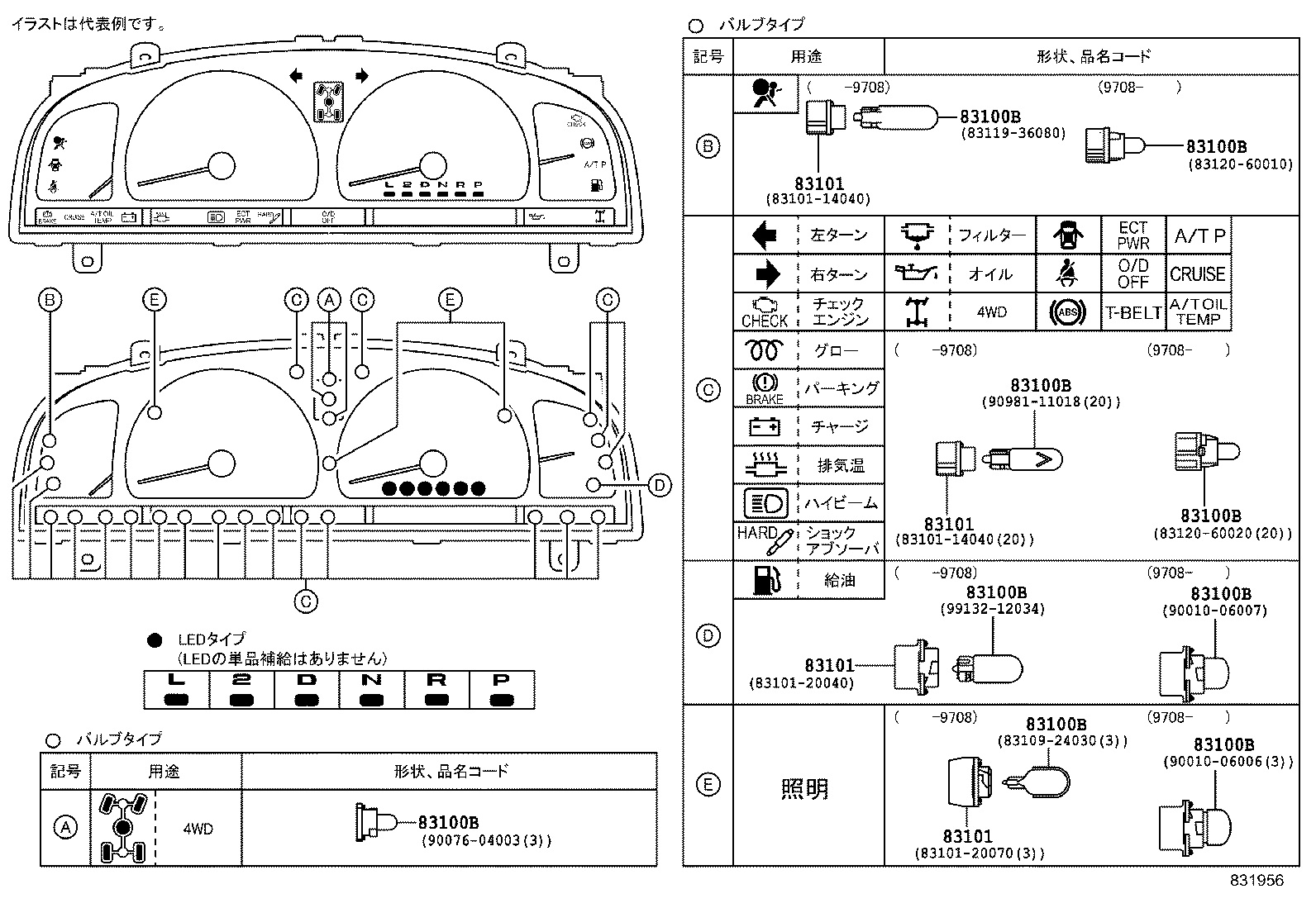

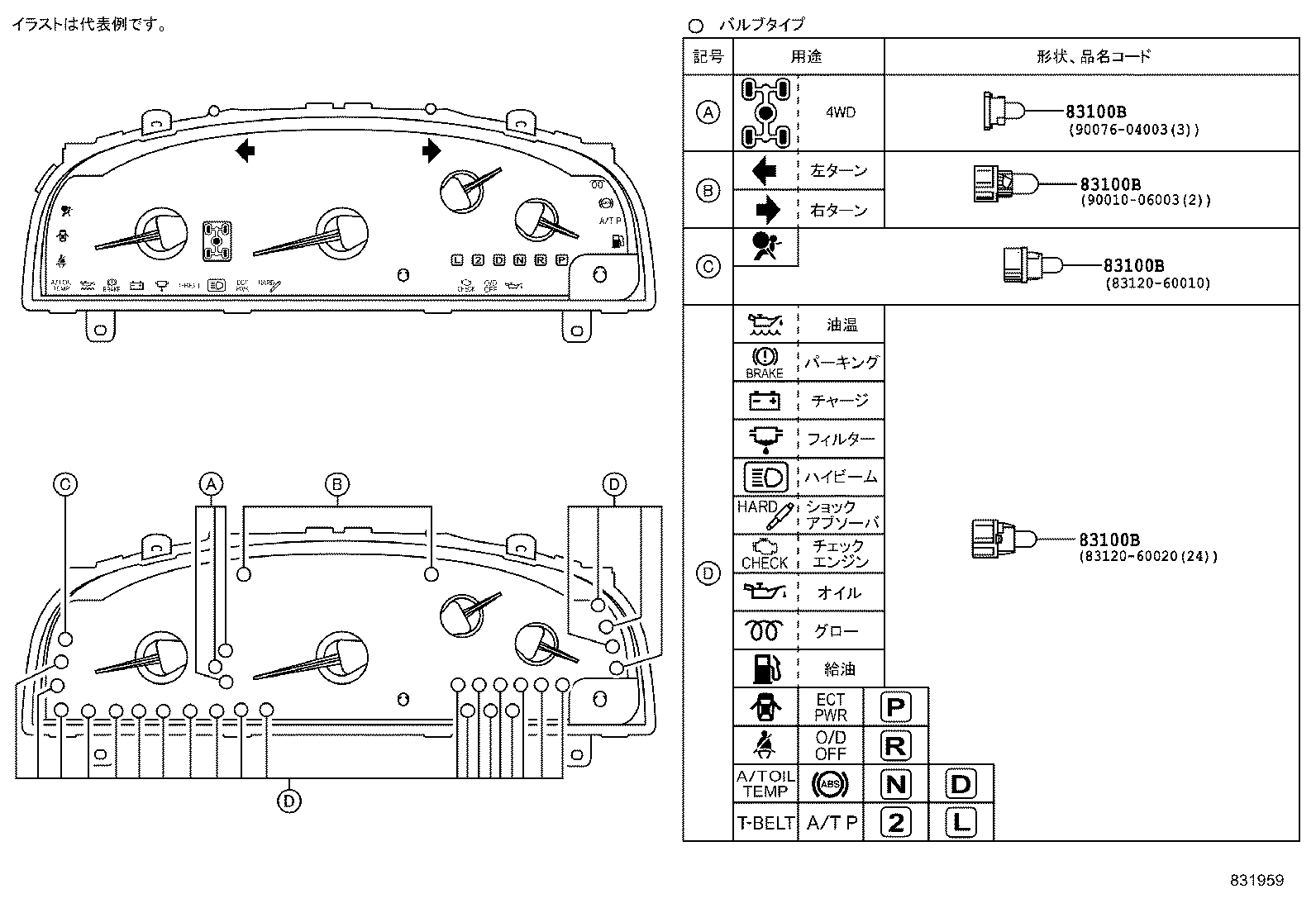

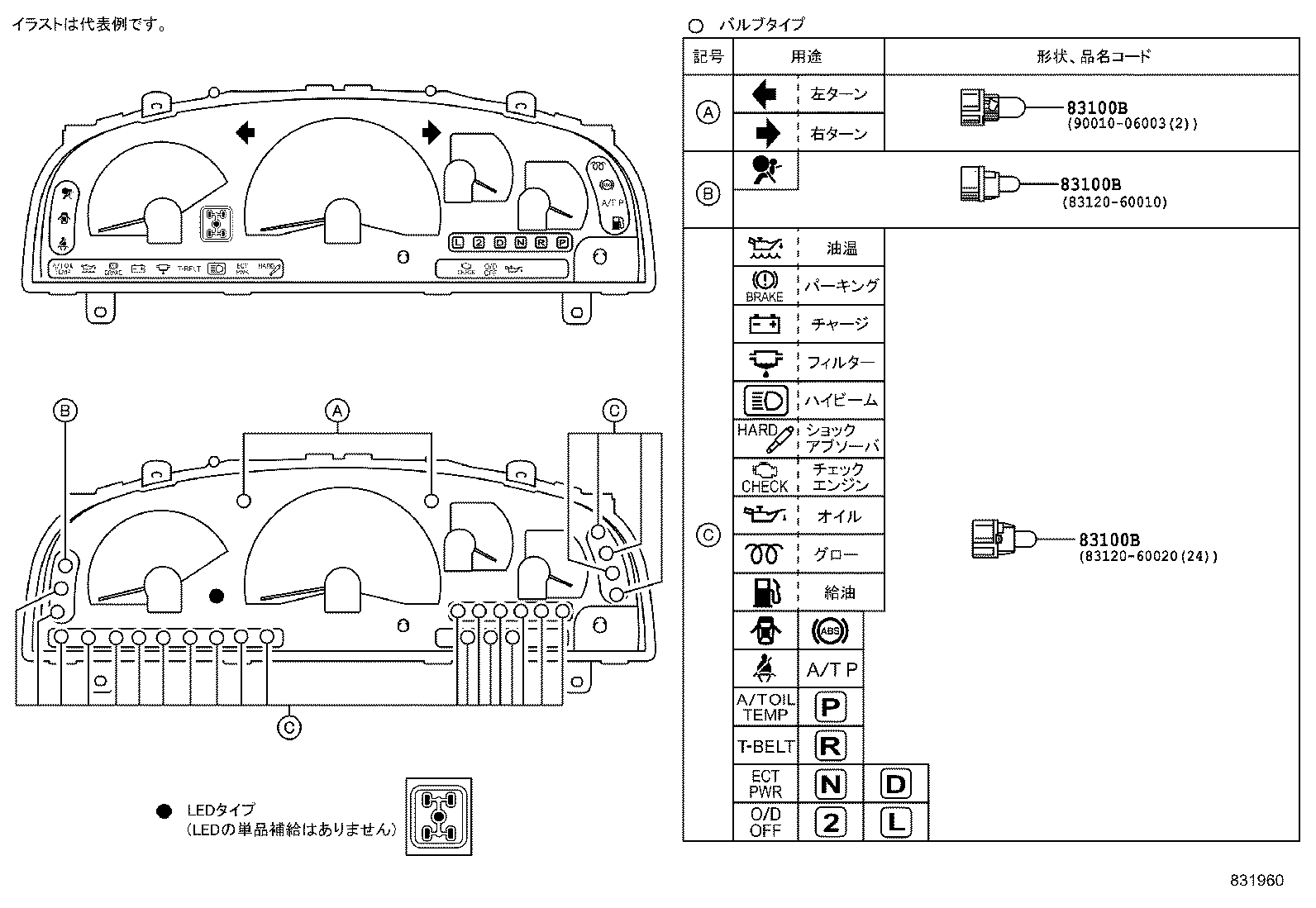

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83129C | Wire, Combination Meter |
| 83132 | Case, Combination Meter |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133B | Plate, Combination Meter, NO.3 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83134D | Cover, Combination Meter, NO.3 |
| 83136A | Cover, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145E | Lens, Meter, NO.6 |
| 83159 | Switch, Meter, NO.1 |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83221 | Meter, Speed |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83247E | Plate, Mater Circuit, NO.4 |
| 83290D | Meter Assy, Accessory |
| 83290E | Bulb, Accessory Meter |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83887 | Plate, Combination Meter Prism, NO.1 |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 89820 | Sensor Assy, Inclination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
