Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07
Switch & Relay & Computer
127 part groups · 12 illustrations
Illustrations
Part groups

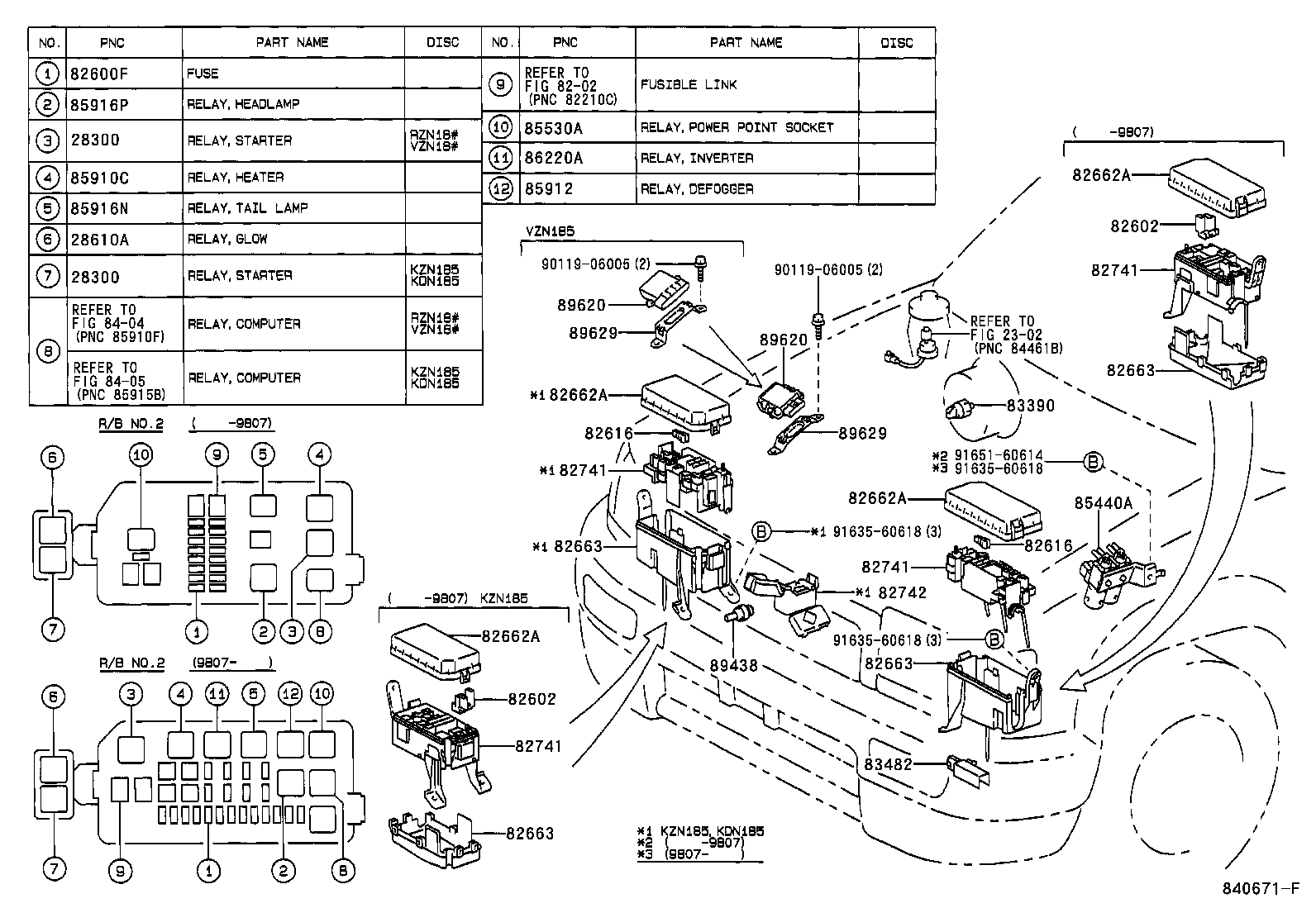

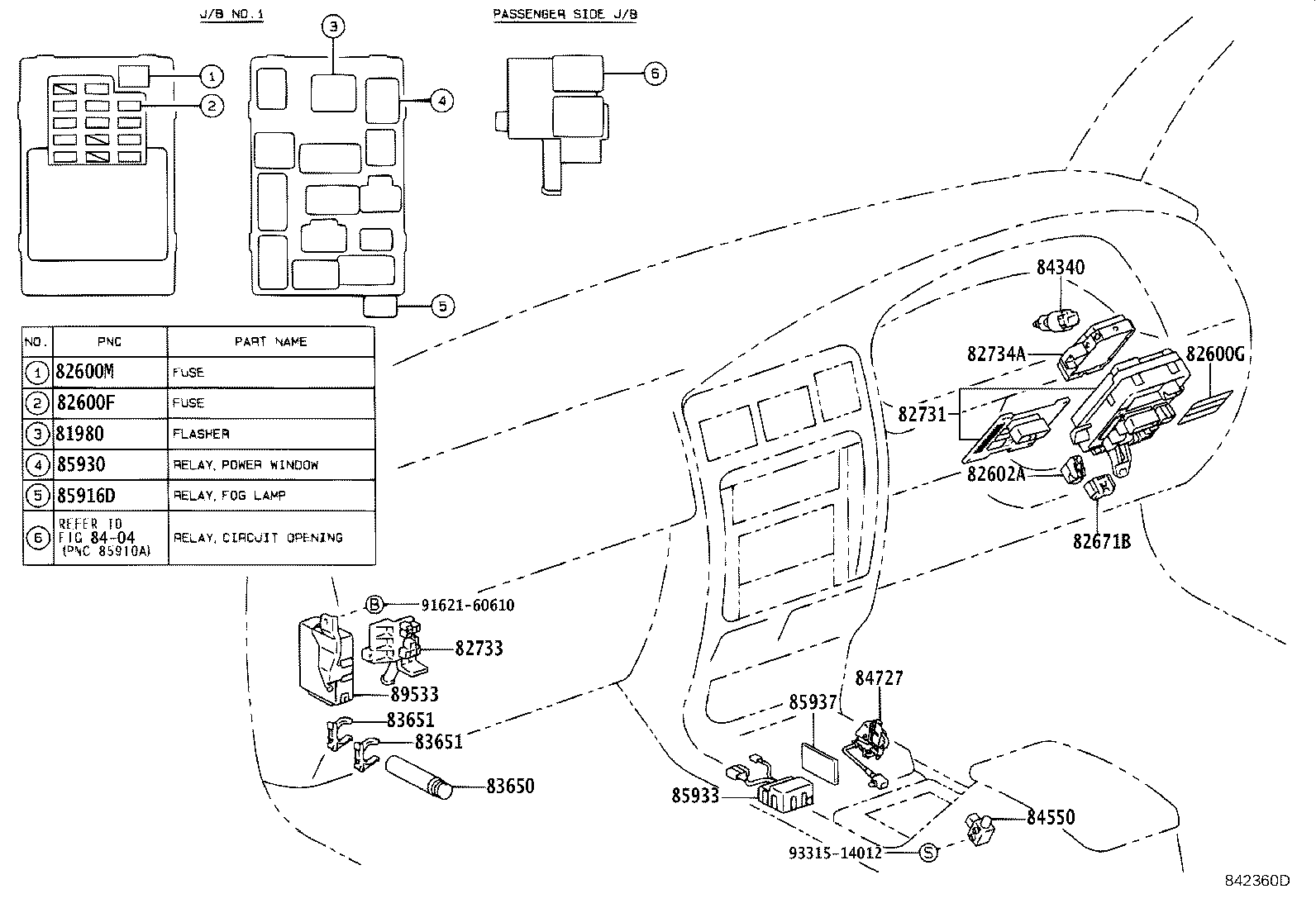

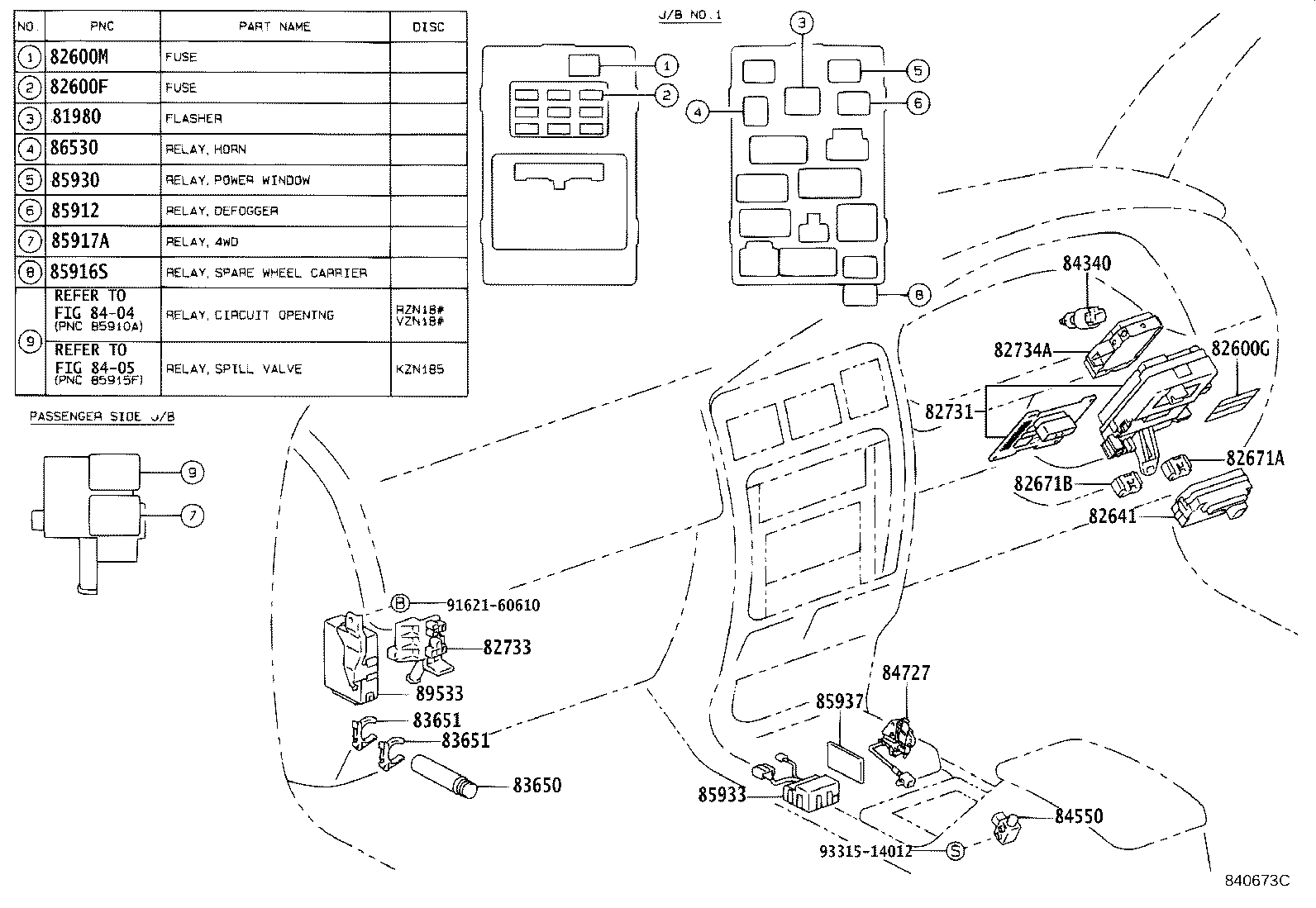

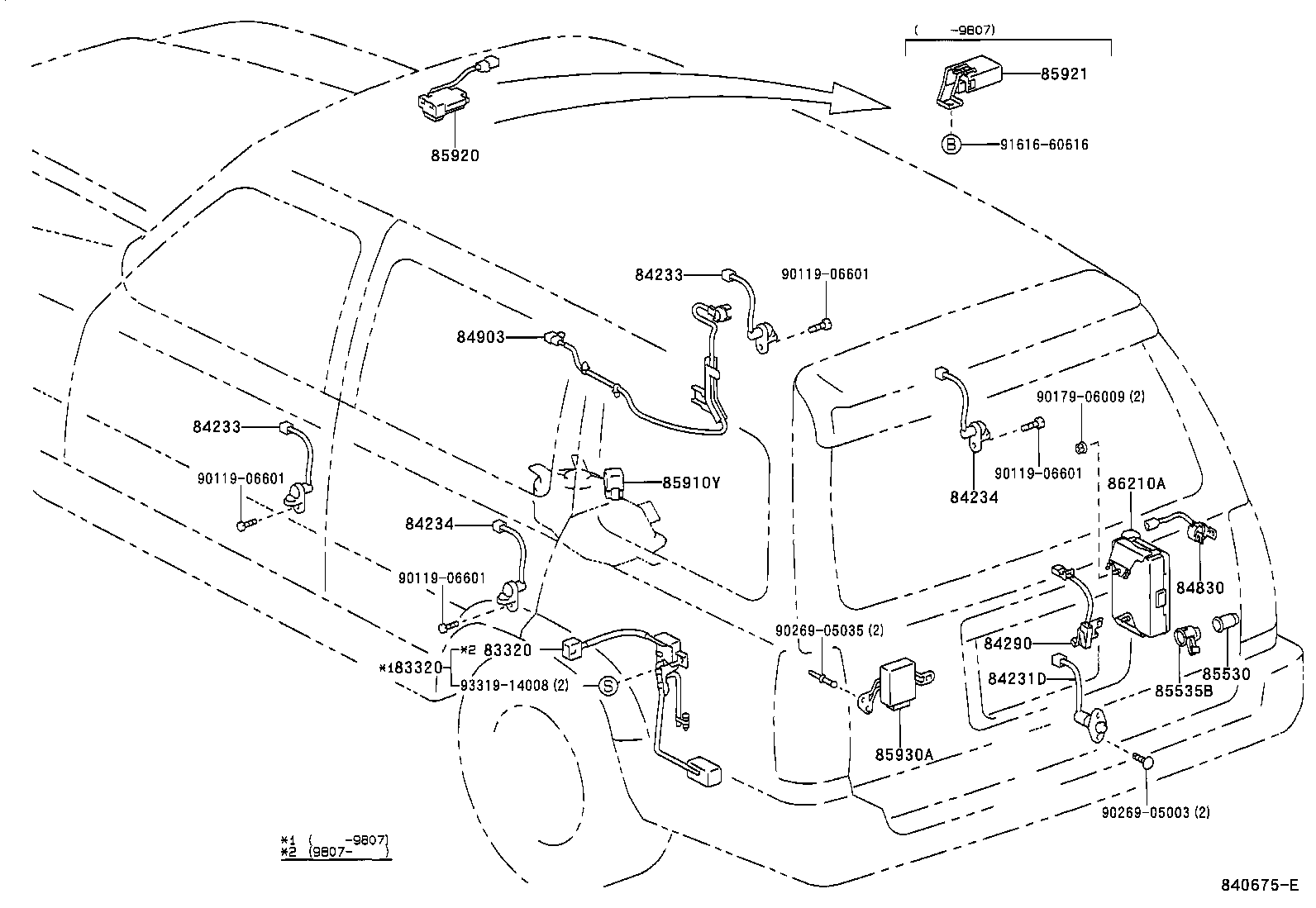

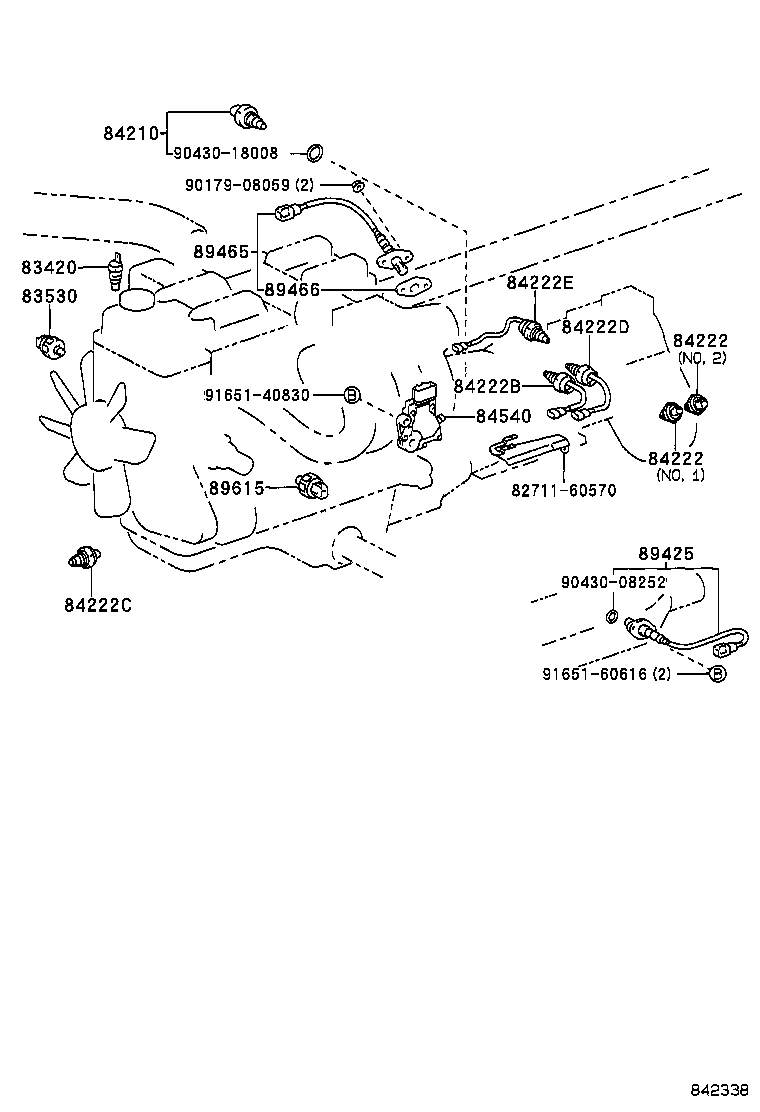

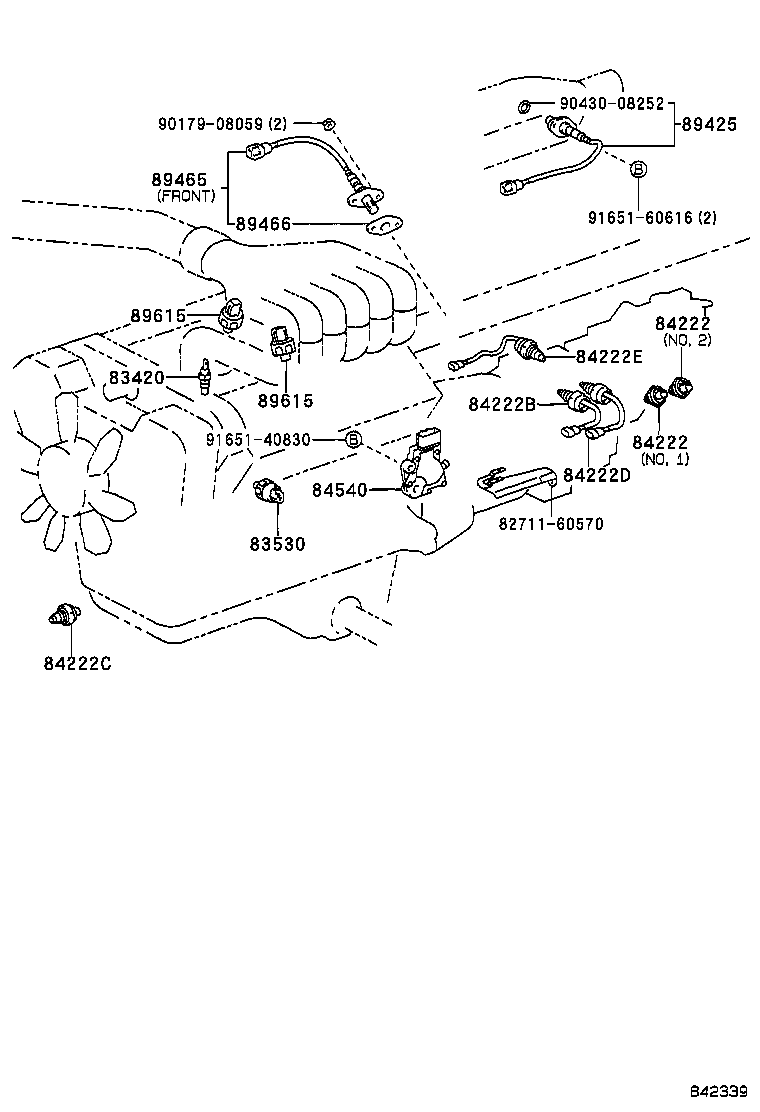

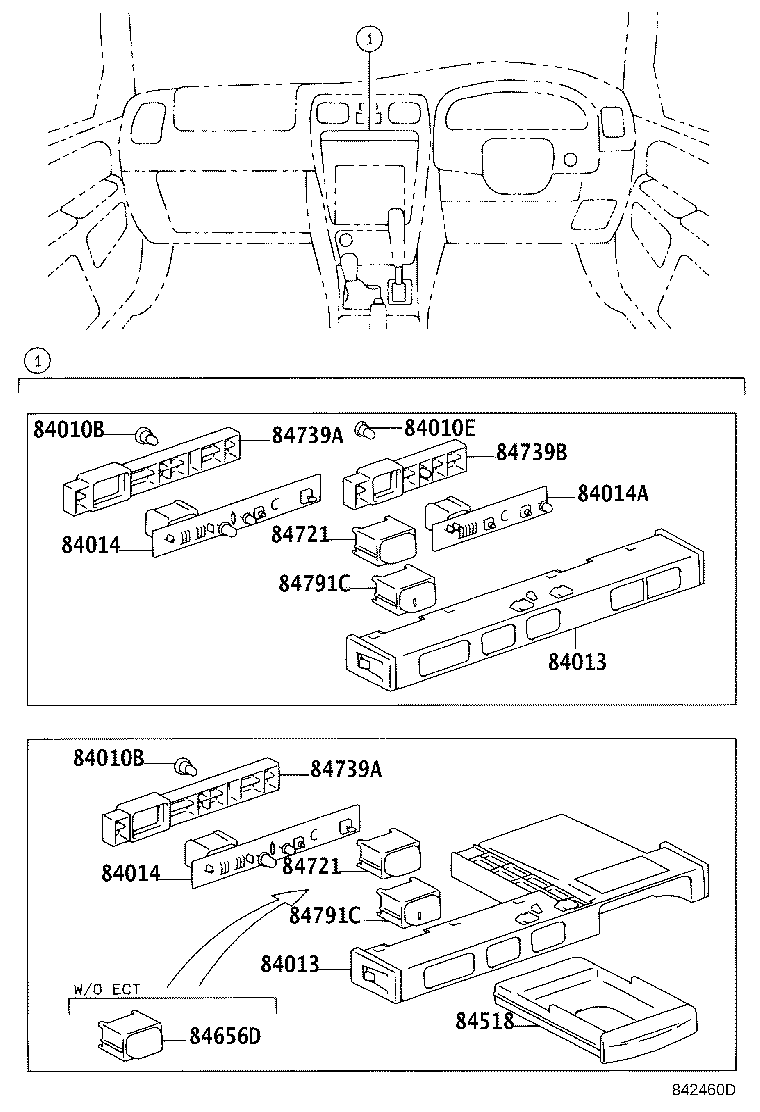

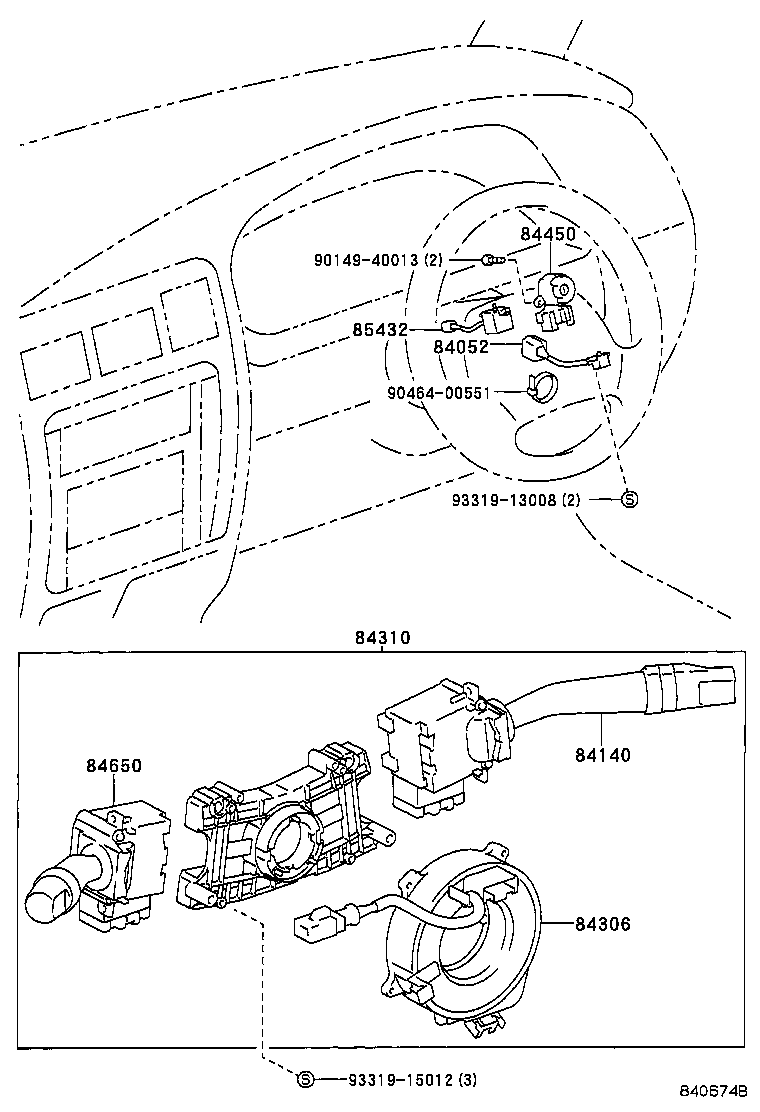

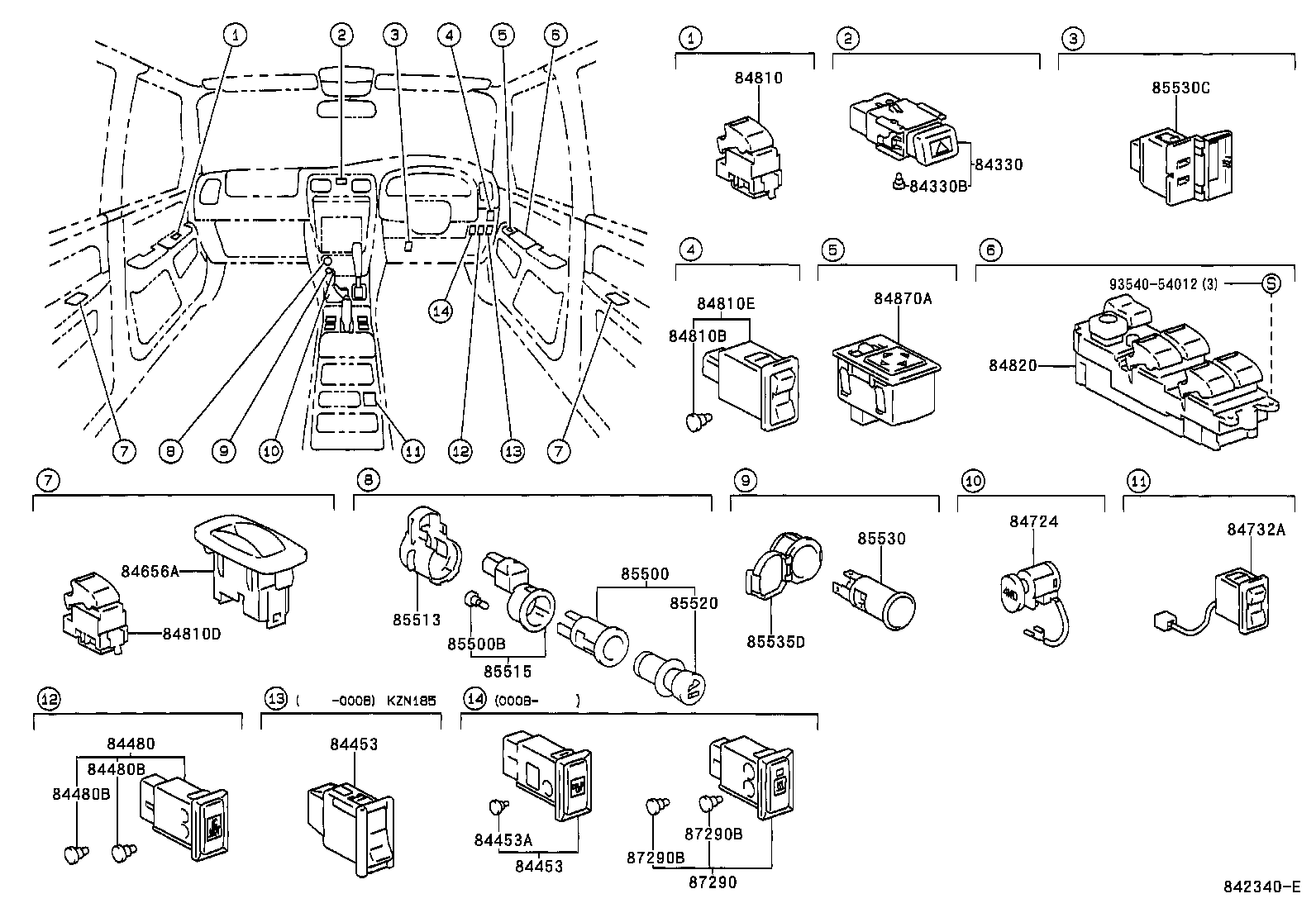

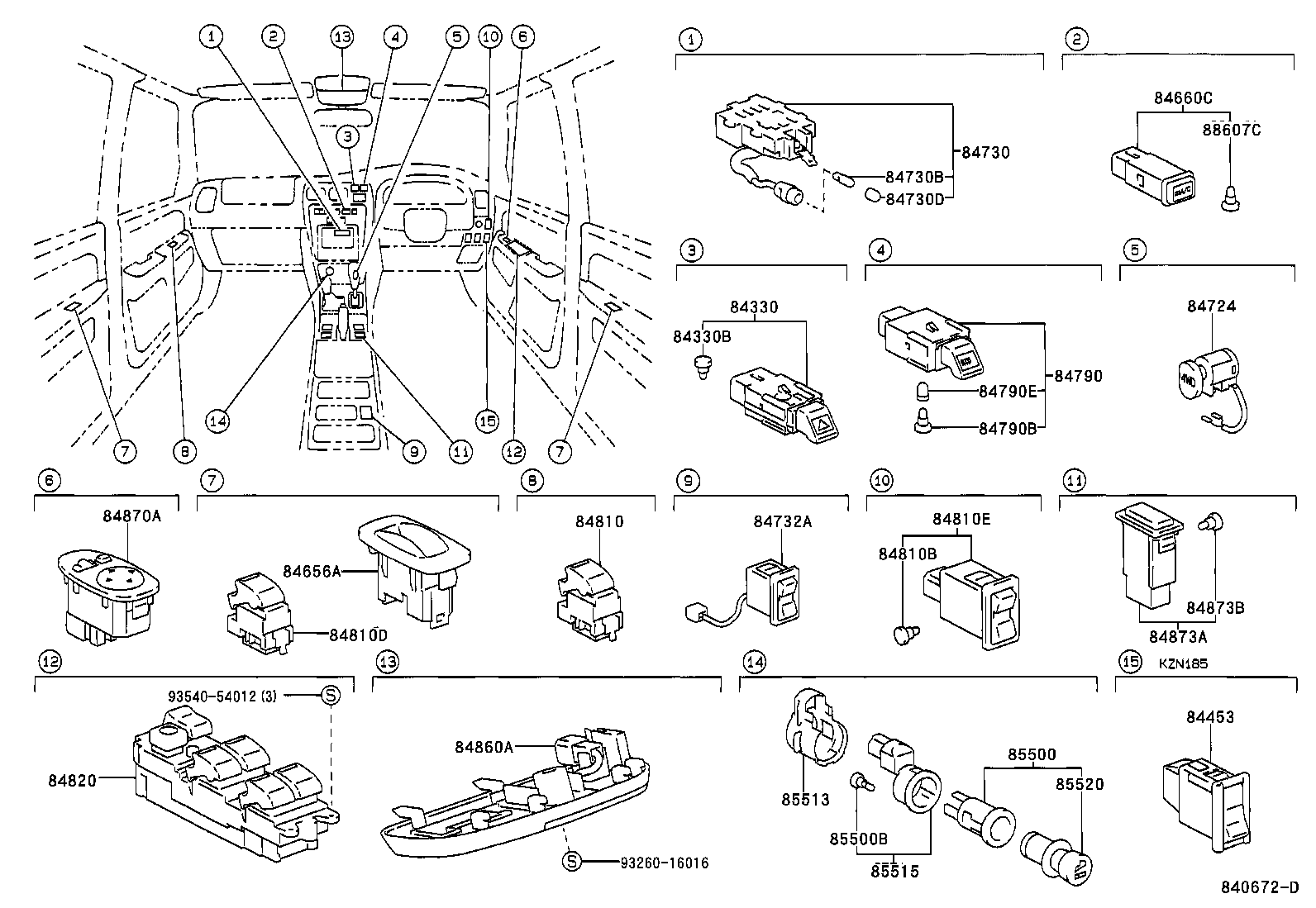

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82602 | Block Sub-assy, Relay |
| 82602A | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82731 | Block, Driver Side Junction |
| 82733 | Block, Passenger Side Junction |
| 82734A | Block, Center Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 84010B | Bulb, Integration Control & Panel |
| 84010E | Blub, Integration Control & Panel |
| 84013 | Panel Sub-assy, Integration |
| 84014 | Board Sub-assy, Printed Wire Integration |
| 84014A | Board Sub-assy, Printed Wire Integration, NO.2 |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84222E | Switch, Differential Lock Indicator |
| 84225A | Switch, Shift Position |
| 84231D | Switch, Courtesy Lamp (FOR TIRE CARRIER) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84290 | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453A | Bulb, Idle UP Switch |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84518 | Holder, Switch Cover |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84656D | Cover, Bezel Switch Hole |
| 84660C | Switch, Cooler |
| 84721 | Knob, Front Drive |
| 84724 | Switch, 4 Wheel Drive Control |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84732A | Switch, Rear Heater Blower |
| 84739A | Retainer, Switch |
| 84739B | Retainer, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84790E | Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84791C | Knob, Defogger Time Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84810B | Bulb (FOR POWER WINDOW REGULATOR SWITCH) |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84810E | Switch Assy, Back Door Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84830 | Switch Assy, Tail Gate Control |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84873A | Switch, Retractable Outer Mirror |
| 84873B | Bulb, Retractable Outer Mirror Switch |
| 84903 | Switch Sub-assy, Door Un-lock |
| 85432 | Solenoid, Key Interlock |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530C | Socket Assy, Power Outlet, Center |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535D | Cover, Power Outlet Socket, Center |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910Y | Relay, Rear Heater |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85916S | Relay, Spare Wheel Carrier |
| 85917A | Relay, Four Wheel Drive Indicator |
| 85920 | Relay & Switch Assy, Sliding Roof |
| 85921 | Relay, Sliding Roof Control |
| 85930 | Relay Assy, Power Window |
| 85930A | Relay Assy, Power Window, NO.1 |
| 85933 | Computer, Shift Lock Control |
| 85937 | Protector, Shift Lock Control |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 87290 | Switch Assy, Heater |
| 87290B | Bulb (FOR HEATER SWITCH) |
| 88607C | Lamp Sub-assy, Indicator |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
