Factory parts data · Europe

Toyota Hilux Surf

1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

3 part groups · 2 illustrations

Illustrations

Figure 840683A

840683A 1995-11 → 1998-07

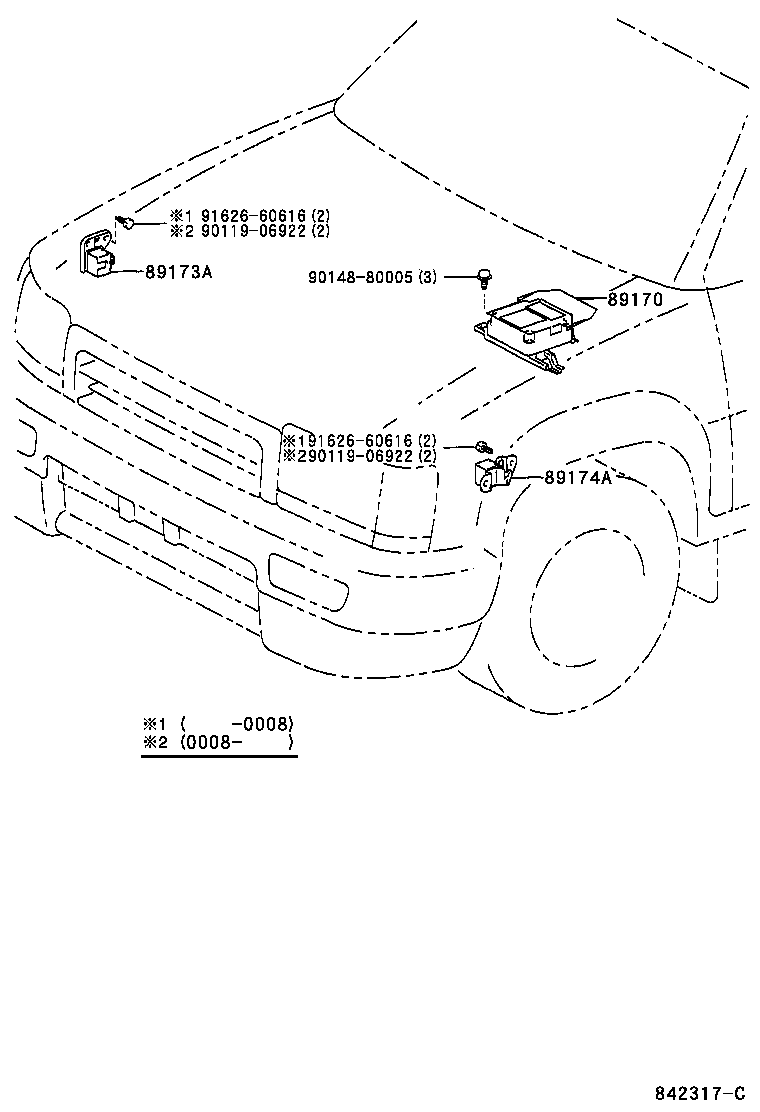

Figure 842317C

842317C 1998-07 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
