Toyota Hilux Surf
1995-11 → 2002-11 · chassis KDN185,KZN185,RZN18#,VZN18# · catalogue 671160 · Japan
Discontinued model
Data version 2003-07
Mirror
15 part groups · 4 illustrations
Part groups

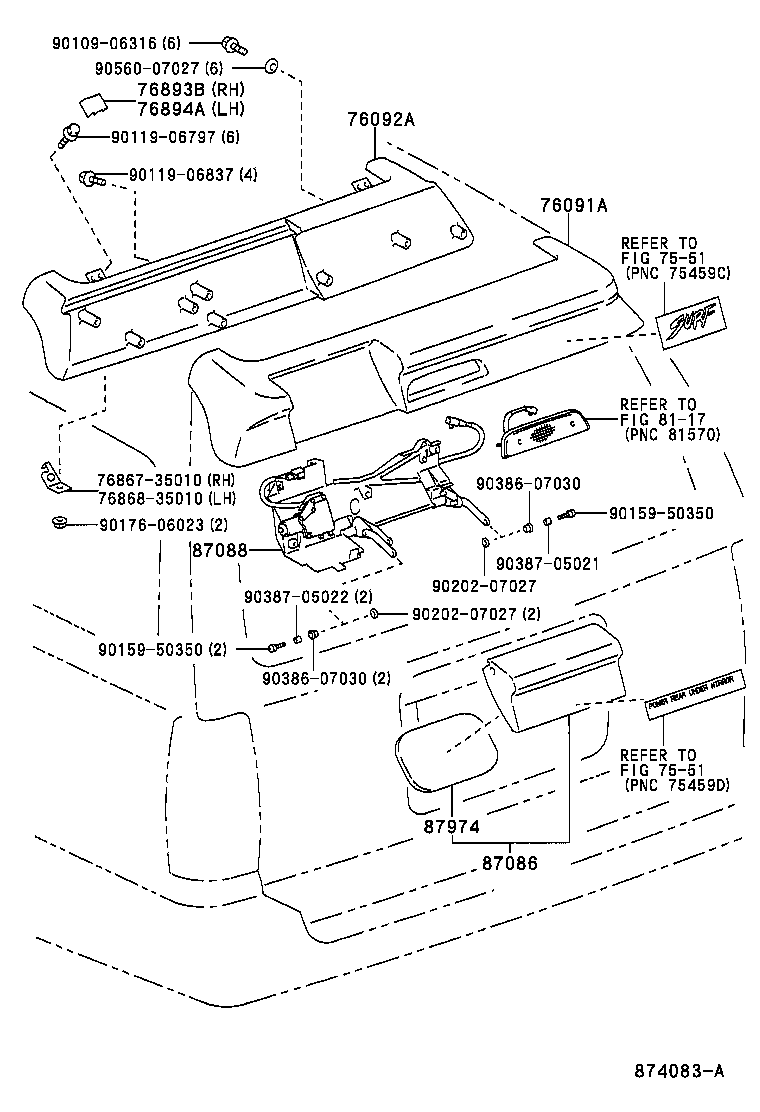

| PNC | Description |
|---|---|
| 76091A | Deflector Sub-assy, RR Upr |
| 76092A | Deflector Sub-assy, RR Lwr |
| 76893B | Cover, Rear Deflector Stay, RH |
| 76894A | Cover, Rear Deflector Stay, LH |
| 81261A | Lens And Cover, Map Lamp |
| 87086 | Mirror Sub-assy, Outer Under RR View |
| 87088 | Arm Sub-assy, Outer Under Rear View Mirror |
| 87810 | Mirror Assy, Inner Rear View |
| 87907B | Device Sub-assy,Front Fender Side View,LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87944 | Cover, Front Fender Side View Device, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87974 | Mirror, Outer Under RR View |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
