Toyota Hilux Surf

2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 5 illustrations

Illustrations

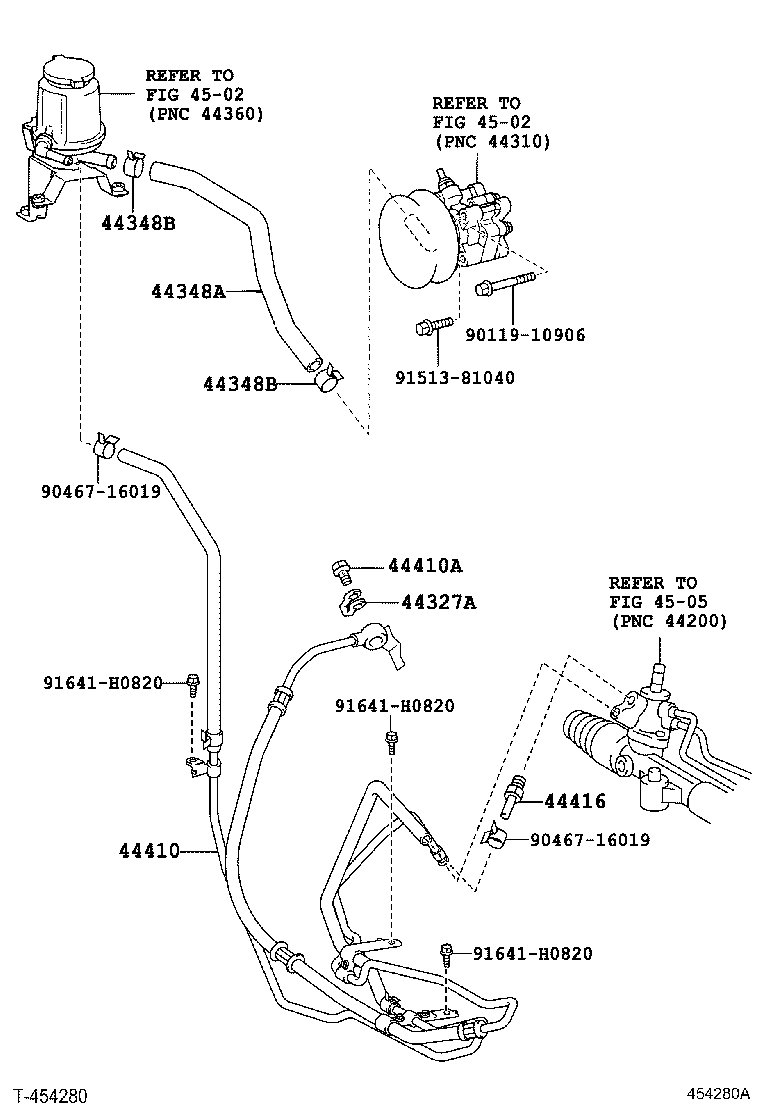

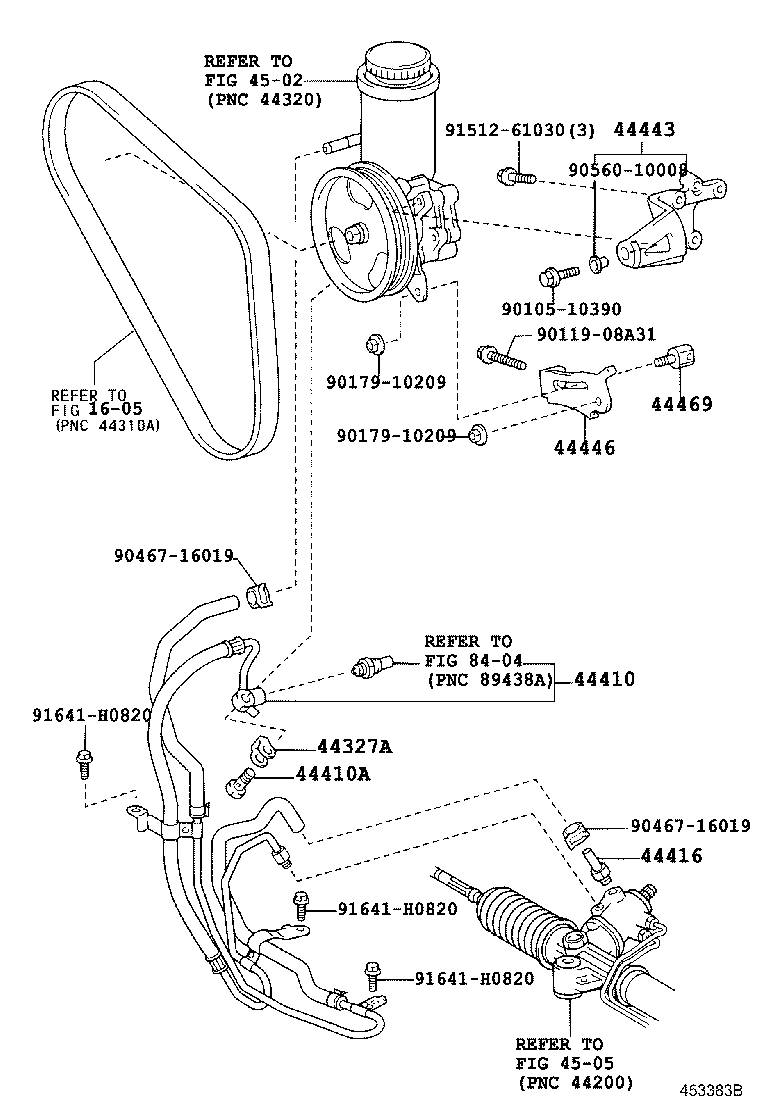

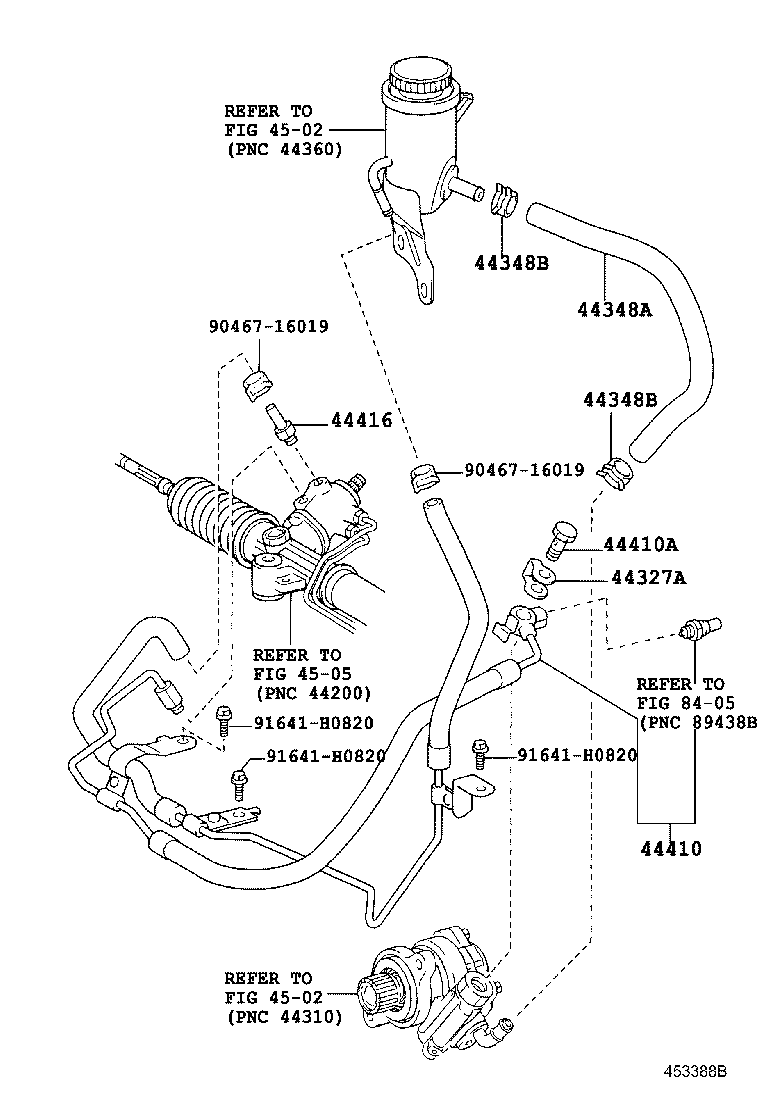

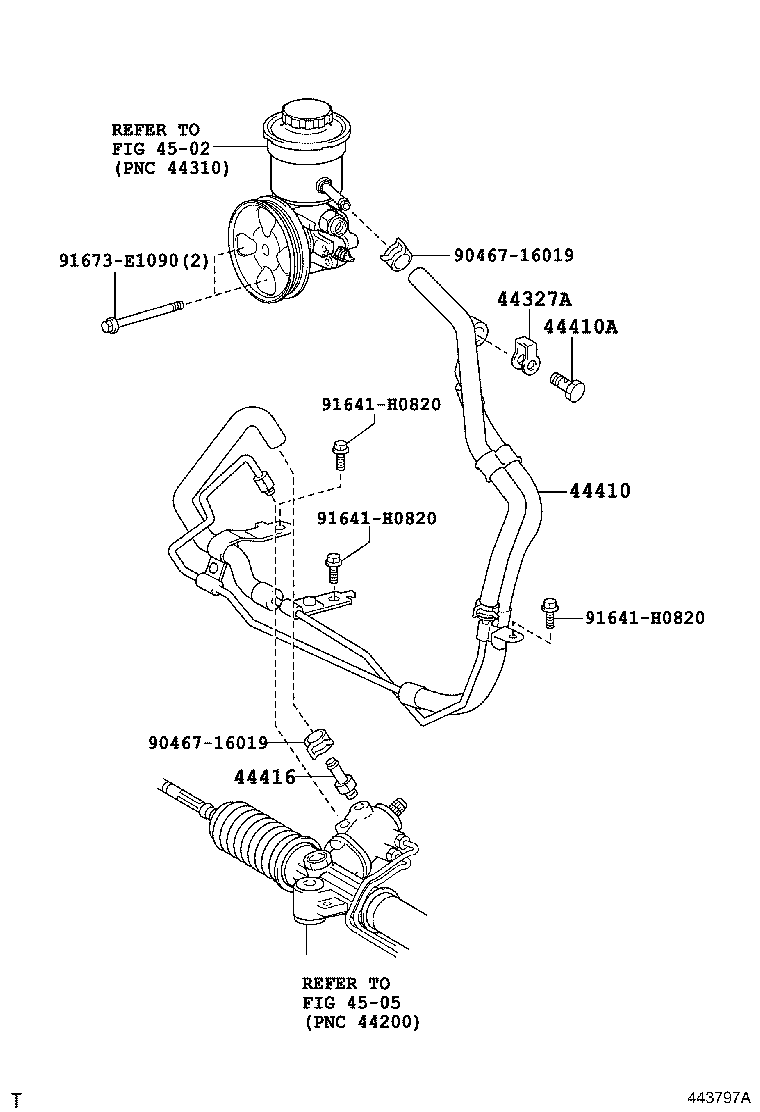

Figure 453382B 453382B 2002-11 → 2004-08 Figure 453388B 453388B 2002-11 → 2005-08 Figure 453383B 453383B 2002-11 → 2005-08 Figure 453797A 453797A 2004-08 → — Figure 454280A 454280A 2005-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44446 Strut, Adjusting
44469 Slider, Power Steering Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
