Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

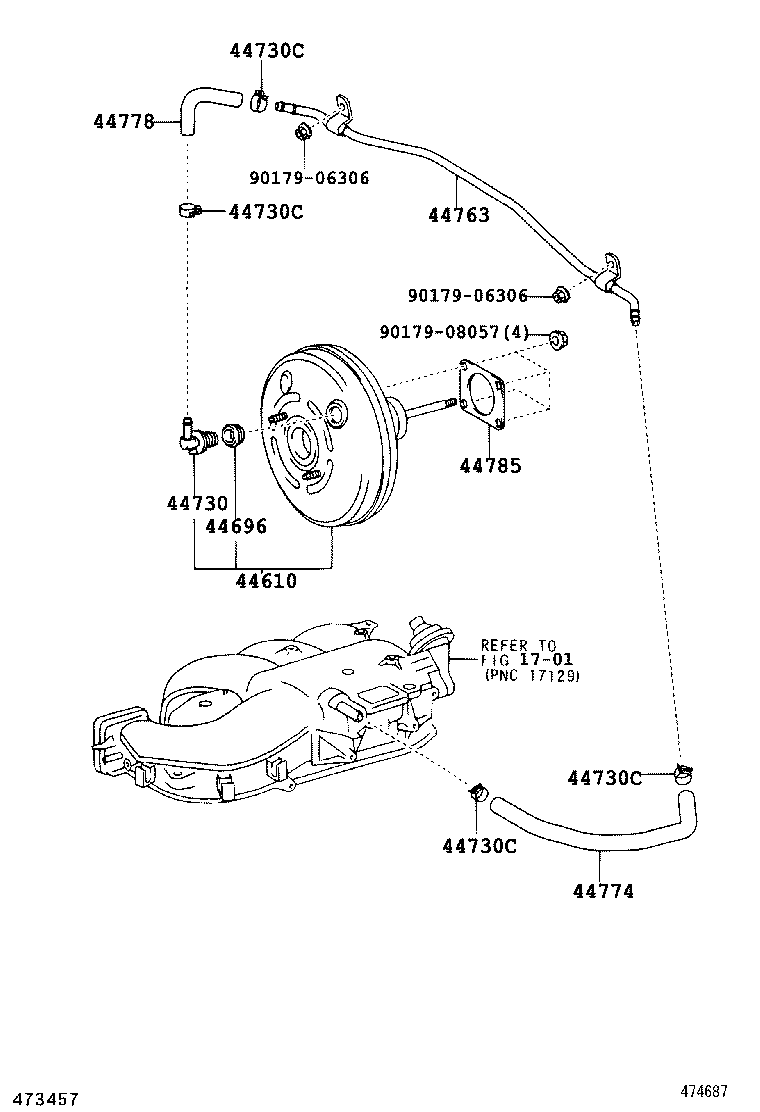

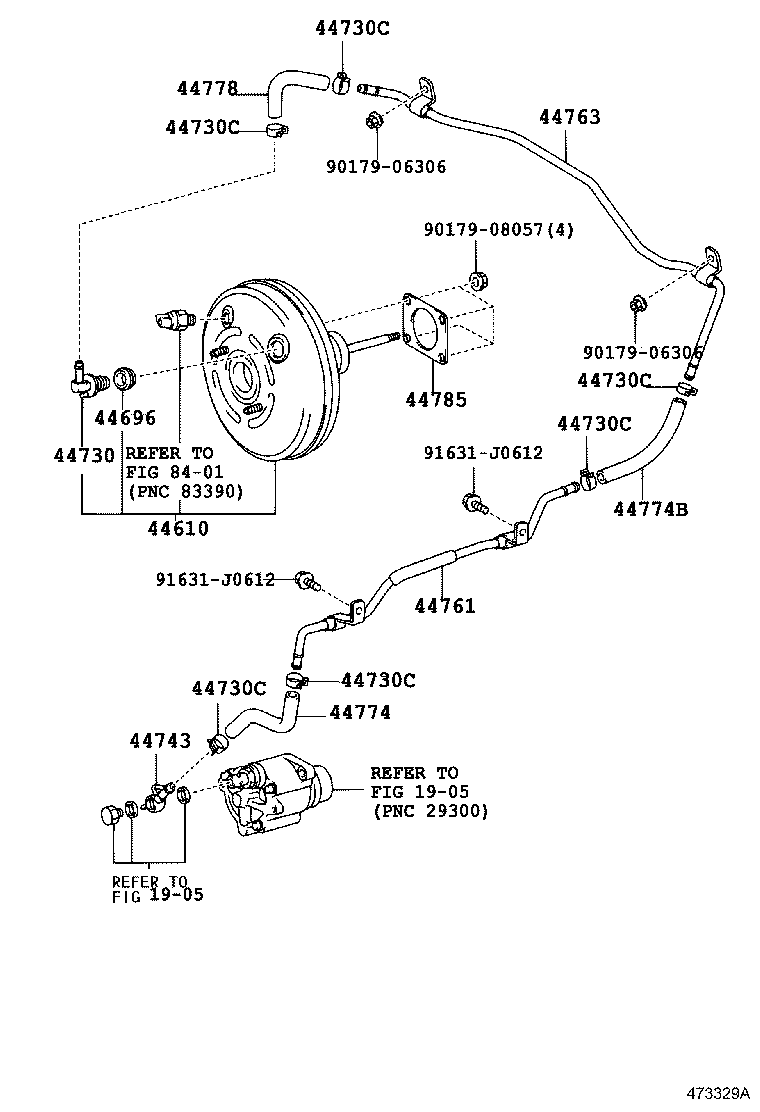

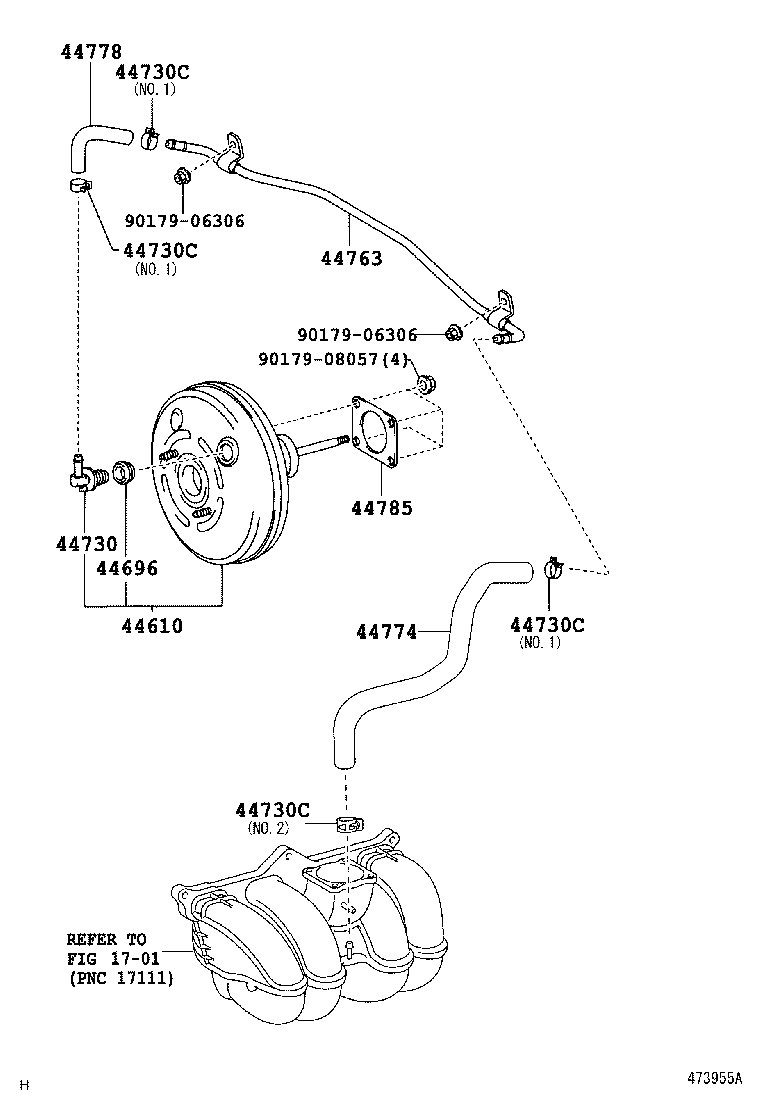

Brake Booster & Vacuum Tube
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44743 | Union(FOR VACUUM PUMP) |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44763 | Tube, Booster Vacuum |
| 44774 | Hose, Union TO Connector Tube |
| 44774B | Hose, Union TO Connector Tube |
| 44778 | Hose, Connector TO Check Valve |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
