Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01
Rear Spring & Shock Absorber

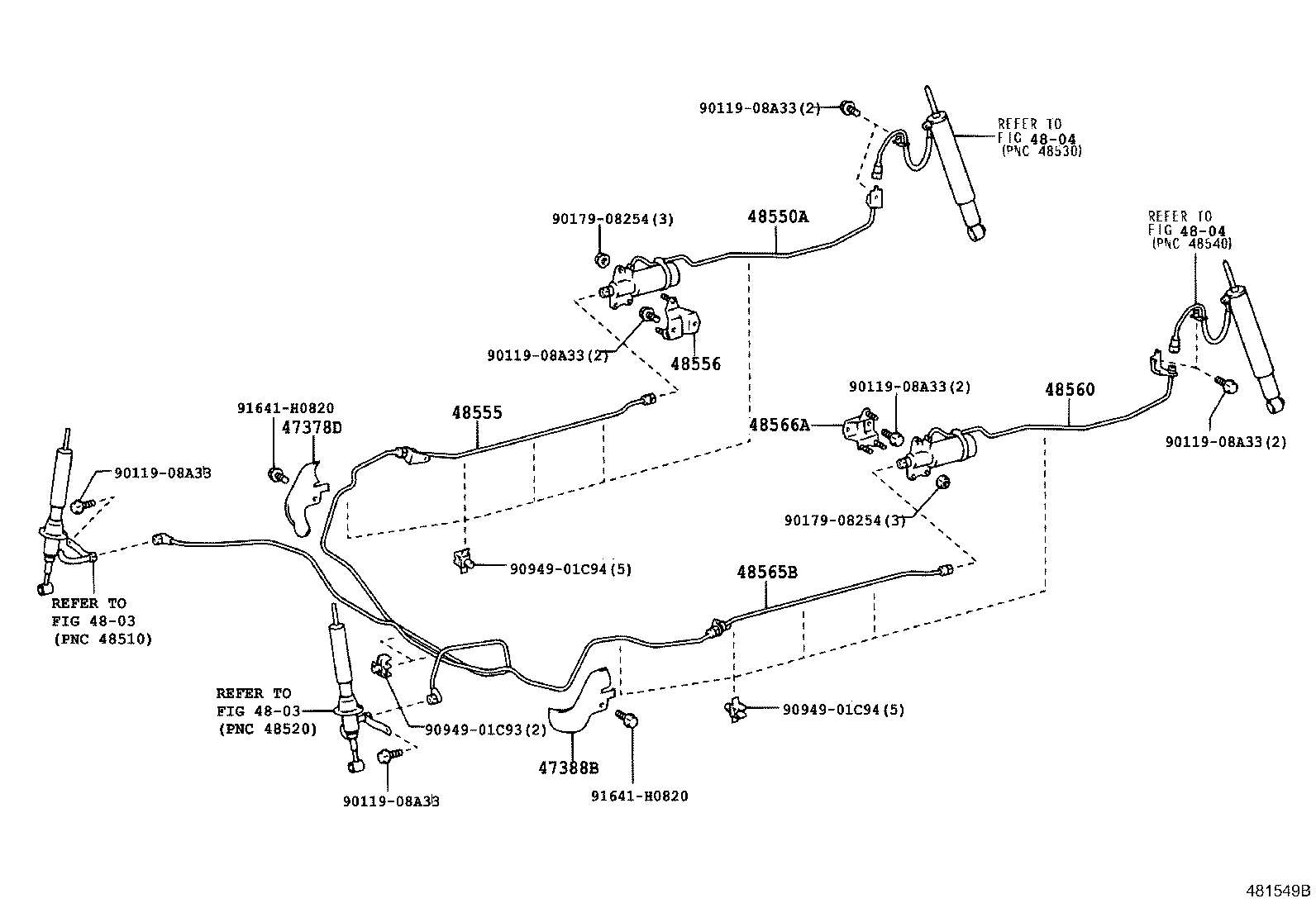

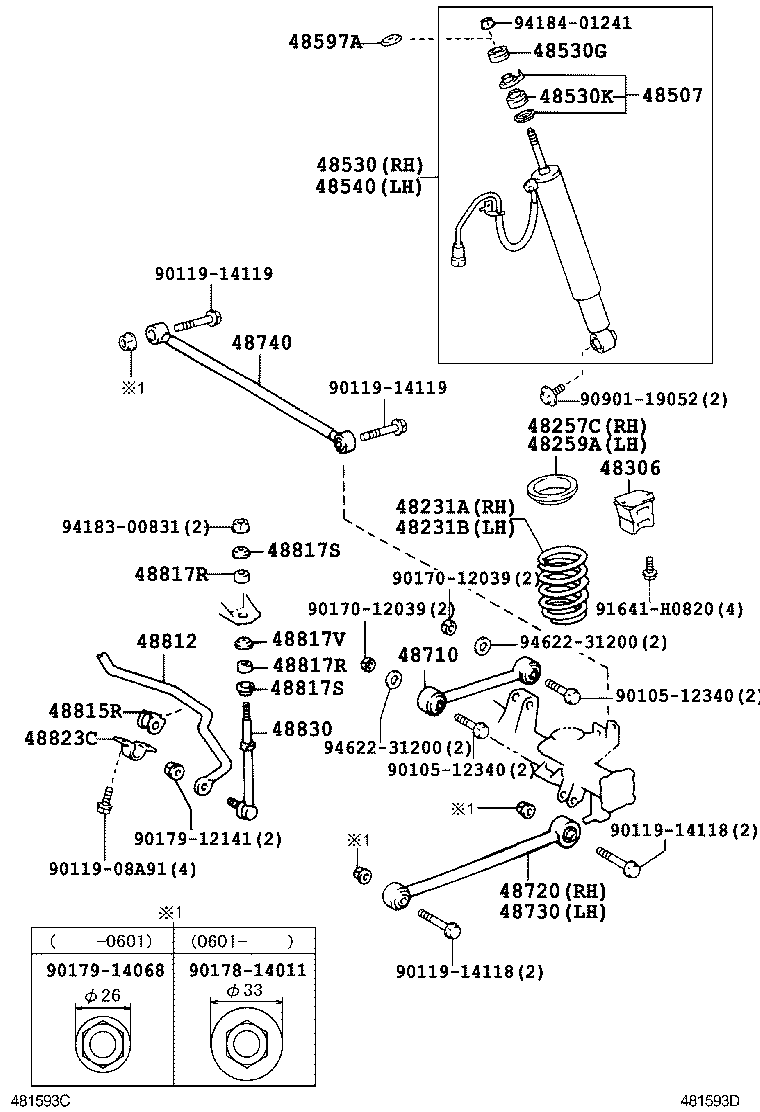

30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47378D | Protector, Tube, RH |
| 47388B | Protector, Tube, LH |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48257C | Insulator, Rear Coil Spring, Upper RH |
| 48259A | Insulator, Rear Coil Spring, Upper LH |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48507 | Bracket Sub-assy, Rear Shock Absorber, Lwr |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530G | Cushion, Rear Shock Absorber, NO.1 |
| 48530K | Cushion, Rear Shock Absorber, NO.2 |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48550A | Absorber Assy, Center Control, RH |
| 48555 | Tube, Center Control Absorber, RH |
| 48556 | Bracket, Center Control Absorber, RH |
| 48560 | Absorber Assy, Center Control, LH |
| 48565B | Tube, Center Control Absorber, LH |
| 48566A | Bracket, Center Control Absorber, LH |
| 48597A | Retainer, Rear Shock Absorber Cushion |
| 48710 | Arm Assy, Upper Control |
| 48720 | Arm Assy, Lower Control, RH |
| 48730 | Arm Assy, Lower Control, LH |
| 48740 | Rod Assy, Rear Lateral Control |
| 48812 | Bar, Stabilizer, Rear |
| 48815R | Bush, Stabilizer(FOR REAR) |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48817S | Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR) |
| 48817V | Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR) |
| 48823C | Cover, Rear Stabilizer Bracket |
| 48830 | Link Assy, Rear Stabilizer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
