Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

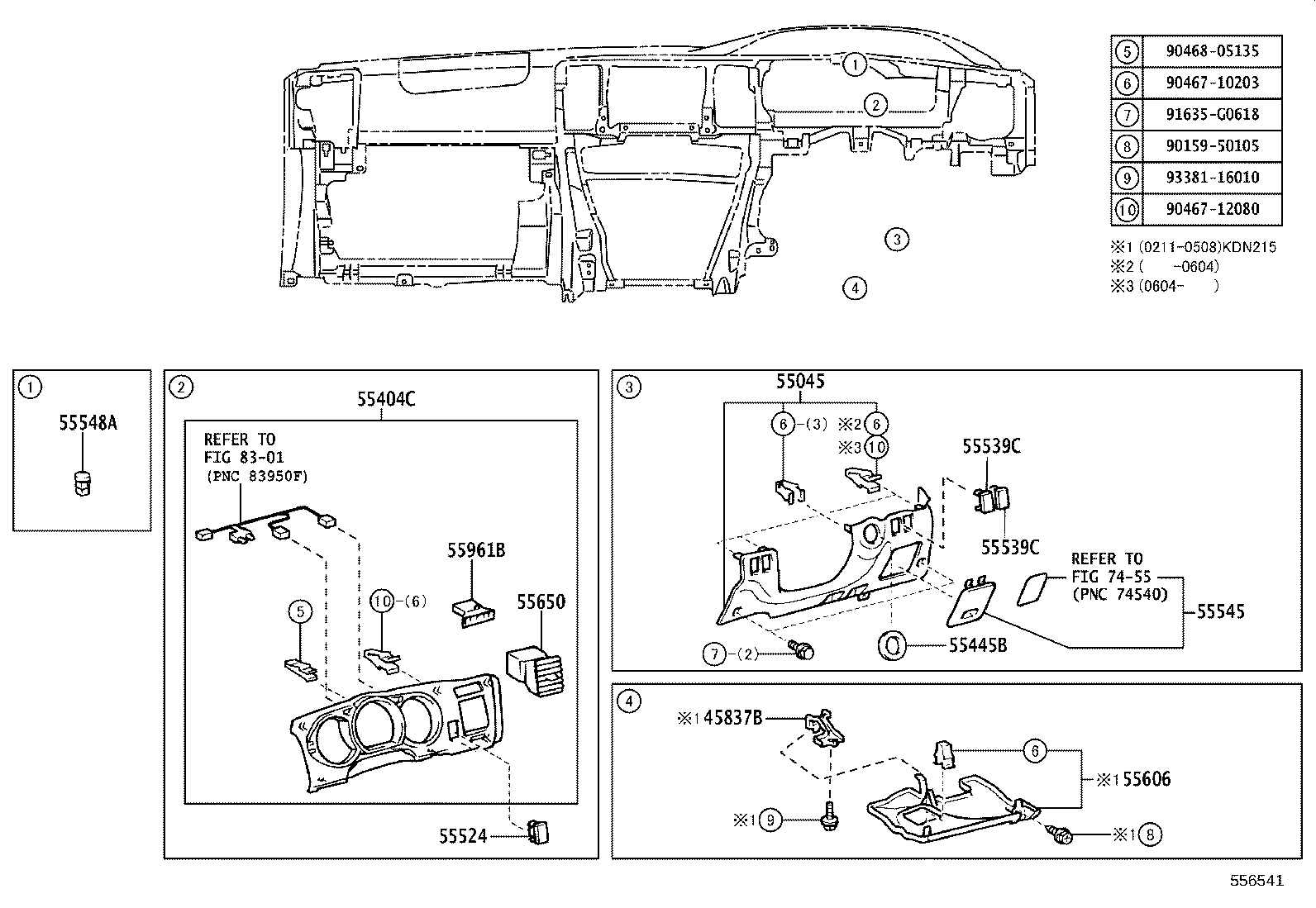

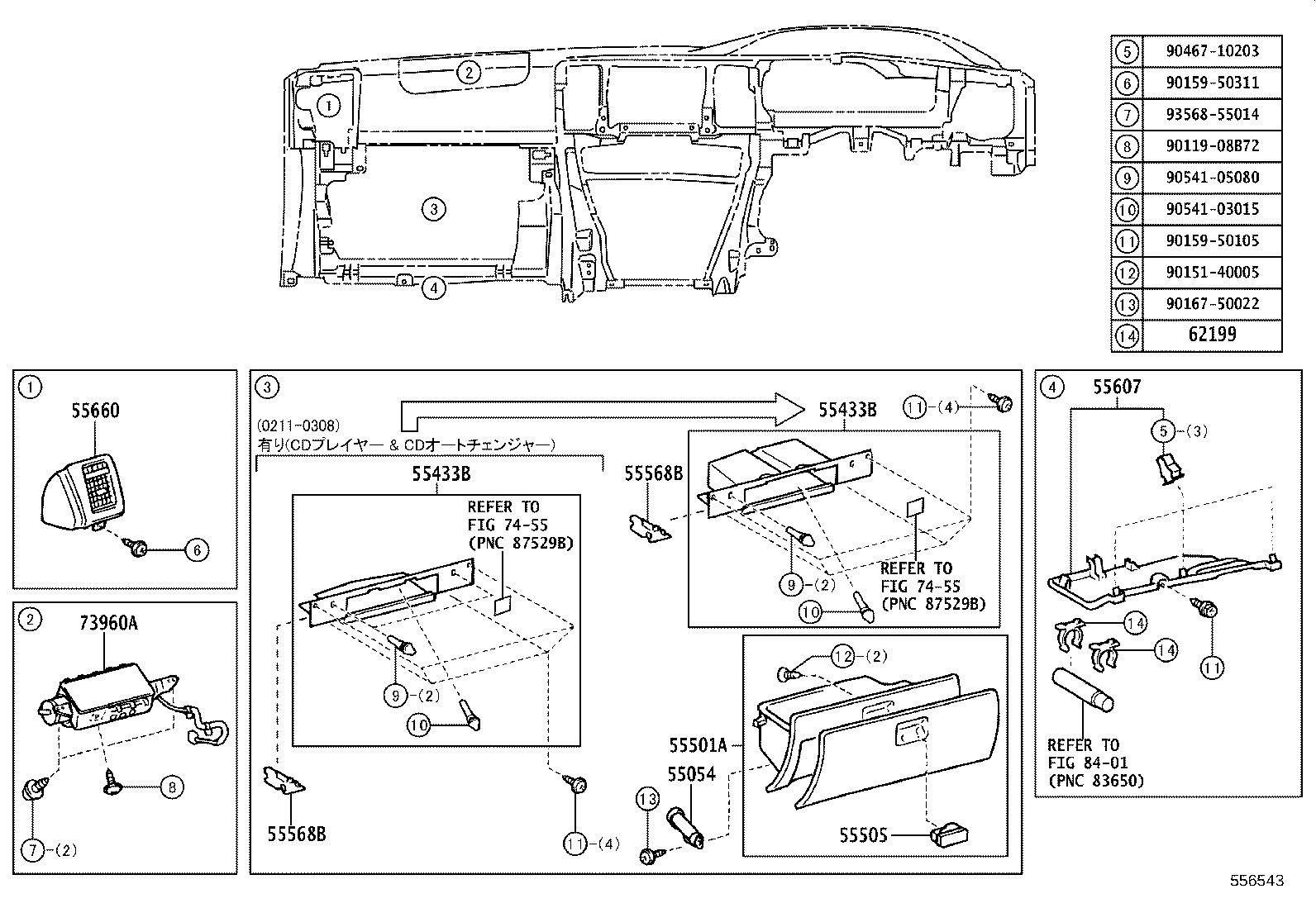

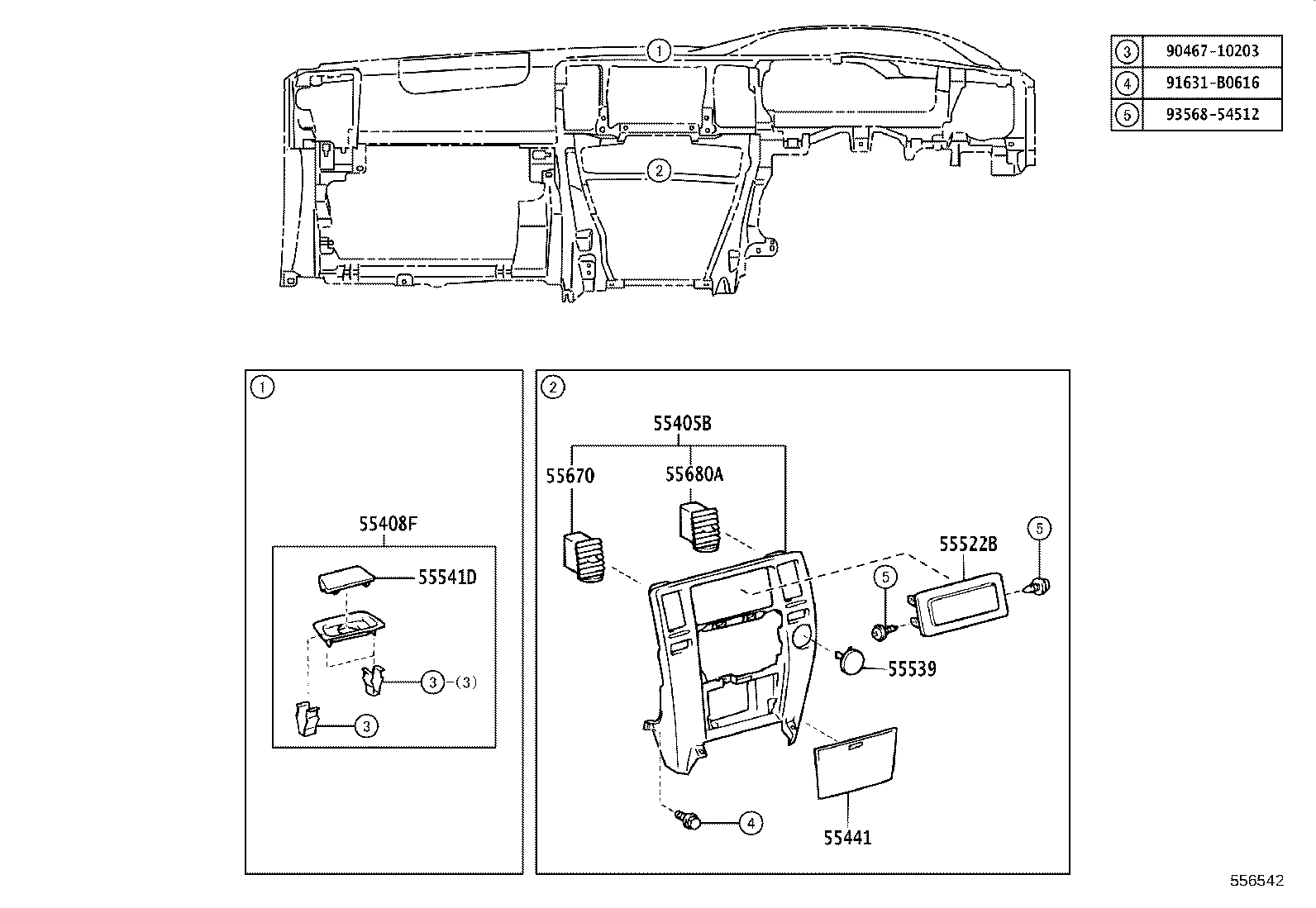

Instrument Panel & Glove Compartment
44 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45837B | Bracket, Steering Lower Tube, NO.1 |
| 50540 | DO0R Assy, Airbag Passenger |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55217B | Retainer, Dash Panel Silencer |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55349A | Cushion, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441 | Box, Instrument Panel |
| 55445B | Plate, Instrument Panel Finish |
| 55457A | Spacer, Instrument Panel Safety Pad |
| 55501A | Door Sub-assy, Glove Compartment |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55541D | Retainer, Stereo Opening Cover, NO.1 |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55568B | Plate, Glove Compartment Door Finish |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55961B | Nozzle, Side Defroster, NO.1 |
| 61165D | Bracket, Instrument Panel TO Cowl Side |
| 61181 | Bracket, Instrument Panel Side |
| 61187B | Bracket, Instrument Panel Side, NO.4 |
| 62199 | Holder, Fusee |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
