Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01
Roof Panel & Back Panel

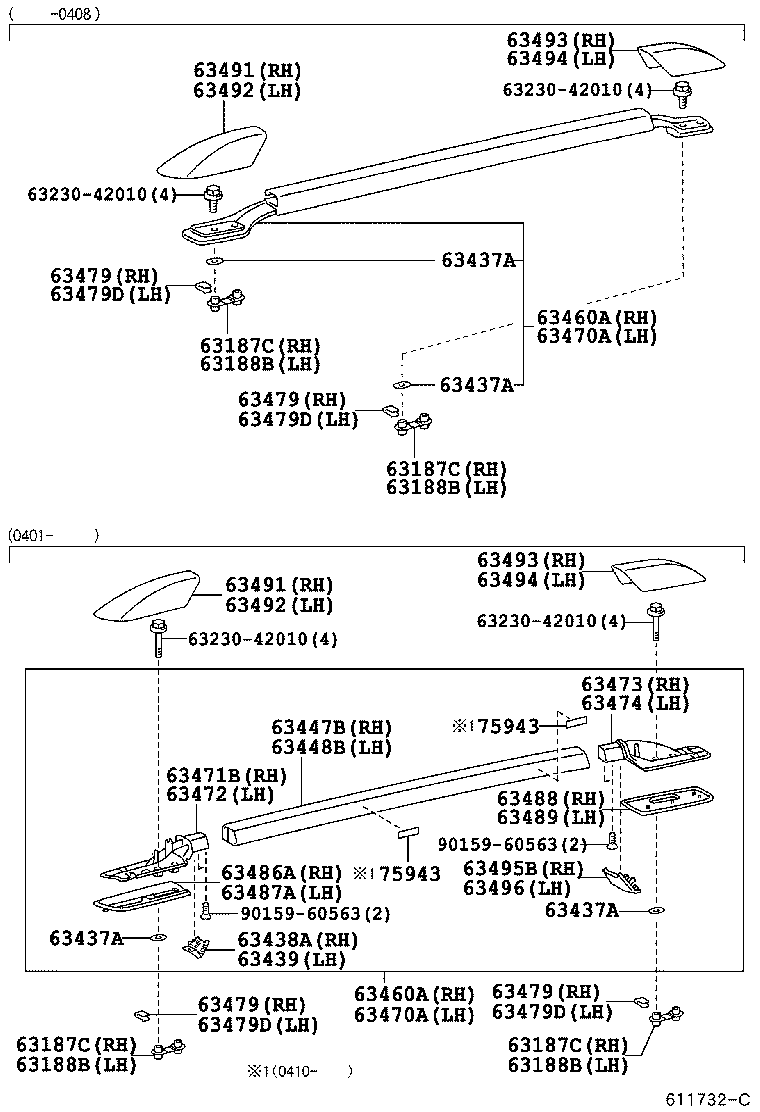

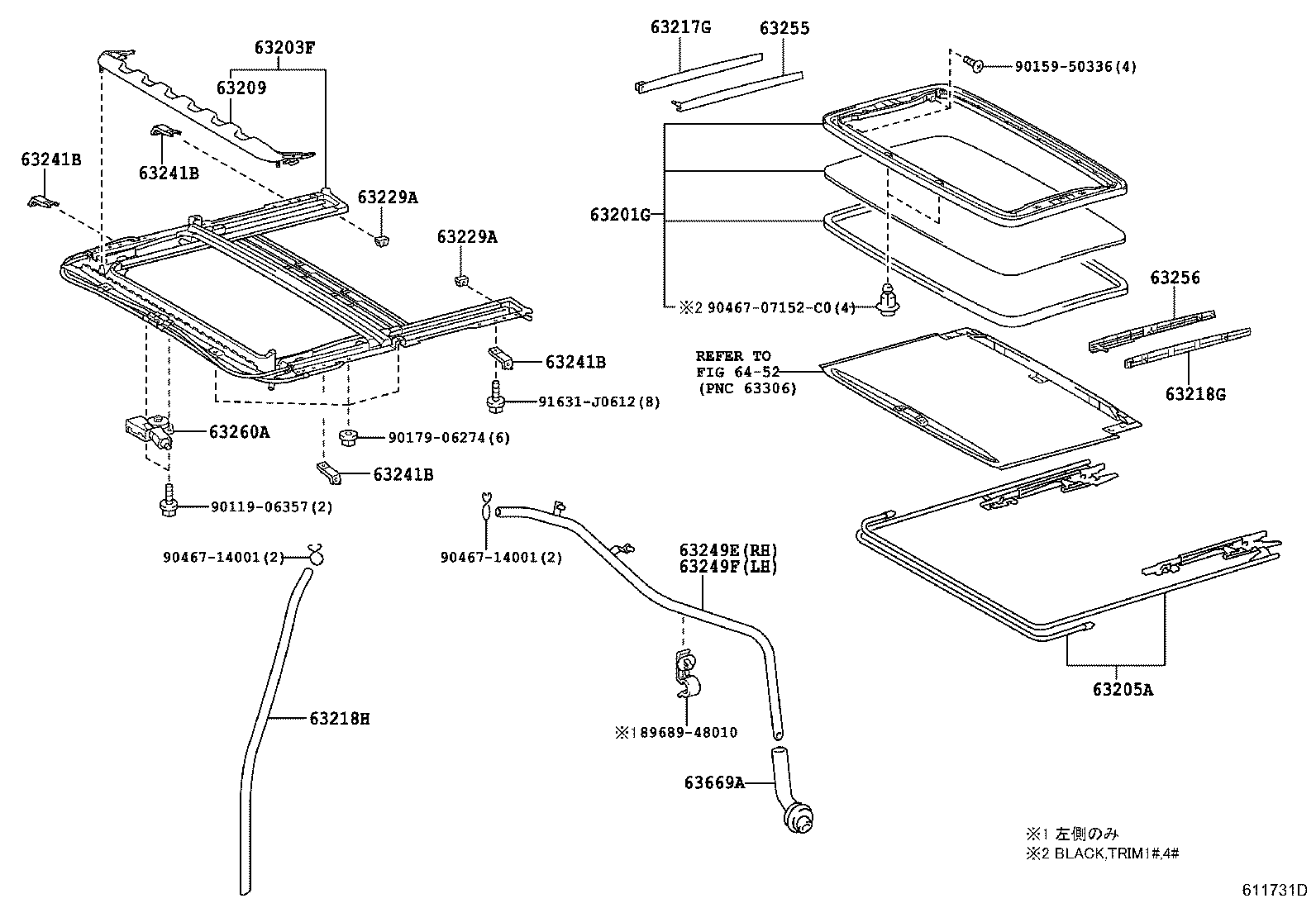

55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61281C | Bracket, Sliding Roof Housing Side Mounting, NO.1 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63119D | Pad, Roof Panel, NO.1 |
| 63123C | Reinforcement, Roof Panel |
| 63125B | Reinforcement, Roof Panel, Front |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63131 | Panel, Windshield Header, Outer |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63187C | Bracket, Roof Rack, NO.1 Rear RH |
| 63188B | Bracket, Roof Rack, NO.1 Rear LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63438A | Cover, Roof Rack End, NO.1 |
| 63439 | Cover, Roof Rack End, NO.2 |
| 63447B | Bar, Roof Carrier, RH |
| 63448B | Bar, Roof Carrier, LH |
| 63460A | Rack Assy, Roof, RH |
| 63470A | Rack Assy, Roof, LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63479 | Retainer, Roof Inner Rack |
| 63479D | Retainer, Roof Inner Rack, LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63669A | Grommet, Sliding Roof Drain |
| 75943 | Stripe, Roof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
