Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

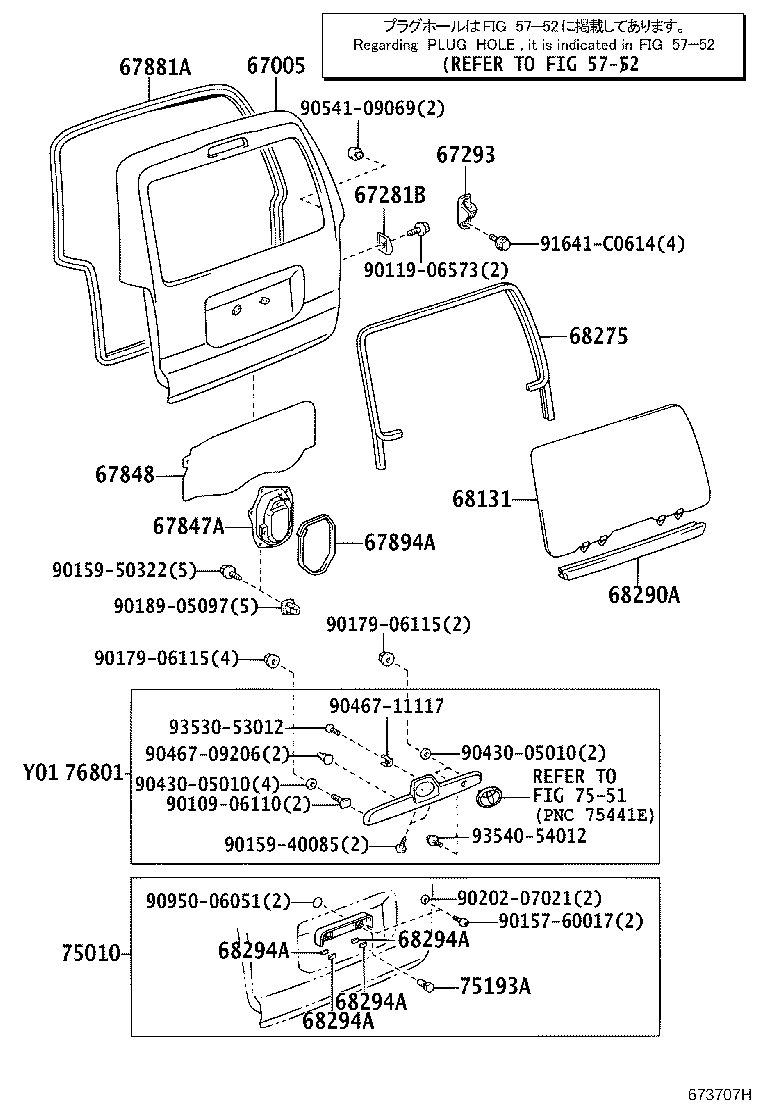

Back Door Panel & Glass
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64787 | Pad, Back Door Trim |
| 64791B | Cover, Back Door Trim |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67751 | Board, Back Door Trim |
| 67847A | Cover, Back Door Service Hole |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67894A | Protector, Back Door Panel, NO.1 |
| 68131 | Glass, Back Door |
| 68275 | Run, Back Door Glass |
| 68290A | Weatherstrip Assy, Back Door Glass, Outer |
| 68291 | Weatherstrip, Back Door Glass |
| 68294A | Dam, Back Door Glass Adhesive |
| 74629A | Cover, Assist Strap Hole |
| 74650A | Strap Assy, Assist |
| 75010 | Frame, Rear License Plate |
| 75193A | Holder, Rear License Plate |
| 76801 | Garnish Sub-assy, Back Door, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
