Seat & Seat Track

100 part groups · 10 illustrations

Illustrations

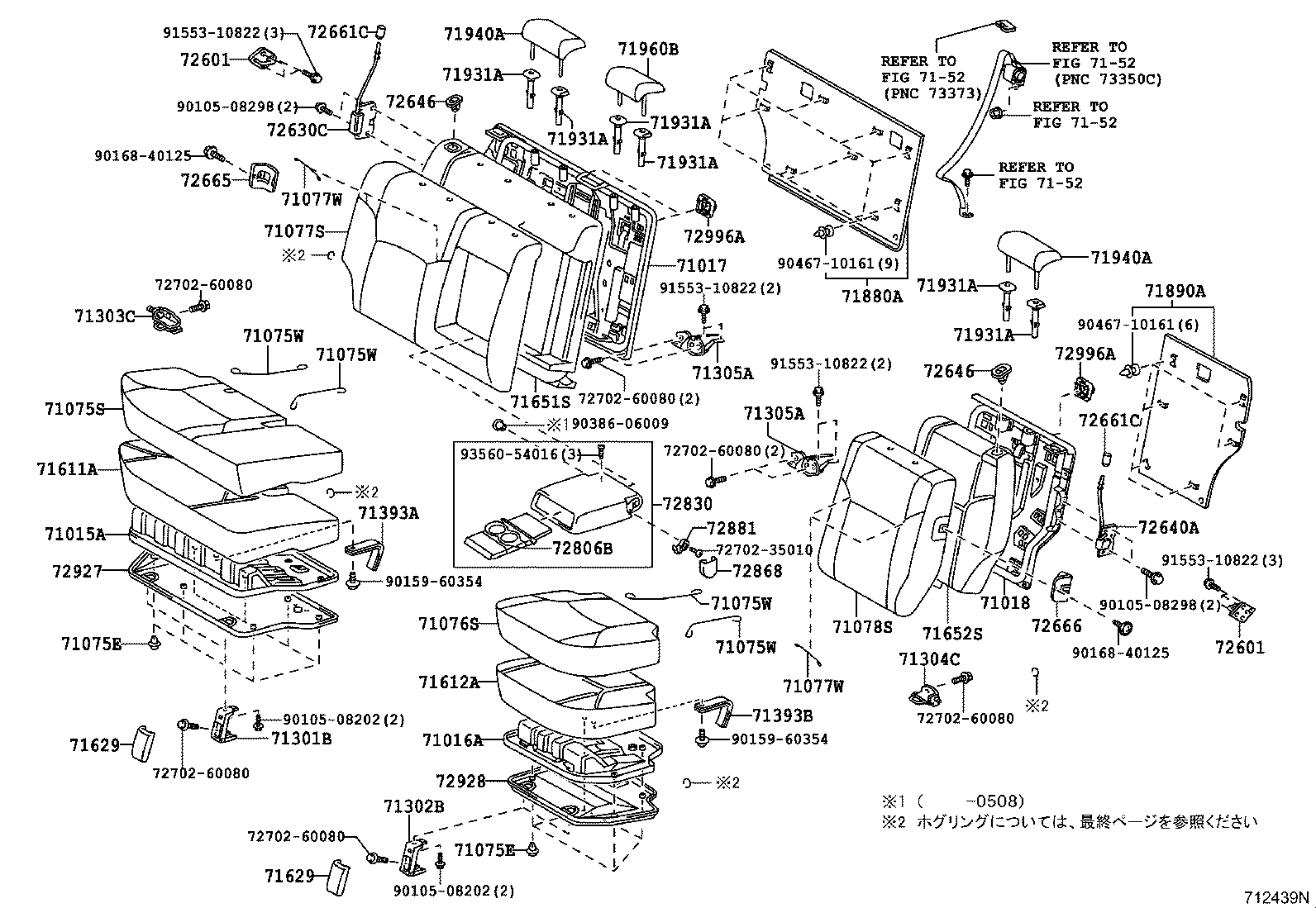

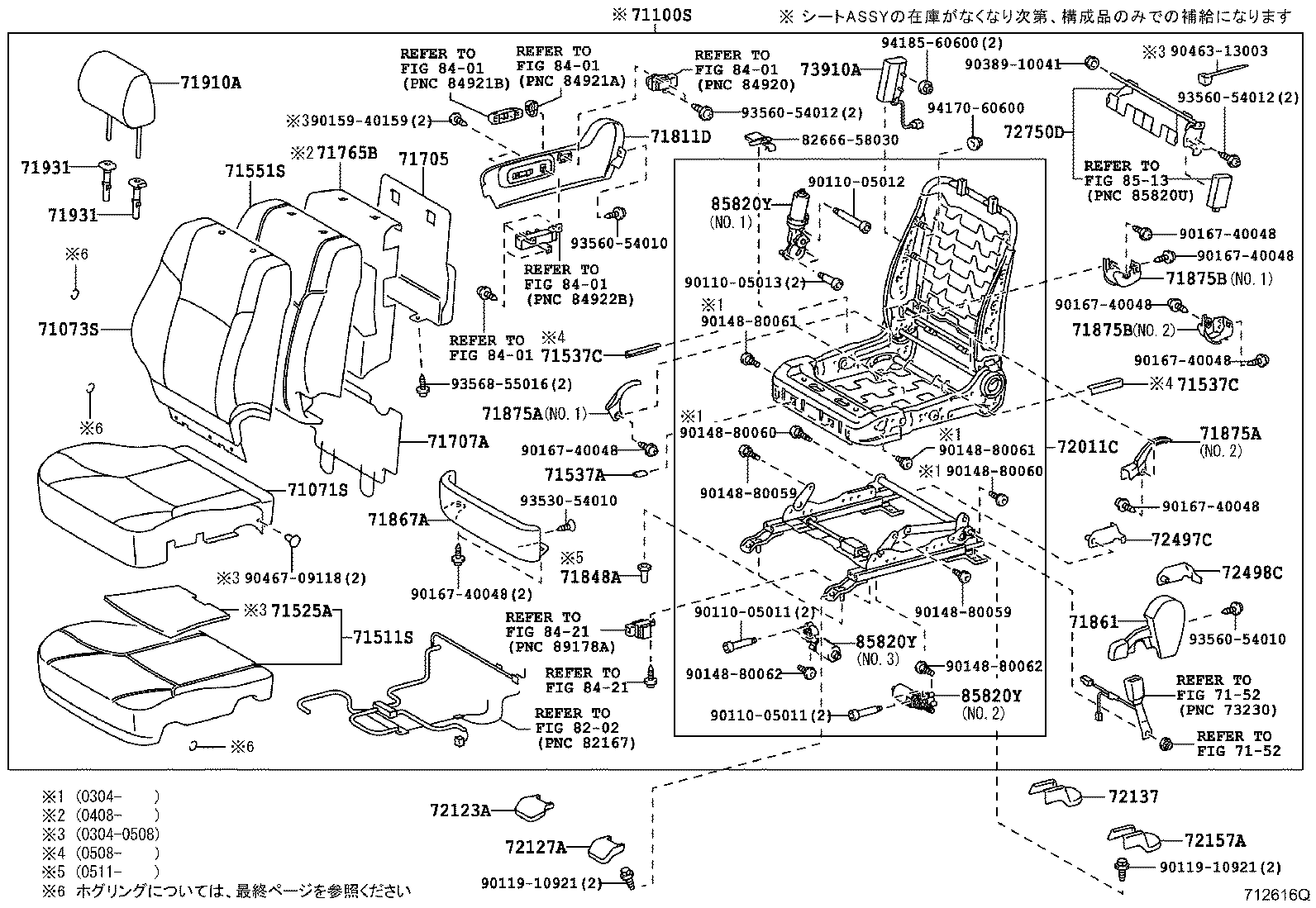

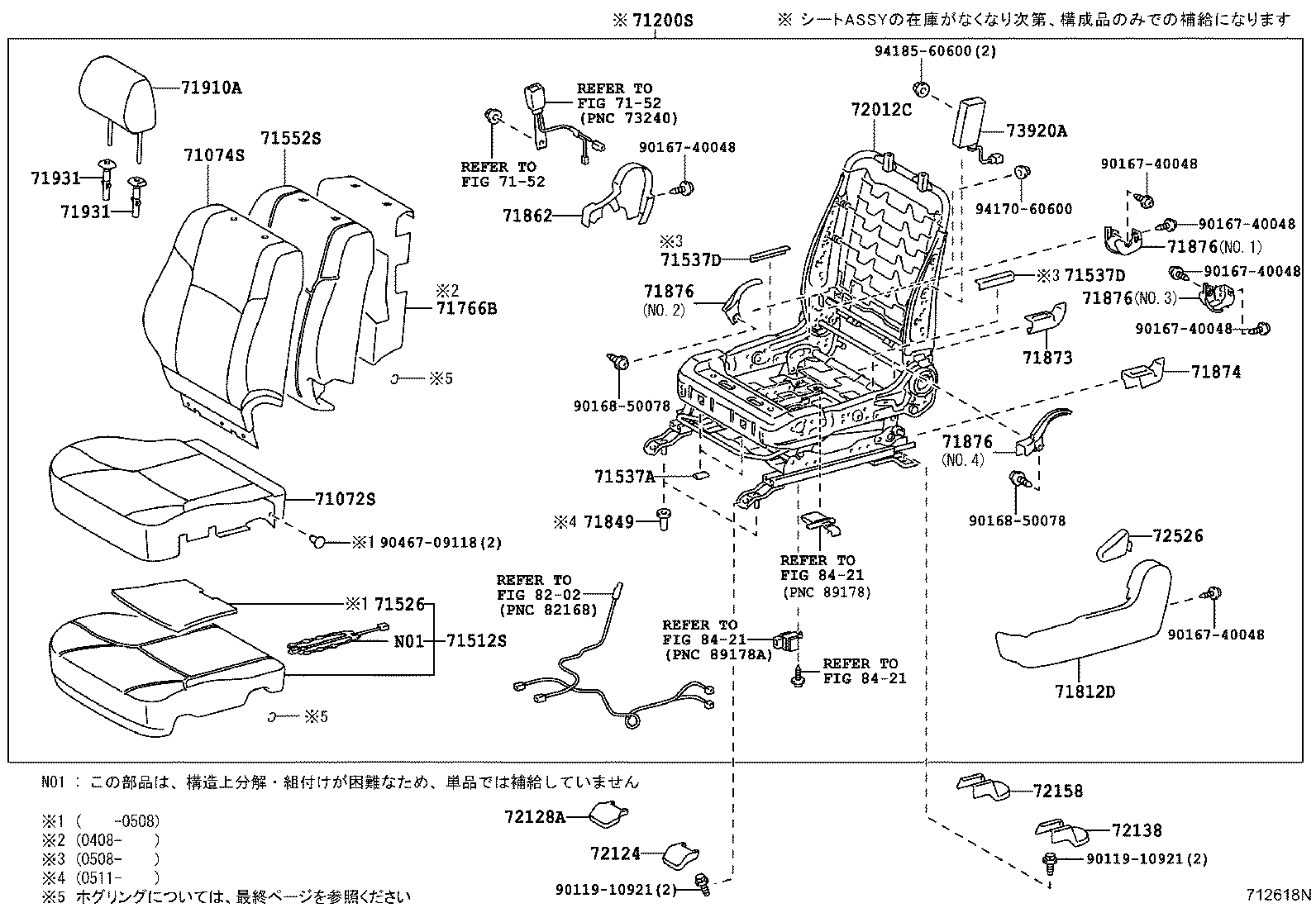

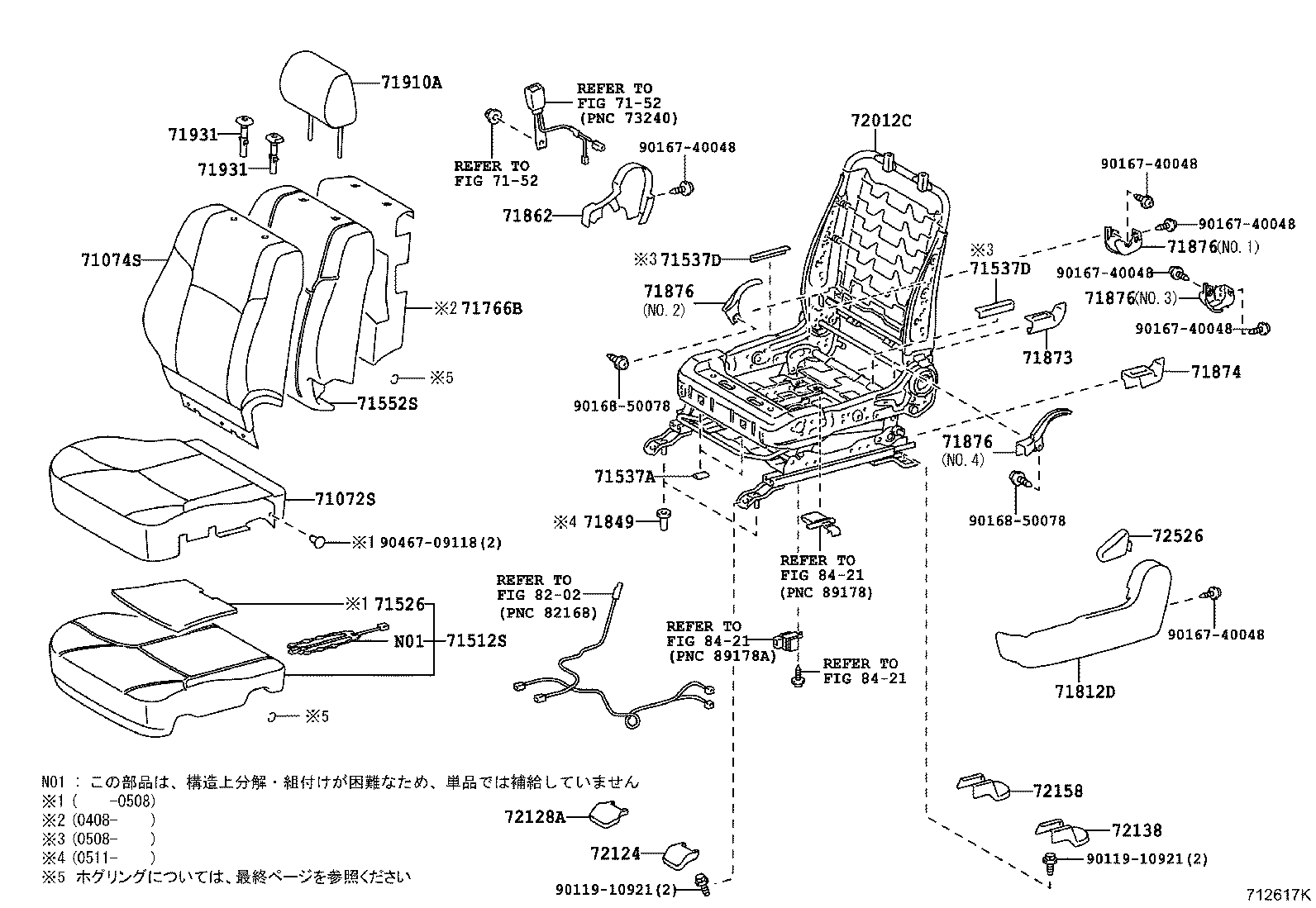

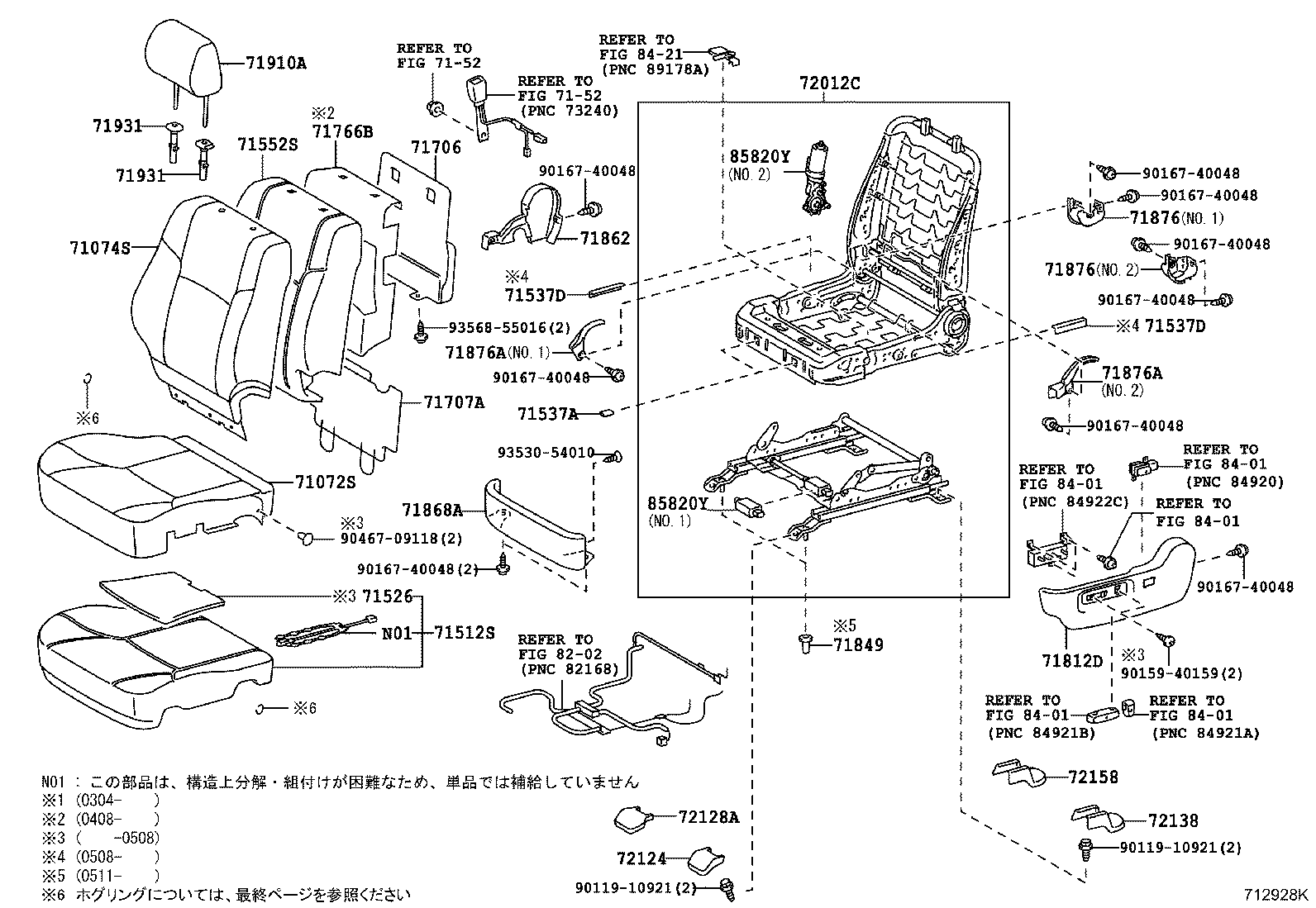

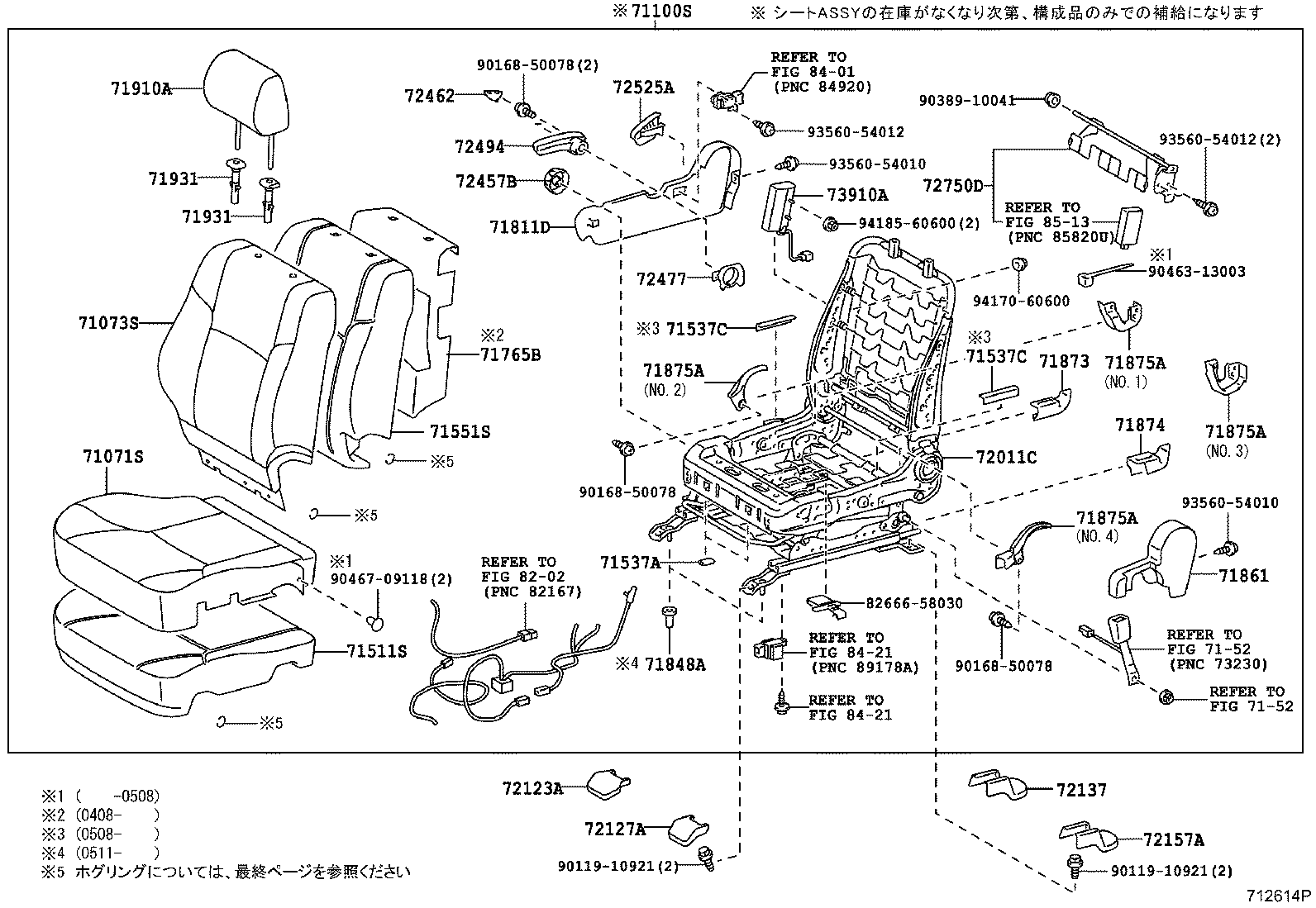

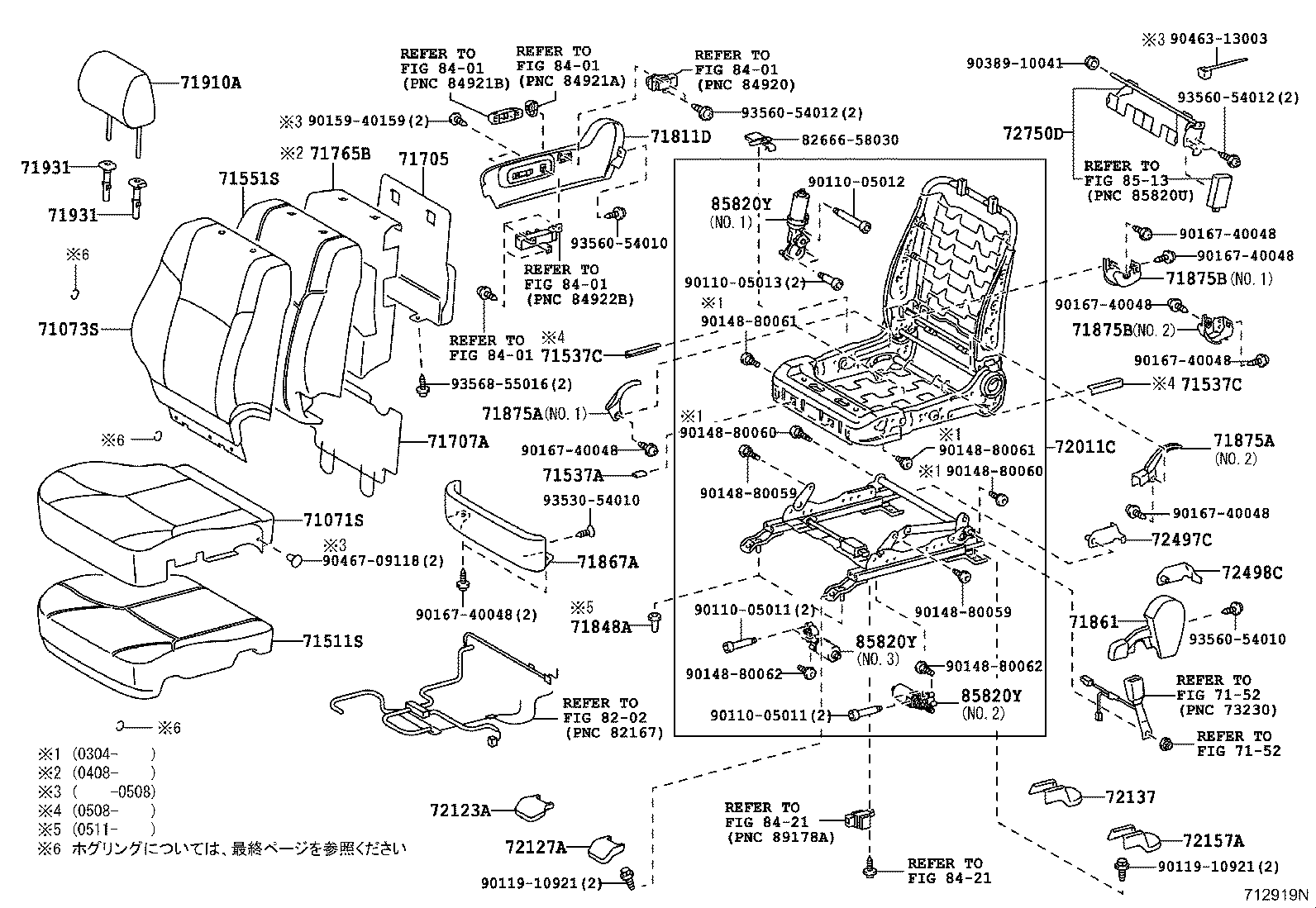

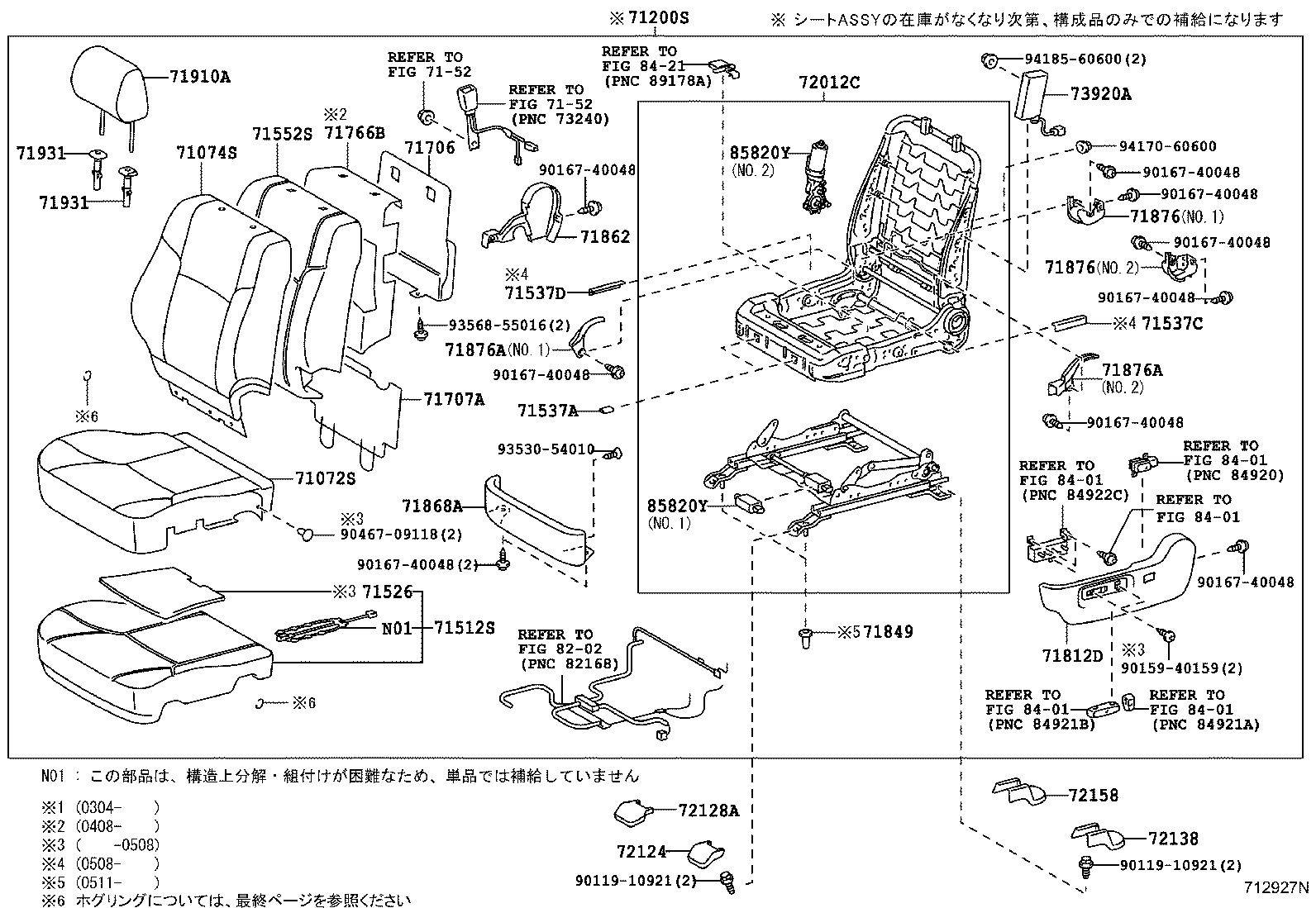

Figure 712613M 712613M 2002-11 → — Figure 712614P 712614P 2002-11 → — Figure 712919N 712919N 2002-11 → — Figure 712616Q 712616Q 2002-11 → — Figure 712617K 712617K 2002-11 → — Figure 712618N 712618N 2002-11 → — Figure 712928K 712928K 2002-11 → — Figure 712927N 712927N 2002-11 → — Figure 712439N 712439N 2002-11 → — Figure 718165A 718165A 2002-11 → —

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W Wire, Rear Seat Cushion Cover
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W Wire, Rear Seatback Cover
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71393A Band, Rear Seat Cushion, RH
71393B Band, Rear Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71525A Pad, Front Seat Cushion Cover, Center RH
71526 Pad,Front Seat Cushion Cover,Center LH
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71629 Cover, Rear Seat Cushion Hinge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71707A Cover Sub-assy, Front Seatback Board
71765B Protector, Front Seatback, RH
71766B Protector, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72457B Knob, Vertical Seat Adjuster, RH
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72497C Cover, Vertical Adjuster Bracket, Outer
72498C Cover, Vertical Adjuster Bracket, Inner
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72601 Striker Sub-assy, Rear Seat Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72750D Adjuster Assy, Lumbar Support, RH
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72868 Cover, Center Armrest Hinge, RH
72881 Support, Rear Seat Center Armrest, RH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996A Cover, Rear Seatback
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
85820Y Motor Assy, Power Seat
