Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

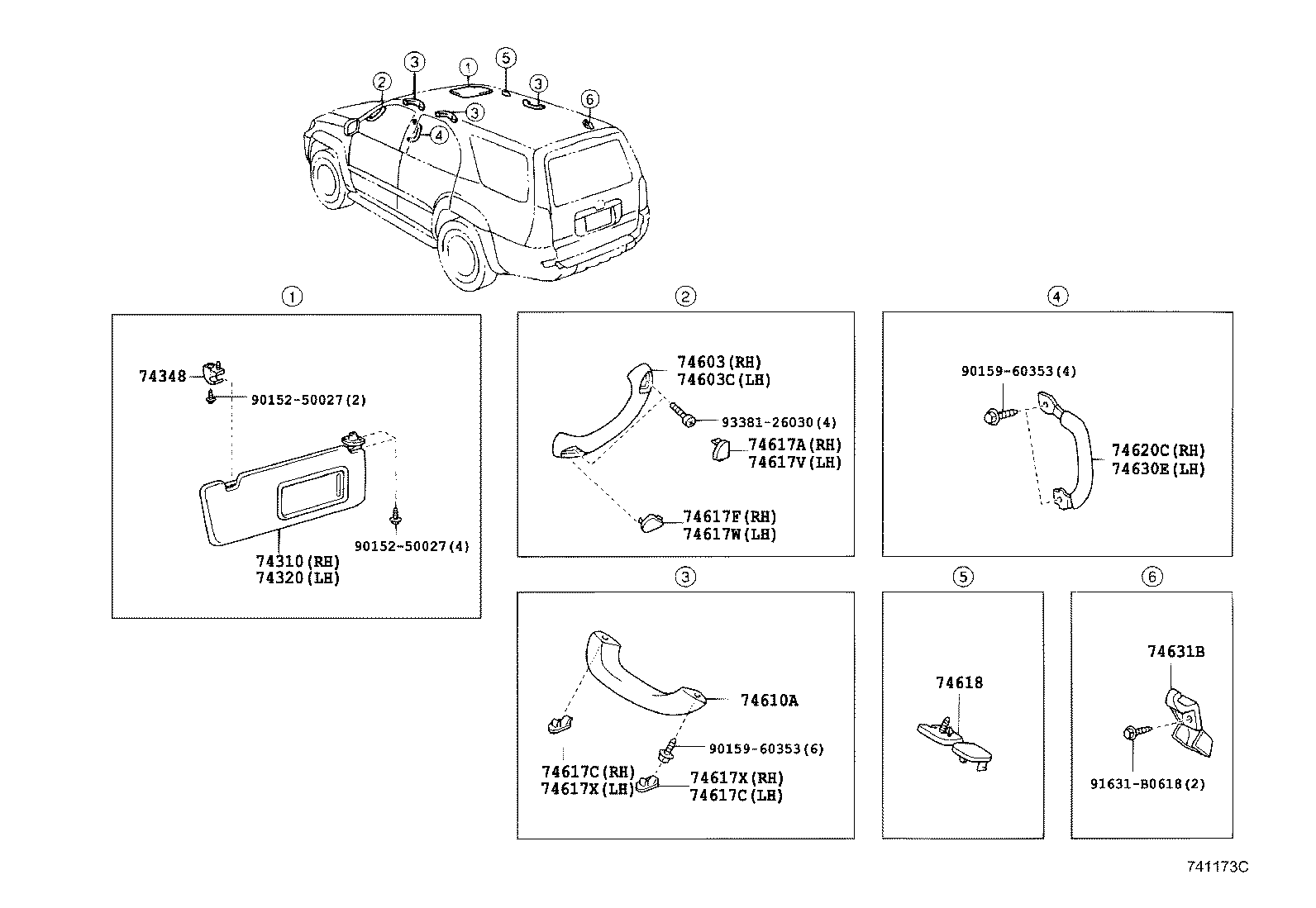

Armrest & Visor
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74240 | Armrest Assy, Rear, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603C | Grip Sub-assy, Assist |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617V | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74617X | Plug, Assist Grip |
| 74618 | Plug, Front Assist Grip |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74631B | Hook, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
