Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01
Caution Plate
24 part groups · 3 illustrations
Part groups

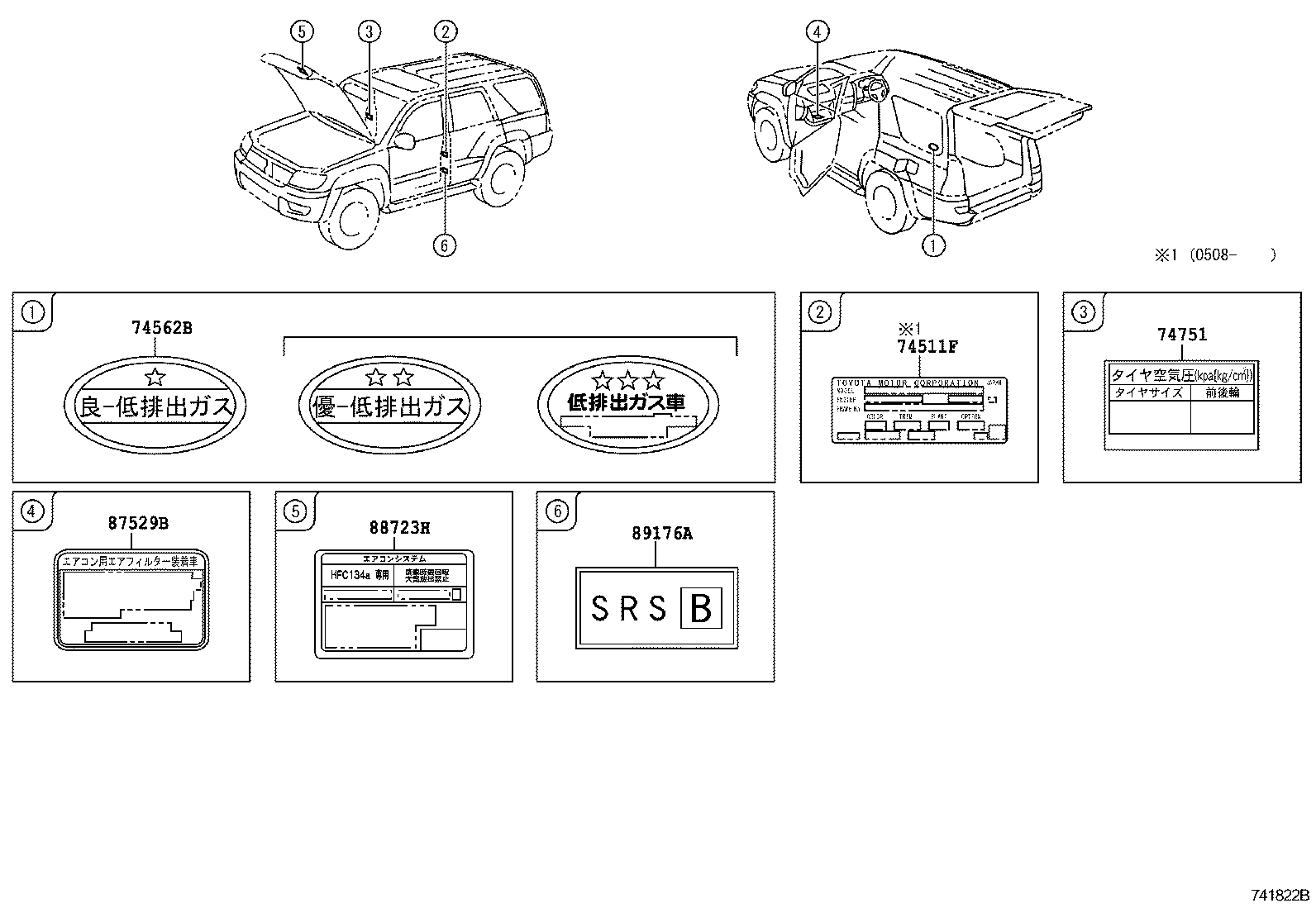

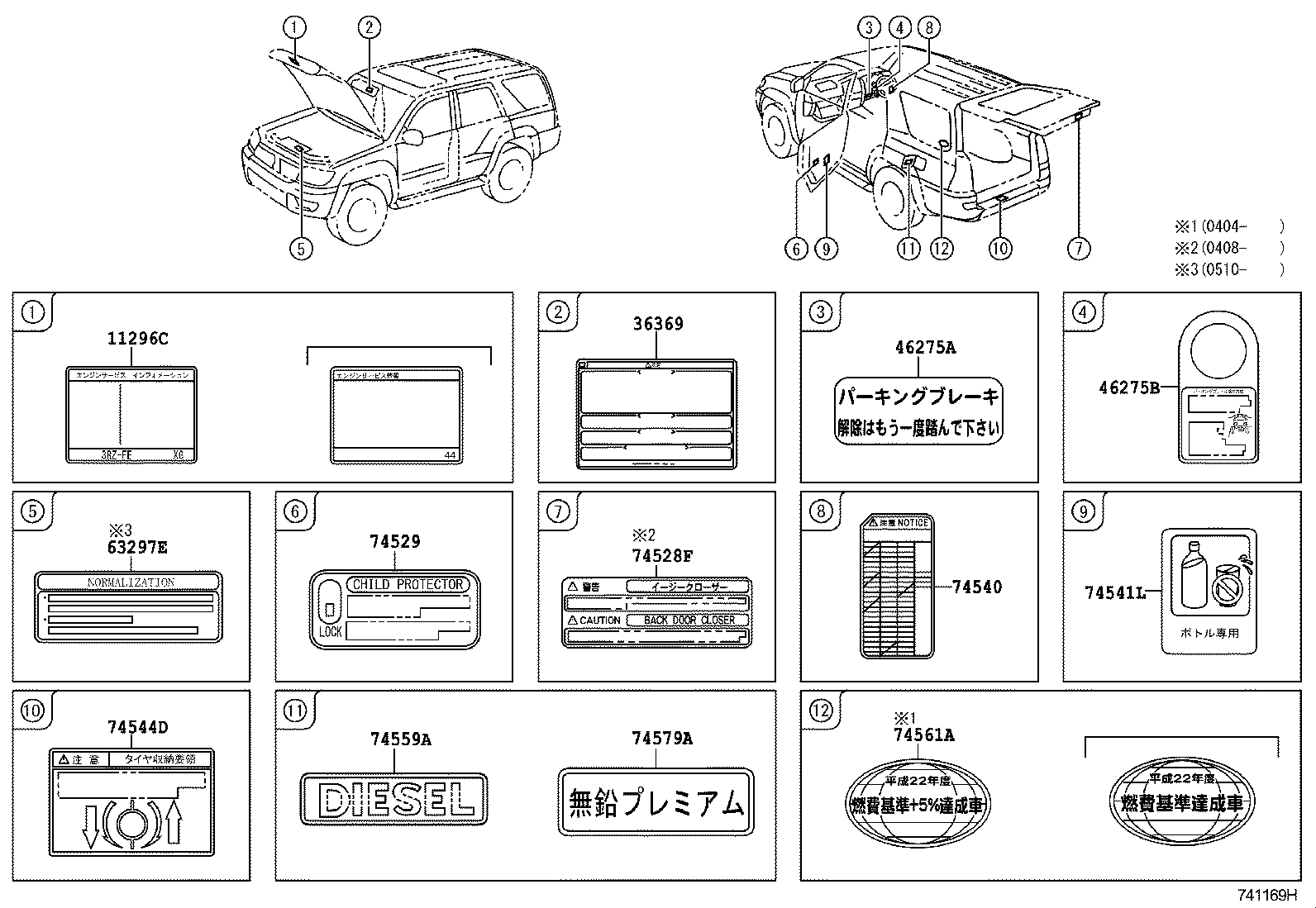

| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 17791A | Label, Maintenance Information |
| 36369 | Label, Transfer Information |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 63297E | Label, Sliding Roof Caution |
| 74511B | Plate, Name |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528F | Label, Door Closer Caution, RH |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74540 | Plate, Fuse Block Caution |
| 74541L | Label, Bottle Holder Information |
| 74544D | Plate, Tire Carrier Caution |
| 74559A | Plate, Fuel Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74579A | Label, Unleaded Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
