Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

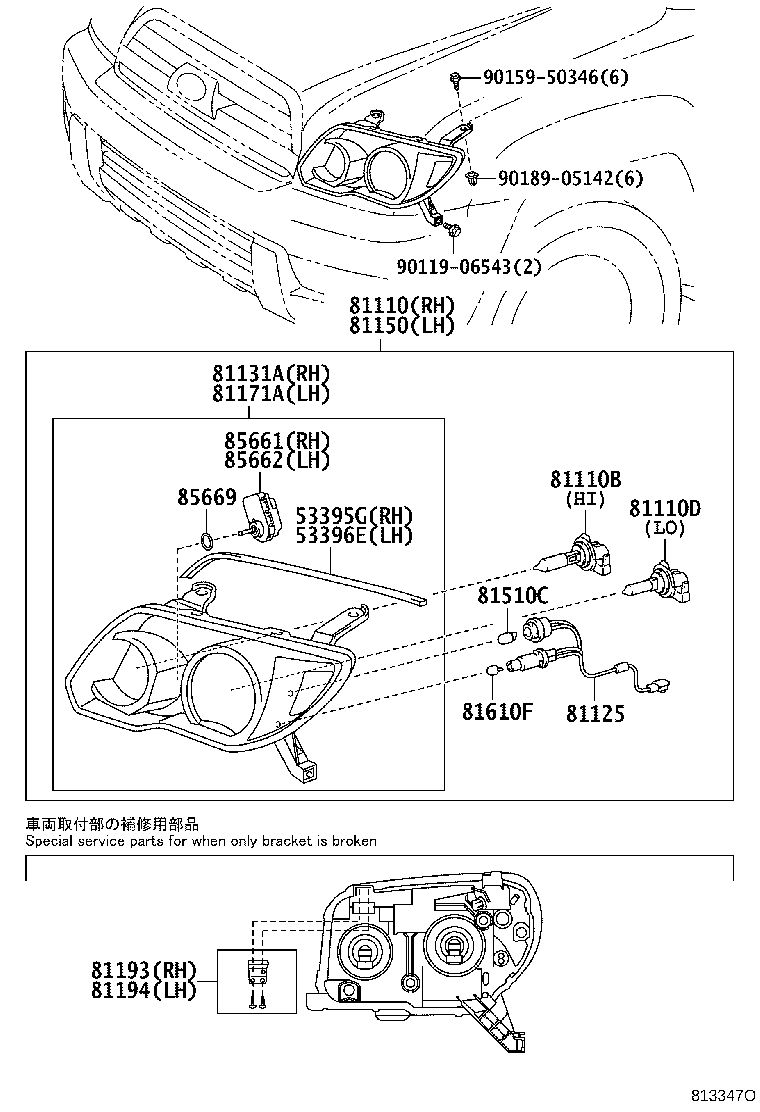

Headlamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53395G | Seal, Hood TO Front End Panel |
| 53396E | Seal, Hood TO Front End Panel, NO.2 |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81171A | Unit, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
